Single axis low cost analog output tilt sensor

Name: Single axis low cost analog output tilt sensor
SKU: 62014430631
Availability: InStock

Price:

Quantity:

Product Description

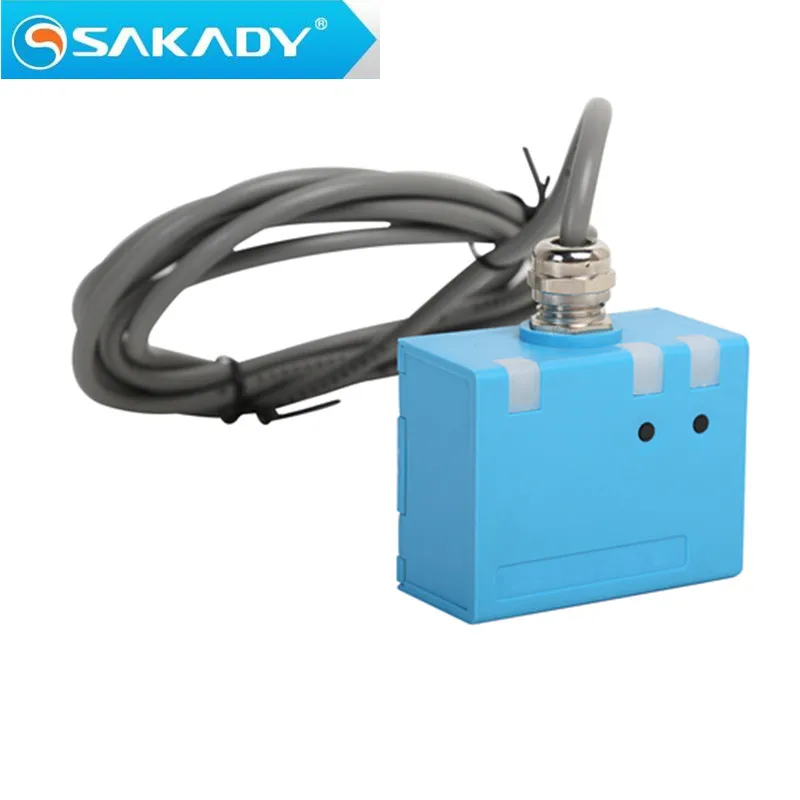

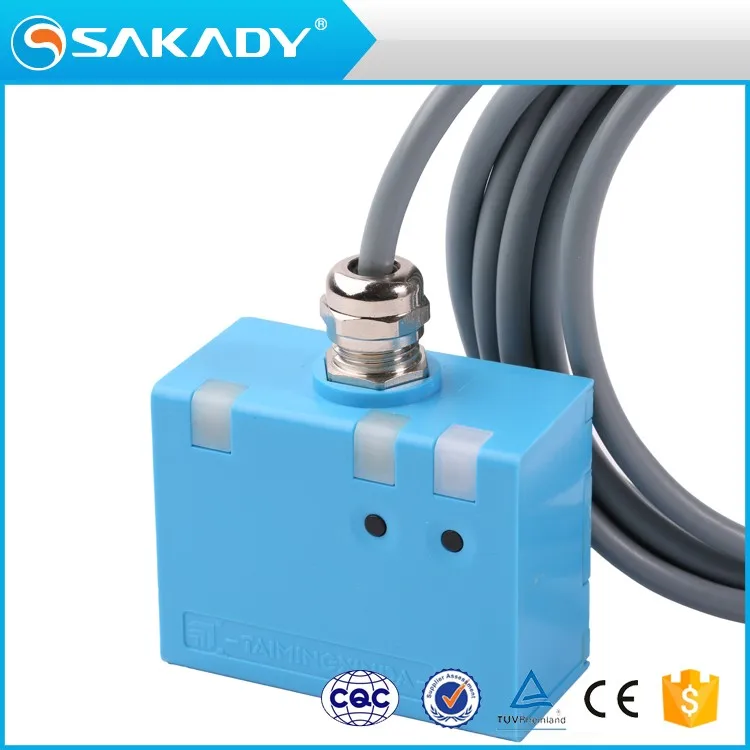

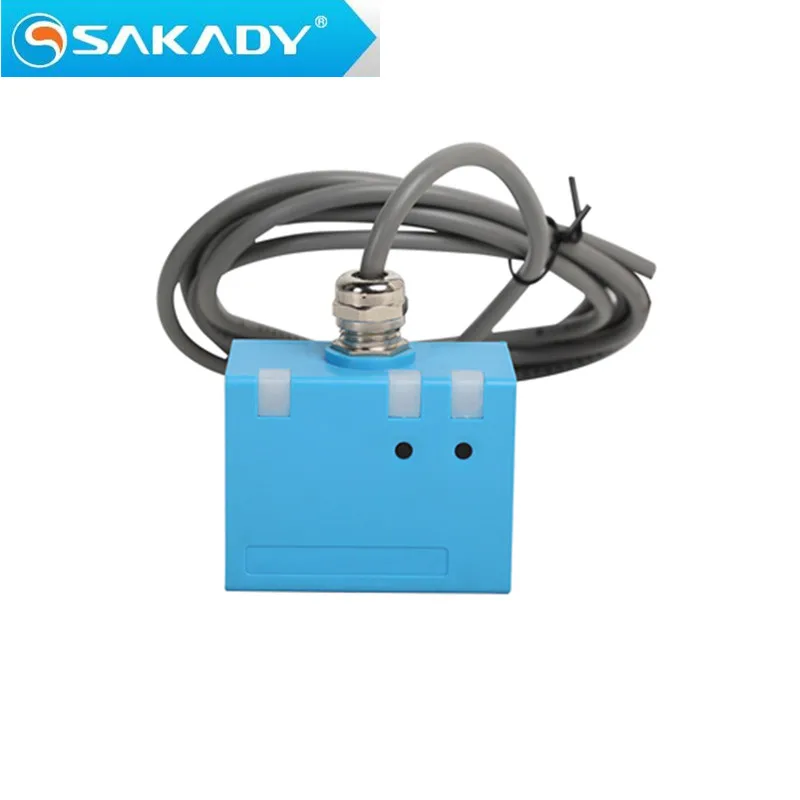

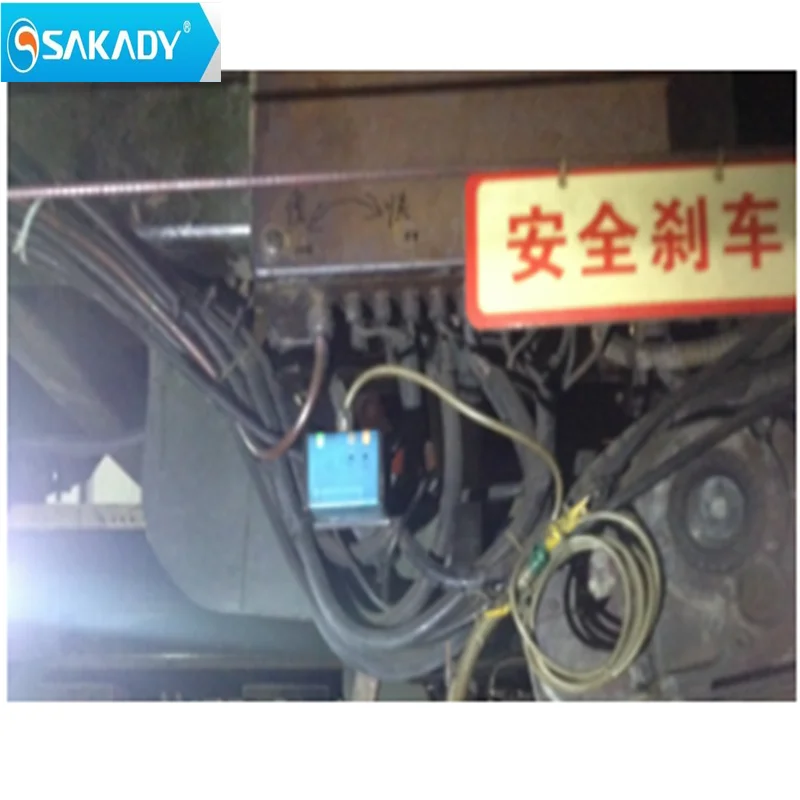

Single-axis low cost analog output tilt sensor

FEATURE

SPECIFICATION

Model	TM-INC360-10U-Y
Detecting range	0~360°
Absolute accuracy	≤ ±0.5°
Response delay	≤ 20ms
Resolution	≤ 0.1°
Repeat accuracy	≤ ±0.1°
Temperature drift	≤ 0.027°/K
Running display	Green LED
Set instructions	Two yellow LEDs indicating the switch status flashes
Bottom	2 PUSH-BOTTOM
Switch status	Two yellow LEDs:Switch state(each output)
Working voltage	10~30VDC
No-load current	≤ 25mA
Power on stable delay	≤ 200ms
Output	Analog voltage
Ambient temperature	-40~85℃
Shell material	ABS
Protection level	IP67
Connect	2m PVC cable, 4x0.25mm²

LED DISPLAY:

LED display according to the working status	LED Green Powder	LED Yellow Powder	LED Yellow Powder
Set Switch Point(output S1)	Dark	Flash	Dark
Set Switch Point(output S2)	Dark	Dark	Flash
Start the analog boundary point setting mode.	Dark	Flash	Flash
Setting the boundary point of analog	Dark	Flash	Dark
The normal operation	Bright	Switch state	Switch state
Restore to factory Settings.
2s...10s	Dark	Flash	Flash
Resume normal operation	Flash	Dark	Dark
Under voltage	Flash	Dark	Dark

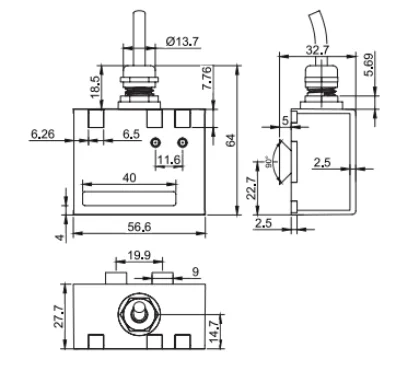

DIMENSIONAL DRAWING:

Sensor orientation:

When the electrical interface is vertically up, it defaults to zero of the sensor.

According to the specific requirements of the customer, preset 0.

For example,the electrical interface is zero when it is vertically down.

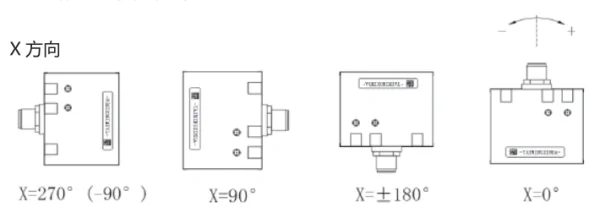

Direction of X:

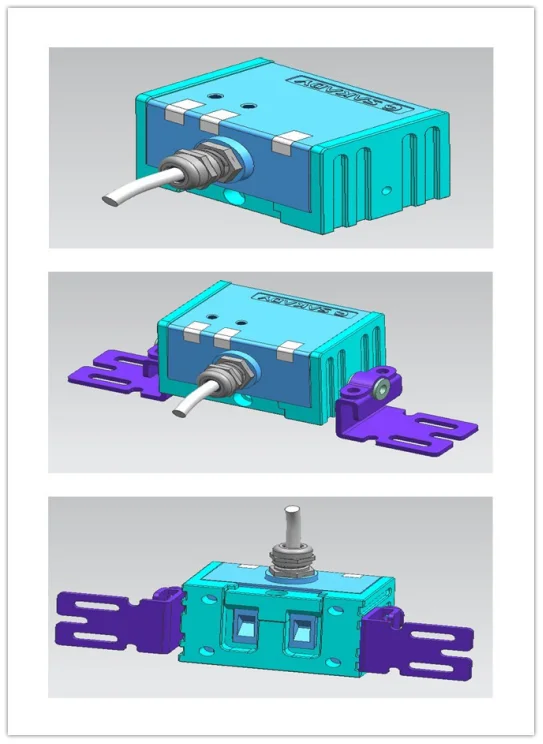

MOUNTRING BRACKET:
