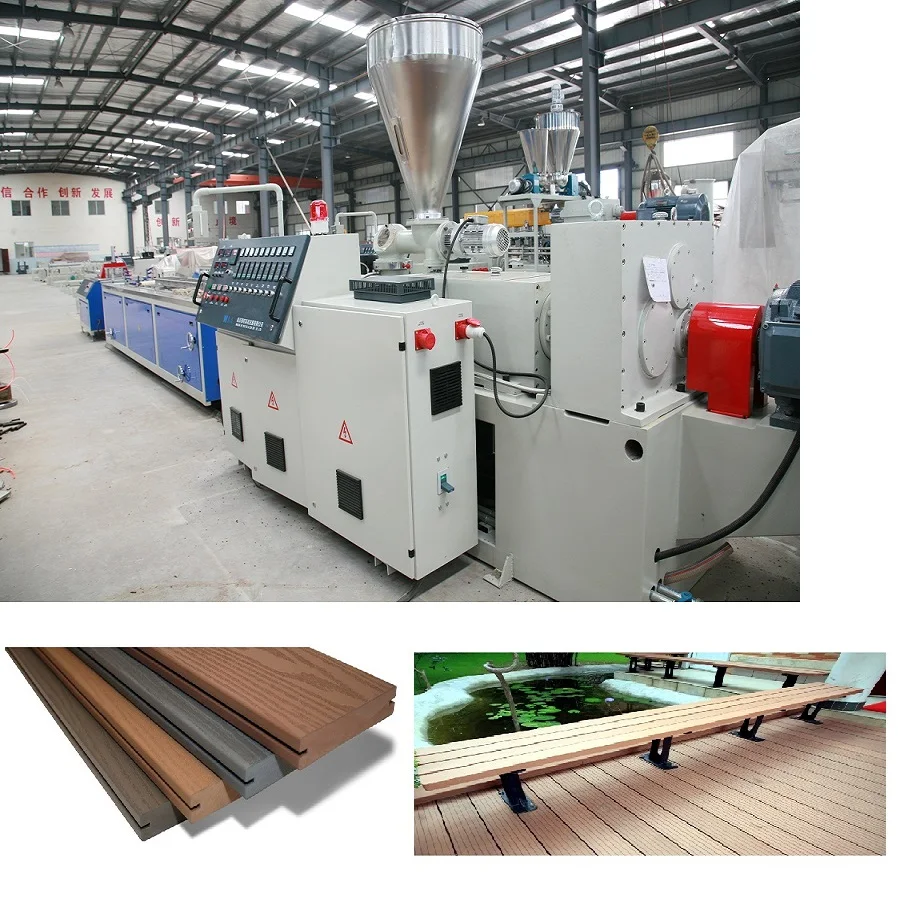

wpc decking making machine

Product Overview

Description



Wood-plastic products is as a substitute for traditional wood products, greatly reduce the demand for wood. According to the demand,SKY WIN is the earliest factory who have developed and research the one step and two step WPC extrusion machine .



Raw Material: 28-45%Recycled or Virgin PE/PP, 50-65%wood with additives

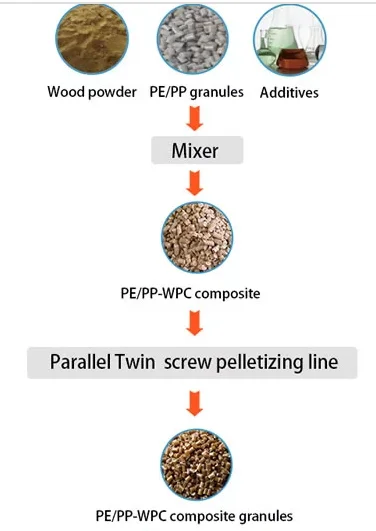

Flowchart for PE/PP+65%wood outdoor profiles production:

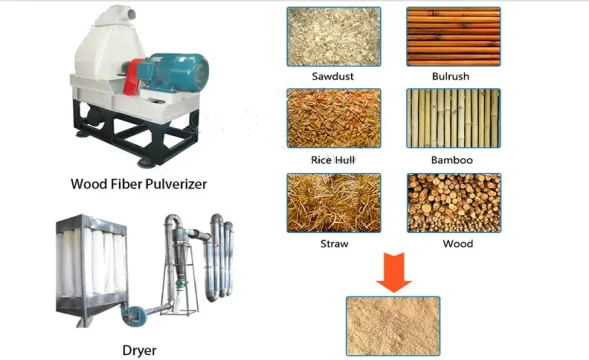

1.Wood chips milled into powder with SWMF400, if wood is wet, dry in SWGZ40

2.Wood powder, PE/PP and additives mixed together in SWHL500/1000

3. Make WPC granules with WPC Parallel Twin-screw Pelletizing Line SWMSZ-L3

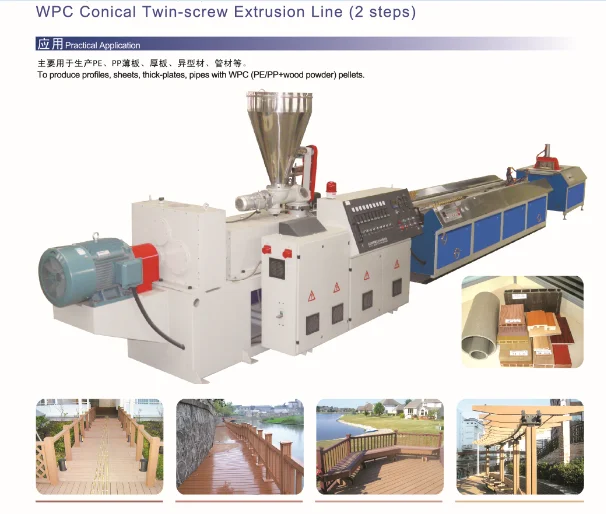

4. Extrude WPC profiles from granules with SWMSX-3 WPC conical twin-screw extrusion lines (or Co-extrusion with on-line embossing for final products)

5. Sand and brush on surface of WPC profiles with SWSG400B

6. Emboss on surface of WPC profiles with SWYH120

7. Crush the waste products into pcs  for re extrusion.

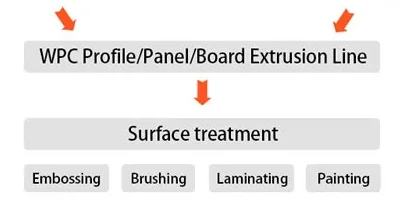

WPC Profile/Panel/Board Extrusion Line PROCESSING CHART









WPC Profile/Panel/Board Extrusion Line PULVERIZER

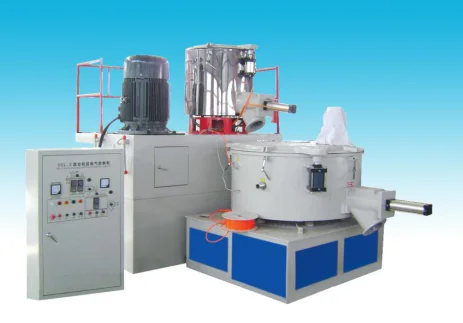

WPC Profile/Panel/Board Extrusion Line MIXER

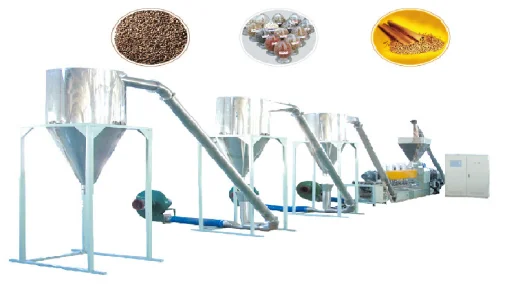

WPC Profile/Panel/Board Extrusion Line PELLETIZING

Main machine:

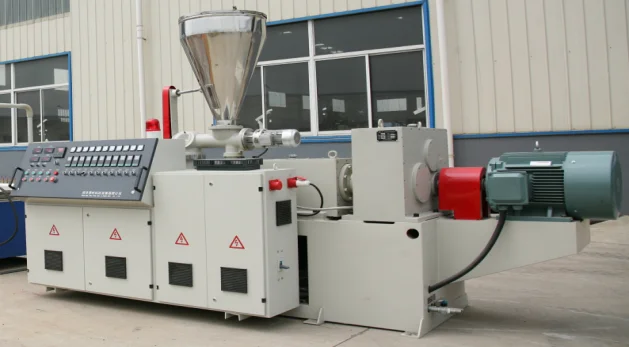

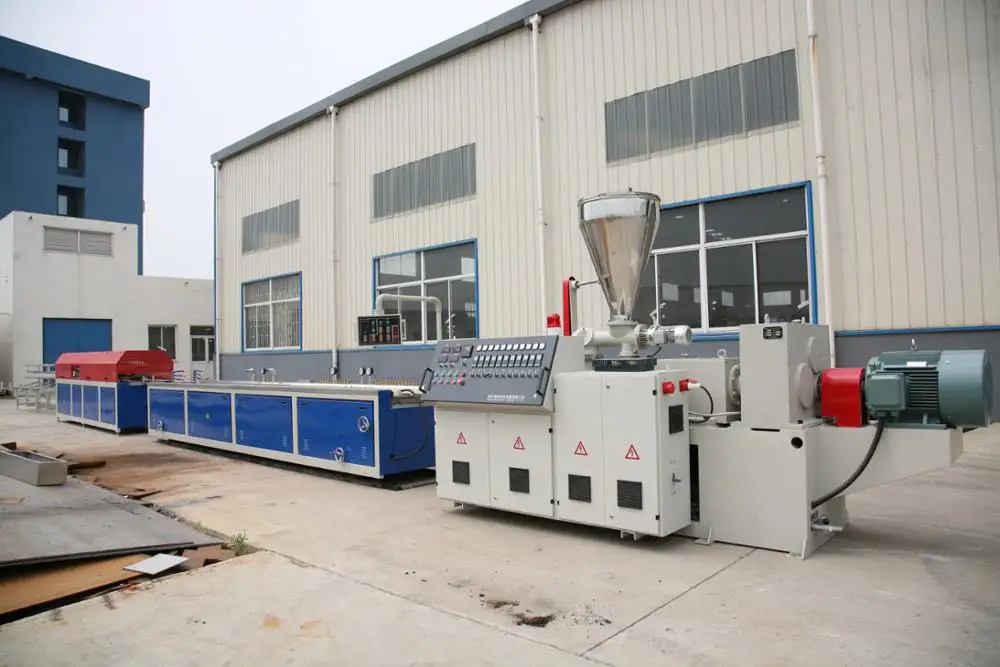

WPC Profile/Panel/Board Extrusion Line EXTRUDER

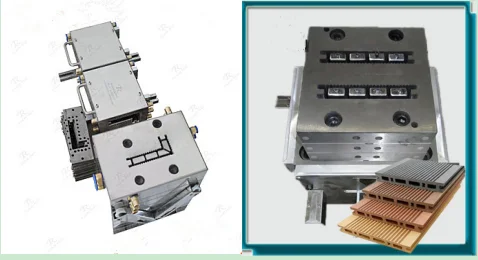

WPC Profile/Panel/Board Extrusion Line Mould

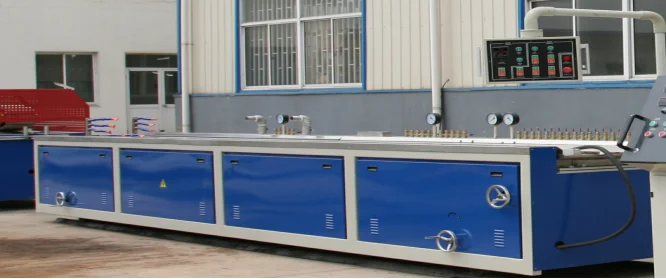

WPC Profile/Panel/Board Extrusion Line calibration table

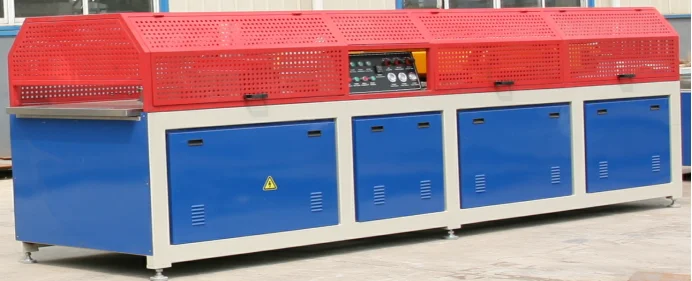

WPC Profile/Panel/Board Extrusion Line Haul off & Cutter

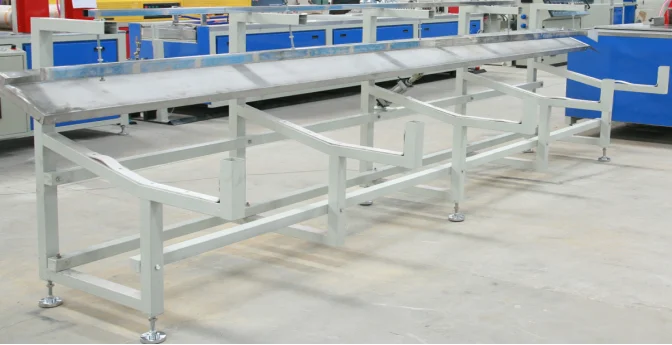

WPC Profile/Panel/Board Extrusion Line Stacker

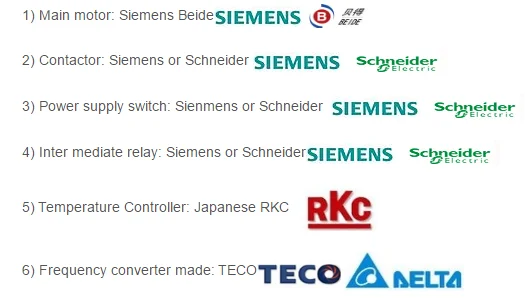

WPC Profile/Panel/Board Extrusion Line Key spare parts

Item and specification

Equipment  Type	Screw Diameter (MM)	Total Power (KW)	L/D Ratio	Output(KG/H)	Outline Dimension (MM)	Total Weight (KG)
SWMSX-1	45/90	39.8	36-40	30-60	12000x1300x2400	4500
SWMSX-2	50/104	47	36-40	60-90	16500x1400x2700	6500
SWMSX-3	65/132	86	36-40	70-160	17500x1520x2800	7400
SWMSX-4	80/156	127.6	36-40	250-350	18800x1850x2900	9400
SWMSX-5	92/188	179.6	36-40	300-500	19000x2200x3100	15000
