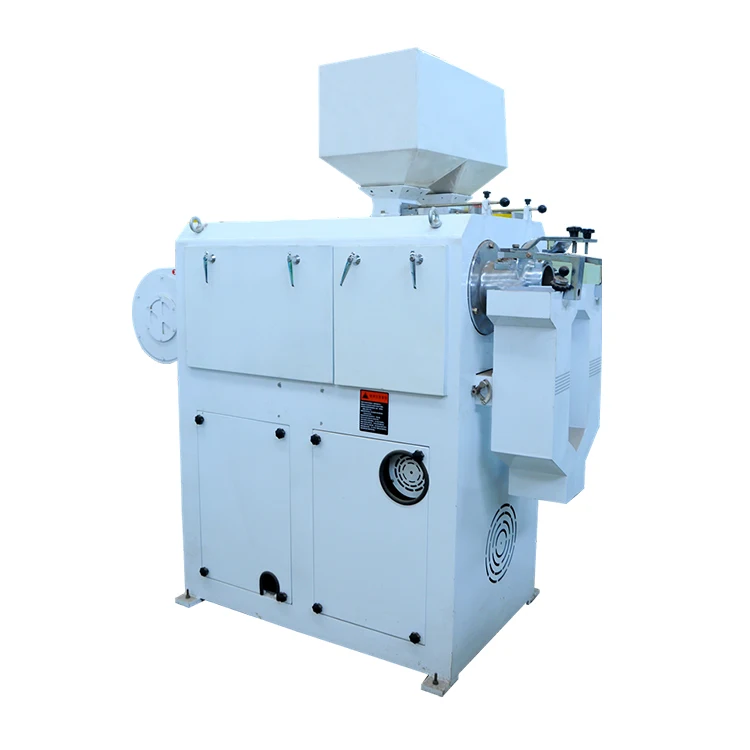

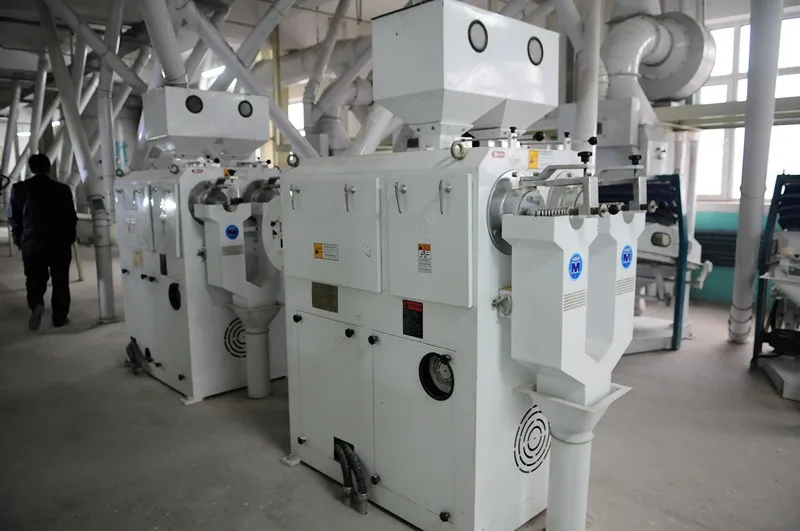

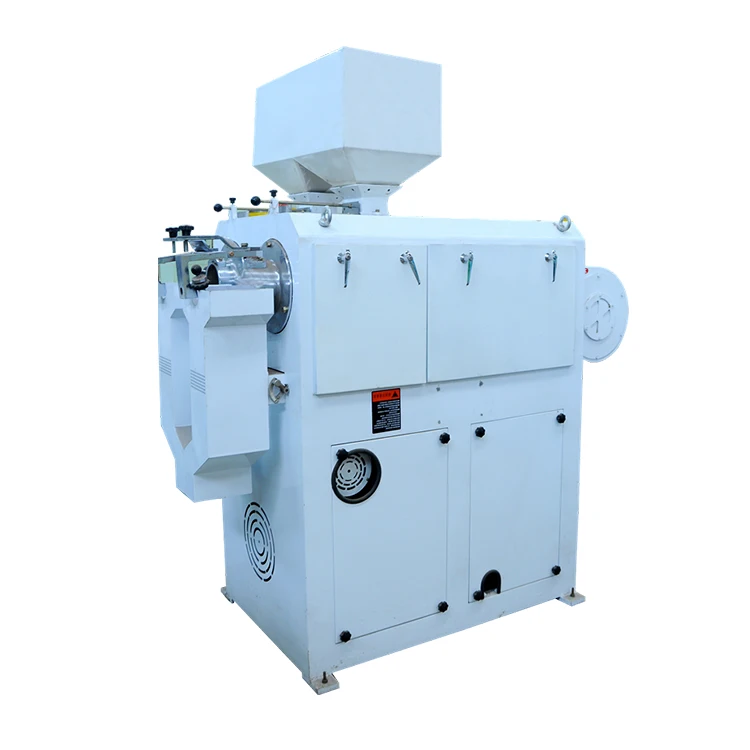

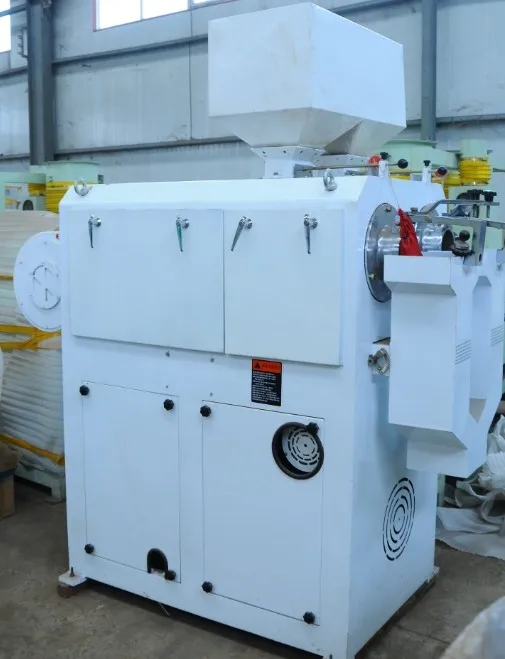

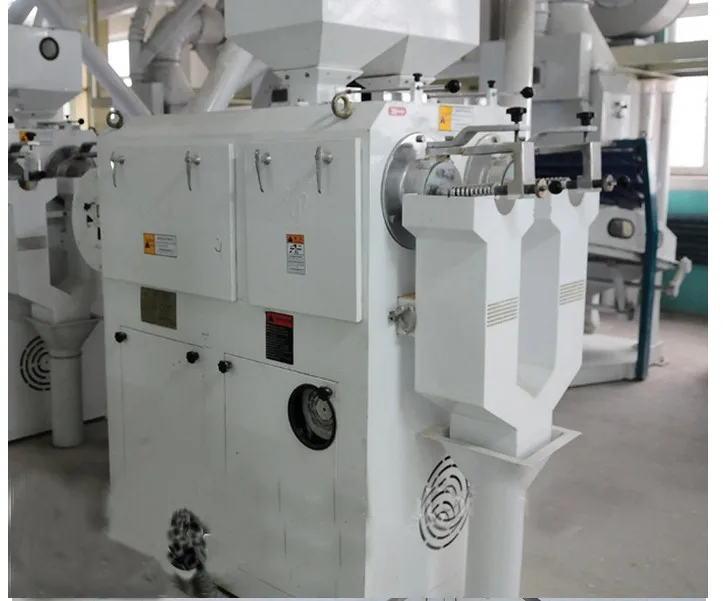

YMHLN Series of Corn Peeler and Polisher Machine

Product Overview

Description

After the raw materials flow into the hopper, grains begin to rub against each other under the action of the roll rotor and screen jacket. When the product achieves certain accuracy, the product will flow out from the outlet. Meanwhile, high-pressure wind is sprayed into the hulling chamber continuously; it enhances the polishing process and takes away part of the heat. It produces corn with a shiny, uniform, dust-free and low temperature finish.

This machine is a special equipment which is mainly applied for corn hulling, de-germinating, polishing. It is the most ideal machine for small and medium-sized corn processing plants. It can also be used in rice processing line after modification.

Advantage

Innovative design, advanced structure, nice exterior;
Reasonable structure, reliable performance;
Great sanitation thanks to bran powder collector;
Change belts without removing spindle, easy operation, widely used;
High throughput capacities, high quality, smooth kernels;
excellent design provides Flexibility with regard to existing spatial conditions



Model	Yield (kg/h)	Power (kg)	Spindle speed (r/min)	Blower speed (r/min)	Weight (kg)	Outline dimension (mm)
YMHLN-115	1000-1500	15	940-1000	4200-4400	240	1050×1020×1150
YMHLN-150	1500-2000	18.5-22	940-1000	3000-3050	320	1189×1020×1430
YMHLN-200	2000-2500	22-30	940-1000	3000-3100	360	1313×1020×1440
JLSM-30/60	3000-6000	37-45	940-1000	2900	1400	1990×855×2000
