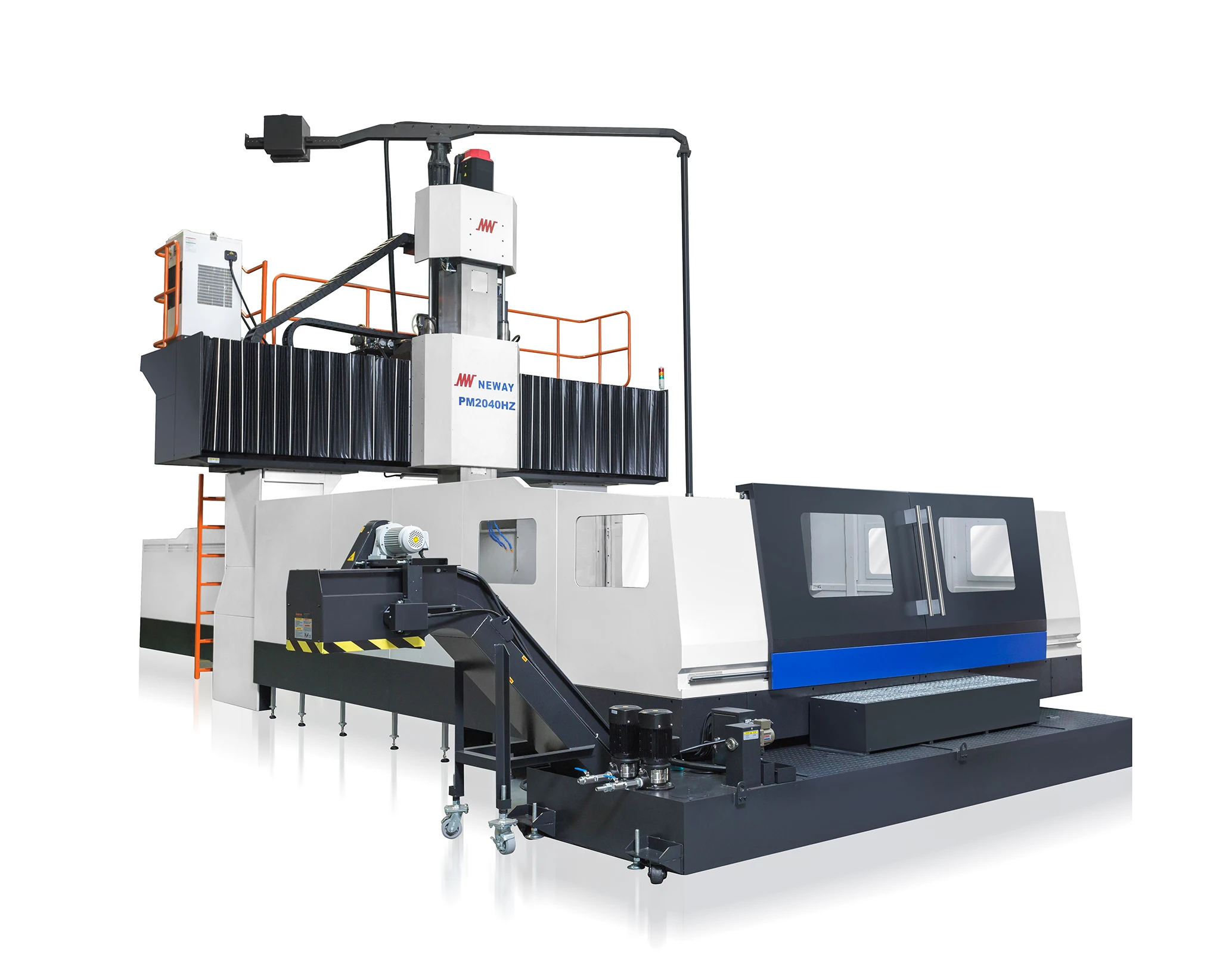

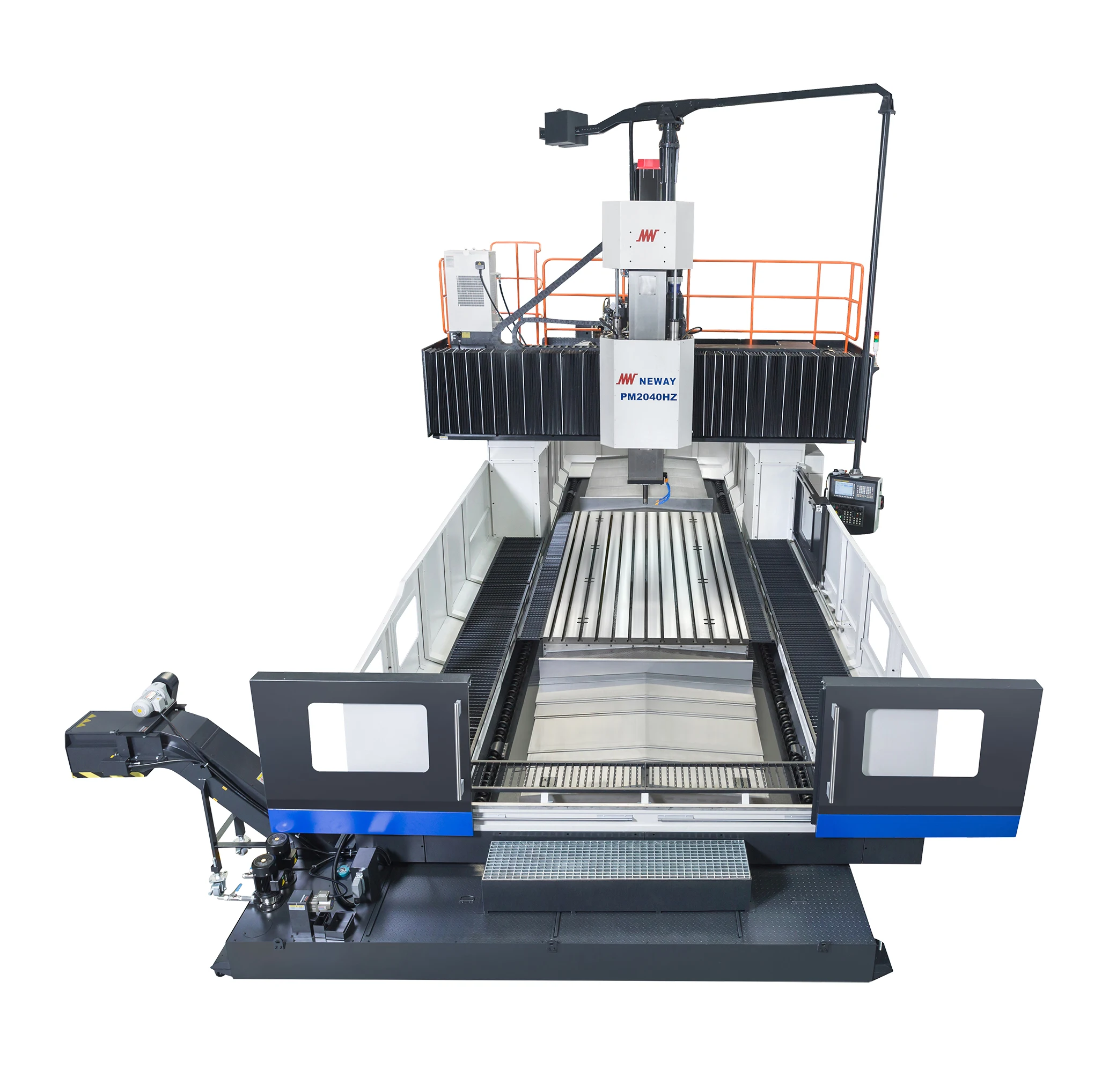

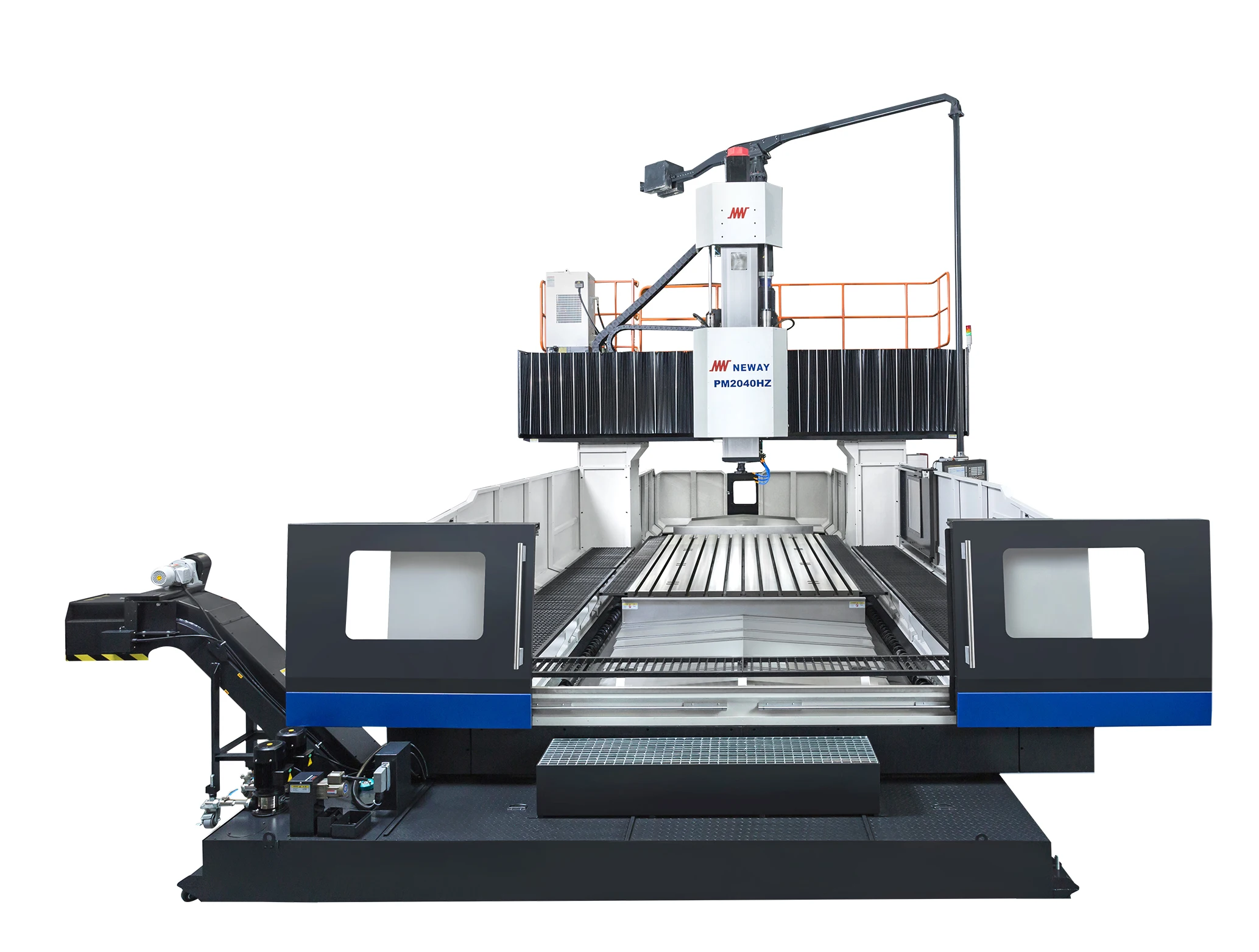

Neway heavy duty gantry milling machine machining center PM2040HZ
Neway heavy duty gantry milling machine machining center PM2040HZ
Neway heavy duty gantry milling machine machining center PM2040HZ
Neway heavy duty gantry milling machine machining center PM2040HZ
Neway heavy duty gantry milling machine machining center PM2040HZ

Neway heavy duty gantry milling machine machining center PM2040HZ

Share on (62014507301):


Price:RUB 76.68

Quantity:


Product Overview

Description

1.1.jpg1.jpg3.2.jpg3.3.jpg4.3.jpg4.4.jpg5.4.jpg5.5.jpg6.6.jpg6.jpg7.7.jpg7.jpg8.8.jpg





ItemUnitPM2030HZPM2040HZPM2050HZPM2060HZPM2530HZPM2540HZPM2560HZPM2580HZPM25100HZPM3040HZPM3060HZPM3080HZPM30100HZ
WorktableThe width of worktablemm200025003000
The length of worktablemm300040005000600030004000600080001000040006000800010000
Wortable loadingkg16000200002300026000180002200030000350004000025000350004000045000
Processing areaStroke (X axis)mm320042005200620032004200620085001050042006200850010500
Stroke (Y axis)mm3200320037004200
Stroke (Z axis)mm1000 [1250]1000 [1250]1000 [1250]
spindle nose to the worktakemm200~1200 [ 250~1500]200~1200 [250~1500]200~1200 [250~1500]
distance between columnsmm2800 [3200]2800 [3200]3300[3800]3800[4200]
SpindleTool shank -BT50BT50BT50
Spindle speedr/min40~350040~350040~3500
Max. torqueN.m1120/13201120/13201120/1320
spindle powerkW22/2622/2622/26
section of rammm420×420420×420420×420
rapid movingX,Y,Z axis rapid moving speedm/min15/15/1215/15/1212/15/1212/15/1212/12/1212/12/1212/12/1210/12/128/12/1212/12/1212/12/1210/12/128/12/12
ATCNo. of tools-[24/32/40/60][24/32/40/60][24/32/40/60]
max tool dia./length/weightmm/mm/kgΦ105/350/15Φ105/350/15Φ105/350/15
max. tool dia(no neighbor)mmΦ200Φ200Φ200
accuracy
GB/T17421.2-2016
ISO 230-2:2006		X axis(positioing/repeatability)mm0.020/0.0120.025/0.0160.030/0.0200.035/0.0240.020/0.0120.025/0.0160.035/0.0240.045/0.0320.055/0.0400.025/0.0160.035/0.0240.045/0.0320.055/0.040
Y axis(positioing/repeatability)mm0.020/0.0120.025/0.0160.030/0.020
Z axis(positioing/repeatability)mm0.016/0.010[Z axis 1250:0.020/0.012]0.016/0.010[Z axis 1250:0.020/0.012]0.016/0.010[Z axis1250:0.020/0.012]
 CNC system-NEWAY FANUC  [SIEMENS]NEWAY FANUC  [SIEMENS]NEWAY FANUC  [SIEMENS]
Net weightkg410004500050000550004500050000650008500095000550007000090000100000
