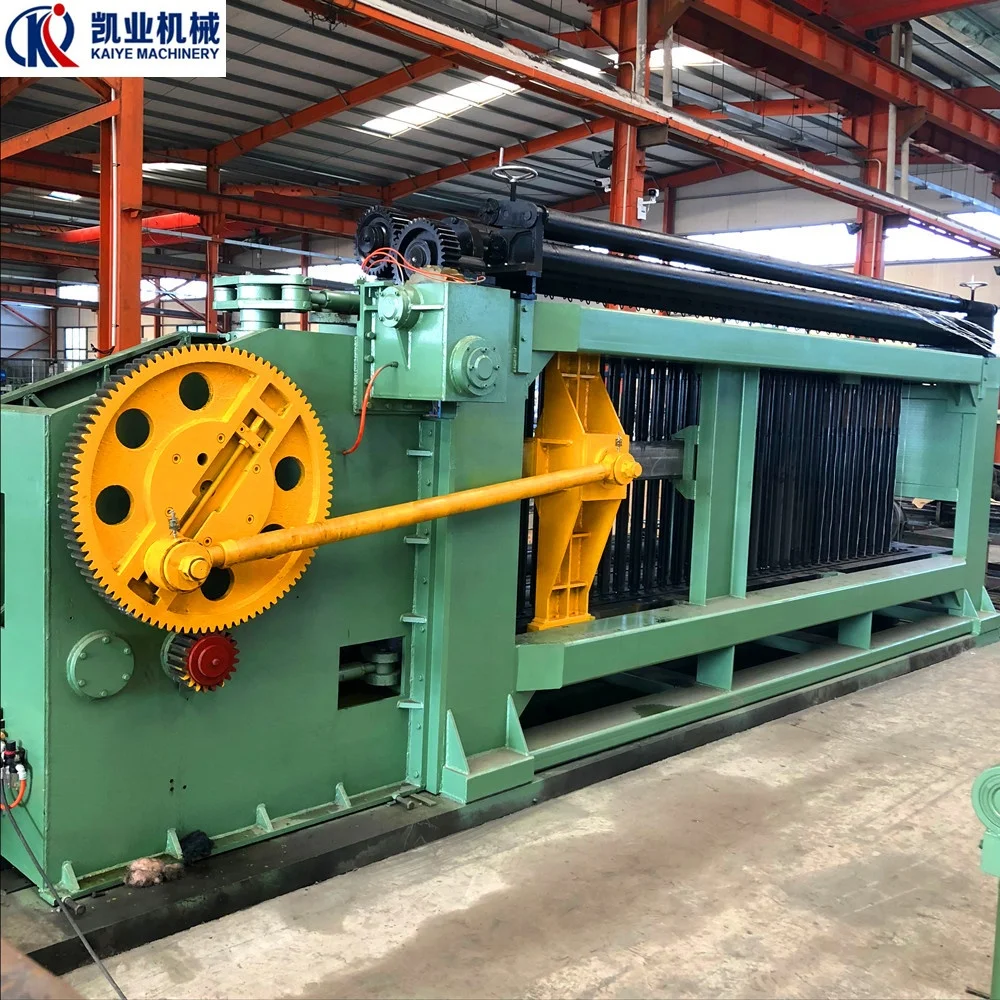

Automatic Heavy Duty Hexagonal Gabion Wire Mesh Machine

Product Overview

Description

Automatic Heavy Duty Hexagonal Gabion Wire Mesh Machine

Description of machine:

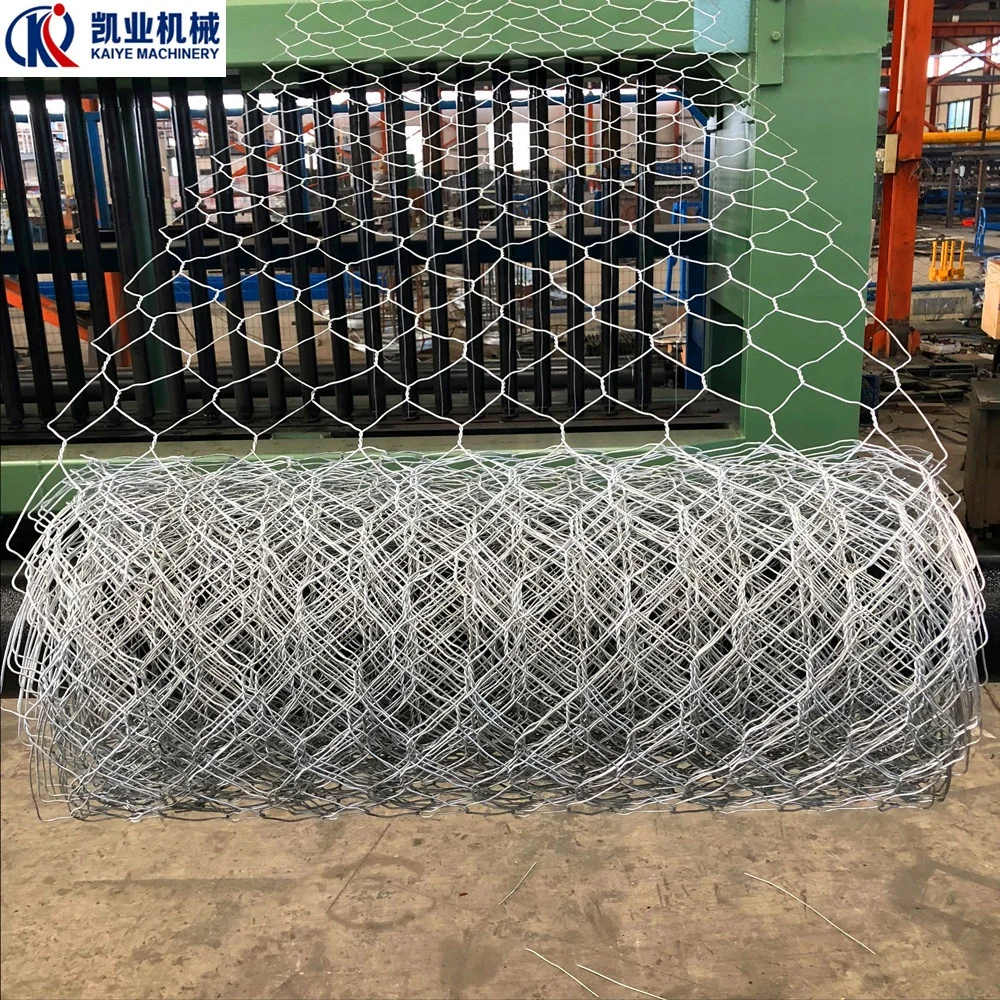

Gabion mesh machine is one kind of special equipment for twisting metal wire hexagonal mesh with big wire, big mesh and wide breadth.

The product has widely purpose, with its good corrosion resistance and oxidation resistance, serves well as strengthen, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, petroleum, chemical, breeding, garden and food processing industries.


 It can weave 3.2mm wire mesh easily like normal machine weave 2.4mm wire mesh, and speed is also quickly as normal style

4300mm Max Mesh Weaving Width Heavy Duty Hexagonal Gabion Machine for 3.2mm Wire, 22kw
Twist Gabion Hexagonal Wire Netting Machines With Automatic Oil System
1,It is electric cabinet button control.
2,It has the function of frequency control of motor speed according to different of wire diameter.
3,It has buffer function when speed increase or decrese in very short time.
4,It can count output every day or every year.
5,It can save about 30% energy.



We also accept any special order form clients. Twists selection: double twists(3 cross); three twists(5 cross); Double twists share with three twists(3 cross share with 5 cross together)



Specifications:

Style	Mesh size	Width	Wire diameter	Spindle Speed	Twist	power of motor	Theoretic output
	(mm)	(mm)	(mm)	(r/min)	(r )	(kw)	(m/h)
LNWL23-60-2ZX	60X80	2300	1.6-3.2	25	3	11	165
LNWL23-80-2ZX	80X100		1.6-4.0		3		195
LNWL23-100-2ZX	100X120		1.6-4.0		3		225
LNWL23-120-2ZX	120X150		1.6-4.2	20	3		255
LNWL33-60-2ZX	60X80	3300	1.6-3.2	25	3	15	165
LNWL33-80-2ZX	80X100		1.6-4.0		3		195
LNWL33-100-2ZX	100X120		1.6-4.0		3		225
LNWL33-120-2ZX	120X150		1.6-4.2	20	3		255
LNWL43-60-2ZX	60X80	4300	1.6-3.2	25	3	22	165
LNWL43-80-2ZX	80X100		1.6-4.0		3		195
LNWL43-100-2ZX	100X120		1.6-4.0		3		225
LNWL43-120-2ZX	120X150		1.6-4.2	20	3		255
LNWL43-60-3ZX	60X80		1.6-3.2	25	5		165
LNWL43-80-3ZX	80X100		1.6-4.0		5		195
LNWL43-100-3ZX	100X120		1.6-4.0		5		225
LNWL43-120-3ZX	120X150		1.6-4.2	20	5		255



Standard production line

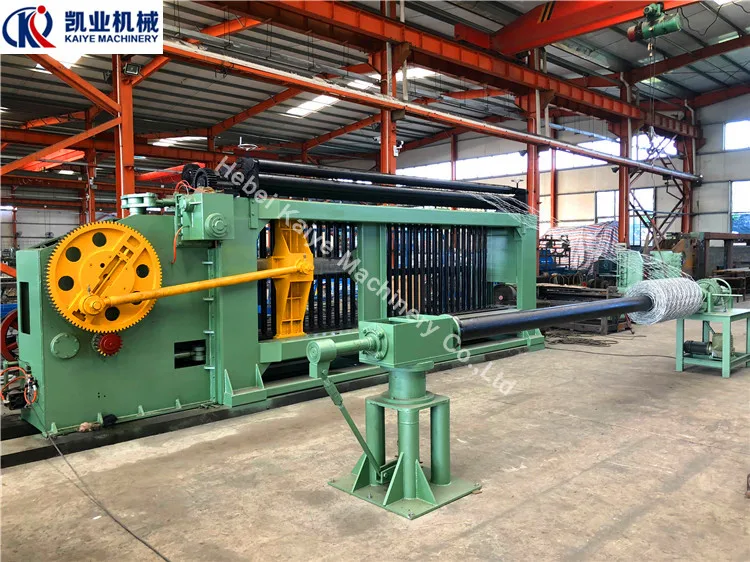

1	Gabion mesh machine	1 set

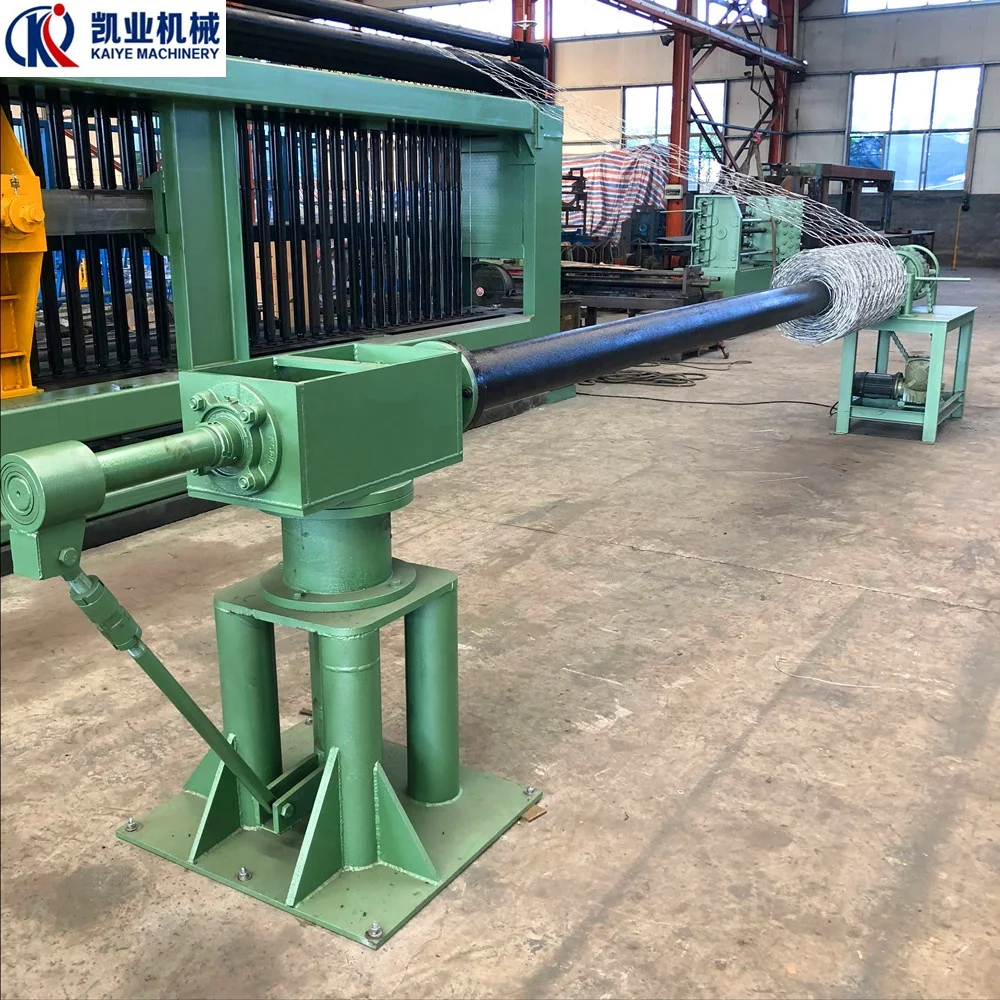

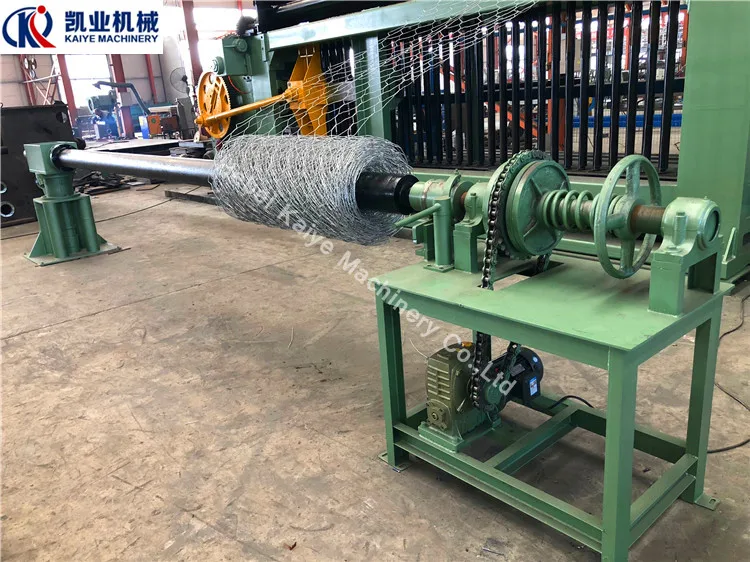

2	Netting winging machine	1 set

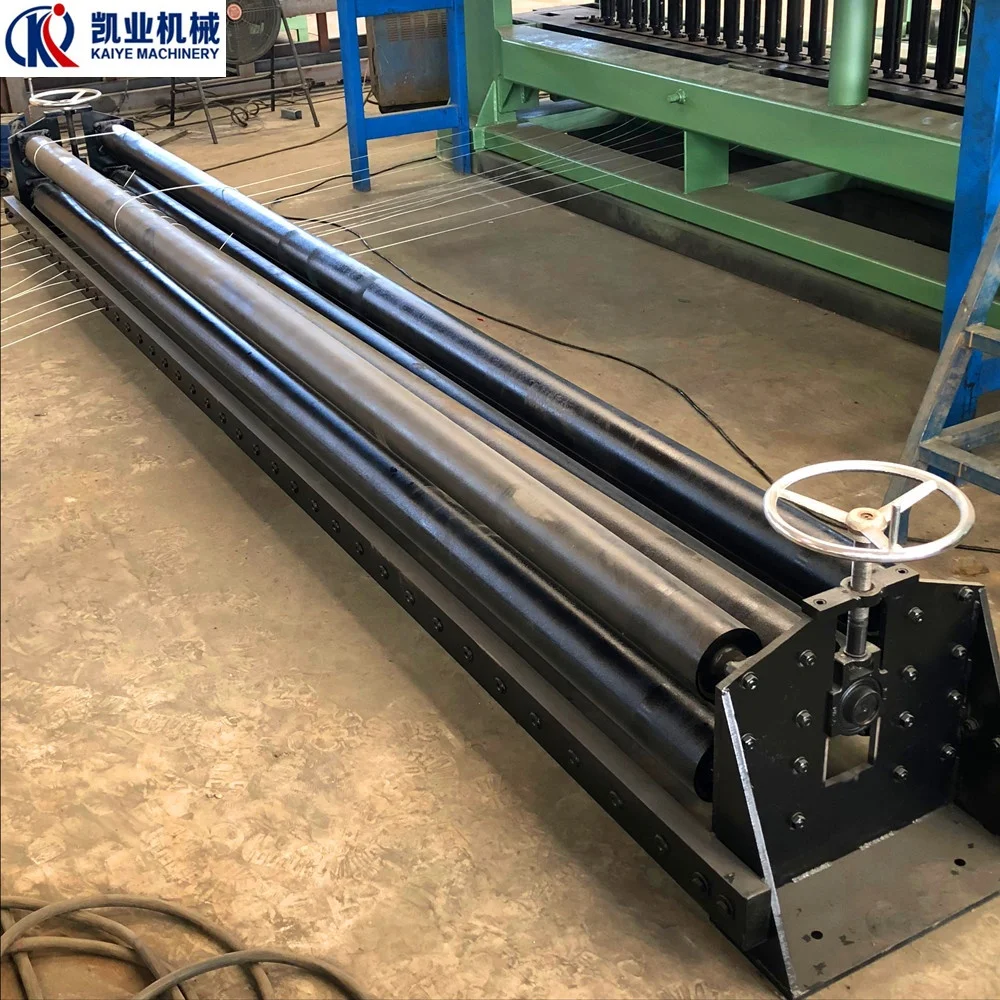

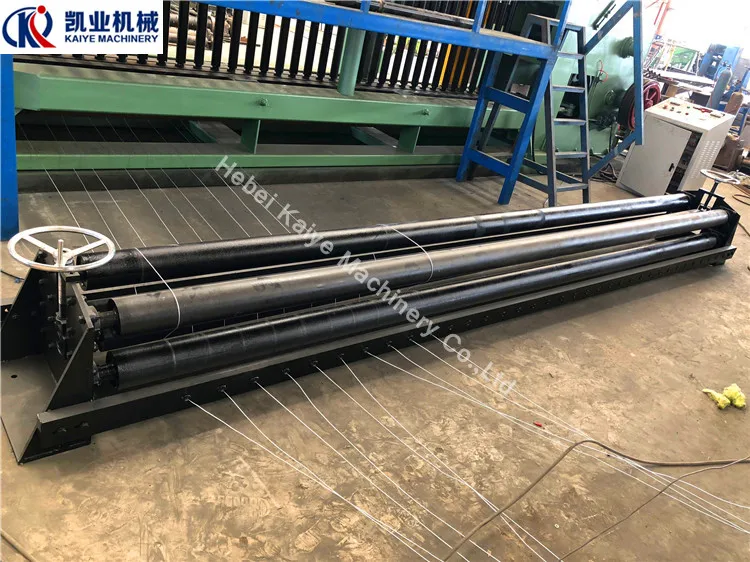

3	Wire tension device	1 set

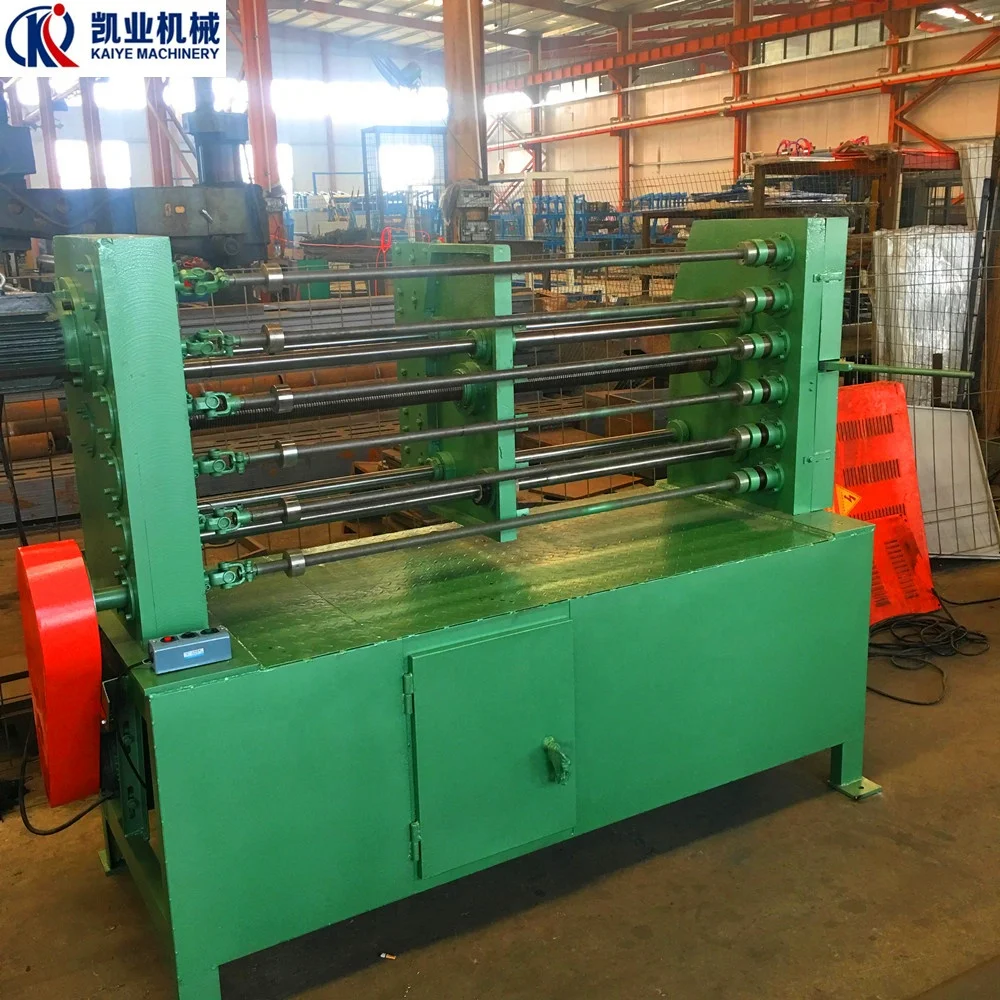

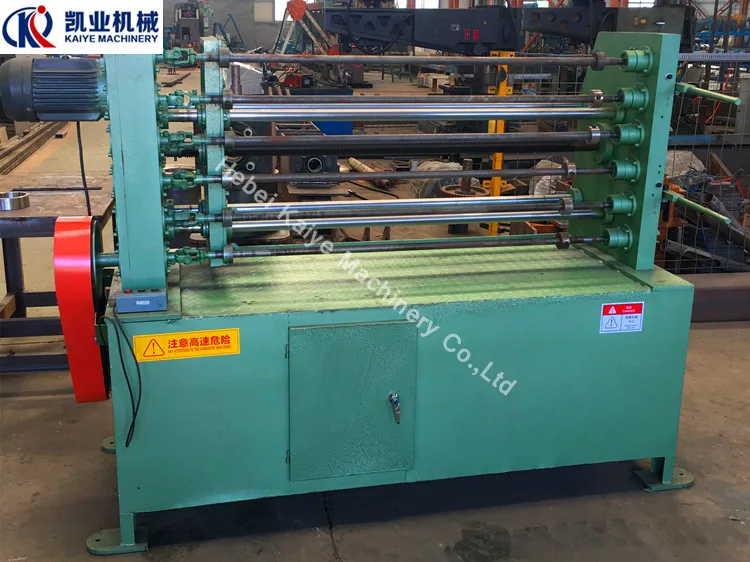

4	Spring coiling machine	1 set



Can choose other supporting machinery







»Please reply the questions as below for we give you the best price:



1. Wire diameter : From__mm to__mm.

2. Mesh size : 60X80 mm, 80x100 mm,  100X120 mm,  120X150 mm . (you can choose it )

3. Mesh width: 2300mm,  3300mm,  4300mm, 5500mm. ( customized)



4. Industrial voltage : 380V 50HZ ( Customized)

5. Is the auxiliary equipment also require ?

If you have any interest in gabion mesh machine or other wire mesh machine , please feel free to contact with us.
