3 Inch round Touch Screen HD MI Monitor 3.4 inch 800x800 TFT LCD Display for Raspberry Pi
3 Inch round Touch Screen HD MI Monitor 3.4 inch 800x800 TFT LCD Display for Raspberry Pi
3 Inch round Touch Screen HD MI Monitor 3.4 inch 800x800 TFT LCD Display for Raspberry Pi
3 Inch round Touch Screen HD MI Monitor 3.4 inch 800x800 TFT LCD Display for Raspberry Pi
3 Inch round Touch Screen HD MI Monitor 3.4 inch 800x800 TFT LCD Display for Raspberry Pi
3 Inch round Touch Screen HD MI Monitor 3.4 inch 800x800 TFT LCD Display for Raspberry Pi
3 Inch round Touch Screen HD MI Monitor 3.4 inch 800x800 TFT LCD Display for Raspberry Pi

3 Inch round Touch Screen HD MI Monitor 3.4 inch 800x800 TFT LCD Display for Raspberry Pi

Share on (62014612819):


Price:$30.00

Quantity:


Product Overview

Description


Product Description

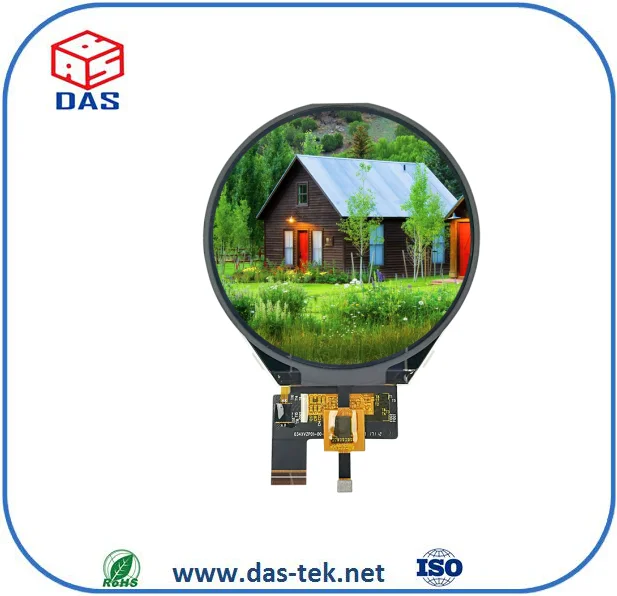

3 Inch round Touch Screen HDMI Monitor 3.4 inch 800x800 TFT LCD Display for Raspberry Pi

The 3.4 inch Module Named DT034-CL is a TFT-Lcd Module,which the type of transmissive. It is consisted of TFT-LCD Panel, Driver IC, FPC and Back-Light unit.


Drwaing


\t
Item
\t
Contents
\t
Unit
\t
LCD Type
\t
TFT Transmissive
\t
--
\t
Number of Dots
\t
800 (H)×3(RGB)×800(V)
\t
--
\t
Interface Type
\t
MIPI ( 3 LANE)
\t
--
\t
LCM Outline Dimension
\t
99.0 x 96.6 x 3.98
\t
mm
\t
Active Area
\t
Φ87.6(Diameter)
\t
mm
\t
Driver IC
\t
ILI9881C
\t
--
\t
Driver IC ( TP)
\t
HX8526-E30
\t
--
\t
Viewing Direction
\t
Full viewing angle
\t
--
\t
Pixel Pitch (mm)
\t
109.5*109.5
\t
mm
\t
Input voltage
\t
2.8
\t
V
\t
Module Power consumption
\t
TBD
\t
mw
\t
Backlight Type
\t
LED
\t
Related Products

Our Factory

Product: Small&middle size TFT LCD(1.44'~10.1'),
used in mobile phone, automative, industrial
control, POS machine, etc.

Our Factory

Brief: Factory is about 10000 ㎡, Office is about 2000 ㎡, 1000 employees.
Capacity: Small size 3KK/Month, Middle size 900K/Month.

Our Company

Name: DAS INDUSTRY LIMITED
Founded:2005-4-27h
Capital:RMB 5,000,000
Products:Segment LCD&LCD module;COG STN/FSTN LCD module;TFT LCD module; Serial TFT LCD module;Application board solutions with LCD

3 Inch round Touch Screen HDMI Monitor 3.4 inch 800x800 TFT LCD Display for Raspberry Pi
