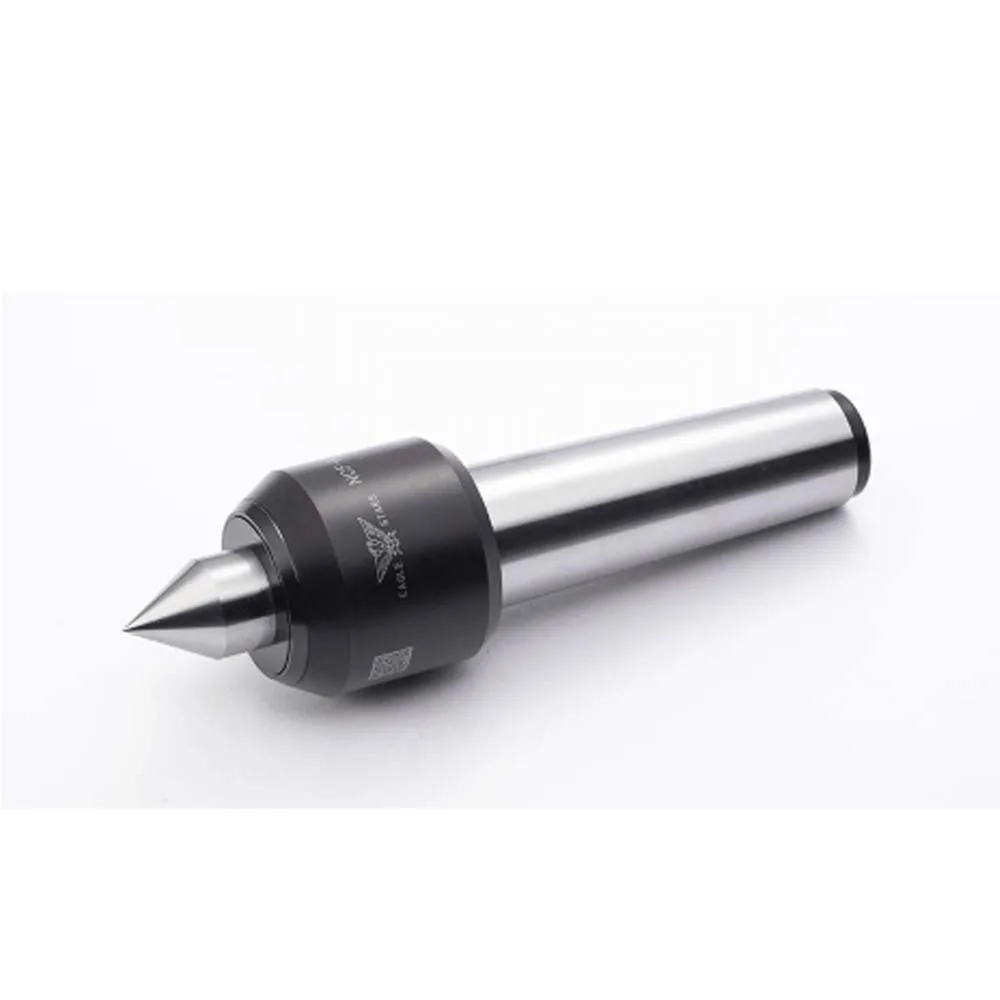

Japanese high quality Rolling Center whit high accuracy NCF, with high accuracy, produced by Futamura

Product Overview

Description

Brand name : Futamura

Product name : Rolling Center

Model number : NCF-N A/B/C/E/F

Place of origin : Japan



Maximum speed (min-1) : No.3 = 4500 / No.4 = 4000 / No.5 = 3800



This product uses angular bearings, thrust bearings, and needle bearings, so the rotational torque is smooth.

A type, C type, and E type are fine types and are ideal for thread cutting and end face processing.

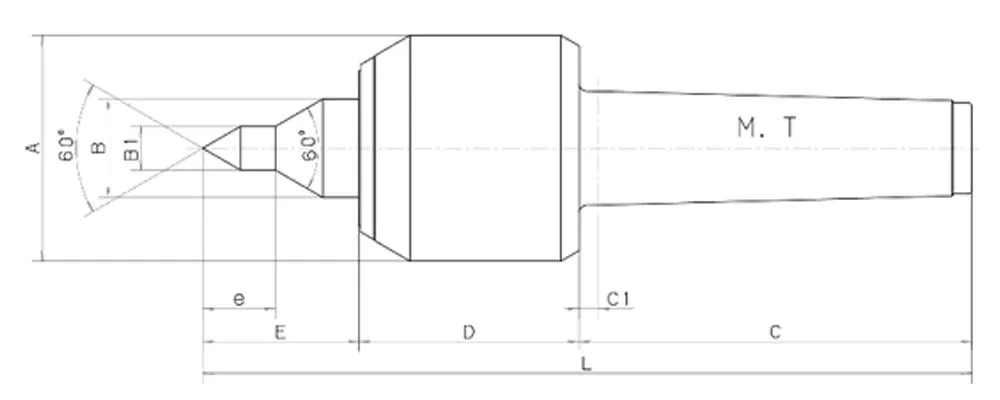

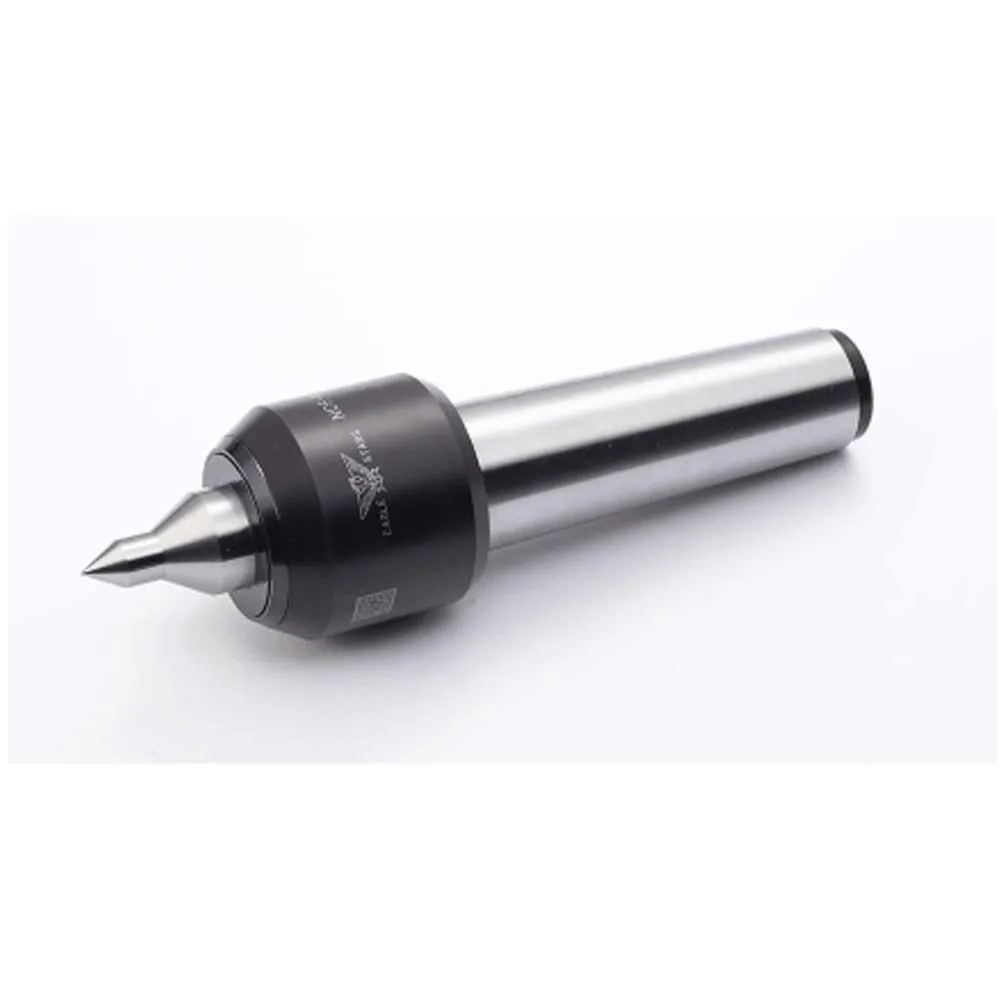

NCF TypeA

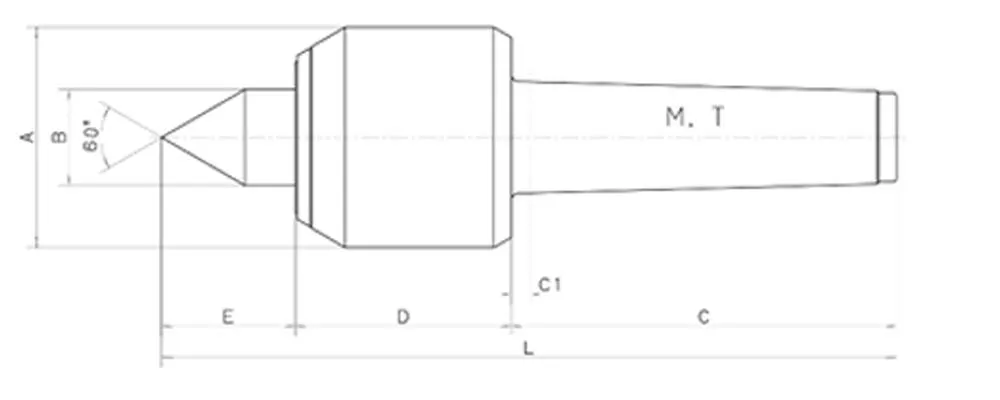

NCF TypeB

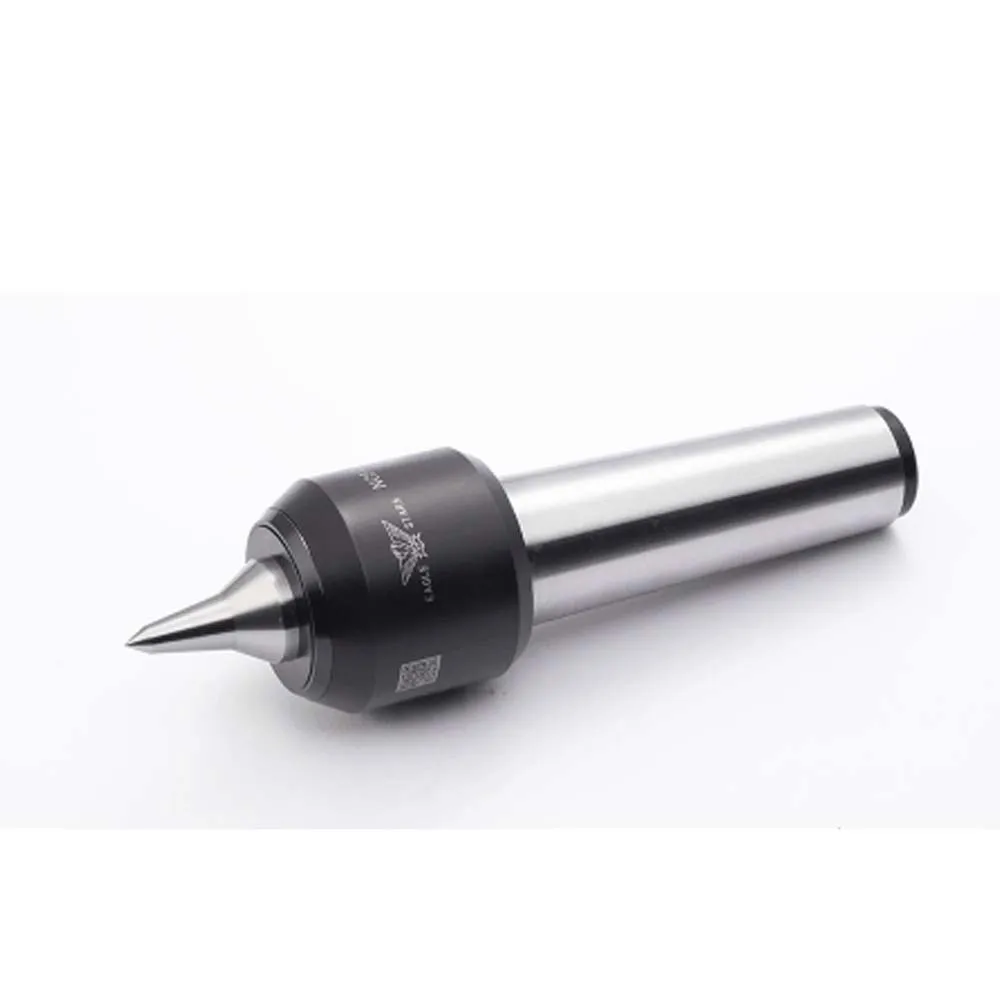

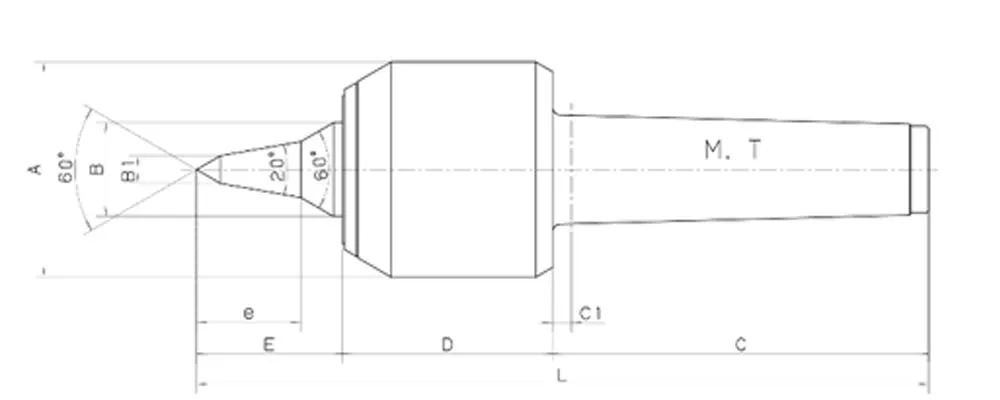

NCF TypeC

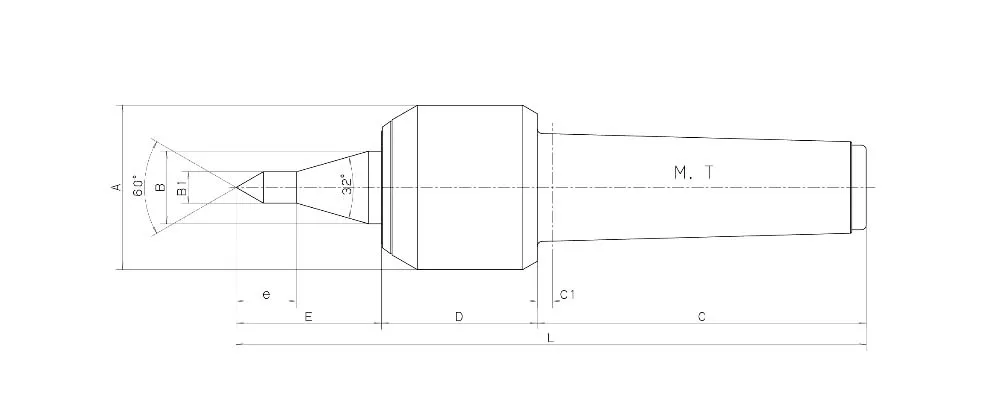

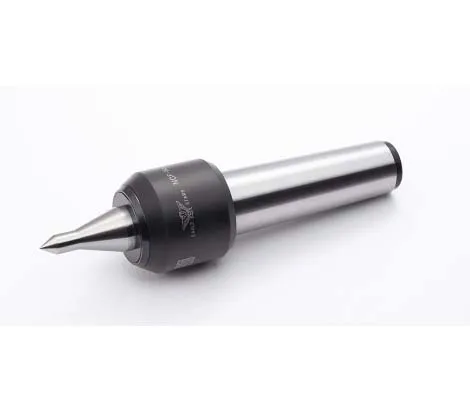

 NCF TypeE

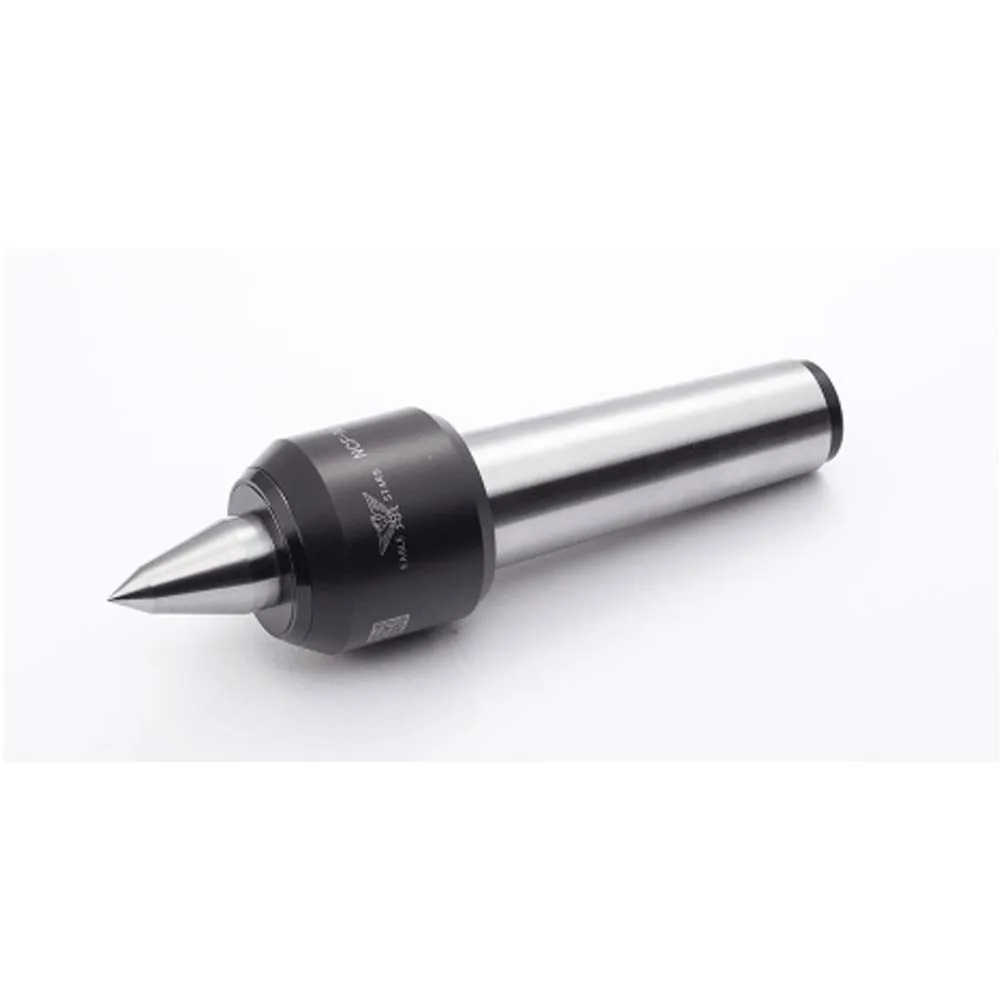

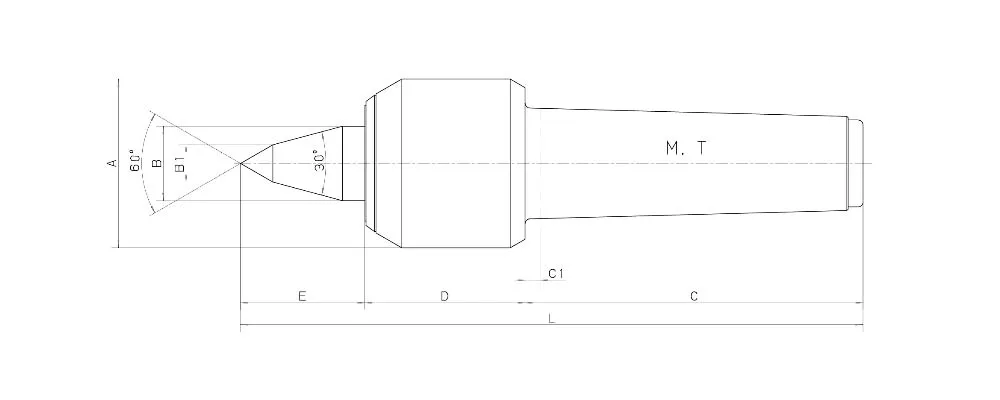

NCF TypeF

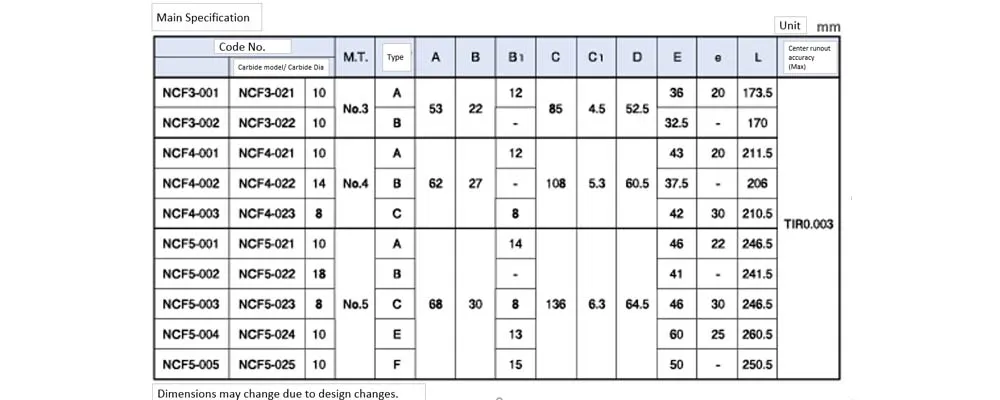

Main Specification
