Vmc650 Лидер продаж универсальный маленький фрезерный станок с ЧПУ
- Category: >>>
- Supplier: Shandong Yangtuo CNC Machine Tool Co. Ltd.
Share on (62014666812):
Product Overview
Description
Product Overview

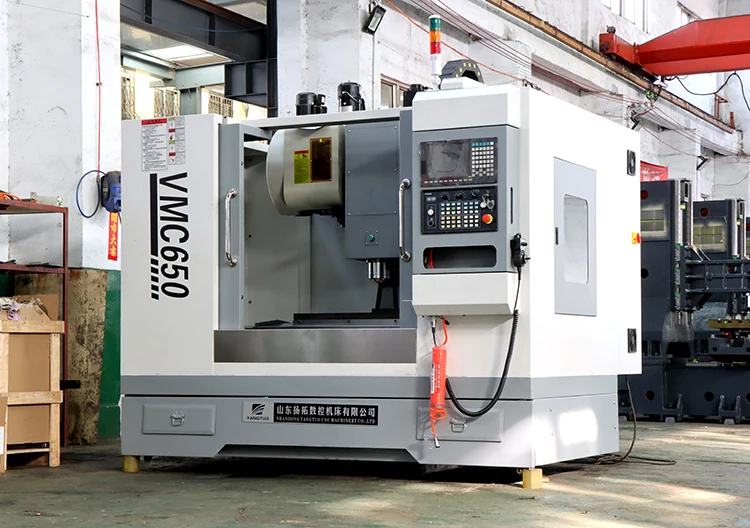

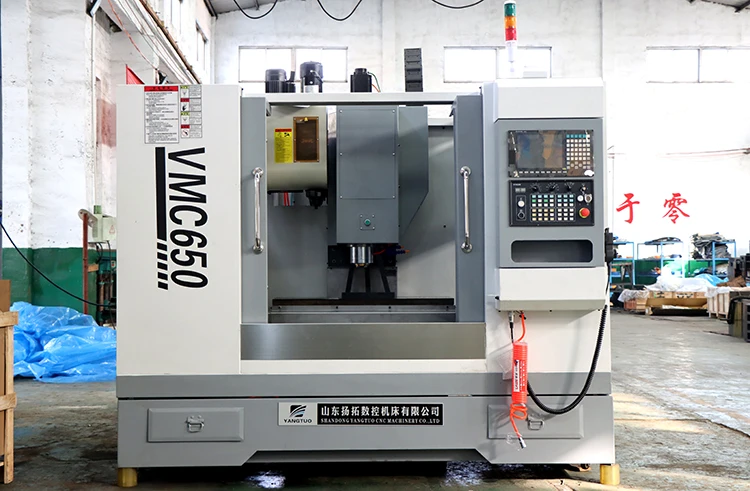

vmc650 Hot sell products universal small cnc milling machine
Table size | 900x400 mm |
X axis travel | 600 mm |
Y axis travel | 400 mm |
Z axis travel | 500 mm |
Distance between spindle center and column | 446 mm |
Distance between spindle nose and table | 120-620 mm |
T-slot (No.* slot width *spacing) | 3-18*125mm |
Spindle taper | BT40 |
ATC type | 16-tool arm/disc type or umbrella type |
Speed speed | 8000 rpm |
Spindle motor | 7.5/5.5 kw |
Max.load capacity of work table | 500 kg |
X.Y.Z max. rapid traverse | 24/24/20 m/min |
X.Y.Z axis reposition accuracy | ±0.004 mm |
Dimension (L*W*H) | 2480×1780×2550 mm |
N.W. | 4500kg |
Product Description:
1 .Taiwan HIWIN high precison guideway
2 .Taiwan-made spindle Unit,8000-12000rpm available

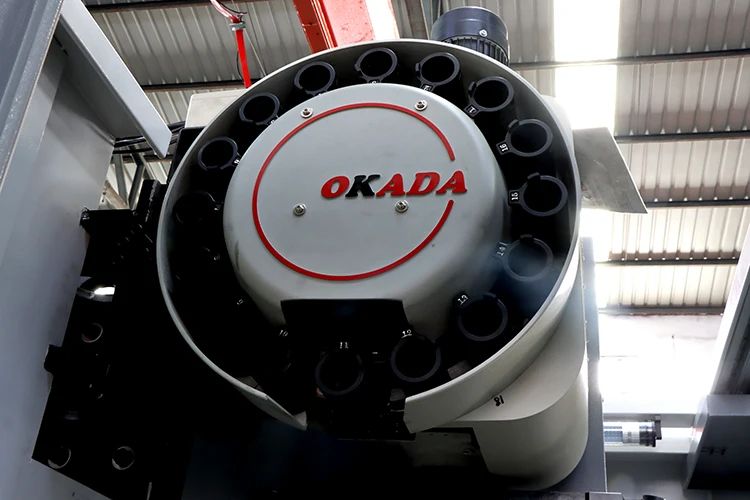

3 Taiwan OKADA 16 ATC
4.Reliable Control System:Fanuc,Siemens,Mitsubishi ,GSKVmc650 vertical machining center is suitable for producing metal product
and parts in all shapes. It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection
mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.
1 .Taiwan HIWIN high precison guideway
2 .Taiwan-made spindle Unit,8000-12000rpm available
3 Taiwan OKADA 16 ATC
4.Reliable Control System:Fanuc,Siemens,Mitsubishi ,GSKVmc650 vertical machining center is suitable for producing metal product
and parts in all shapes. It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection
mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.
FAQ
1.How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2 . How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the
best model for you.
3: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
4: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5.Check the acceptance
When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are
damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine If there is any
problem about machine, please take pictures and contact us immediately.
6.OEM Service
We accept purchase orders with customers' brand or trade mark.
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2 . How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the
best model for you.
3: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
4: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5.Check the acceptance
When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are
damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine If there is any
problem about machine, please take pictures and contact us immediately.
6.OEM Service
We accept purchase orders with customers' brand or trade mark.
