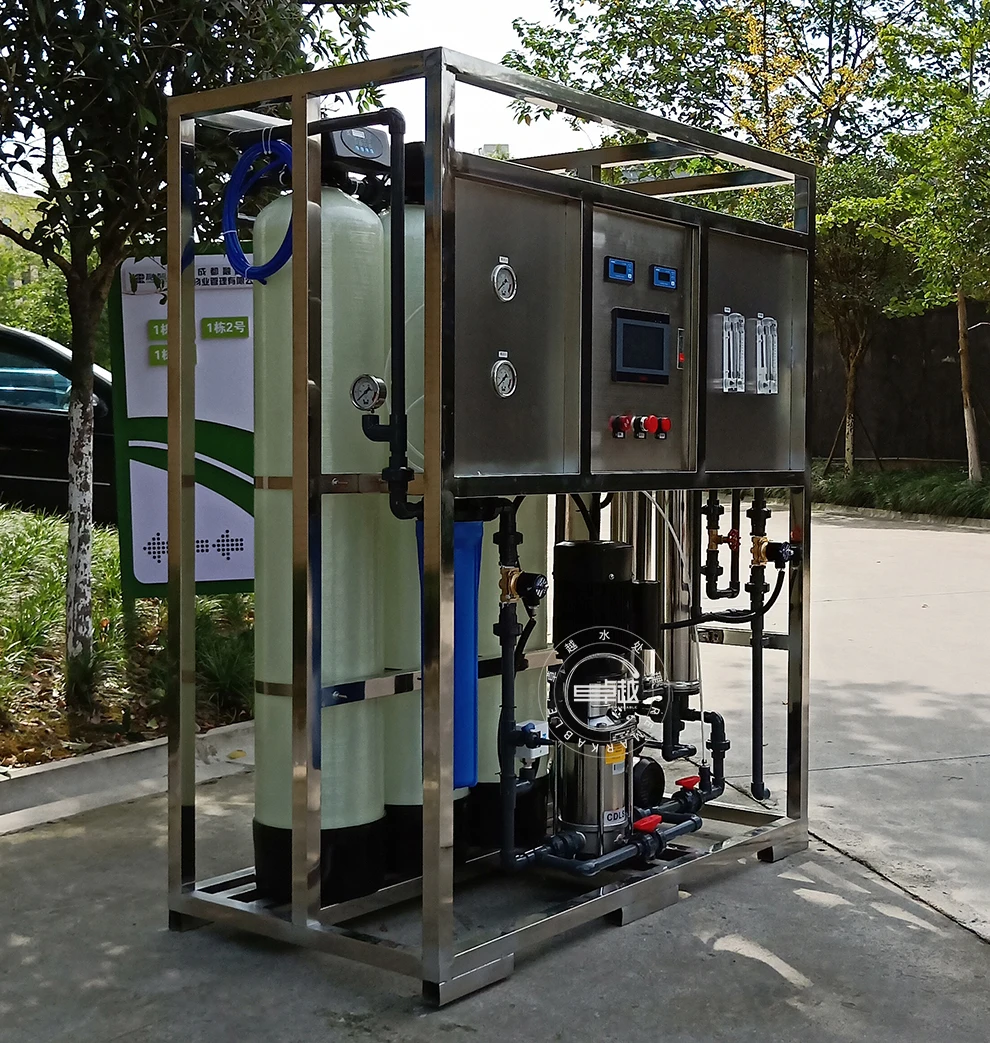

Colorful LCD Display Chemical Water Treatment Plant

Product Overview

Description

Technical Parameters of Chemical Water Treatment:

Water production	0.25m3-10m3 or according to customers' requirement
RO membrane DN	0.0001-0.001um
Ion removal rate	≥99%;
Endotoxin, bacterial removal rate	≥ 99%;
Recovery	≥75%;
Effluent conductivity	≤ 15us / cm (source water quality TDS <500ppm)
Working pressur	0.2-0.4 Mpa
Water temperature	5-40 ℃



Model List of Chemical Water Treatment:

No.	Model	Water yield (L/H)	Voltage/Power (V/Kw)	Body Size (L*W*H mm)	Water Tank (L/Material)
1	ZYRO-250	250	380/1.2	1500*600*1500	250/stainless steel/PE
2	ZYRO-500	500	380/1.3	1500*600*1500	500/stainless steel/PE
3	ZYRO-1000	1000	380/1.4	1500*800*1500	1000/stainless steel/PE
4	ZYRO-1500	1500	380/1.95	1600*800*1600	1500/stainless steel/PE
5	ZYRO-2000	2000	380/3.15	1600*800*1600	2000/stainless steel/PE
6	ZYRO-3000	3000	380/5.6	1800*1000*1800	3000/stainless steel/PE
7	ZYRO-4000	4000	380/5.65	1800*1000*1800	4000/stainless steel/PE
8	ZYRO-5000	5000	380/9.15	1800*1000*2000	5000/stainless steel/PE

Note:  Customization is available.

* We suggest you to choose double RO system, if your raw water's TDS is over than 1000ppm.

* The best water temperature for the machine is 25℃. The RO membrane will stop producing pure water when the temperature decrease to 0℃.



Features of Chemical Water Treatment:



1. High-precision filter, the aperture of nano-level, the best water quality

2. Manual / electric control system automatically switch;

3. With a self-test, water-free point automatically open the system of water, water full stop, no pressure protection and other safety devices;

4. With open RO membrane automatic washing and water tank full automatic double wash function, can extend the life of RO membrane;

5.  With on-line monitoring of water quality (conductivity display), flow and pressure on-line display;

6. Equipment integration, installation is simple, simple operation, no special duty;

7. Equipment failure with automatic alarm function;

8.High water production, high desalination rate, long service life;

9. Core components (pumps, RO membrane, electronic control systems, etc.) imported / domestic joint venture brand;

10. Equipment rack with stainless steel, low-pressure pipe for the UPVC material, high-pressure pipe using SUS304 stainless steel.

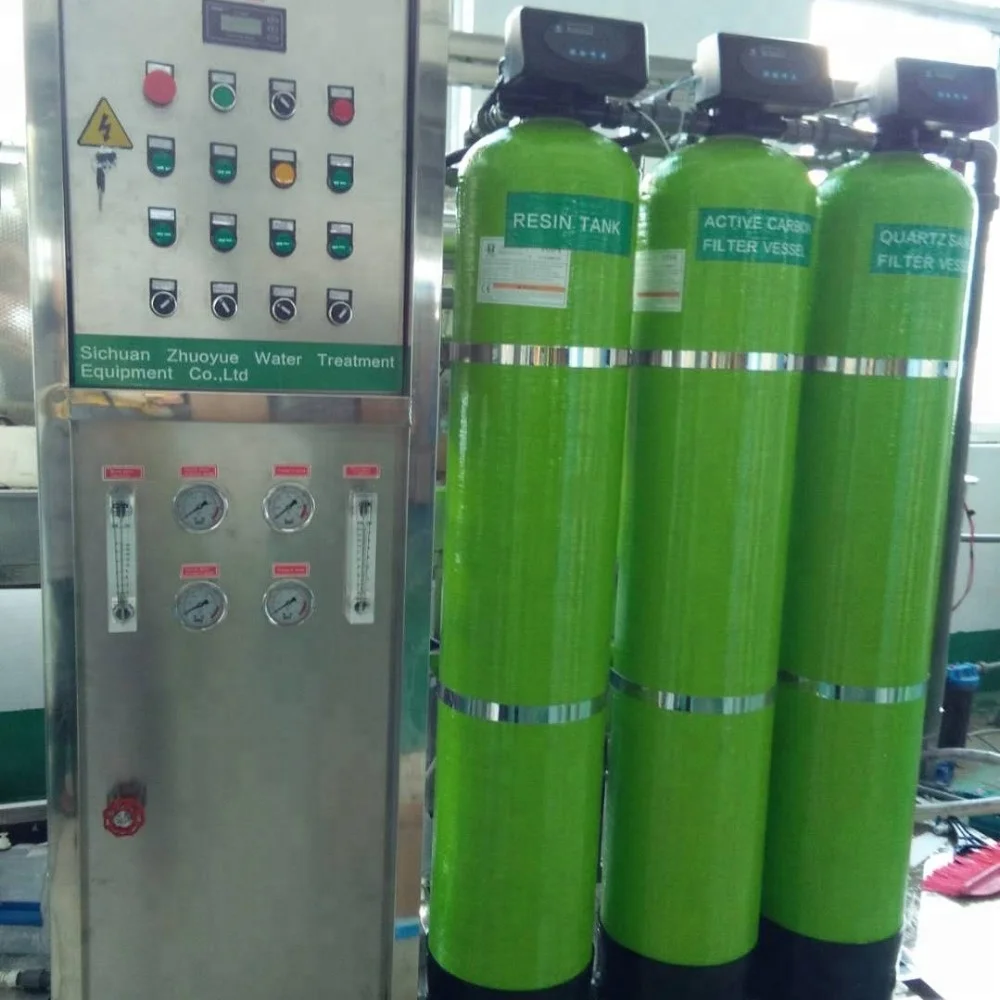

Technology of Chemical Water Treatment:

1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.

2. Quartz sand filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect

3. Active carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.

4. Softener filter--exchange "ions" of calcium and magnesium with the most common and easiest method.

5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is usually 5um or 1um.

6. High pressure pump-- Provide pressure to RO membrane.

7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions. The accuracy is 0.0001-0.001um.

8. PLC touch screen-- intelligent operation



Other optional configuration:

* EDI module: steadily produce 10-15MΩ.cm ultrapure water.

* Mixed bed resin: steadily produce 10-18.25MΩ.cm ultrapure water.

* UF membrane: 5000/8000dalton; filtrate bacteria, endotoxin and virus.

* Disinfection system: UV lamp, ozone generator, pasteurization, electric heating, etc.

* Water supply system: transporting water from pure water tank to water take points.
