Product Overview
Description
tire scraping machine recycling equipment for crumb rubber powder
Product Description

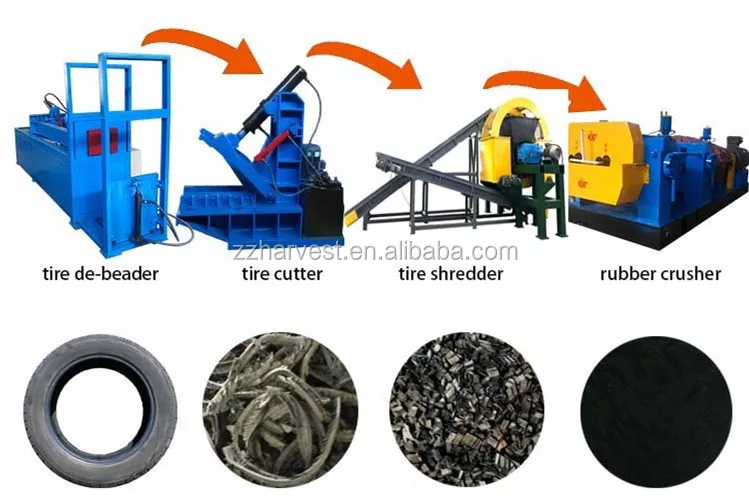

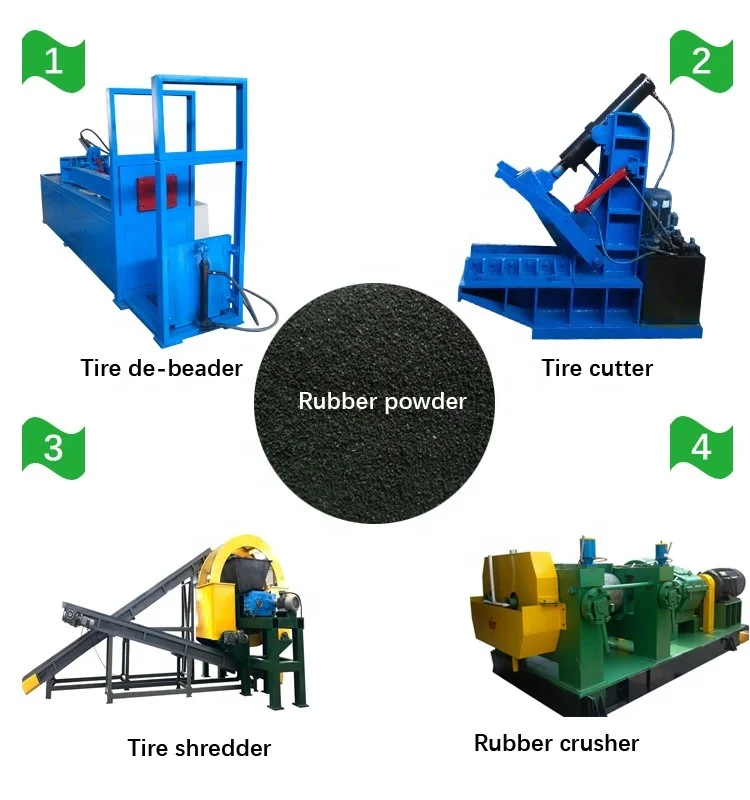

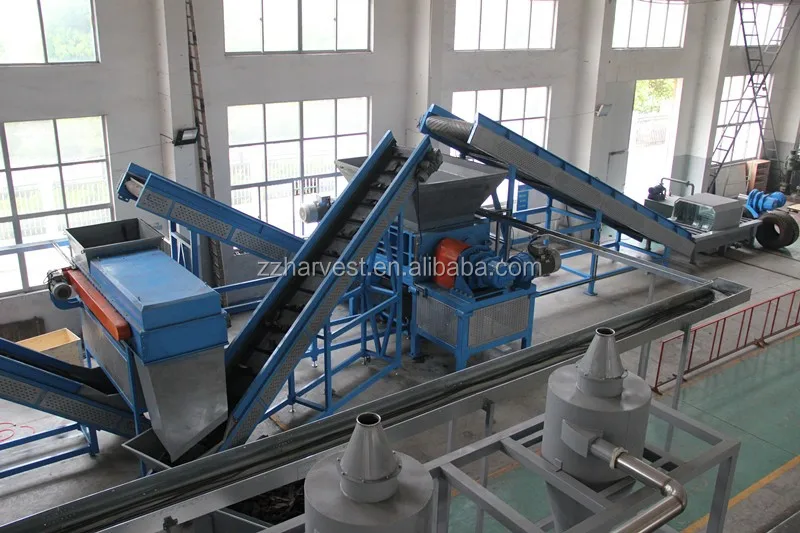

fully automatic tire recycling machine:
| Name | Picture | Specification |
| Tire de-beader |  | To draw out the wire steel from tire
TD-1200 double tire de-beader and single tire de-beader |
| Tire cutter |  | To cut large tire into samller pieces |
| Tire shredder |  | to shred tire into rubber blocks, such as 50*50mm, TS-800,TS-1200 |
| Rubber crusher |  | there are conveyor belt between tire shredder and rubber crusher |

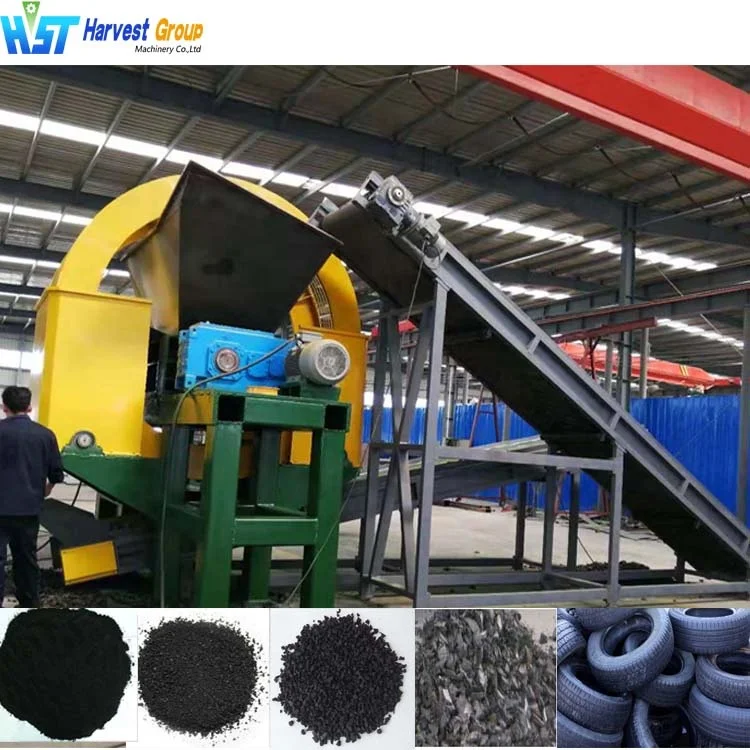

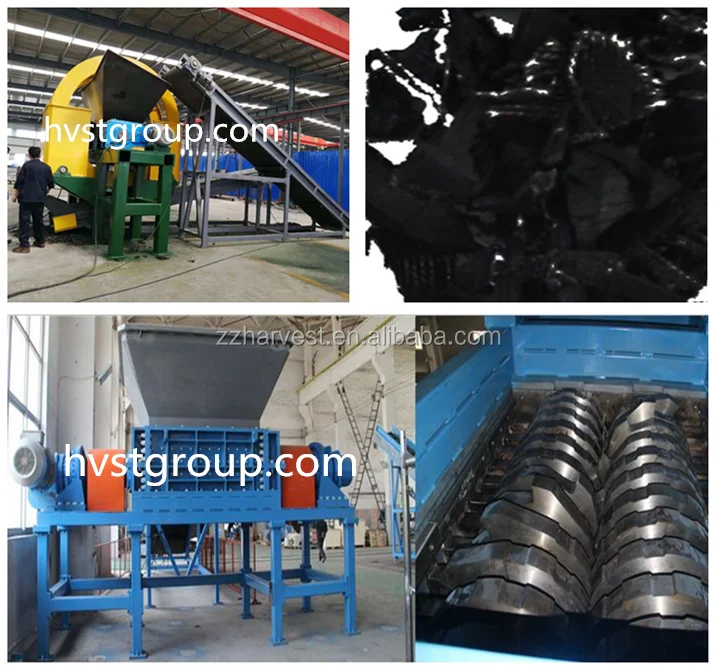

Tire shredder:
Model | Input size | Output size | Capacity | Motor | Blades quantity | Dimensions | Weight |
TS-800 |
| 50*50mm | 1-2T/h | 2*22kw | 16pcs | 4x2.6x3.2m | 8T |
TS-1200 | 1200mm | 60*60mm | 3-5T/h | 2*37kw | 20pcs | 4.8x2.8x3.5m | 14T |
TS-1600 | 1600mm | 50-150mm | 6-8T/h | 2*45kw | 16-30pcs | 5x2x3.4m | 18T |
TS-1800 | 1800mm | 7-10T/h | 2*55Kw | 5.6x2x3.4m | 23T | ||
TS-2000 | 2000mm | 75-200mm | 10-15T/h | 2*75kw | 20-30pcs | 6x2.4x4m | 36T |
TS-2400 | 2400mm | 100-200mm | 20-30T/h | 2*110kw | 16-24pcs | 7.4x3.2x5.2m | 56T |
TS-2800 | 2800mm | 150-250mm | 25-35T/h | 2*160kw | 16-24pcs | 7.8x3.4x5.4m | 75T |
TS-4000 | 4000mm | 200-300mm | 30-50T/h | 2*220kw | 20-30pcs | 10x4.5x6m | 120T |

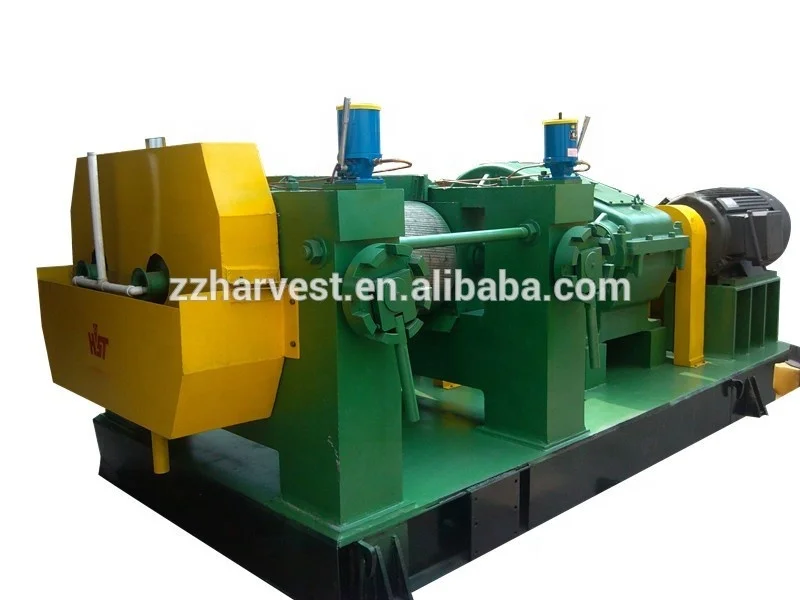

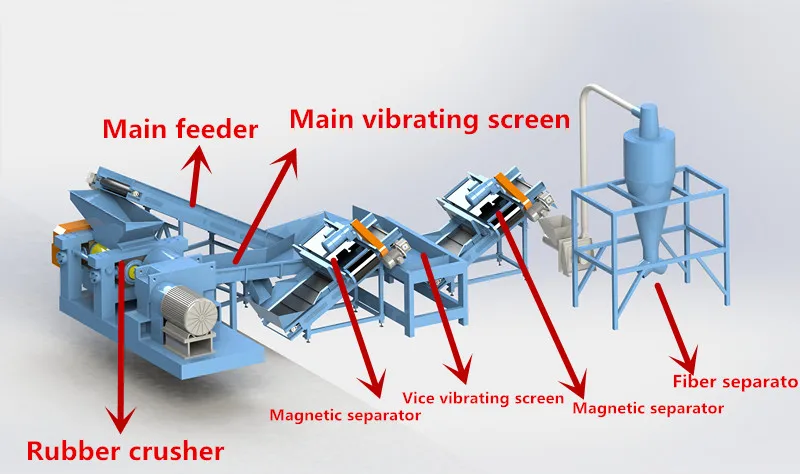

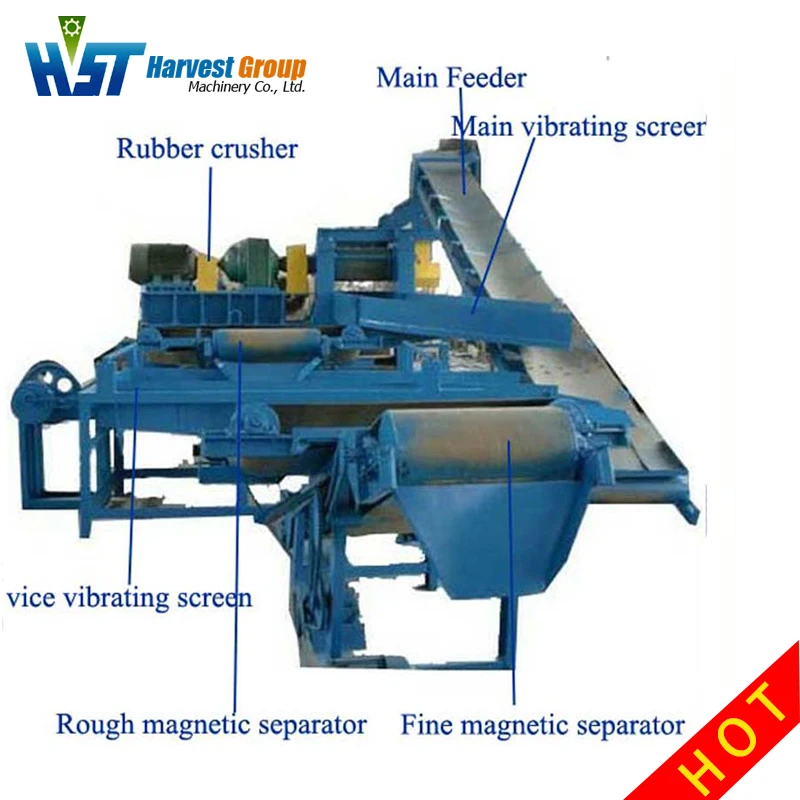

Rubber crusher and other auxliary equipment:
| Model of rubber crusher | Drum diameter | Drum length | Front roll linear | Motor power | Roll speed ratio |
| XKP350 | 300mm | 500mm | 26.2m/min | 30kw | 1:2.5 |
| XKP400 | 400mm | 600mm | 34.5m/min | 45kw | 1:2.5 |
| XKP450 | 450mm | 760mm | 38.0m/min | 55kw | 1:2.5 |
| XKP560 | 560mm | 800mm | 38.6m/min | 75kw | 1:2.5 |
| XKP610 | 610mm | 1000mm | 42.6m/min | 132kw | 1:2 |
Semi-automatic tire dismantle machine to process waste tire into about 50mm rubber blocks
| Name | Picture | Specifications |
| TIre circle cutter |  | To cut open the joint of tire bead and side Tire:650-1200mm Power:4.75kw Weight:650kg Capacity:40pcs/h |

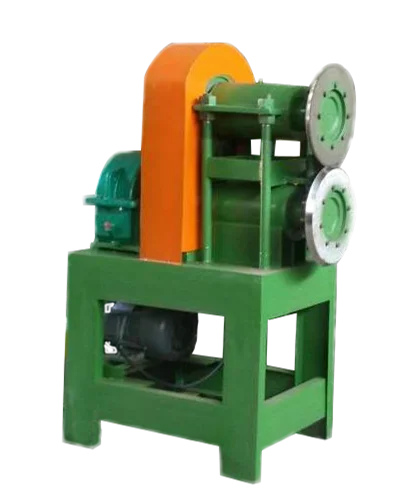

| Tire strip cutter |  | To cut tire into 5*8cm pieces Capacity:1t/h Weight:850kg Power:4kw |
| Tire slice cutter |  | To cut tire strip into rubber chips Power:18.5kw |
| Rim separator machine |  | To separate the rim steel and the rubber mouth of tire bead Power:18.5kw Capacity:100pcs/h |
