A021 Insulation Building Fireproof Eco Friendly Precast Sandwich Panel
A021 - Insulation Building Fireproof Eco-Friendly Precast Sandwich Panel

A021 Insulation Building Fireproof Eco Friendly Precast Sandwich Panel

Share on (62014722161):


Price:RUB 12,241.64 - RUB 18,515.47

Quantity:


Product Overview

Description

Product Description

Energy-Saving eco-friendly fireproof construction panels from UPESP.

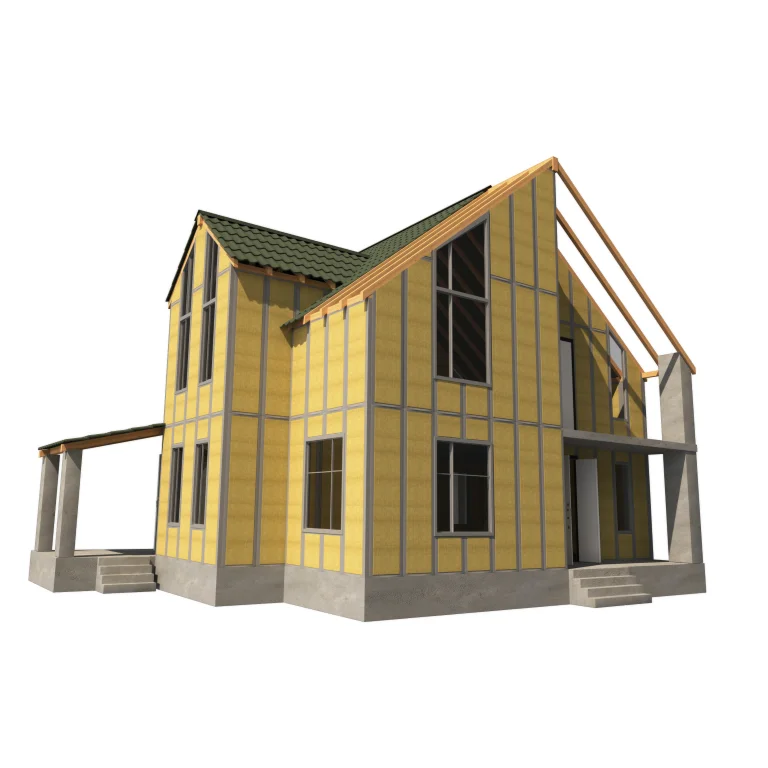

Energy-saving panels from the Ecosphere factory are used in the construction of low-cost, environmentally friendly, energy-efficient housing with high load-bearing capacity.

Panels can be used as a complement to the construction of housing being constructed and as ceilings and partitions between rooms.

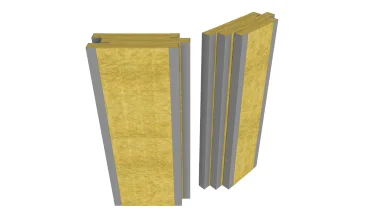

The energy-saving panel consists of a basalt-based thermal insulating material with a thickness of at least 80 mm and placed in two supporting metal profiles. It has high heat and sound insulation characteristics, resistance to loads and various types of exposure and durability.



The Ecosphere energy-saving panels materials do not emit harmful substances, combustion products and do not have a negative impact on the environment. In addition, during use, as well as during prolonged use of energy-saving panels, there are no changes in their structure that can affect the properties and increase the fire hazard and, as a result, the use of energy-saving panels turns out to be reliable, durable and safe.

Prices
Sizes and density
Price of plate, USD/Unit
Net weight,kg
80mm, STANDARD 0.6X (2.5), density 100 kg / m^3
160
~ 26 kg
80 mm, STANDARD 0.6X (2.5), density 160 kg / m^3
173
~ 27 kg
160 mm, STANDARD 0.6X (2.5), density 100 kg / m^3
185
~ 52 kg
160 mm, STANDARD 0.6X (2.5), density 160 kg / m^3
212
~ 54 kg
240 mm, STANDARD 0.6X (2.5), density 100 kg / m^3
212
~ 78 kg
240 mm, STANDARD 0.6X (2.5), density 160 kg / m^3
242
~ 80 kg


Delivery of materials is not included in the price and is calculated according to transport tariffs. National customs duties and fees are calculated separately. Prices are in US dollars. Payment is made at the Central Bank rate at the invoice date. In connection with the change in exchange rates, prices must be specified. The offer is not a public offer.

Delivery of materials is not included in the price and is calculated according to transport tariffs. National customs duties and fees are calculated separately. Prices are in US dollars. Payment is made at the Central Bank rate at the invoice date. In connection with the change in exchange rates, prices must be specified. The offer is not a public offer.
Details
1.
Assignment
The useful product relates to the field of capital construction for low-cost and environmentally friendly construction of prefabricated heat-efficient objects of low floors with high load-bearing capacity.
2.
Material
Galvanized steel, rolled, from 1.1 mm thick. up to 2.0 mm. C - shaped, quality certificate 129-977, basalt insulation 100 - 160 kg / m^3. When used as an exploited ceiling: 160 - 190 kg / m^3. It is used according to GOST ISO 9001-2011.
3.
Fireproof
not lower than class II according to SNiP 21-01 2007;
4.
Thermal conductivity
at 10 ° C / 25 ° C W / m · K, not more than 0.038 / 0.040;
under operation: A / B W / m · K, not more than 0.042 / 0.045.
5.
Strength
at 10% relative deformation of kPa, not less than 60;
at stretching (separation of layers) kPa, not less than 14;
under the action of a concentrated load (N), not less than 700.
6.
Water uptake:
at partial immersion kg / m^2, not more than 0.75.
7.
Organic matter content (%)
no more than 4,5.
8.
Size
Single panel: width 0.6 m, height 2.5 m, thickness 80 mm;
Double panel: width 0.6 m, height 2.5 m, thickness 160 mm;
Triple panel: width 0.6 m, height 2.5 m, thickness 240 mm.
9.
Unit package
HD poly ethylene, thickness 0,14 µm.
10.
Marking and Individual design
Yes
11.
Country of consignment
Russia
12.
Minimum order
According to the design documentation
13.
Brand name
UPESP
Our company

Ural Plant of Energy Saving Panels (UPSEP).

Our goal is to provide the market with affordable and quality housing that meets international standards.

The main direction is the production of wall material and energy-efficient housing construction. The technical result when using energy-saving panels is to simplify the construction of low-rise buildings providing high heat transfer resistance allowing the construction of facilities in cold regions and a significant reduction in heat consumption during operation.

Ural Energy Saving Panel Plant (UPSEP) owns the exclusive right to utility models and inventions, confirmed by the Federal Institute of Industrial Property.

We are also a participant in the international forum of unique and high-rise construction 100+ Forum Russia Technologies.
Every year we produce more than 25 million square meters of energy-saving panels.
