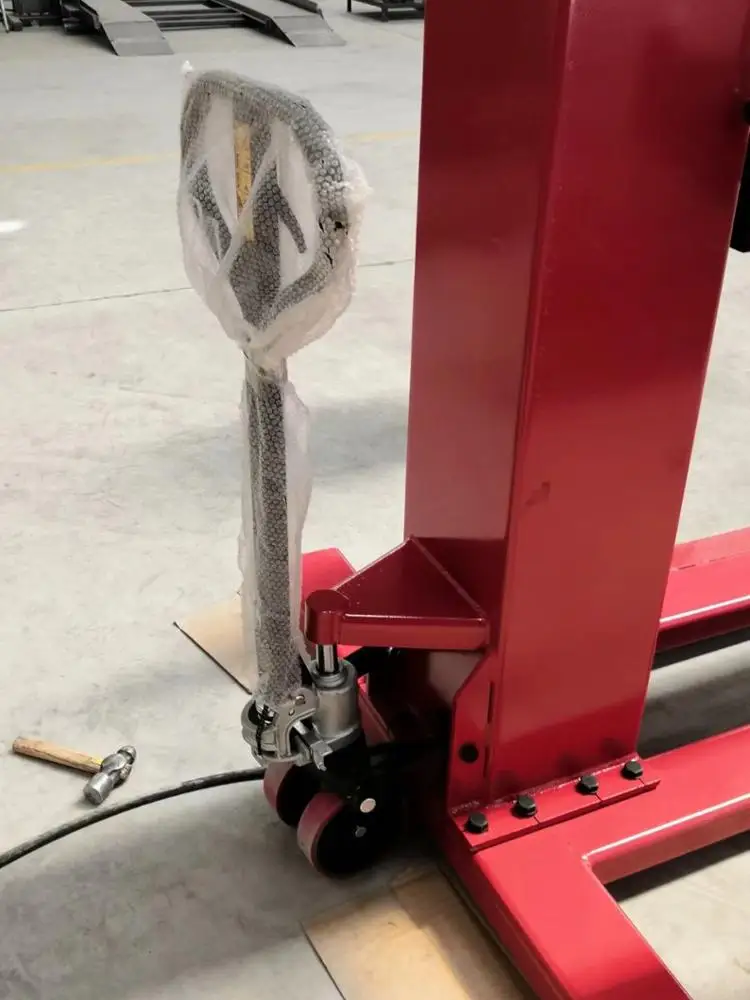

Movable Single post car lift load 2.5T lift height 1750mm

Share on (62014743046):


Price:

Quantity:


Product Overview

Description


Movable Single post car lift load 2.5T lift height 1750mm car briage one post car lift one column

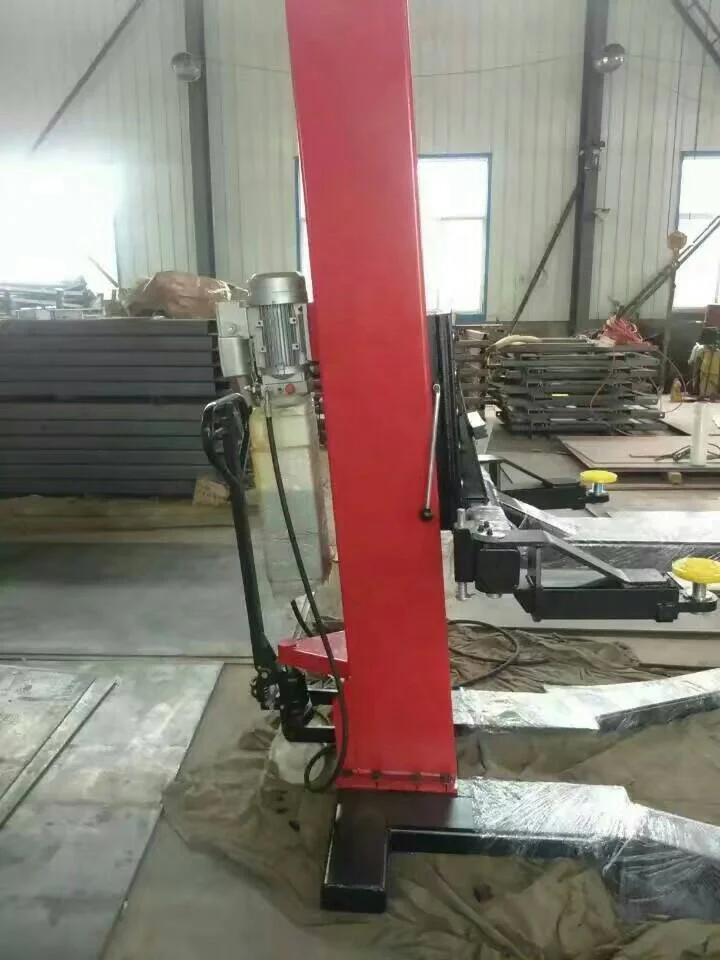

Movable single post car lift












        COMMODITY&DESCRIPTION    Single Post Car Lift







































Model







SP-O2500



Lifting capacity







2500kg



Max lifting height







1750mm



Total height







2484mm



Lock release



Manual unlock,electric unlock is also available



Rise /drop time



50S/40S



Power supply/Motor capacity



220V/380V,50Hz/60Hz,1Ph/3Ph,2.2Kw

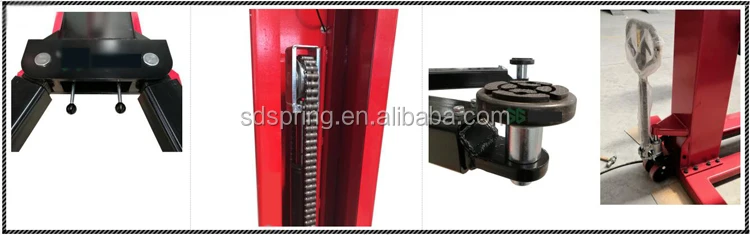

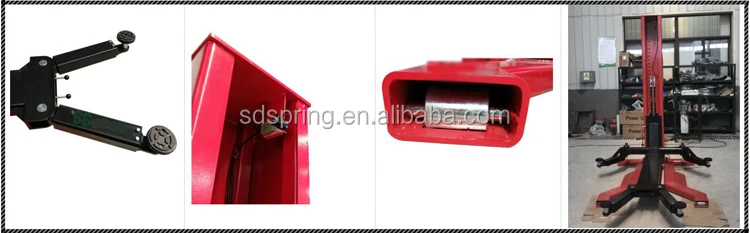

1.Simple and beautiful appearance,small space occupation.
2.The ground position of swing arms is suitable for race cars to stand on.
3.Polyurethane durable screw/fixed pads and free high adapters.
4.The lift has two options,fixed and movable with integrated casters.
5.Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.

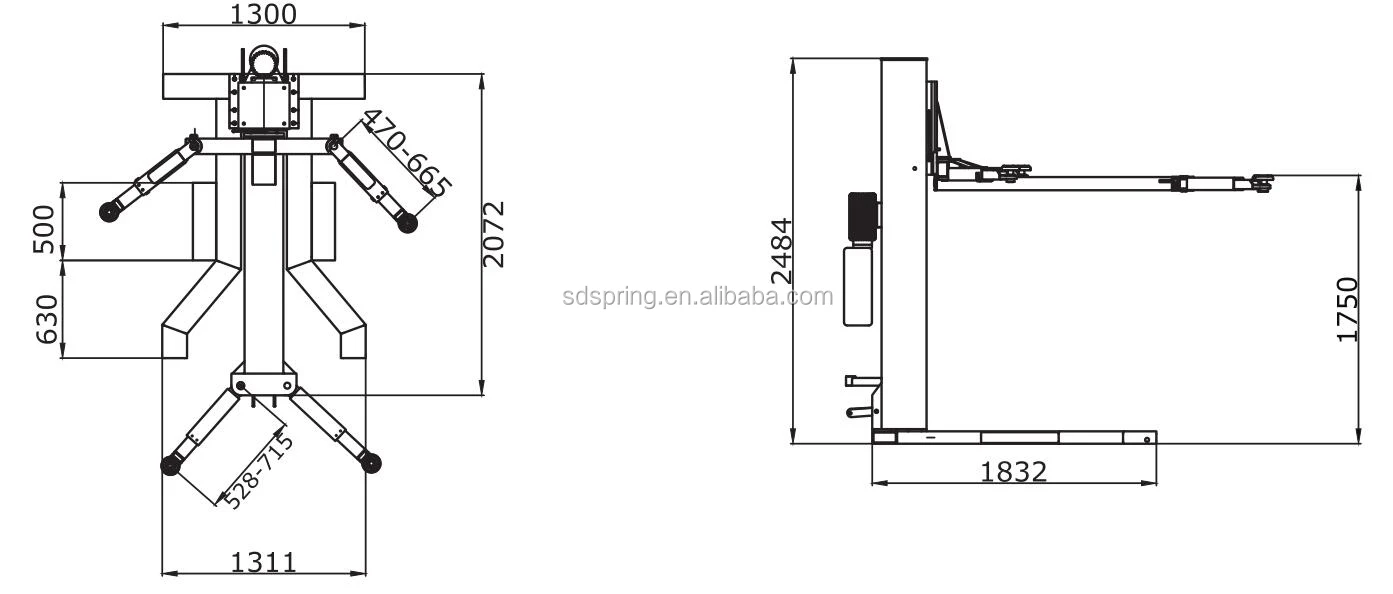

Model: LOP25/1600


Load: 2500kgs


Lift height:1805mm


Total dimension:1310*2072*2484mm


Weight: 850kgs
