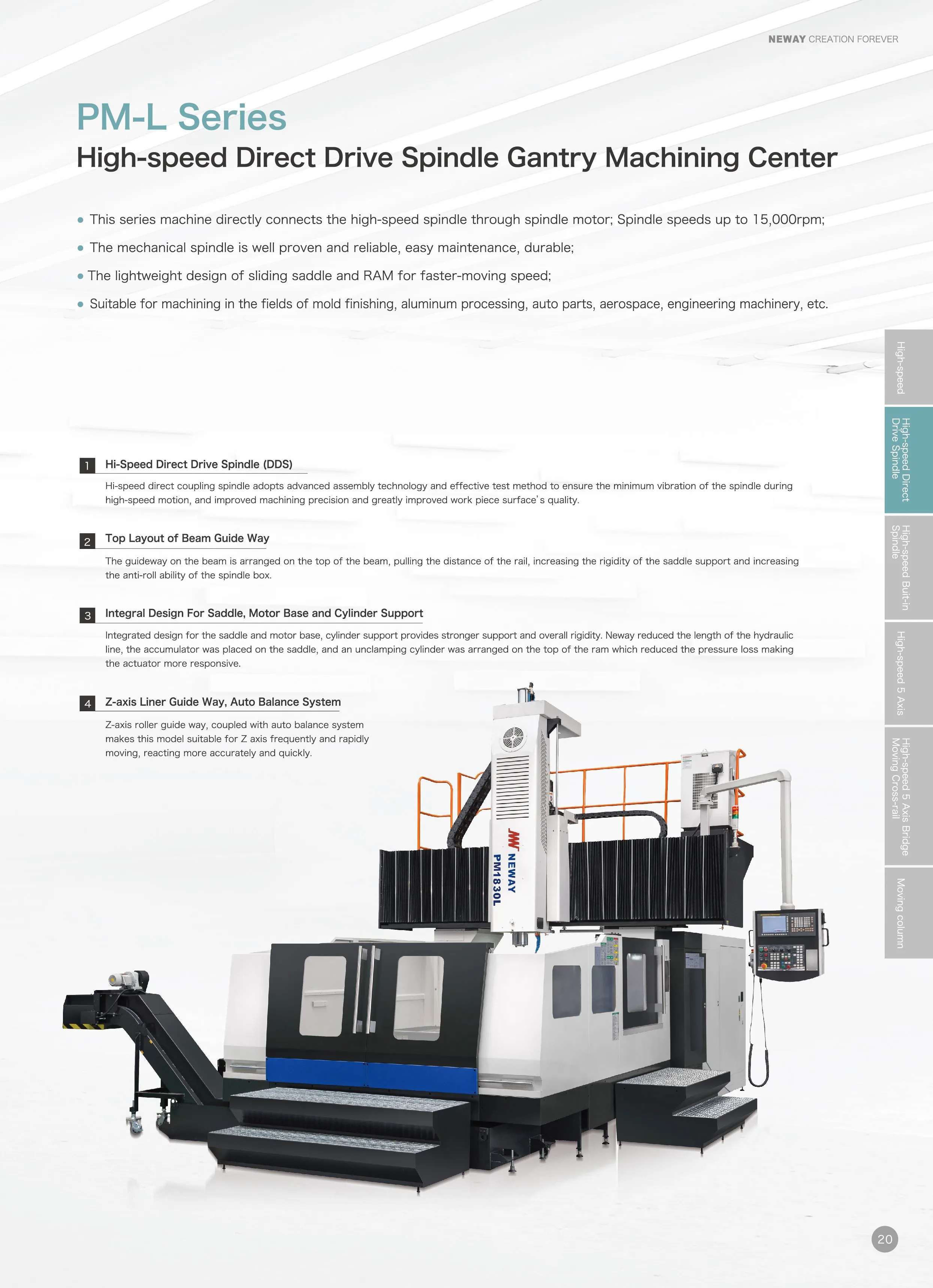

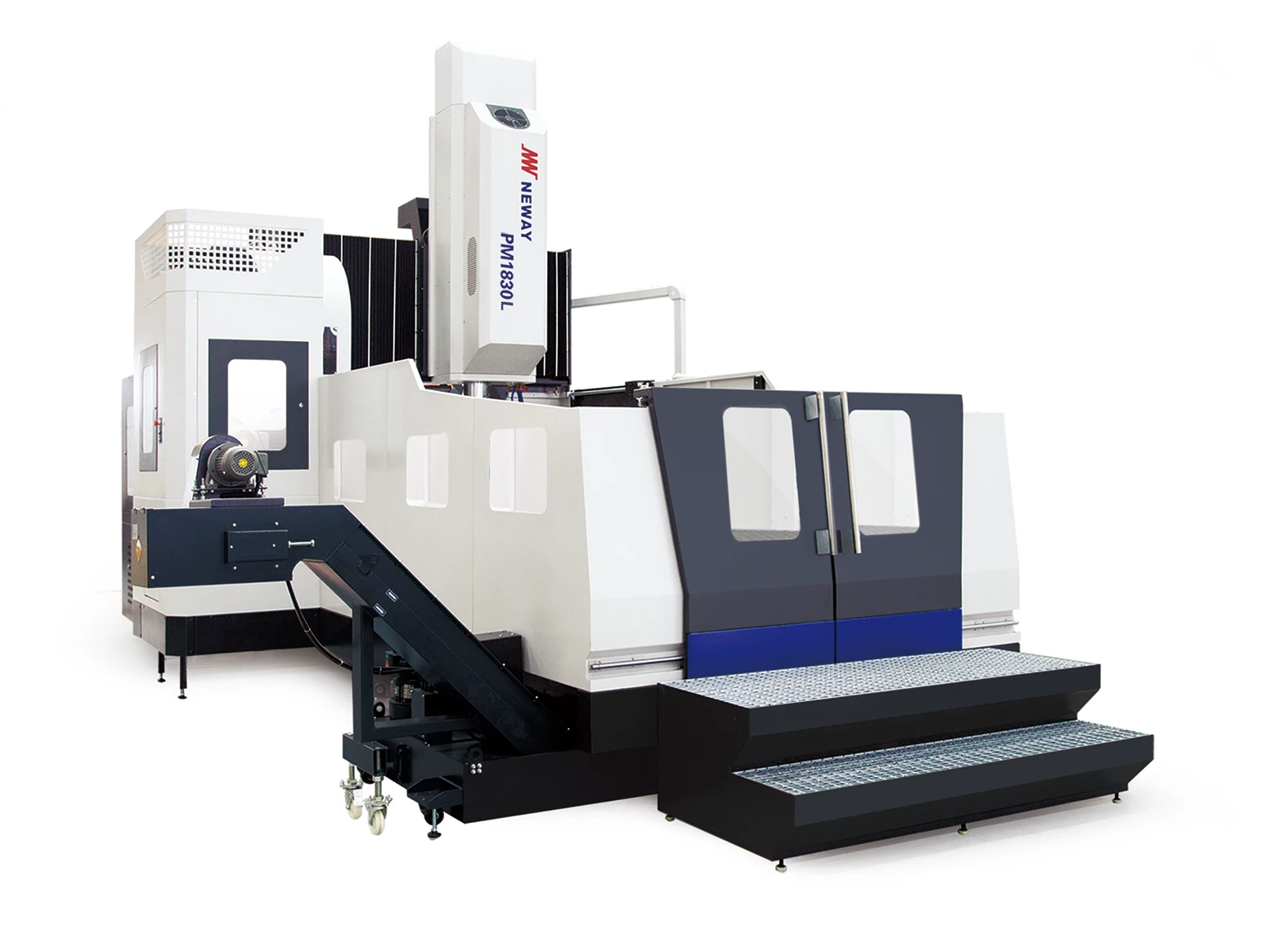

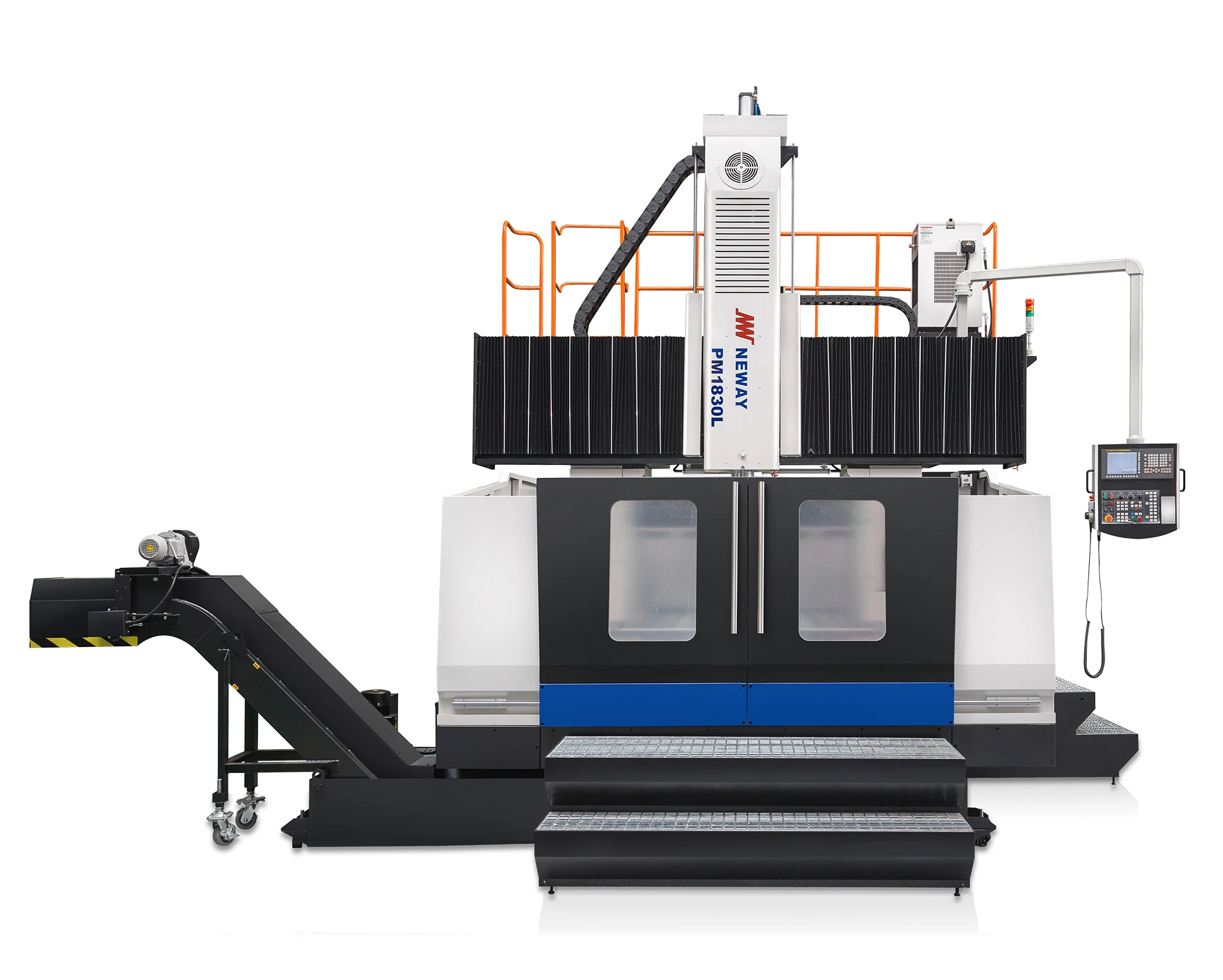

Neway direct conected spindle gantry milling machine machining center PM1830L
- Category: >>>
- Supplier: Neway CNC Equipment (Suzhou) Co. Ltd.
Share on (62014795404):
Product Overview
Description
| Item | Unit | PM1820L | PM1830L | PM1840L | PM2030L | PM2040L | PM2050L | PM2060L | |
| Worktable | The width of worktable | mm | 1800 | 2000 | |||||
| The length of worktable | mm | 2000 | 3000 | 4000 | 3000 | 4000 | 5000 | 6000 | |
| Wortable loading | kg | 8000 | 10000 | 12000 | 16000 | 20000 | 23000 | 26000 | |
| Processing area | Stroke (X axis) | mm | 2200 | 3200 | 4200 | 3200 | 4200 | 5200 | 6200 |
| Stroke (Y axis) | mm | 2700 | 3200 | ||||||
| Stroke (Z axis) | mm | 800 [1000] | 1000 | ||||||
| spindle nose to the worktake | mm | 130~930 [130~1130] | 130~1130 | ||||||
| distance between columns | mm | 2300 | 2800 | ||||||
| Spindle | Tool shank | - | BT50 [BT40] | BT50 [BT40] | |||||
| Spindle speed | r/min | 100~12000 [BT40:15000] | 100~10000 [BT40:12000,15000] | ||||||
| Max. torque | N.m | 95/118 | 140/165 [BT40:95/118] | ||||||
| spindle power | kW | 15/18.5 | 22/26 [BT40:15/18.5] | ||||||
| section of ram | mm | 450×400 | 450×400 | ||||||
| rapid moving | X,Y,Z axis rapid moving speed | m/min | 20/18/20 | 20/18/20 | 15/18/20 | 15/15/15 | 15/15/15 | 12/15/15 | 12/15/15 |
| ATC | No. of tools | - | [24/32/40/60] | [24/32/40/60] | |||||
| max tool dia./length/weight | mm/mm/kg | Φ105/350/15 | Φ105/350/15 | ||||||
| max. tool dia(no neighbor) | mm | Φ200 | Φ200 | ||||||
| accuracy GB/T17421.2-2016 ISO 230-2:2006 | X axis(positioing/repeatability) | mm | 0.016/0.010 | 0.020/0.012 | 0.025/0.016 | 0.020/0.012 | 0.025/0.016 | 0.030/0.020 | 0.035/0.024 |
| Y axis(positioing/repeatability) | mm | 0.020/0.012 | 0.020/0.012 | ||||||
| Z axis(positioing/repeatability) | mm | 0.016/0.010 | 0.016/0.010 | ||||||
| Net weight | - | 23000 | 25000 | 28000 | 35000 | 40000 | 45000 | 50000 | |
