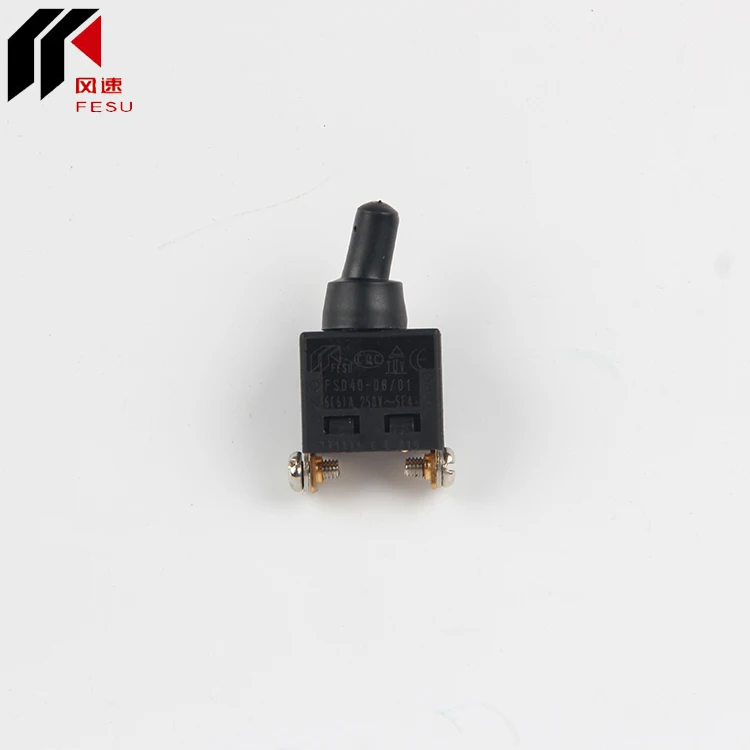

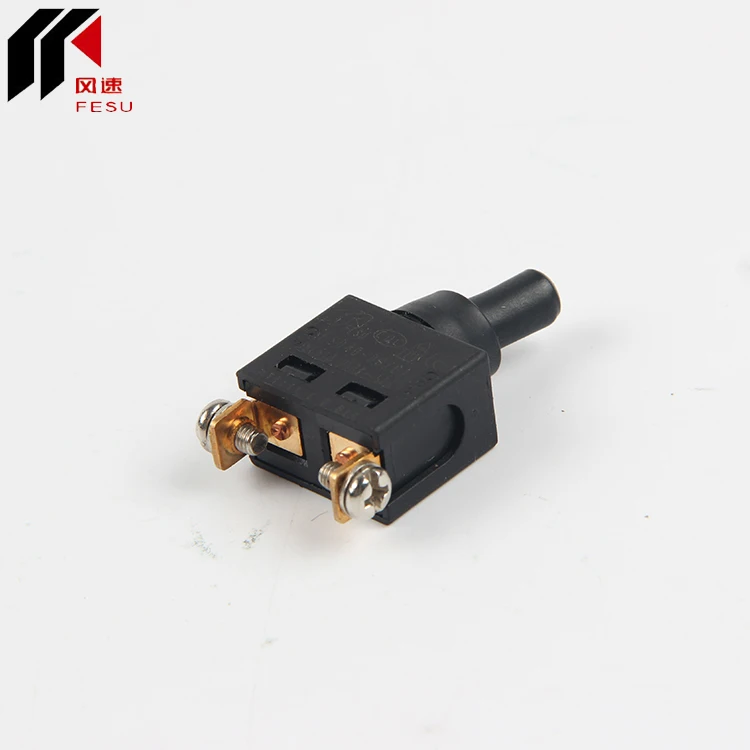

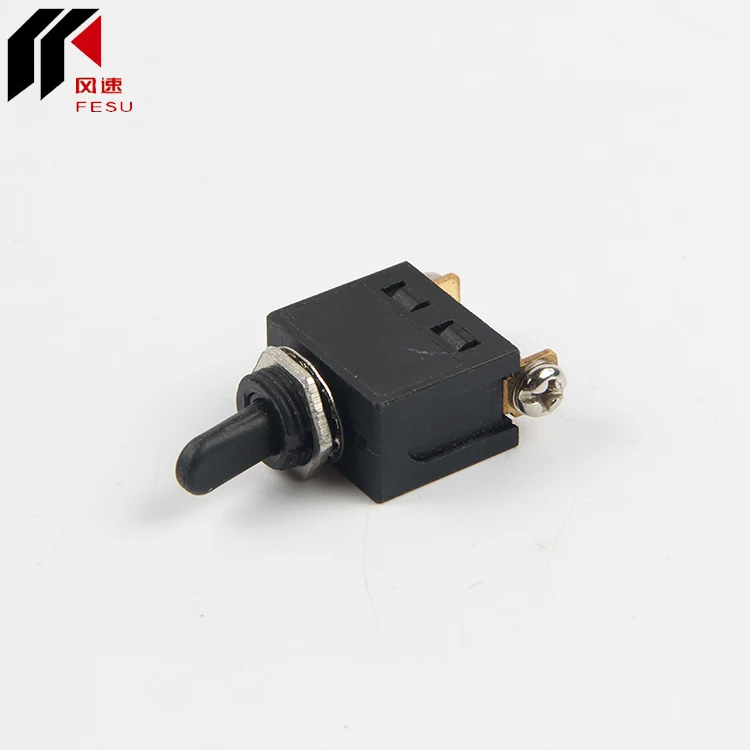

FESU 34/01 power tool switch angle grinder machine parts 220V

Product Overview

Description







switch component materials:	1. acutator :nylon
	2. housing :nylon
	3. spring :iron
	4. other component :copper
switch electrical features:	1.Optional rated current: 8A OR 12A
	2. optional rated voltage:250V OR 125V
	3.frequency:50/60HZ
	4.electrical life:5E4
	5. Certificated rating: 8A,250V; 12A,250V
switchmechnical features:	1. mechanical contact system: DPNO
	2. Optional with lock-on or lock off with lock on
	3.Optional with dust-proof,  with distub device
	4.Optiona screw terminals M4; Plug-in terminals:6.3*0.8mm
	5. mechanical life:1E4
	6. contact gap :upon users demand
	7. approval :tuv ce cqc
	8. trigger operating force:25N(MAX) release lock button
	9. lock on button force:20
switch installation:	screw terminals accept  stranded wire encapsulated with terminal pins
