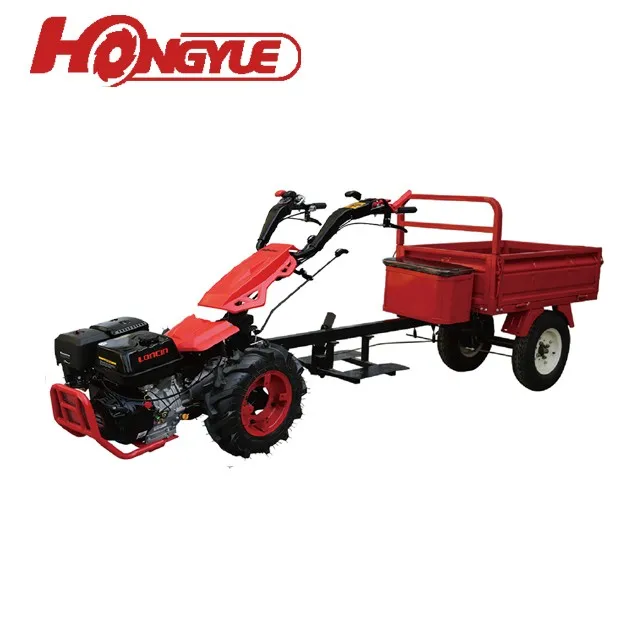

Agriculture Farm two wheel walking machinery tractor trailer
- Category: >>>
- Supplier: Yongkang Hongyue Power & Machine Co. Ltd.
Share on (62014814558):
Product Overview
Description
Product Description

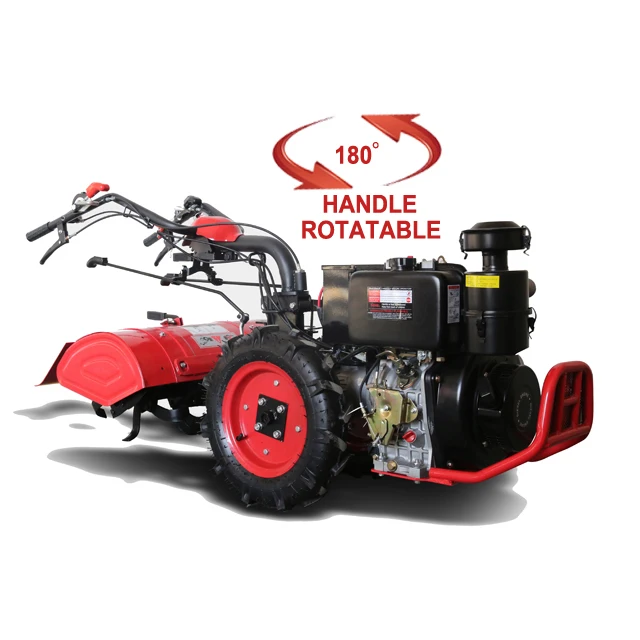

Two wheels Tractor Specifications
Engine option: 6.5HP-15HP gasoline engine & 6HP-11HP diesel engine.
Model: HYT01&HYT01A (732,732A)
Engine option: 6.5HP-15HP gasoline engine & 6HP-11HP diesel engine.
Start method: Available in recoil start or electric start.
Weight: 265 pounds
Working speeds: 3 forward, 2 reverse speeds
Working wheel speed: 0.95,1.85, 7MPH
Standard wheel size: 5"X10"/4"X10"
Transmission: all gear drive
Clutch type: Mechanical Dry Clutch
Axle configuration: differential drive with lock out.
Two wheels Tractor Specifications
Model : HYT01(PS)(740, 750)
Engine option: 6.5HP-15HP gasoline engine & 6HP-11HP diesel engine.
Start method: Available in recoil start or electric start.
Weight: 290 pounds
Working speeds: 3 forward, 3 reverse speeds
Working wheel speed: 0.8,1.8, 2.7MPH
Standard wheel size: 5"X10"
Transmission: all gear drive
Clutch type: Hydro-mechanical, "Wet"
Axle configuration: differential drive with lock out.
Model: HYT01&HYT01A (732,732A)
Engine option: 6.5HP-15HP gasoline engine & 6HP-11HP diesel engine.
Start method: Available in recoil start or electric start.
Weight: 265 pounds
Working speeds: 3 forward, 2 reverse speeds
Working wheel speed: 0.95,1.85, 7MPH
Standard wheel size: 5"X10"/4"X10"
Transmission: all gear drive
Clutch type: Mechanical Dry Clutch
Axle configuration: differential drive with lock out.

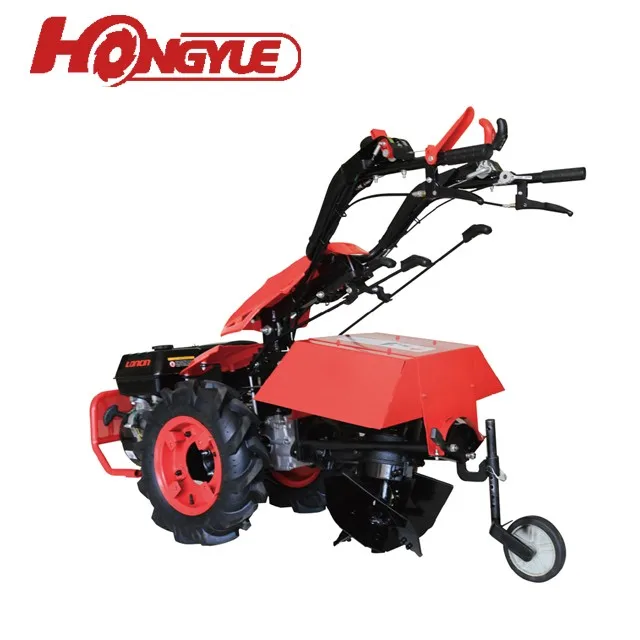

Technical date for Rear Tine Tiller Attachment
Model: HYRTT01
Working Width: 26" , 32", 40"
Working Depth : 8"
Tine Speed: 290rpm
Packing Size: by Woodbox 71*47*53cm
Feature:
A.Professiion quality, to be enjoyed by home and commercial gardeners alike.
B.Competent working in hard soil,Sand soil and mud soil.With use as dig dirt, build soil,bust sod, prepare seedbads, percision cultivate, power compost
C. Effort operation With large wheels in control and proper balance, the tiller avoids "tine walking" and requires little or no downward pressure on the handles. Its compact design makes it easy to turn at the end of the row.
D. Smart cover desing to avoId splash of dust.
Hydro-Mechanical Wet Clutch Transmission System
a. Oil Circulated Cooled , Avoid overheating
b. Higher Torque transmission
C. High riliablity, long life time
d. Maintenance- Free
Related product series: HYT01(PS) (740, 750)
Mechanical Dry Clutch
a. Mechanical Friction
b. Air-cooled.
Related product series: HYT01,HYT01A( 732, 732A)
Certifications
Packing & Delivery
| Packaging | |
| Size | 114*70*80CM |
| Weight | 160kgs |
| Packaging Details | The normal package is plywooden box. No need to be fumigated for European market. Package Includes Engine+ tractor+ tools kits+ free spare parts. |
| Packaging | |
| Size | 71*47*53cm |
| Weight | 80kgs |
| Packaging Details | The normal package is wooden box or carton board box for different attachements and customer need. |
Our Service
Our Teams
1. 13 years experience in producing and serving
2. We are a professional factory with authorized IMP& EXP
3. Shanghai and Ningbo sea port.
4.Within 24 hours service for techinical and any question.
5. Payment Terms:
a. We accept T/T 30% in Advance, and 70% T/T balance at the sight of B/L.
b. We also accept L/C at sight
2. We are a professional factory with authorized IMP& EXP
3. Shanghai and Ningbo sea port.
4.Within 24 hours service for techinical and any question.
5. Payment Terms:
a. We accept T/T 30% in Advance, and 70% T/T balance at the sight of B/L.
b. We also accept L/C at sight
Our Products
1. General color : Red. Any other color ,just you need or like, we can paint it for you.
2. Warranty time and the Spare Parts
a.Machine and attachments: 1-3years warranty time for different items.
b. Spare Parts:I n warranty period, if the spare part is not work because of the quality, we will send you new parts for free. Easy-damage parts sold by low price.
c. Tool Box : Free within package
2. Warranty time and the Spare Parts
a.Machine and attachments: 1-3years warranty time for different items.
b. Spare Parts:I n warranty period, if the spare part is not work because of the quality, we will send you new parts for free. Easy-damage parts sold by low price.
c. Tool Box : Free within package
