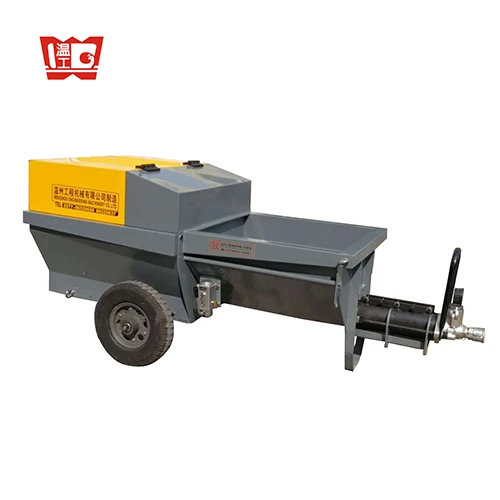

diesel wall cement mortar plaster rendering spraying machine

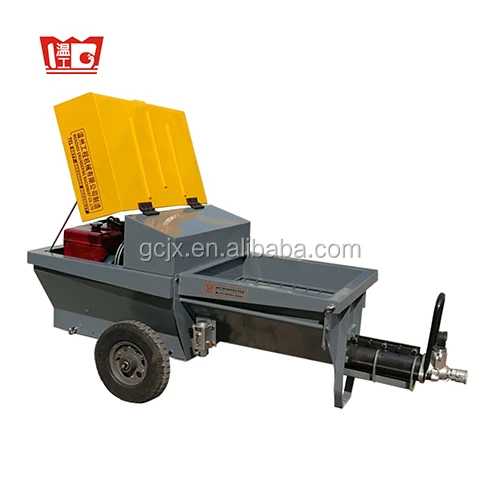

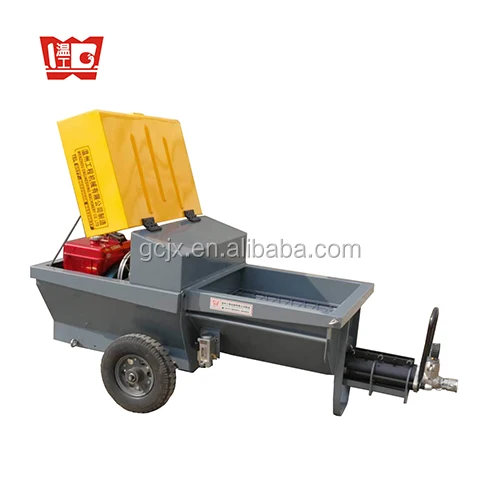

JP70RA mortar spraying machine

JP70 is the application of modern technology - a large capacity mortar spraying machine, which has pump conveying, bonding, spraying functions.

High conveying efficiency, long pumping distance, easiness of pumping large particles of material,

these can be used for spraying already-mixed mortar and field mixing mortar.

**Set the screw pump anti-wear control mechanism;

**with a direct separation of the screw rotor and stator on machine;

**adjust the displacement and remote control functions, pressure sensor control.

**It is suitable for conveying and spraying variable kinds of plastering mortar, insulation mortar,

bonded mortar, fiber mortar, facing mortar, interface mortar, floor mortar, fire mortar, refractory mortar,

self-leveling mortar, masonry mortar, reinforced mortar, fill mortar and pouring mortar.

**The modular system of the JP70RA is based on a worm pump with a powerful 7 kW diesel enginedrive.

The basic version is particularly suitable for users who pump and spray pumpable wet mortars with grain sizes of up to 6 mm.

Model

—

JP70-P

JP70-S

JP70RA

Supply power

—

400V 50Hz

400V 50Hz

DIESEL

Motor power

kw

4.0/5.1

4.0/5.1

7 KW

Compressor power

kw

0.9KW

—

0.9 KW

Maximum grain size

mm

6

6

6

Output

l/min

70

70

70

Delivery pressure

bar

30

30

30

Horizontal delivery distance

m

60

60

60

Vertical delivery distance

m

25

25

25

Hopper volume

L

100

100

100

Net weight

kg

280

210

370

Dimension (L×W×H)

mm

2290×680×660

2290×680×660

2180*870*950
