86 x 65cm dual view x ray baggage scanner 2D image Introscope for cargo screening

Product Overview

Description

86 x 65cm dual view x ray baggage scanner 2D image Introscope for cargo screening

33 Zones Security Walk Through Metal Detector Gate Along With 2 Units CCTV Camera



Product Point:
1..............................Tunnel Size : 800 (W) ×650 (H) mm
2..............................24 bit , Dual Energy
3..............................34mm Steel Penetration
4..............................Leakage radiation: <0.14µGy/h
5..............................Single inspection dosage: < 1.15μGy

5..............................2 units X-ray Generator



General Specifications:

Tunnel Size :	800 (W) ×650 (H) mm
Power Requirement:	220V AC (±10%) 50±3Hz
Power consumption:	1.0KW (Max)
Noise level:	<55dB
Conveyor Speed:	0.22m/s
Conveyor Max Load:	200 kg
Wire Resolution:	34AWG
Spatial Resolution:	1.0mm Horizontal and Vertical
Steel Penetration:	34mm
Single inspection dosage:	< 1.15μGy
Leakage radiation:	<0.14µGy/h
Film Safety:	Guarantee ISO1600 Film



X-Ray Generator Specifications:

Tube Current:	0.4~0.7mA
Anode Voltage:	100~160KV
Detector:	L-shaped Array
Cooling:	Sealed oil bath with forced air
Duty Cycle:	Rated for 100%Duty Cycle
Beam Angle:	80°



Computer Specification:

Processor:	I3-4340 (Dual core four thread) 3.6 GHZ 22nm 54W
Memory:	4GDDR3 Loptop Memory
Hard Disk :	1T



Image Display:

• 19'' High Resolution LCD Monitor


• Display Resolution: 1280*1024;24 bit/pixel Color


• Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level


• Image storage: 100,000 pictures in real time (can be customized)


• Zoom: 64 Times Enlarge, Whole screen continuous observation


• Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color, mixture in green color


• Edge enhancement: Object contour edge is more distinct


• Super image enhancement: Image detail is more distinct


• High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly


• Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.


• Brightening/dimming: Increase/Decrease brightness of image


• Image recurrence: Display the previous twenty images and process any one of them


• Image restoration: Restore image to initial status


• Assist to detect drug and explosive powder

Special features:

• Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time


• Safety ray: Ray is transmitted under automatic control, avoiding the error


• One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient


• Eagle eye: Capable of expediently observing the magnifying area


• Self-diagnosis function: Give message automatically if malfunction for prompt maintenanceTIP and training software


• TIP and training software , free programmable keys , real time diagnostic


• Display date/time , baggage counter , User ID number


• Review feature , recall previously image , zoom overview , step less zoom

Environment Specifications:

• Operating temperature/humidity: 0ºC ~ 45ºC/20% ~ 95% (Non-condensing)


• Storage temperature/humidity: -20ºC ~ 60ºC/20% ~ 95% (Non-condensing)

Application:

End user	Recommend X Ray Baggage Scanner model NO.
Airports, Transport terminals	SF6040; SF6550; SF10080; SF100100
Factories (to find needle in clothing, shoes, bags)	SF5030; SF5636; SF6040; SF6550
Courthouses, Embassies, Buildings	SF5030; SF5636; SF6040; SF6550
installations	SF5030; SF6040; SF6550; SF8065; SF100100
Prisons, Hotels, Schools, Convention centers	SF5030; SF5636; SF6040; SF6550; SF10080
Security checkpoints,Special events location	SF5030; SF6040; SF6550; SF8065; SF10080

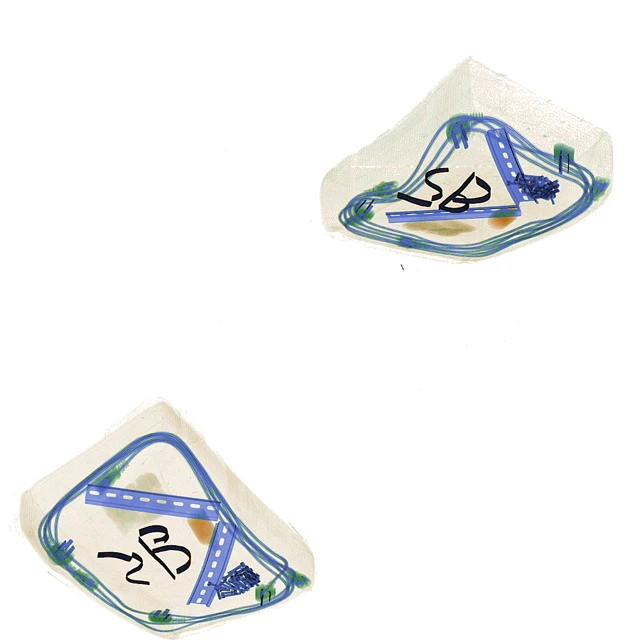

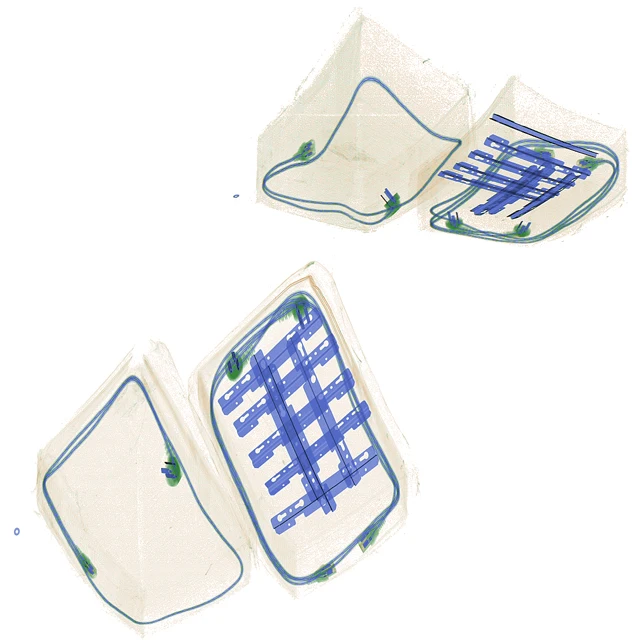

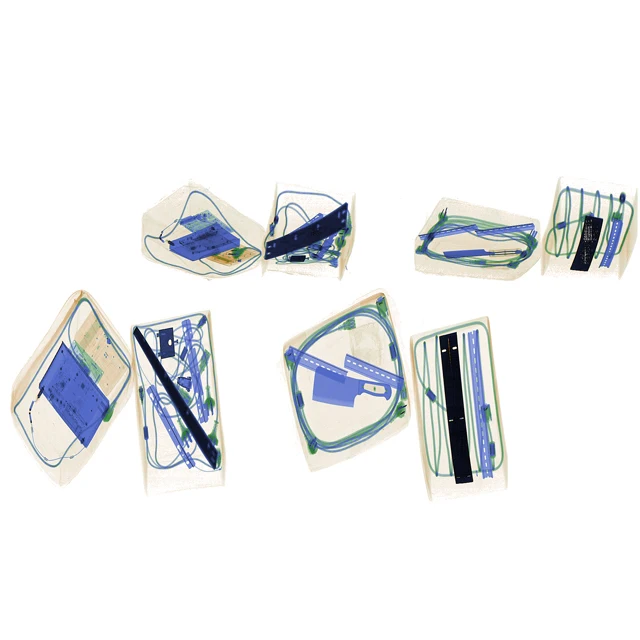

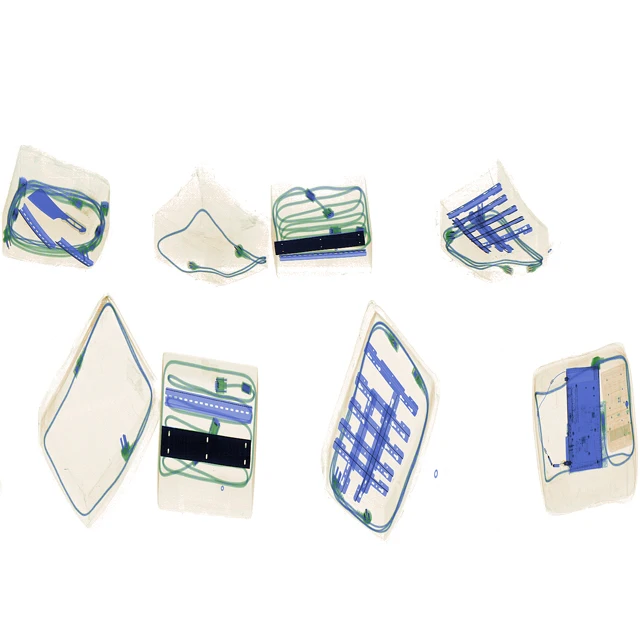

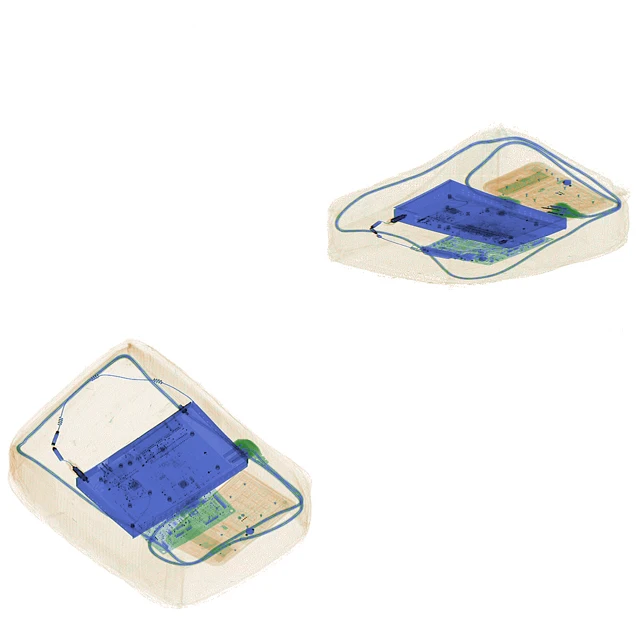

Detail Photo :

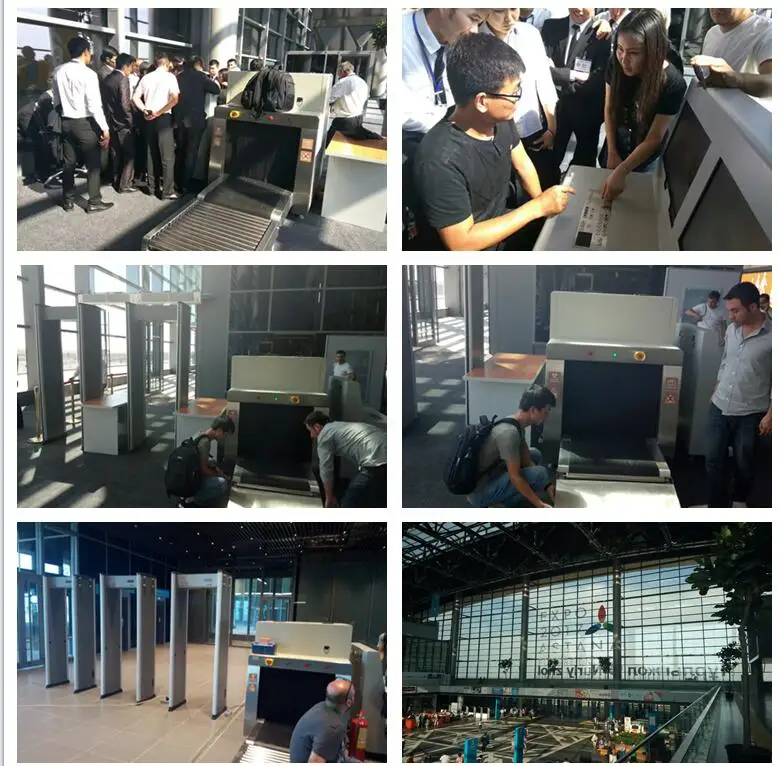

Installation Case :

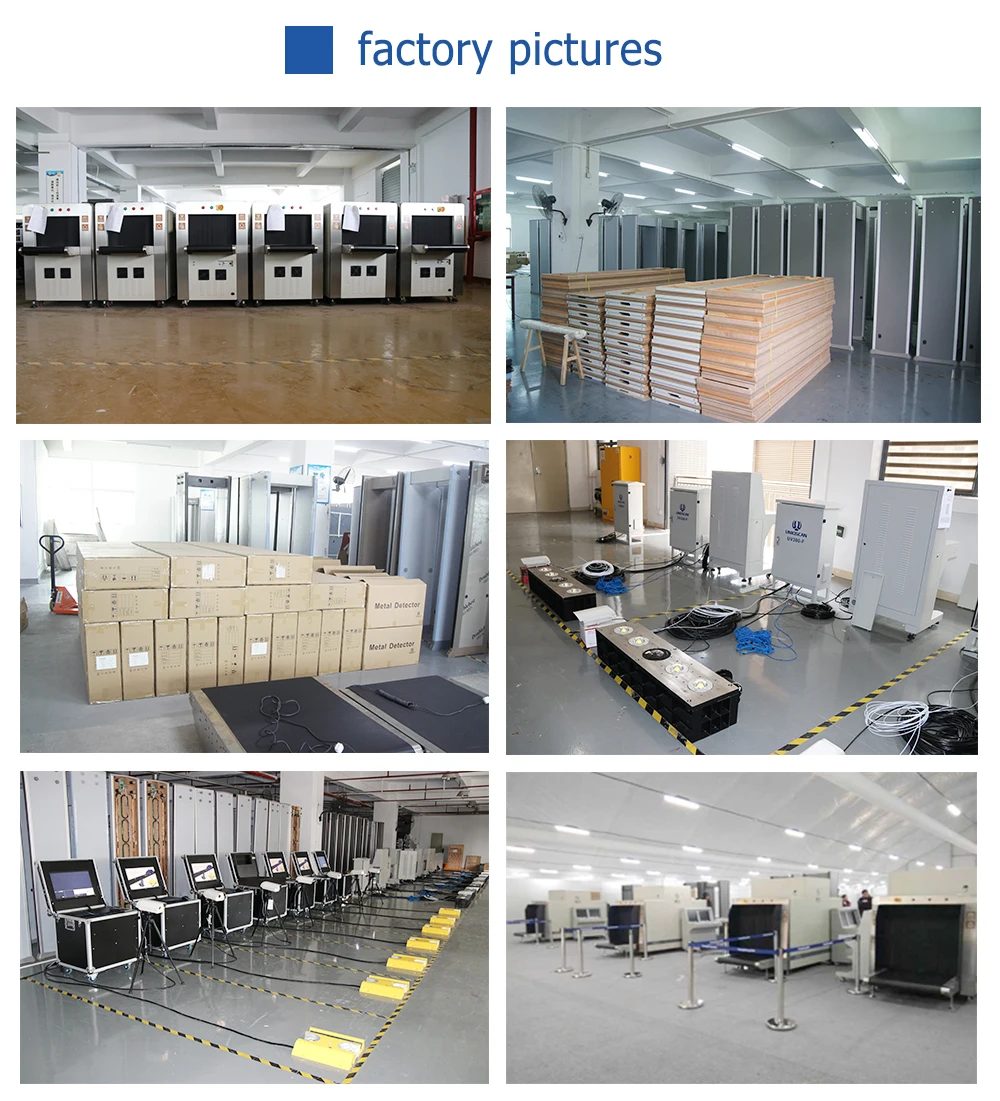

Factory :

Certification :
