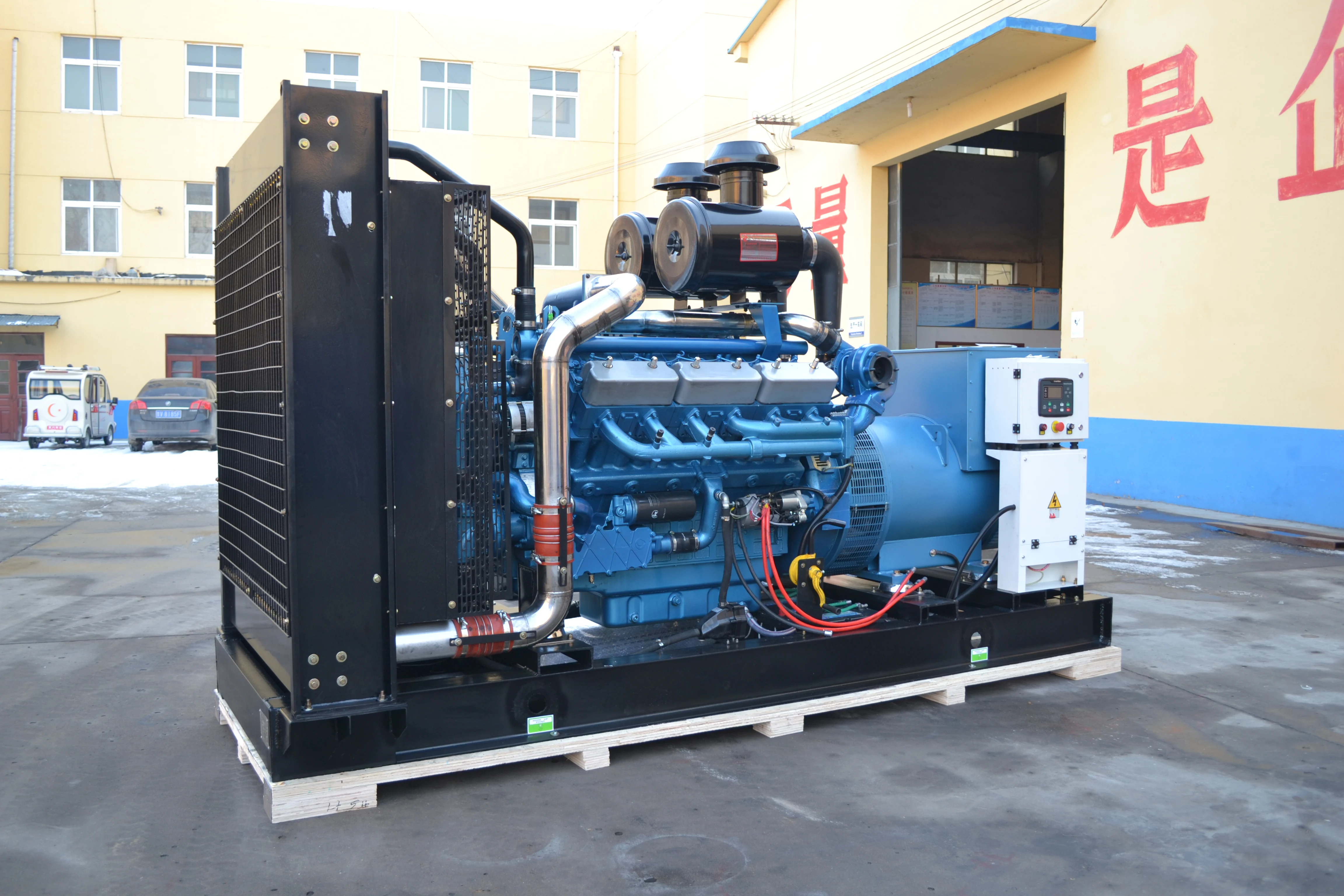

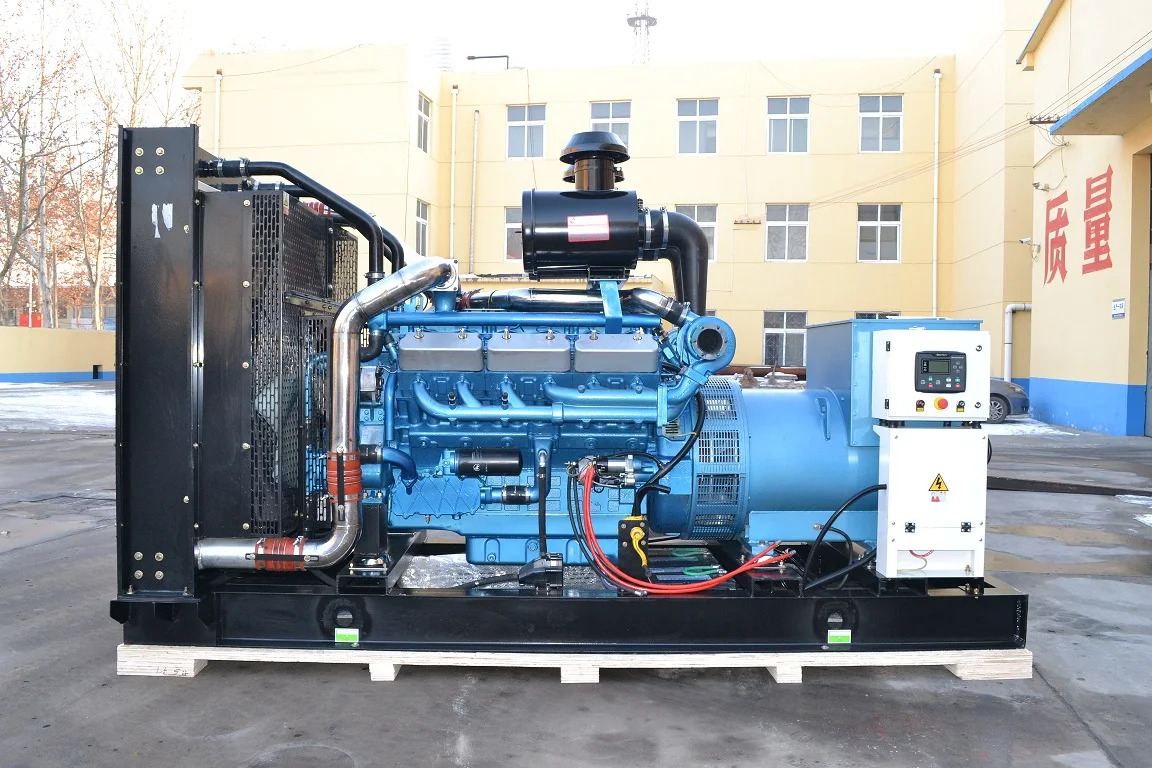

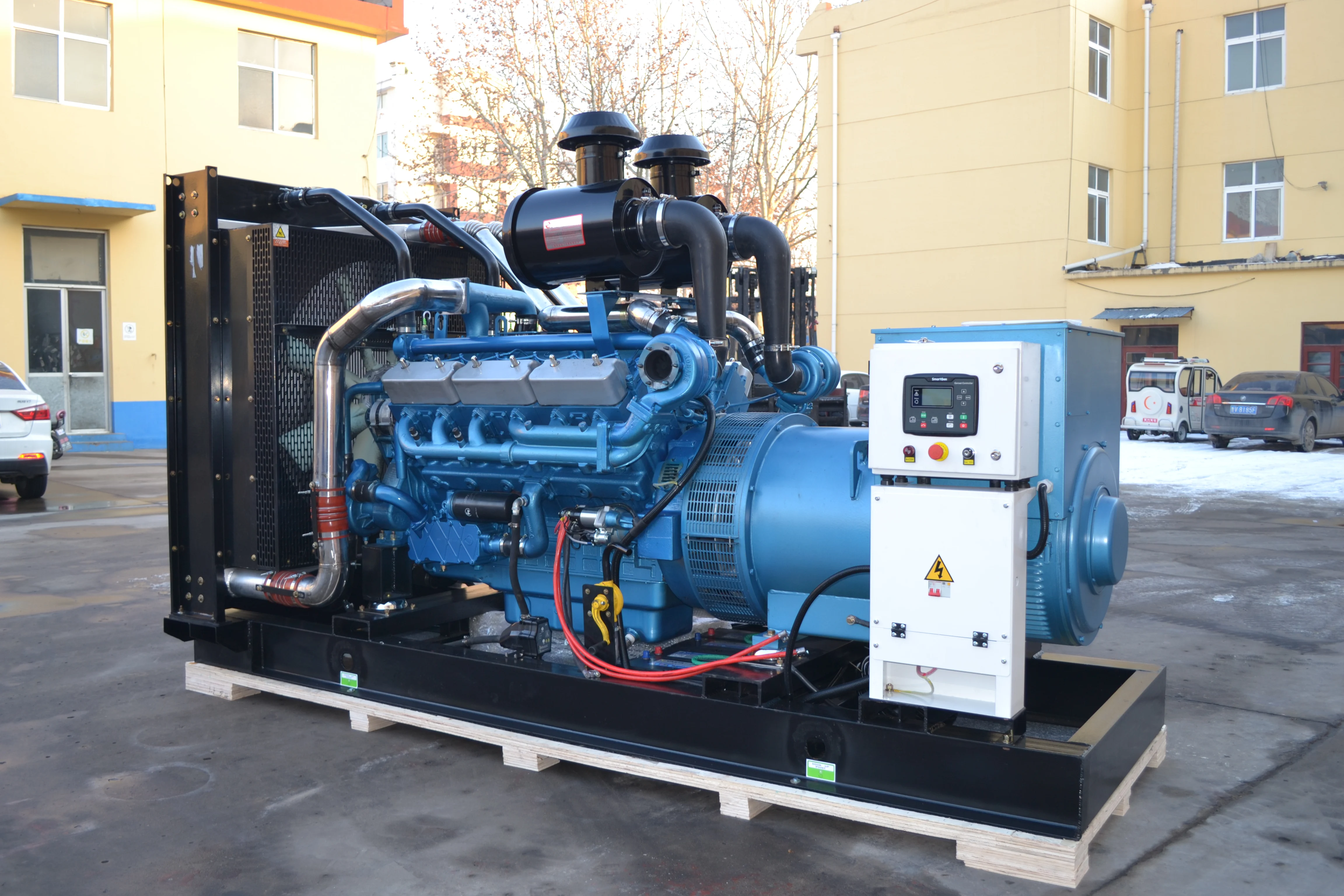

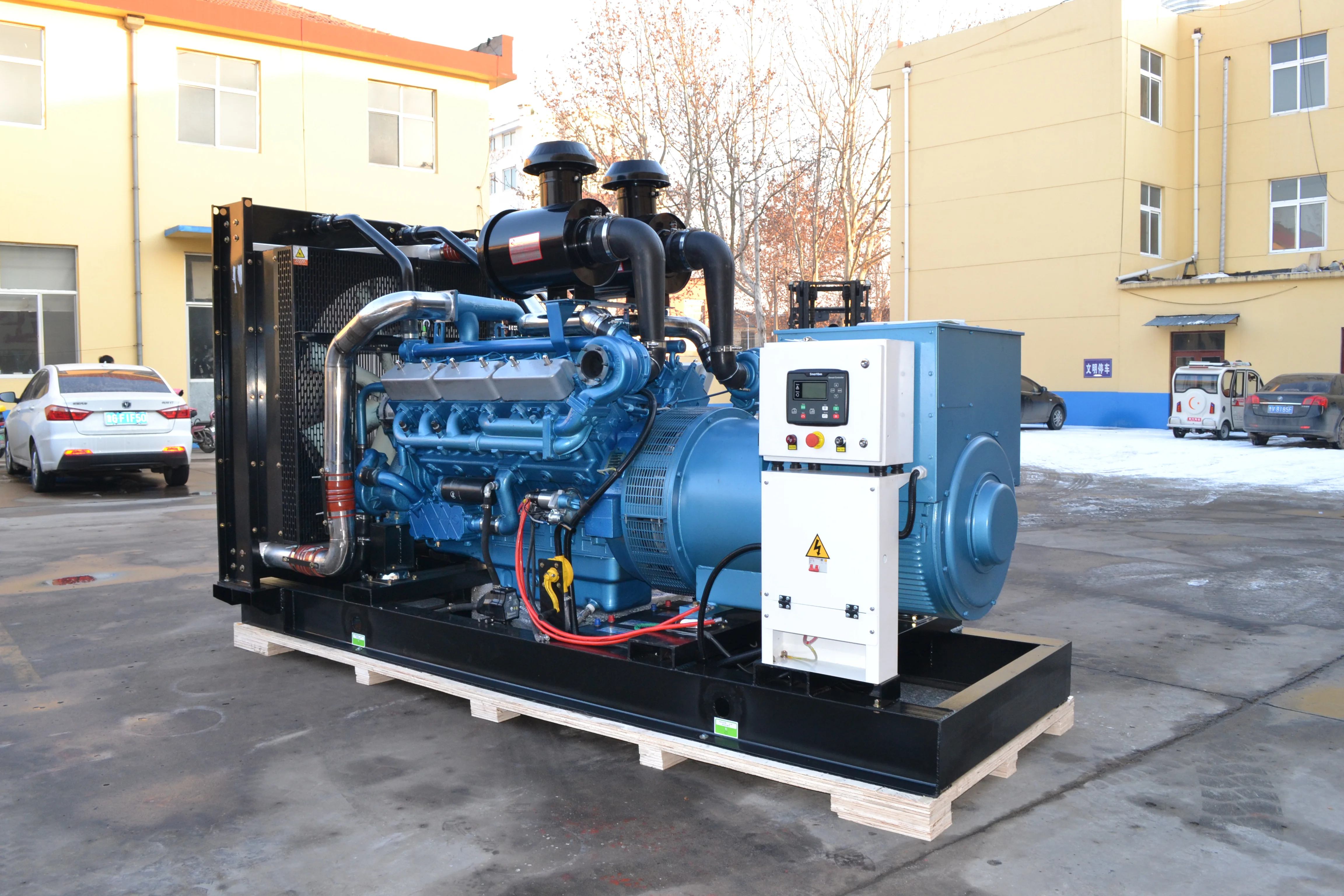

New model 400kw diesel generator set for Russia market

Product Overview

Description

400KW 500KVA DIESEL GENERATOR SET SPECIFICATION







*Powered by China Wudong series engines

*Radiator 40°C max, fans are driven by belt, with safety guard

*12/24V DC start motor and storage battery

*Brushless, self-excited, IP22/23, insulation H alternator

*Absorber to reduce vibration

*Dry type air filter, fuel filter, oil filter

*Main line circuit breaker

*Control system: Key start control panel as standard, digital auto start or ATS system is optional

*8 hours operation base fuel tank (option over 200KW)

*High efficient muffler to reduce noise

*Ripple flex exhaust pipe, exhaust siphon and flange etc.

*Genset type: open type or soundproof/silent type, or trailer type

* Maintenance and operation manual, quality certificate, etc.

*Rigorous testing must be done before delivery, including 50% load, 75%load, 100%load, 110%

and all protection function(over speed stop, high water temperature, low oil pressure, battery

charging fail, emergency stop)

*Certificate: ISO9001:2000, CE (ESC/070119), BV





Genset model	GF-400
Prime power  (KW/KVA)	400/500
Standby power  (KW/KVA)	440/550
Frequency & voltage	230/400V, 50HZ
No. of  Phase	3
Genset type	Open skid type
DIESEL ENGINE
Engine brand & Model	SYG258TAD51
Rated output	465KW
Rated Speed	1500RPM
No. of cylinder	12
Bore*stroke	138*150mm
Displacement(L)	26.9
Fuel Consumption(g/kw.h)	≤213
Oil Consumption(g/kw.h)	≤1.5
Exhaust temp.°C	≤600
FSU	≤1.5
Starting method	Electric starting
Cooling method	Forced water cooled
ALTERNATOR
Alternator brand & model	Stamford/Leroy Somer/China reputed & equivalent one
Type	Brushless & self-excited
No. of phase	3
Voltages	230/400V
Frequency	50HZ
Power Factor	0.8
Insulation Grade	H
Protection Grade	IP22/23
Altitude	≤1000m
