Mini Gas Powered Yn27c Gasoline Petrol Rock Drill Machine
- Category: >>>
- Supplier: Henan,Yugong,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Mini Gas Powered Yn27c Gasoline Petrol Rock Drill Machine
Description of Rock Drill
The Internal Combustion Rock Drill Type YN27C is a very efficient machine with the haracters that the structure is very compact, Less of the-easy-to-damage-parts, and very easy to control. It can adapt to these outside situations there is no water and no electronic power. It is a Kind hand held drill built up with gasoline engine, Air pump, rock drill and the rotation plumbum equipment for running or stop. It can be used as a tool for breaking, percussive drilling, tamping besides rock Drilling.
Application of Rock Drill
Internal combustion rock drill has drilling holes in mining, building construction, cement pavement, asphalt pavement, etc. Various cracking, breaking, tamping, shovel and other work can be widely used in mining, construction, fire fighting, geological exploration, road construction, quarrying, construction, country anti-engineering, etc.
Technical Parameters of Rock Drill
| Technical specifications | |
| Weight of main machine | 27kg |
| Overall dimensions(L*W*H) | 746*315*229mm |
| Type of engine | Single cylinder, air cooled two strokes |
| Cylinder diameter*stroke of piston | Φ58*70mm |
| Rotation speed of engine | ≥2450rpm |
| Displacement of engine piston | 185cm³ |
| Type of carburetor | hand needle valve, floatless type |
| Ignition system | controllable silicon, contactless system |
| Drilling speed (mean value of five holes) | ≥250mm/min |
| Drilling hole diameter | Φ28-42mm |
| Max drilling depth | 6m |
| Fuel consumption | ≤0.12L/m |
| Tank capacity | ≥1.5liter |
| Mixture ratio of gasoline and lubrication oil (in volumes) | 12:01 |
| Drill rod and breaker shank | Hex22*108mm |
| Rotating speed of drill rod | ≥200rounds/min |
| Clearance of spark plug | 0.5-0.7mm |
Structure of Rock Drill
Details of Rock Drill

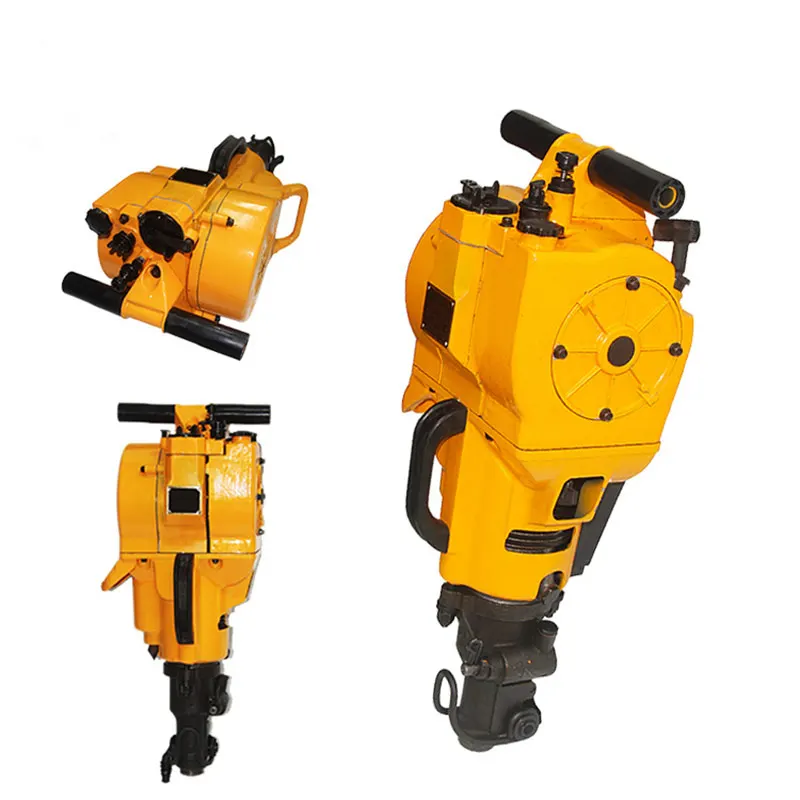

Real Pictures of Rock Drill
Drill Pipe and Drill Bits of Rock Drill
Spare Parts of Rock Drill
Packaging of Rock Drill
Packaging Details
1. Wrapped by protective film;
2. Packed by standard import & export wooden cases or carton boxes;
3. Customized according to your requirement.
Delivery Time
Within one week.
Shipping
Port: Tianjin, Qingdao, Shanghai or other ports according to your requirements.
Sea freight: FOB/CIF/DDU quotation are all available.
Transport method: By logistics; by automobile; by train; by shipping; by air etc.
