Home security remote control doorbell smart door lock knx automation videophone

Product Overview

Description

Home security remote control doorbell smart door lock knx automation videophone



Product Description:

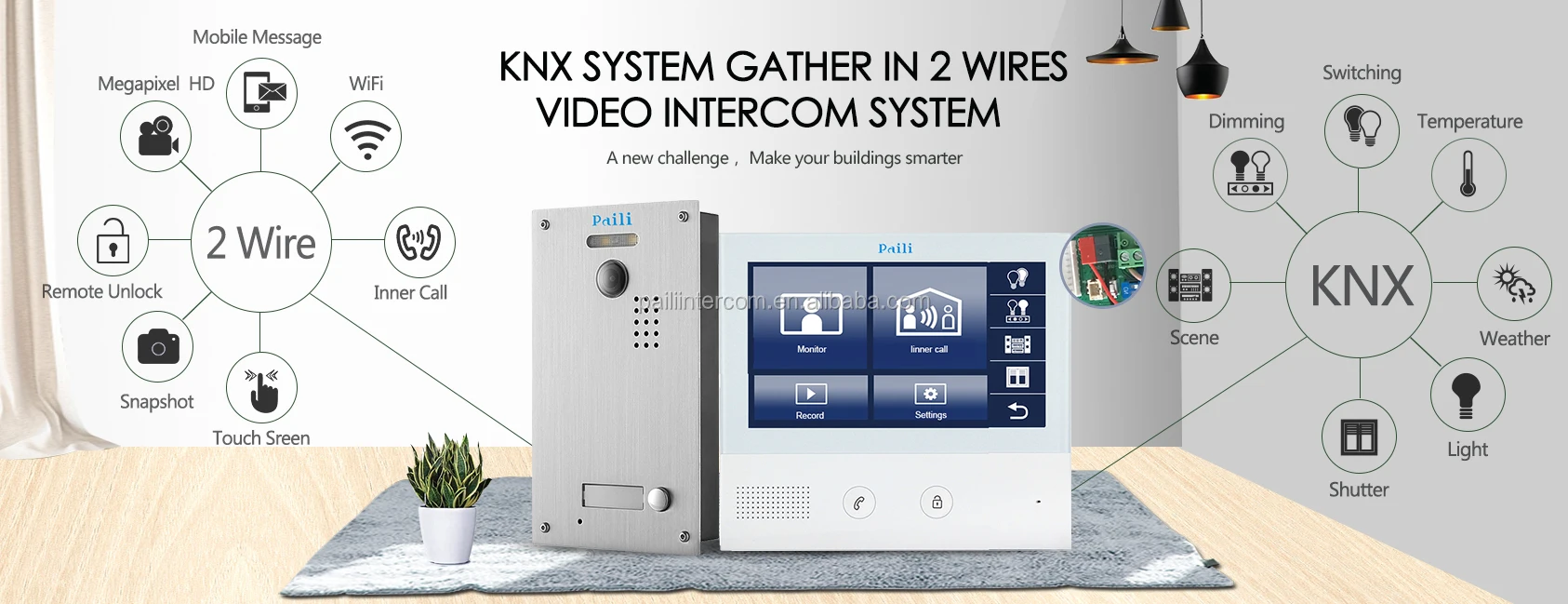

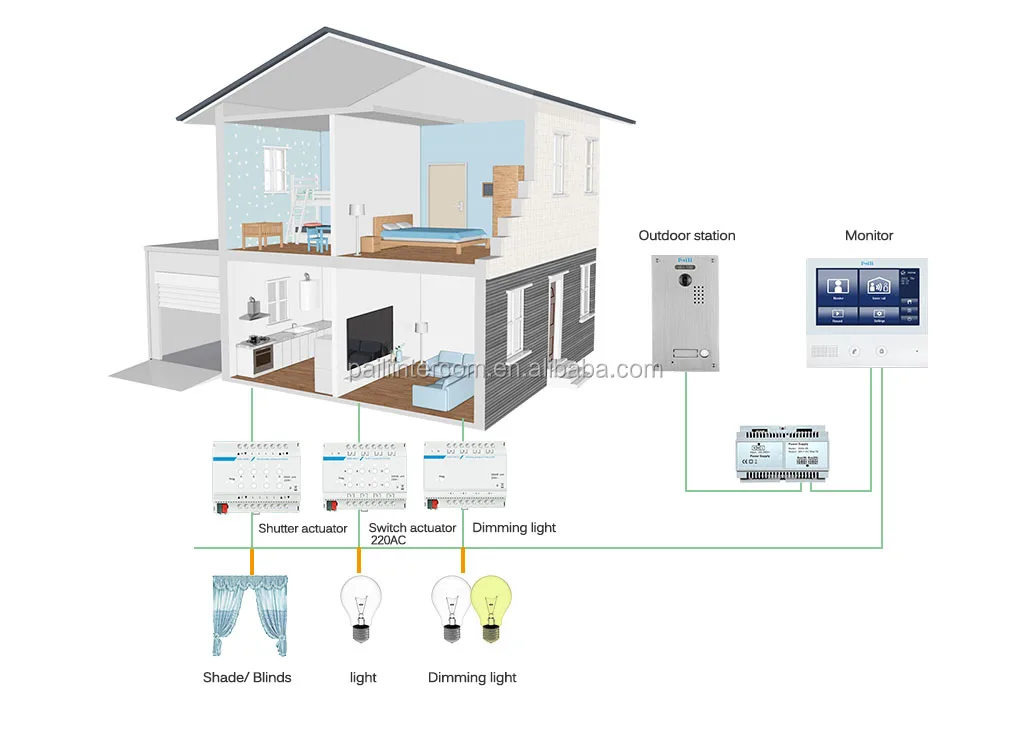

Based on TCP/IP protocol, video door phone system is a full digital solution with functions of digital video intercom, Multi-channel calling, intercom between residences, information publishing, alarm, KNX home automation scene control etc. The solution provides clear and fluent video intercom service and security alarm, which enhances the community security and safety management. Based on different demands of application, the system can be set to support functions accordingly.

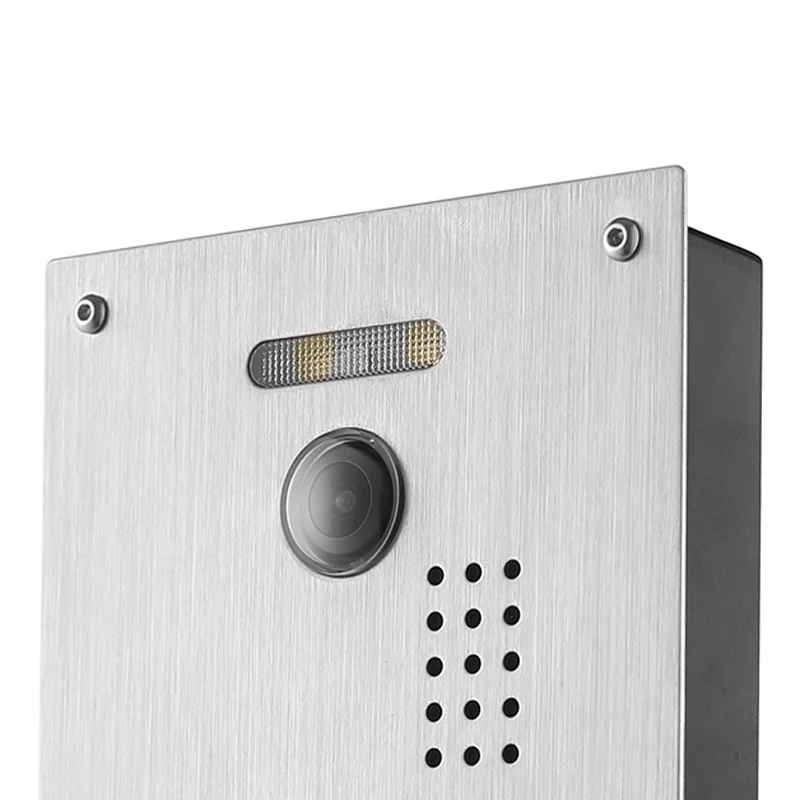

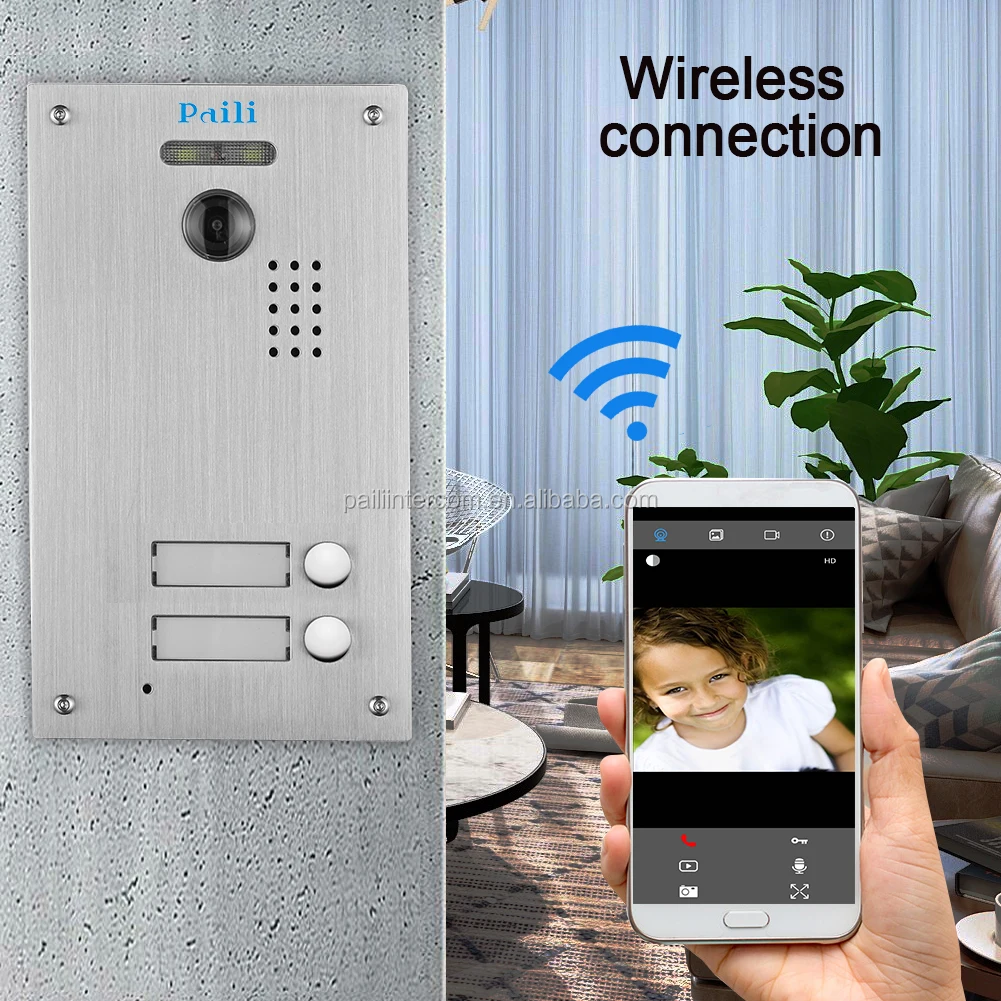

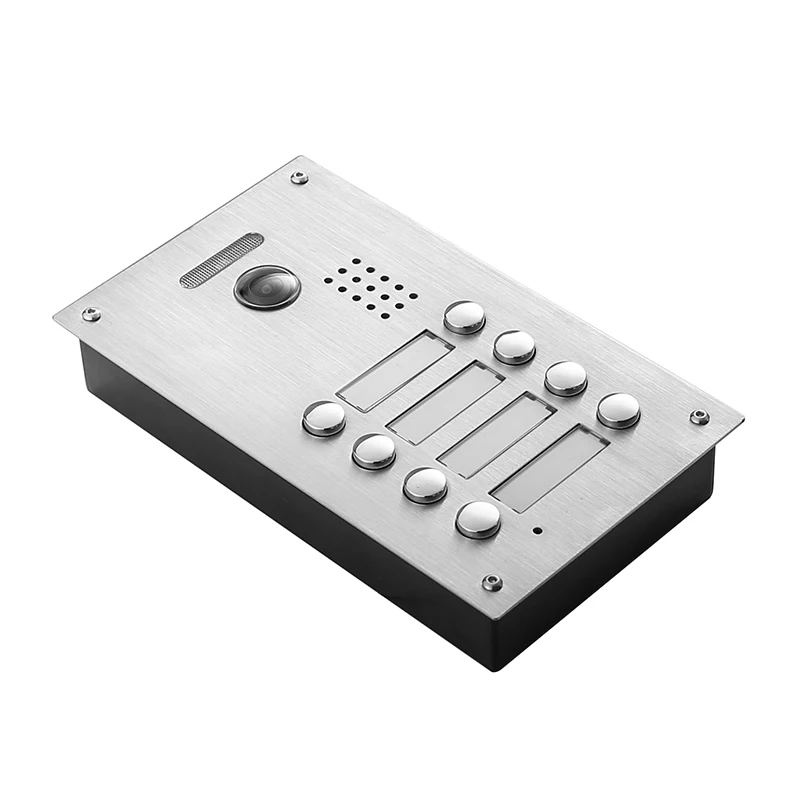

Outdoor Station:

HD Camera with Night Vision Waterproof & Vandalproof Aluminium Alloy Cover
1.0MP 2.1mm lens
2-wire connection
Installation: Surface mounting
Dimension: 180x105x32 mm

For One/Two/Three/Four/Eight&32apartments

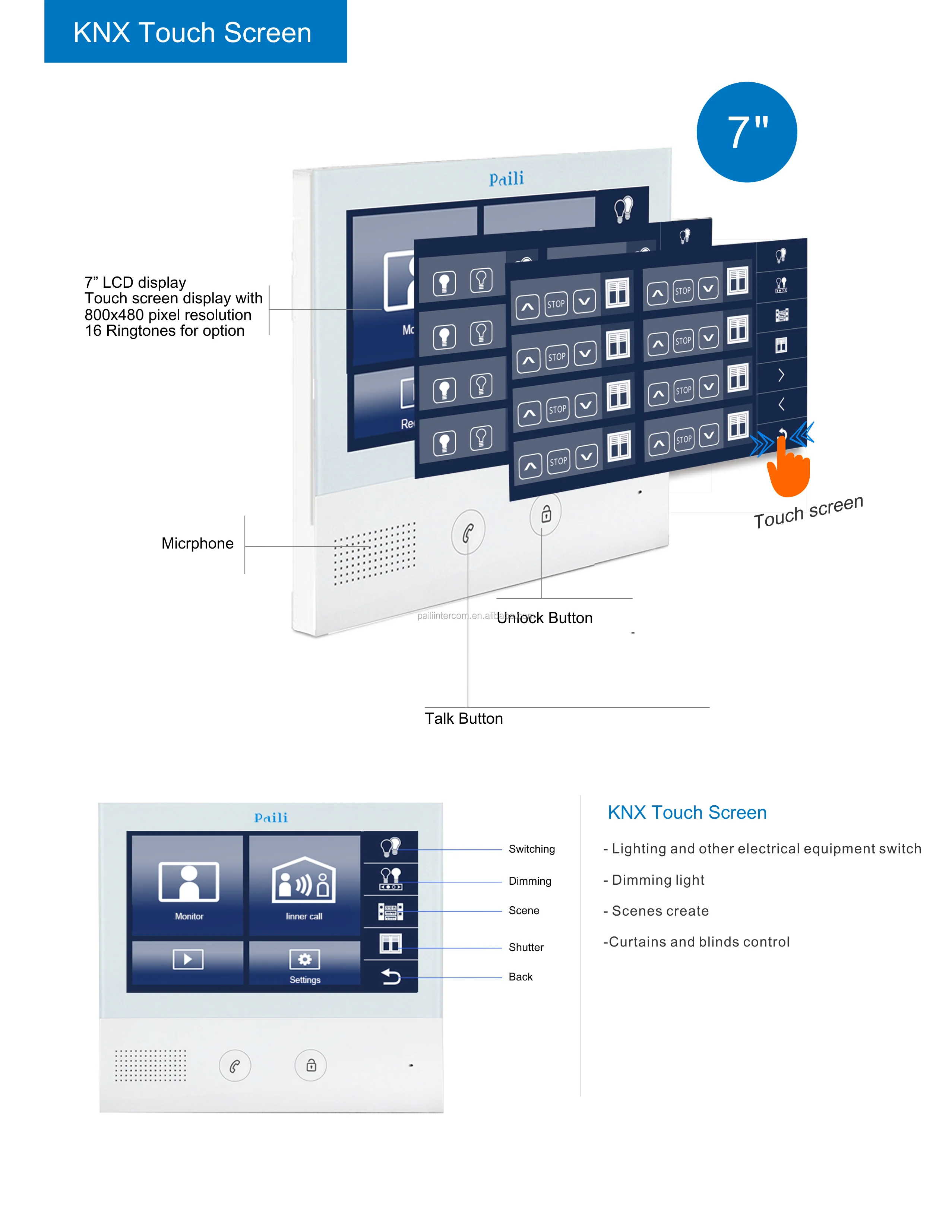

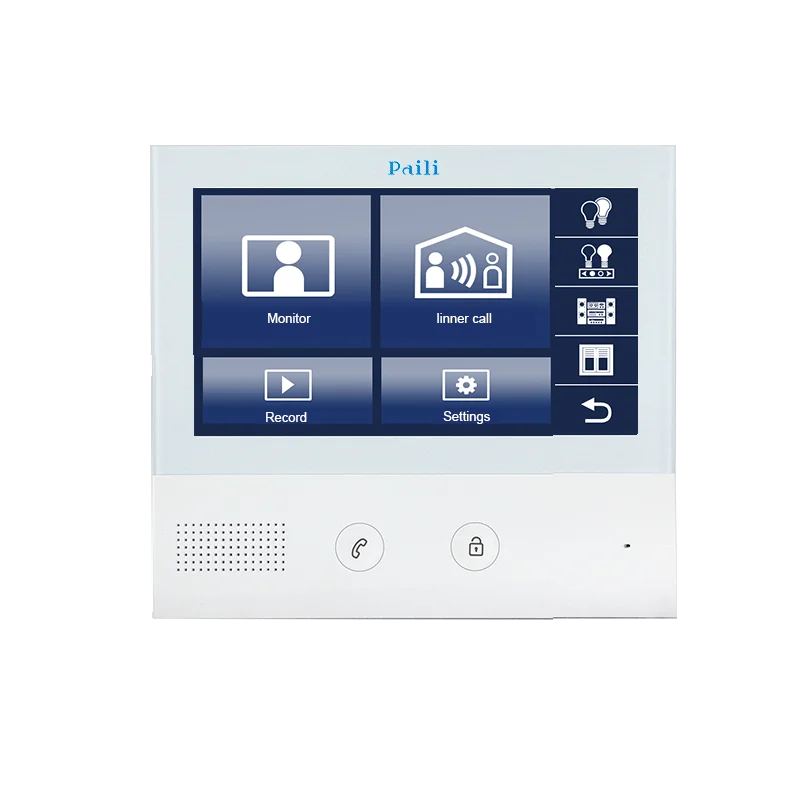

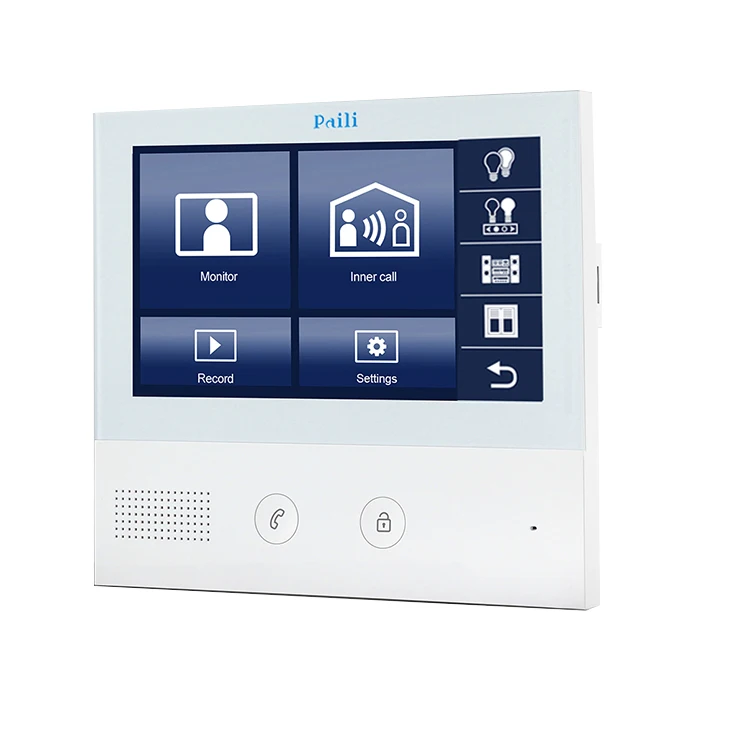

Indoor Monitor:



PL771M 7'' indoor monitor Specifications
Name	7 inch capacitive touch screen monitor,smart operation
Model	PL771MK
Screen size	7” TFT (16:9 Display)
Resolution	700 TVL
Power input	AC 100V-240V 50 Hz/60 Hz
Power output	DC 24V(supplied by adaptor)
Power consumption	Standby 15mA,working 350mA
Connect Smartphone	Support IP module can contrd by mobile phone APP

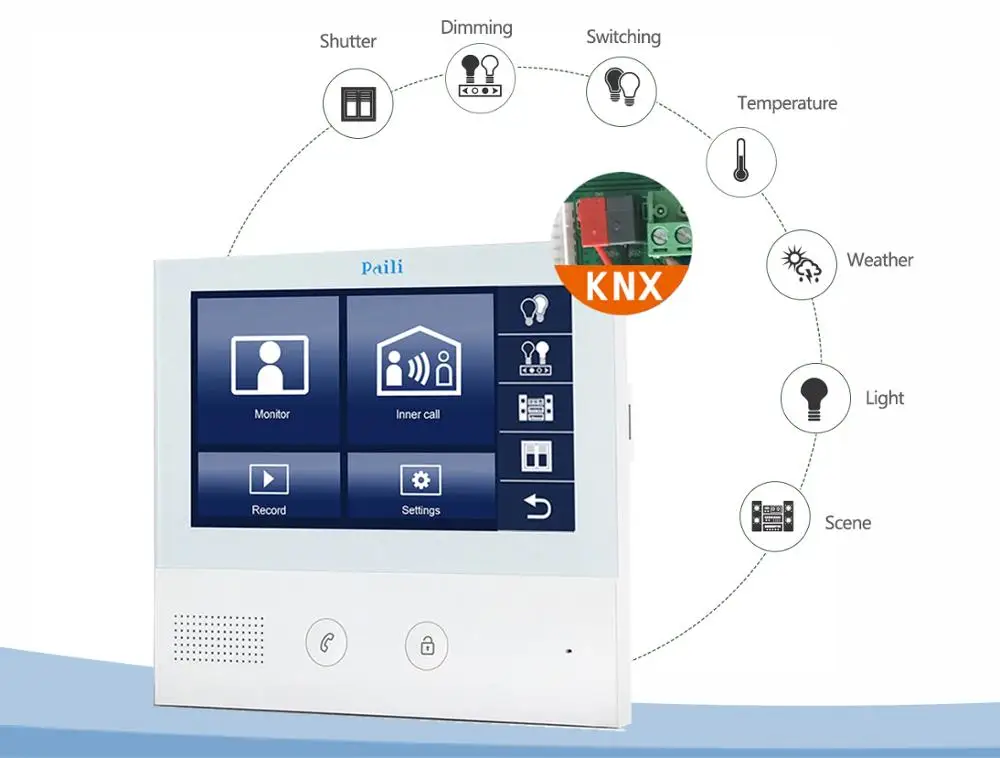

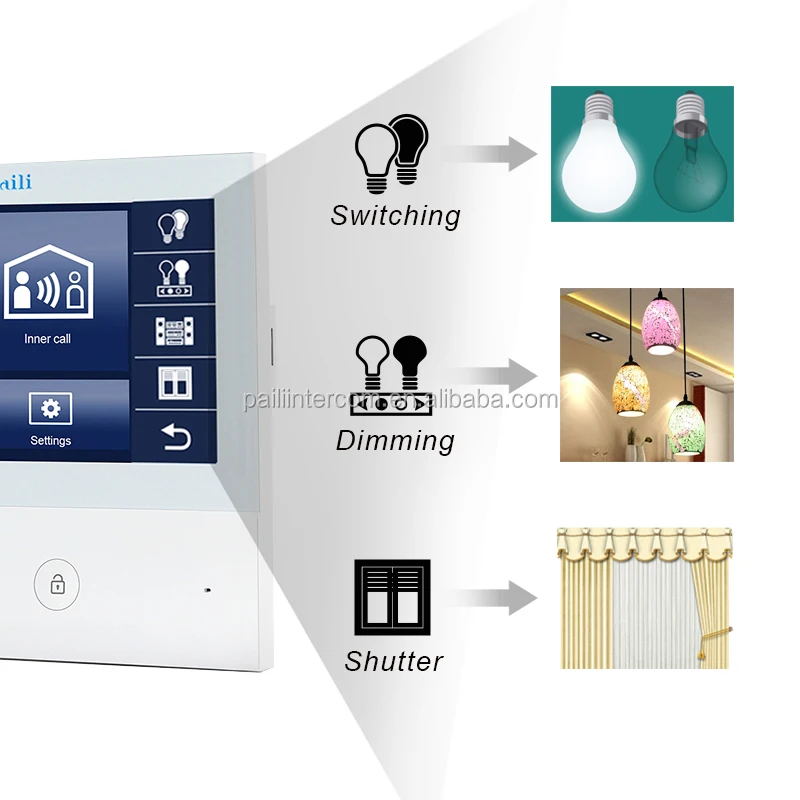

Connect KNX home automation	Control home lights switch;dimmer; shutters and scences,etc.
Working temperature	–10°C to +50°C
Comparative Humidity	5%--95% non-condensing
Picture memory	240pcs,up to 32G SD card
packing	color paper carton
Gross Weight	0.8kg/Set
Features & Functions
Application	Can be used in apartments,villas,hotels and offices etc
Indoor Monitor material	Aluminum alloy, more fashionable and luxury
Basic Functions	Handfree intercom
	Electric lock-control function
	9 languages for optional: English, German, Italian, Spanish, Greek, French, Russian, Turkish and Dutch.
	Monitor the view out of the door
	16kinds of rings for your options
	Volume, brightness & contrast adjustable
	infrared night-vision outdoor station
	Visitors Calls and leave a message
	Answering the visitors call from installed monitor
	Intercom calls between the indoor monitors
	With adapter and cable, users could install it by them-self









Our Advantages
1.Paili has our own profeesional R&D team, our 2 wire intercom system has more marketing competitiveness in Euro.current.
2.Strong Production Capacity: We have our own production equipments and production lines.
All the production workers are passed strict and professional pre-job in-house training to make sure high efficiency and high products quality;
3. Fast Delivery: For most samples order, we have sufficient stock to enable the delivery within 1-3 days, For bulk order: Usually 5-10 days depends on the order quantity;
4. No MOQ Requirement: Paili offers no MOQ service, you can feel free to buy any quantity as you like with the best price;
5. 3 Years Quality Guarantee: Paili offers 3 years quality guarantee for all the products. You can buy with confidence and use without any worry;
6. Certifications: The certifications we have achieved for the products are CE, FCC, RoHS etc;
7. ODM & OEM Service: With more than 10 years experience on ODM & OEM. You just think, and we do the rest for you;

Warranty  Service
Warranty & Guarantees:
Thanks for purchasing Paili security products. We’re committed to sell highest-quality security products. All orders before delivery have passed 2 times 100% full quantity QC test. And we guarantee the finished products will not have any problems.
Every product you have purchased from Paili will have 3 years quality warranty since the date of shipping.

Welcome to inquiry us any models any question :)
