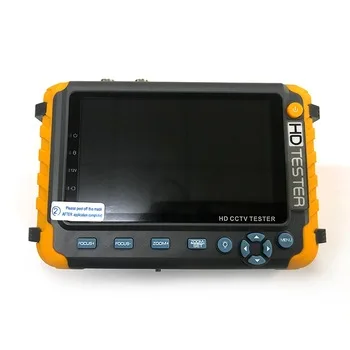

Analog Security Camera 5 Inch Portable TFT LCD HD 1080P AHD TVI CVI CVBS Tester Monitor Four In One Cctv Tester VGA HD MI input
| Main function: |
| AHD test: Support 1080P/ 960P/ 720P |
| TVI test: Support 1080P/ 960P/ 720P |
| CVI test: Support 1080P/ 960P/ 720P |
| Product overview |

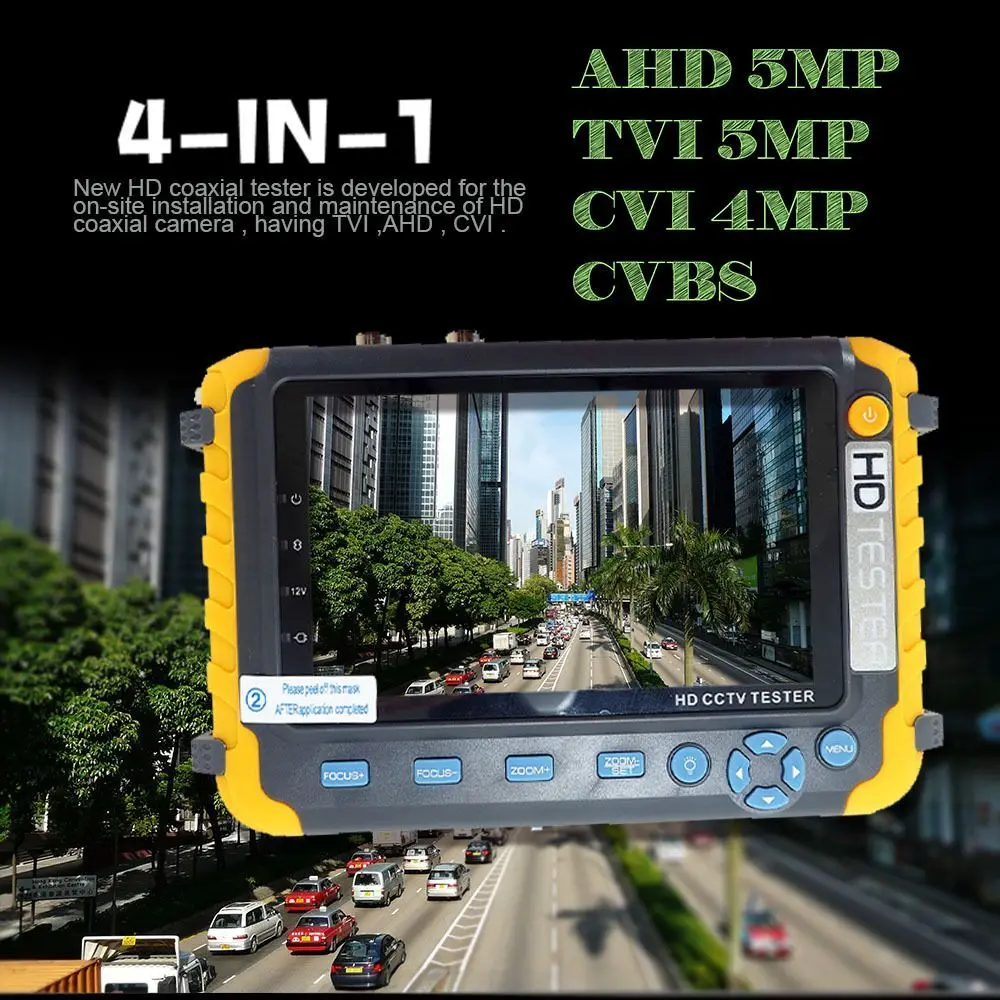

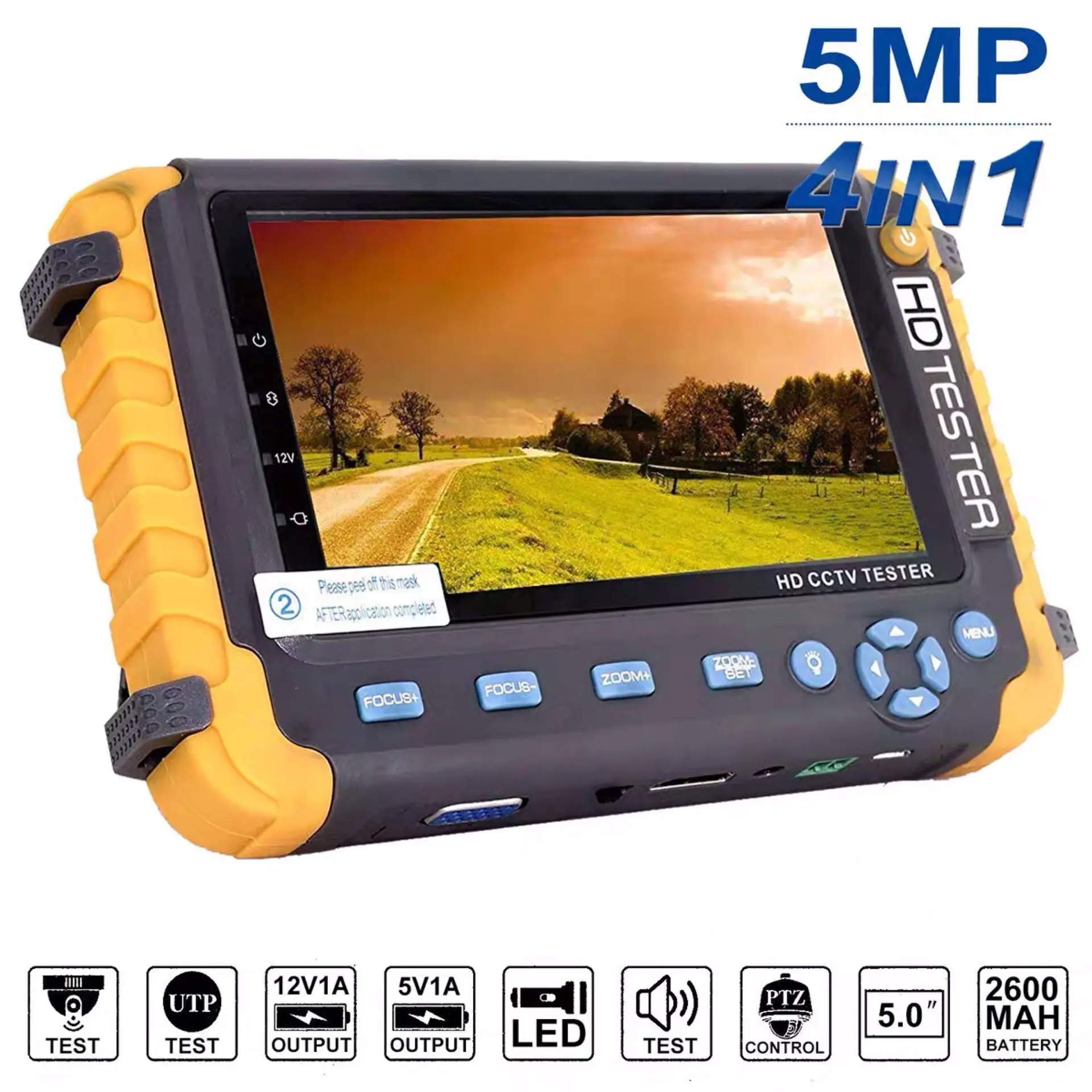

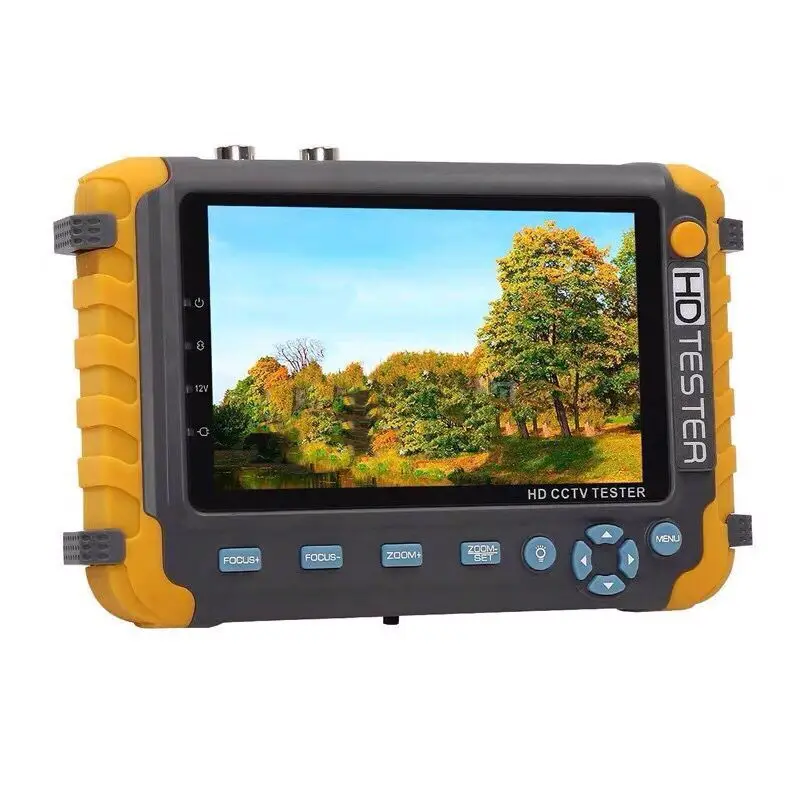

| The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, having TVI, AHD,CVI. It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, VGA video signal input, HD MI1.0 signal input, RS485 data searching, cable testing, LED lamp etc. |
| Product Funtions |
| Video signal testing |

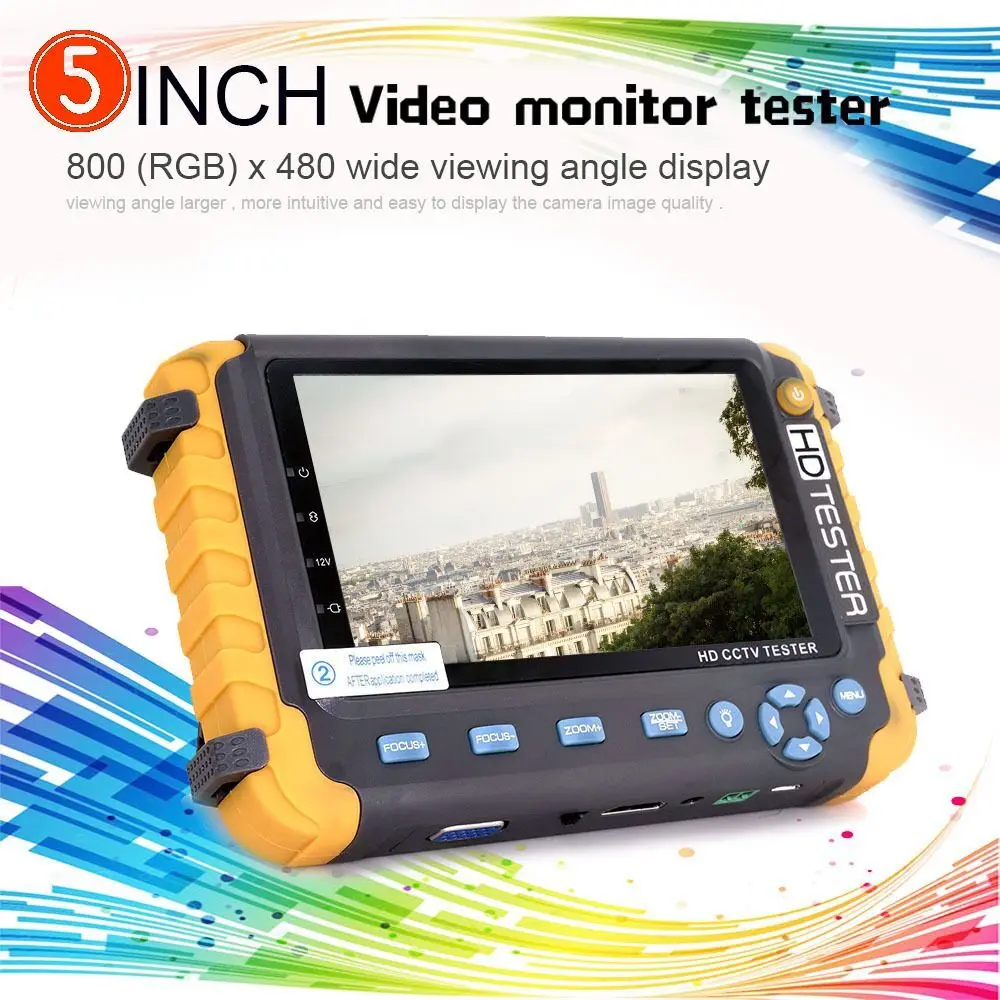

| Vedio monitor tester, High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality. Support PAL/NTSC standard video signal. |
| PTZ controller |
| Video monitor tester built-in Pelco-D / P PTZ control protocol, etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size. |
| Image generator |
| Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section |

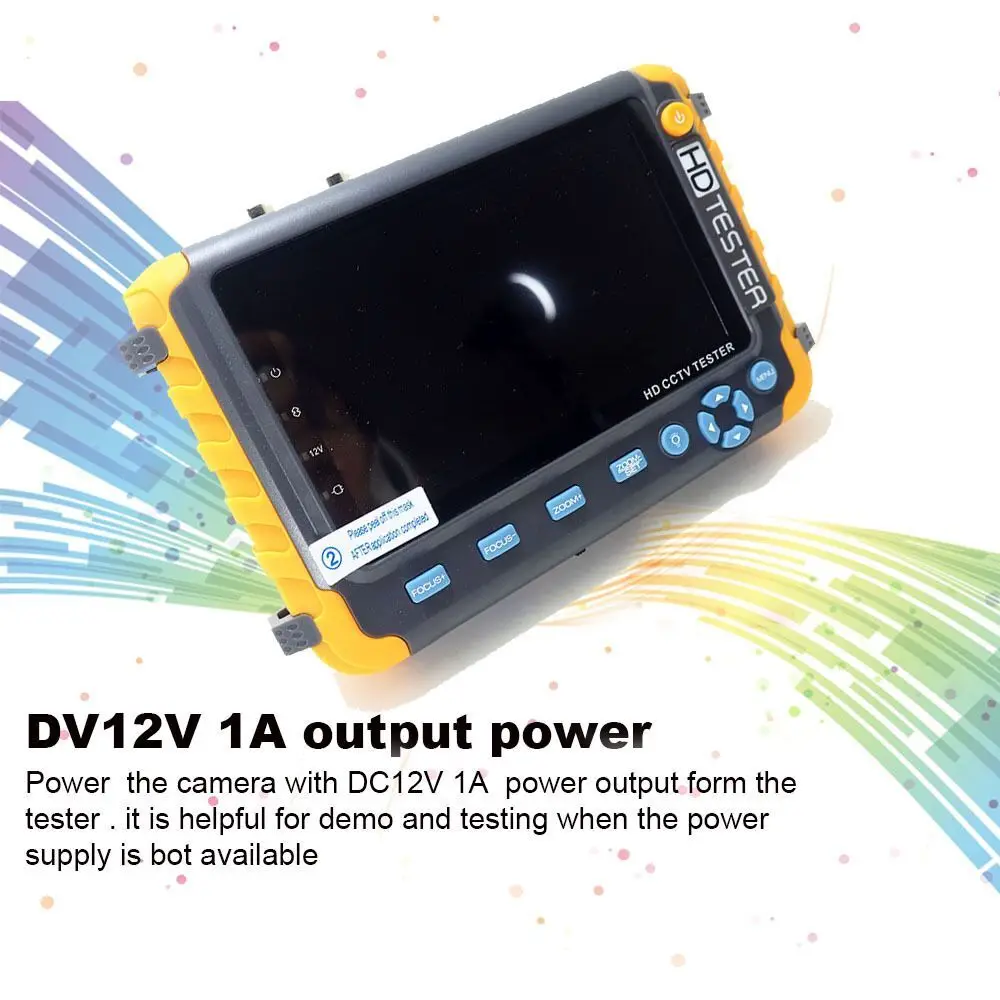

| DC12V 1A output power |
| Power the camera with DC12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available |
| Audio testing |
| Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable. |
| Enhanced network cable testing |
| By UTP CABLE TEST port on the meter, you can test the connection of network cable. |

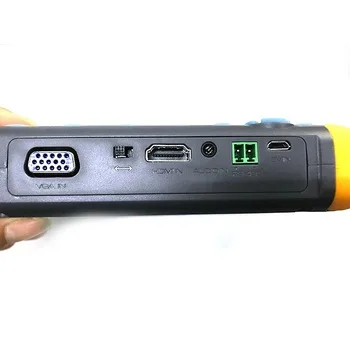

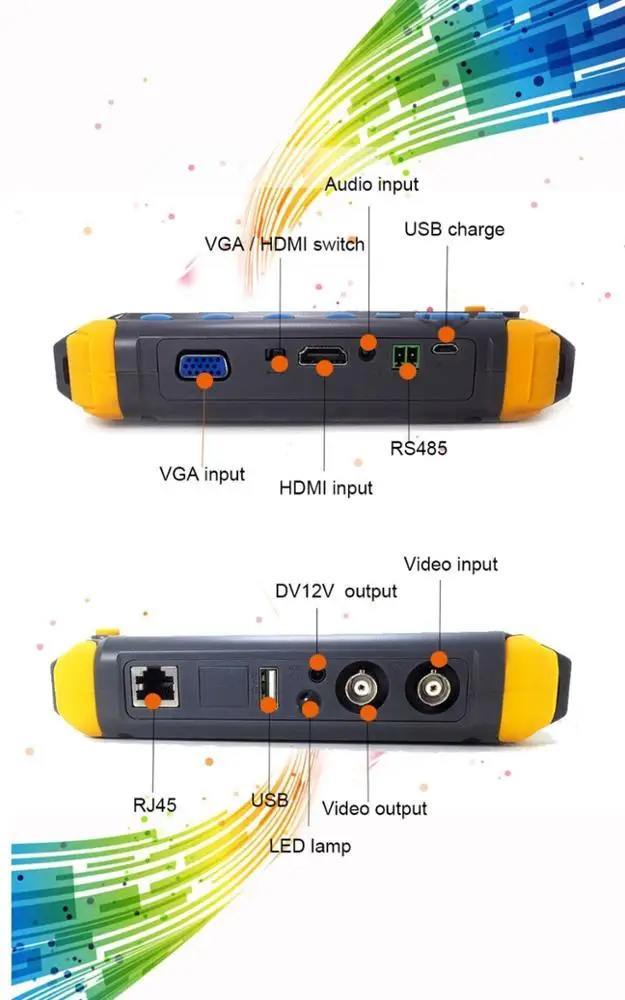

| VGA/HD MI input |
| Support VGA/HD MI 1.0 video input, once connect VGA/HD MI video, please switch selector to select HD MI or VGA mode. The maximum resolution is 1920X1080 |
| TVI camera test |

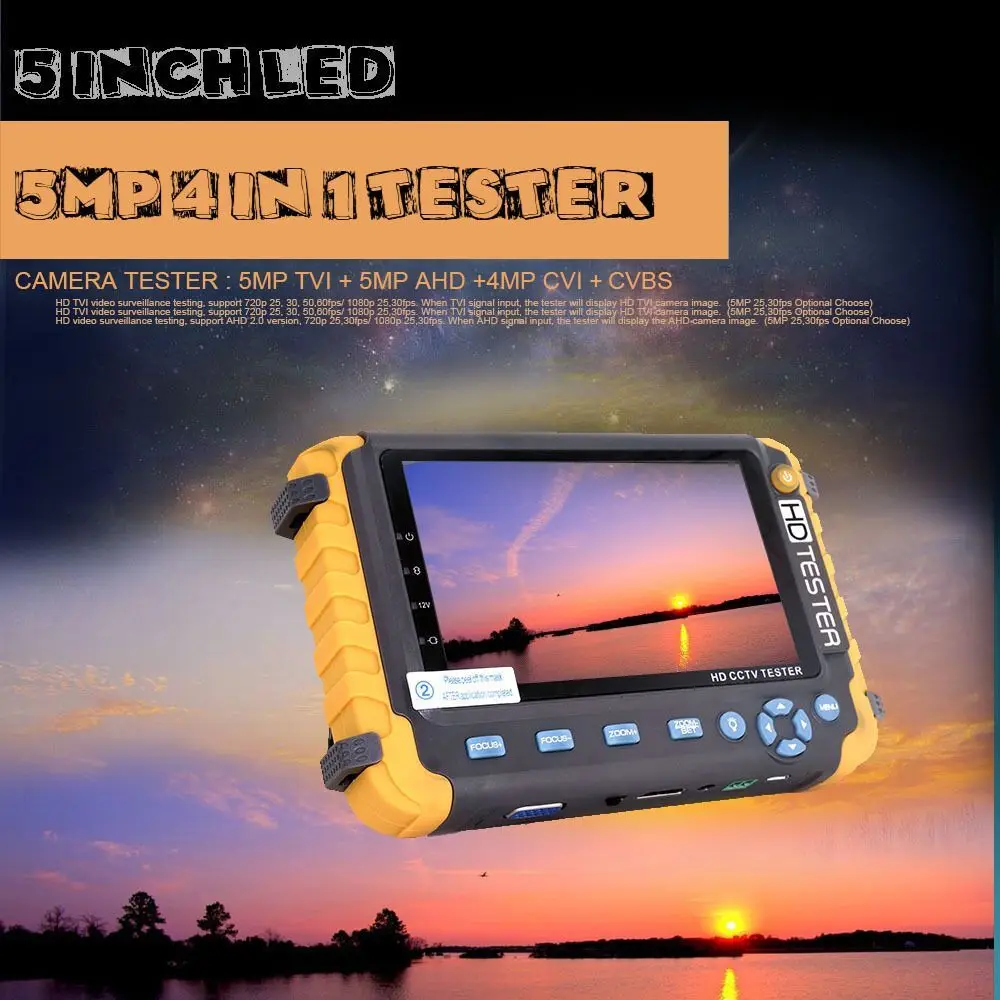

| HD TVI video surveillance testing, support 720p 25, 30, 50,60fps/ 1080p 25,30fps. When TVI signal input, the tester will display HD TVI camera image. |
| AHD camera test |
| HD video surveillance testing, support AHD 2.0 version, 720p 25,30fps/ 1080p 25,30fps. When AHD signal input, the tester will display the AHD camera image. |
| CVI camera test |
| HD CVI video surveillance testing, support 720p 25, 30, 50,60fps/ 1080p 25,30fps. When TVI signal input, the tester will display HD TVI camera image. |
| LED lamp |
| It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate. |
| The battery graphic display |
| The tester has advanced power control and protection circuit, low-power energy-saving, 4 to 5 hours on a single charge, can be used normally for 12 hours. |

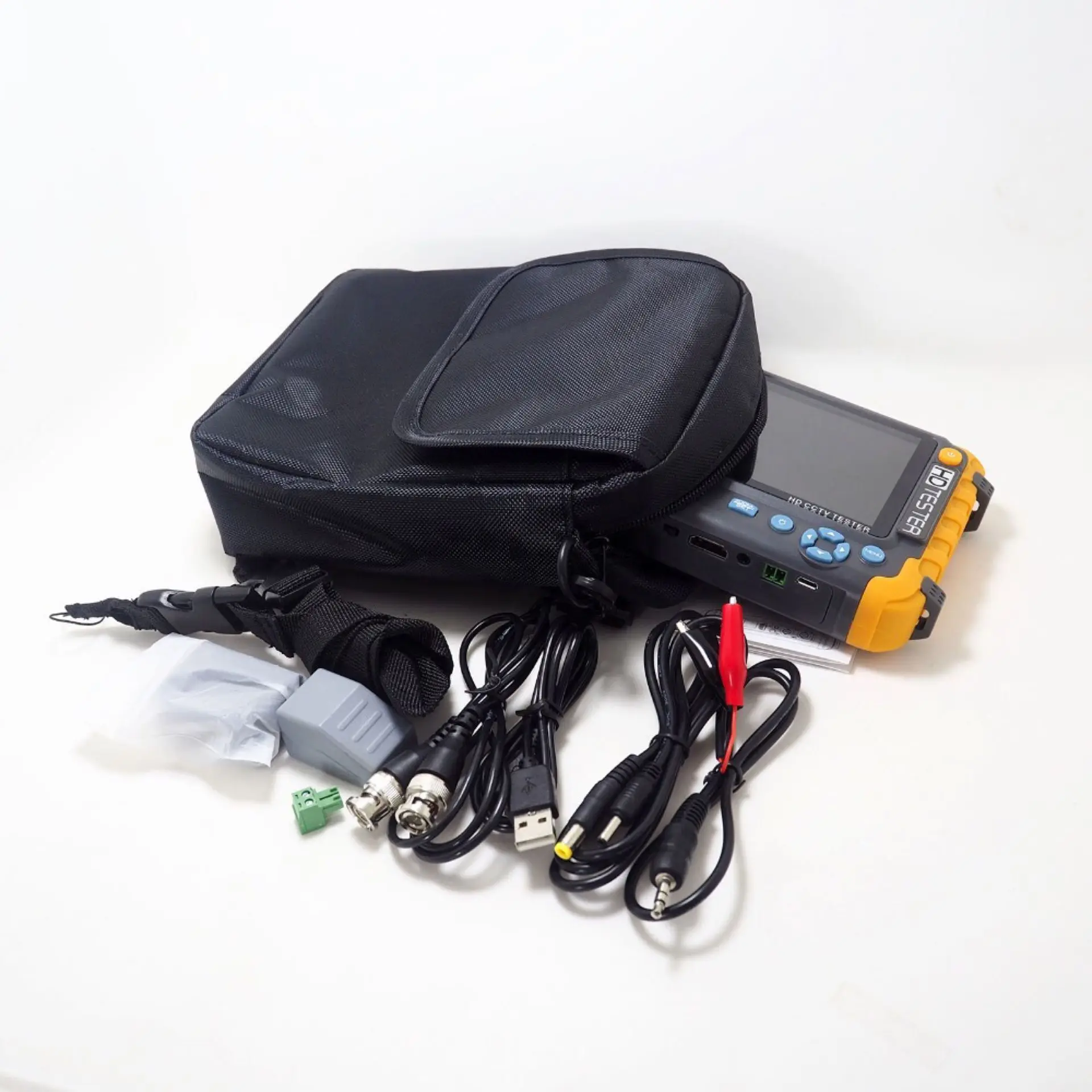

| package include |
| HD coaxial CCTV tester |
| Adapter DC5V 1.5A(with USB cable) |
| International Standard 18650 2600ma battery |
| BNC cable |
| RS485 connector |
| Power output conversion cable |
| Audio cable |
| Lanyard |
| Tool bag |
| Instruction Manual |
