Shade vertical glass sandblasting machine

Product Overview

Description

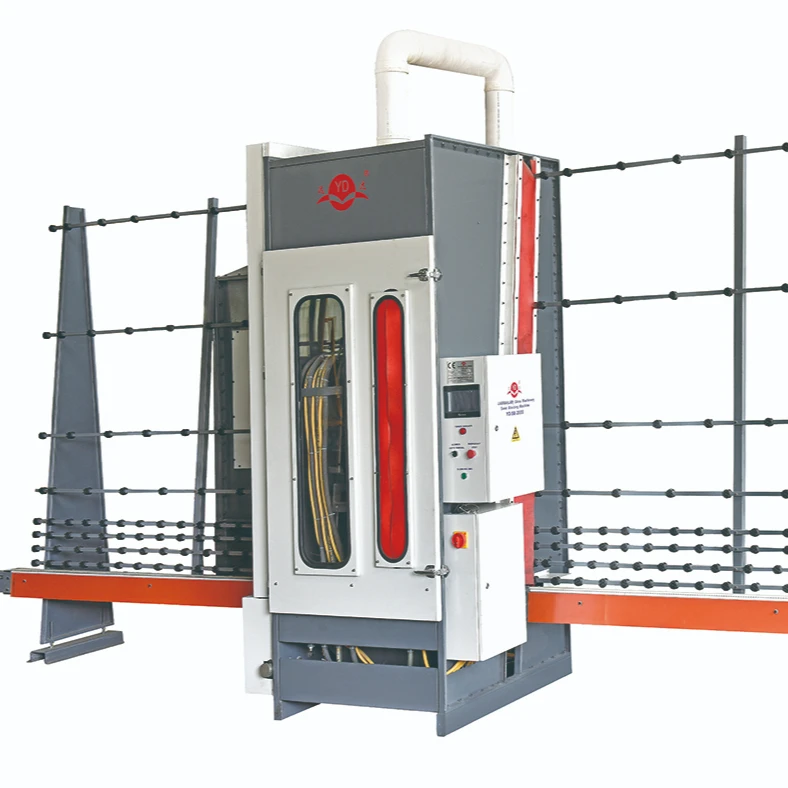

Shade vertical glass sandblasting machine





Application



 1. The sandblasting machine is an automatic running machine. Spray space, height, guning stopover time, remain space are set on the touch screen.



2. With multi-gun and automatic dust remover system, it has excellent working performance and high efficiency. it can installed with 3-4 guns as required. The guns position adjustable.



3. The machine can be used for flat stone, wood, with the changing of conveyor belt to conveyor rollers.





Machine specification



Machine type	YD-SB-1500	YD-SB-2000	YD-SB-2500
Max.glass height	1500mm	2000mm	2500mm
Power:	3.5kw	3.5kw	3.5kw
Output	25-30square meter / hour	25-30square meter / hour	25-30 square meter / hour
Number of guns	3 or 4 automatic guns, 1 manual gun	3 or 4 automatic guns, 1 manual gun	3 or 4 automatic guns, 1 manual gun
Kind of height control	PLC	PLC	PLC
Size of machine	4500*1500*2500mm	7000*1500*2800mm	8000*1500*3300mm
Weight	800kg	1000kg	1200kg

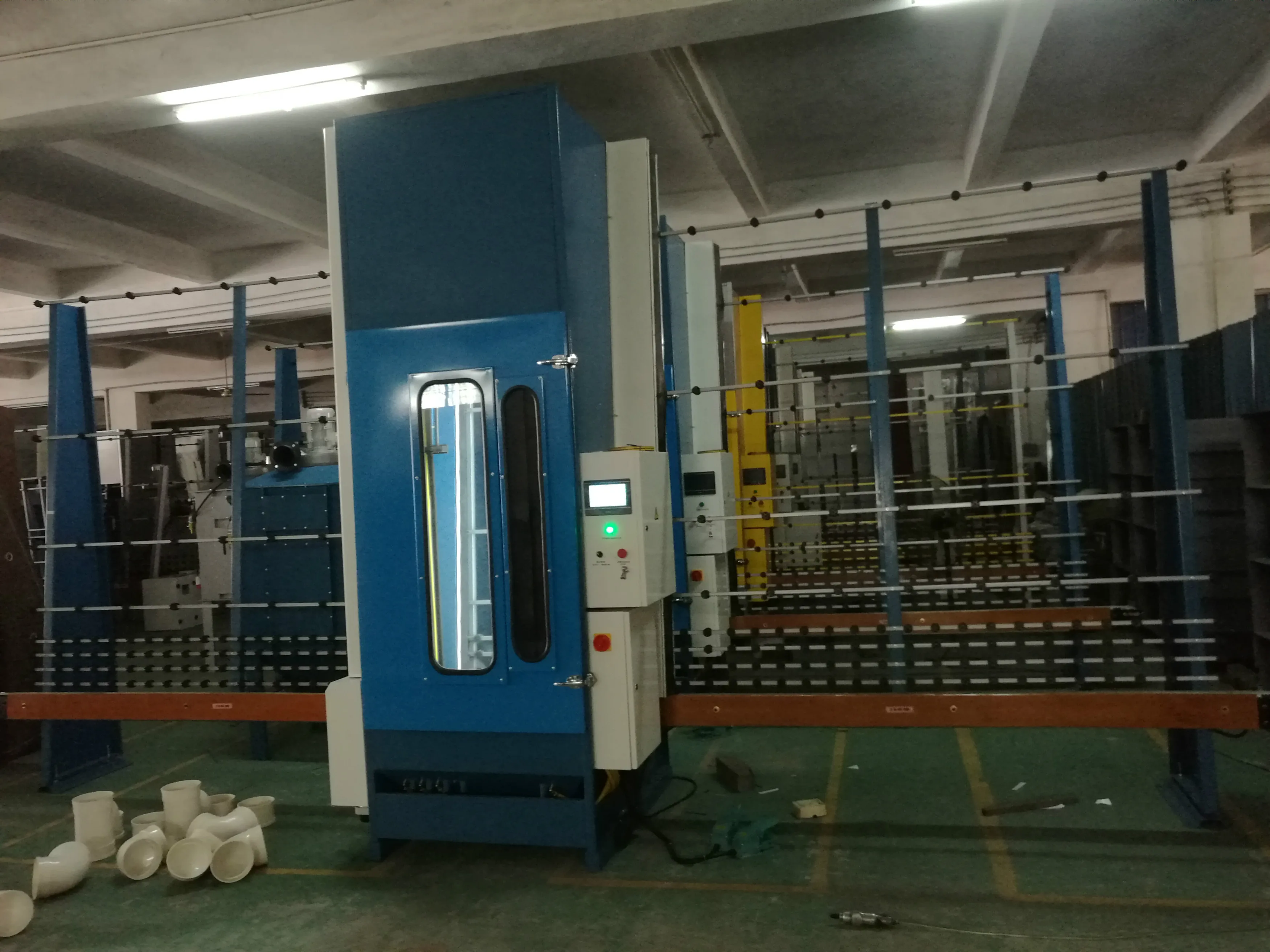

Photo of machines



1. Touch screen control, PLC, able to set sandblasting width, height and shade sandblasting.



2. Use 3 or 4 automatic sandblasting guns





3. With the use of dust collection device



4. Clear and easy operation pages



5. High quality sand blasting result



Package and Shipping

• Can be shipped by LCL(Less Than Container Loading) and FCL(Full container loading)
• For one machine, it can be packed by one steel palate and shipped by LCL.





•  YD-SB-2500: 3.5*1.8*2.25m, 1 package
•  YD-SB-2000: 3*1.8*2.25m, 1 package
•  YD-SB-1500: 2.4*1.8*2.2m, 1 package



Questions and answers:



 1. How long will it take to manufacture the machine?

 Re: It will take 30 days to ship the machine after getting the down payment.



 2. What kind of sand it can be used?

 Re: The sand is alum sand, grid 60#. We will provide 100kg free and shipped it together with the machine. We can also provide more sand if necessary.



3. How many sand it will use each day?

 Re: Normally it will need 25kg sand per day.



Introduction of the company



LIAODA(LAD) Glass Machinery Co.,Ltd, is factory specially in manufacture of different kinds of glass cold/hot processing machines.



We located in Shunde, Foshan, near Guangzhou City.



Our main products include

• Glass cutting machine/lin
• Glass double edging machine/lin
• Glass vertical edging machine/line
• Glass shape edging machine
• Glass drilling machine
• Glass sandblasting machine
• Glass beveling machine
• Glass washing machine
• Glass tempering machine
• Glass pod cover tempering machine

We have CE certifications for our machines and exported them over 45 countries in the parts 18 years. Now thousands of machines made in Liaoda are working all over the world.



We have our own export and service team to provide our service for customers.  Welcome to visit us to check our machines!
