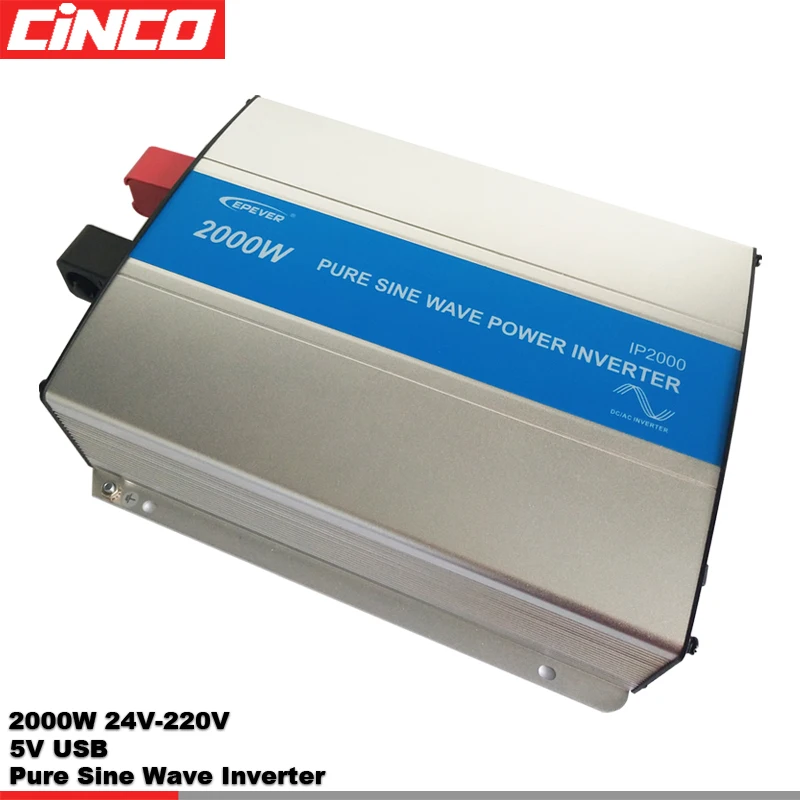

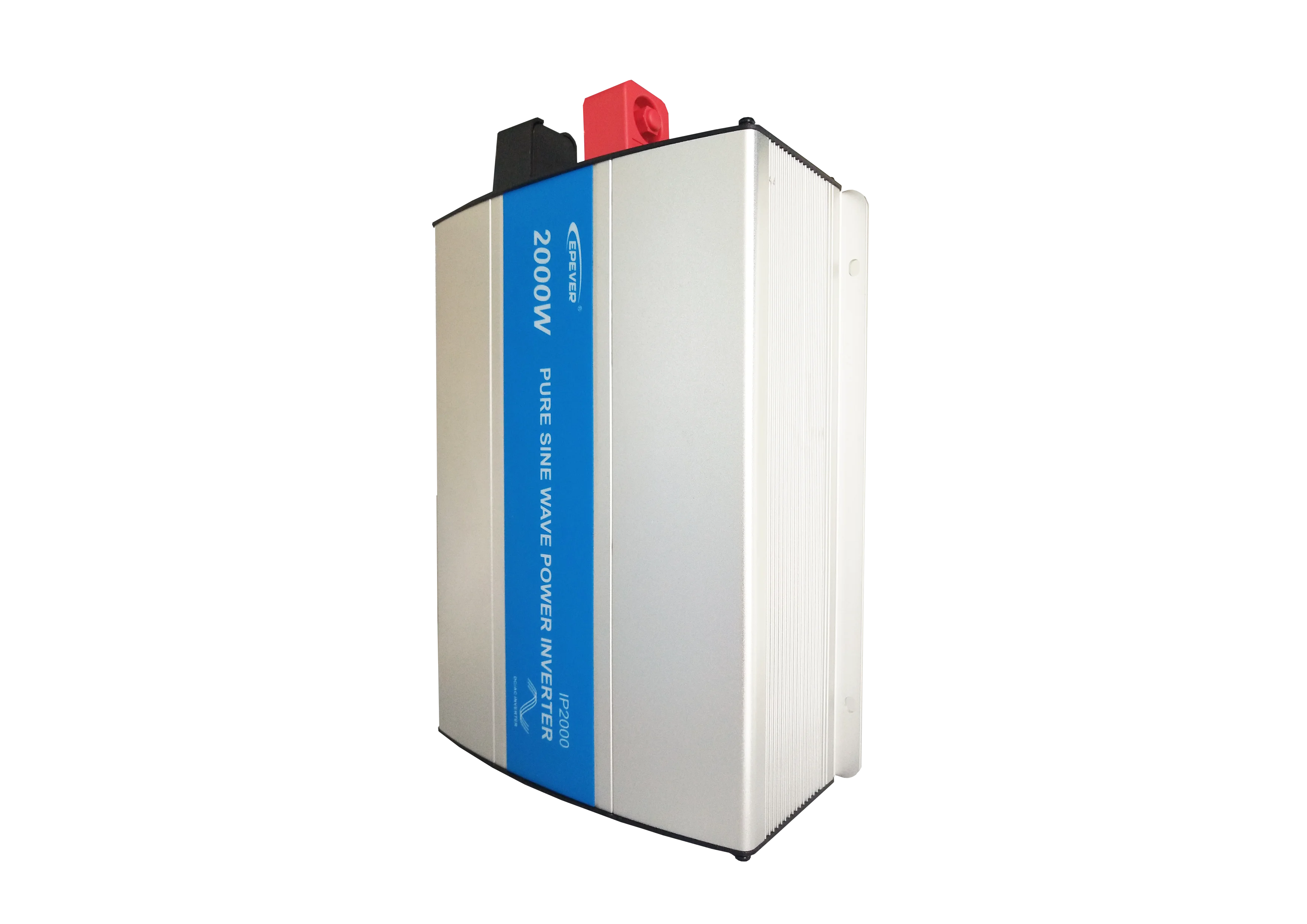

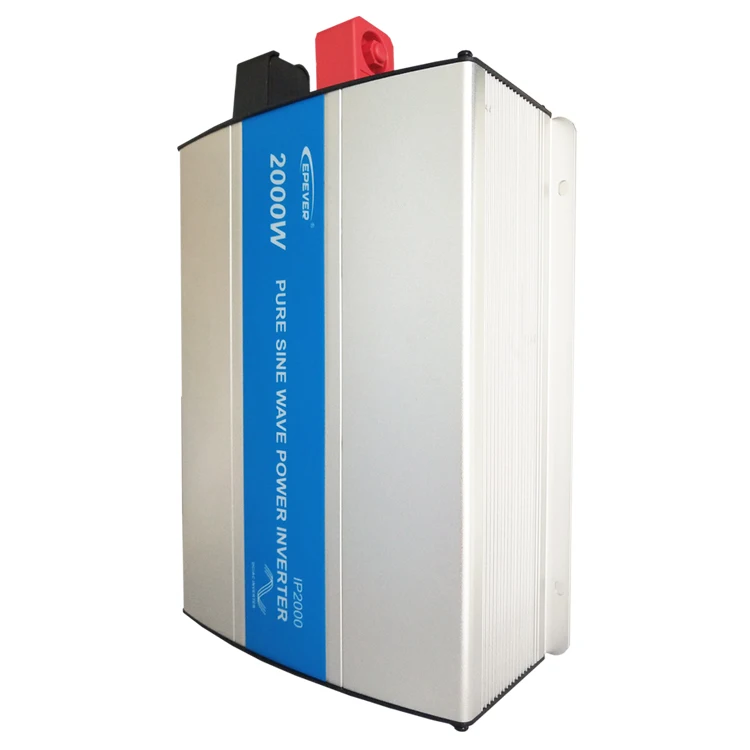

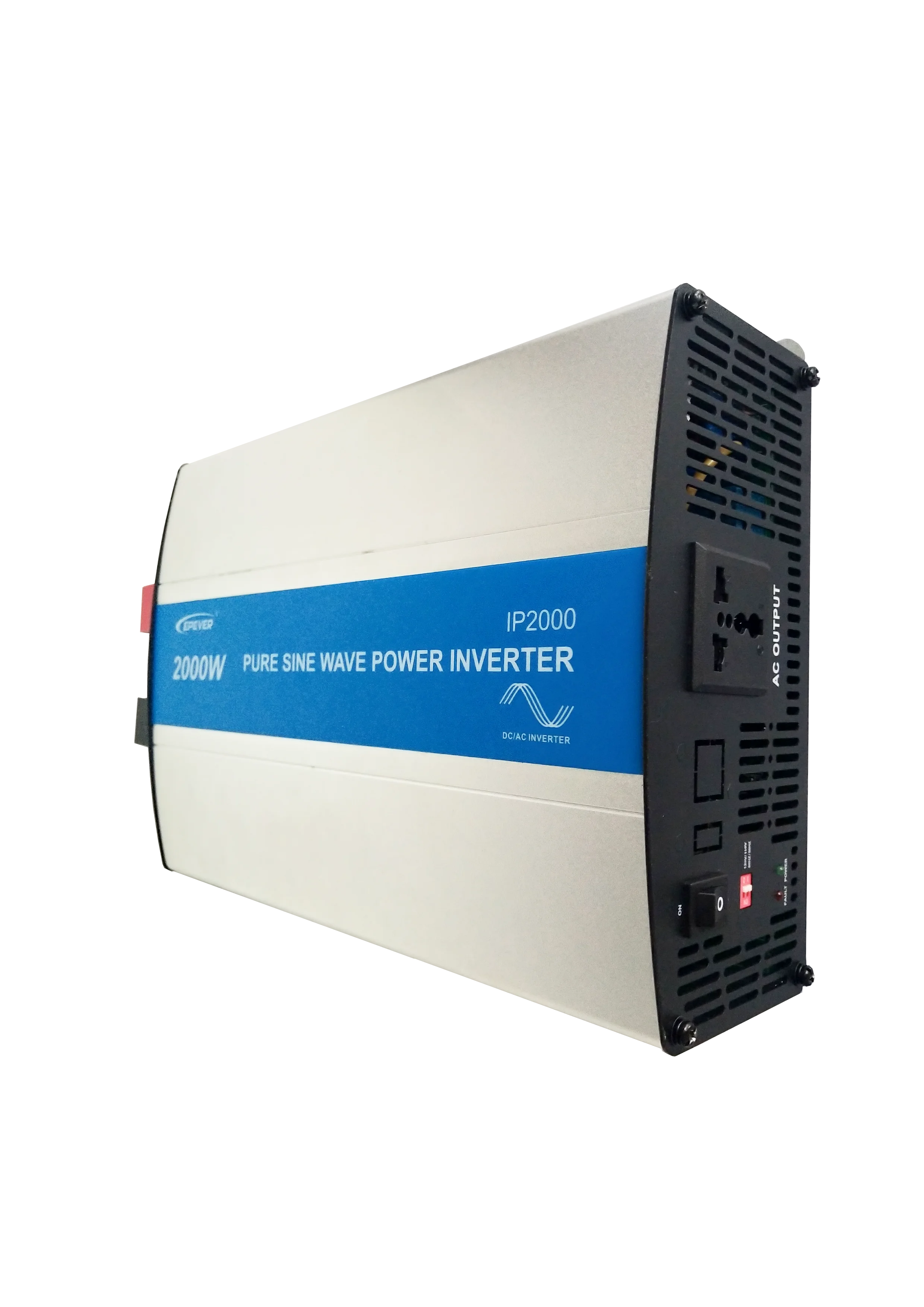

IP2000 22/21/42/41 pure sine wave inverter 2000w 24/48VDC 110V/220V/230V universal socket solar power inverter
- Category: >>>
- Supplier: Cinco Electronics Tech Co. Ltd.
Share on (62015107228):
Product Overview
Description
Products Description
1. Safe design with input and output electrical isolation
2. Adoption of advanced SPWM technology, pure sine wave output
3. Optional output voltage220/230VAC (or 110/120VAC ), setted by DIP switch
4. Output frequency 50/60Hz, setted by DIP switch
5. LED indicators for working and fault status
6. Lower No-load consumption
7. Max. efficiency up to 95%
8. Input protection: Over voltage protection, low voltage protection
9. Output protection: Over load protection, short circuit protection
10. Over temperature protection: Temperature-controlled Fan Ventilation; Inverter turns off automatically
2. Adoption of advanced SPWM technology, pure sine wave output
3. Optional output voltage220/230VAC (or 110/120VAC ), setted by DIP switch
4. Output frequency 50/60Hz, setted by DIP switch
5. LED indicators for working and fault status
6. Lower No-load consumption
7. Max. efficiency up to 95%
8. Input protection: Over voltage protection, low voltage protection
9. Output protection: Over load protection, short circuit protection
10. Over temperature protection: Temperature-controlled Fan Ventilation; Inverter turns off automatically

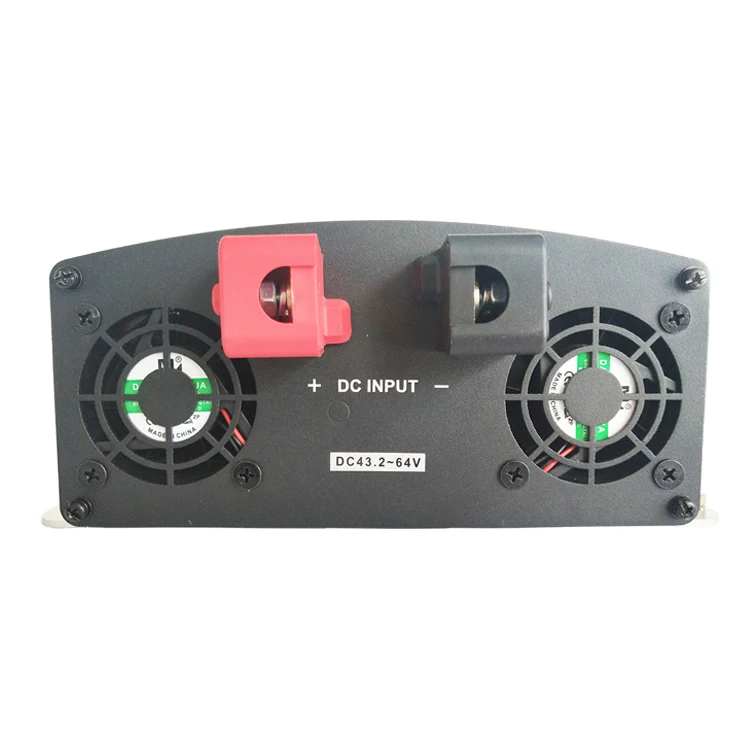

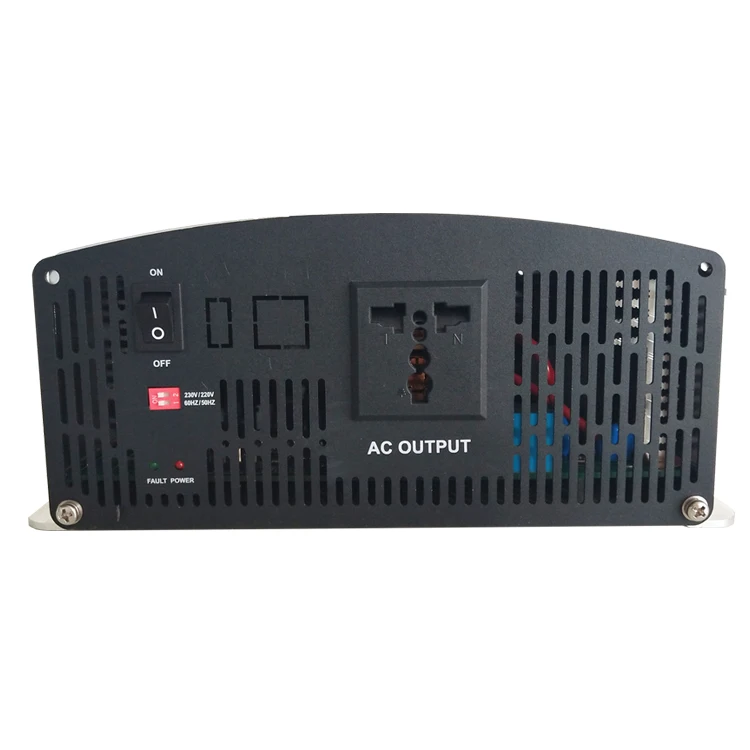

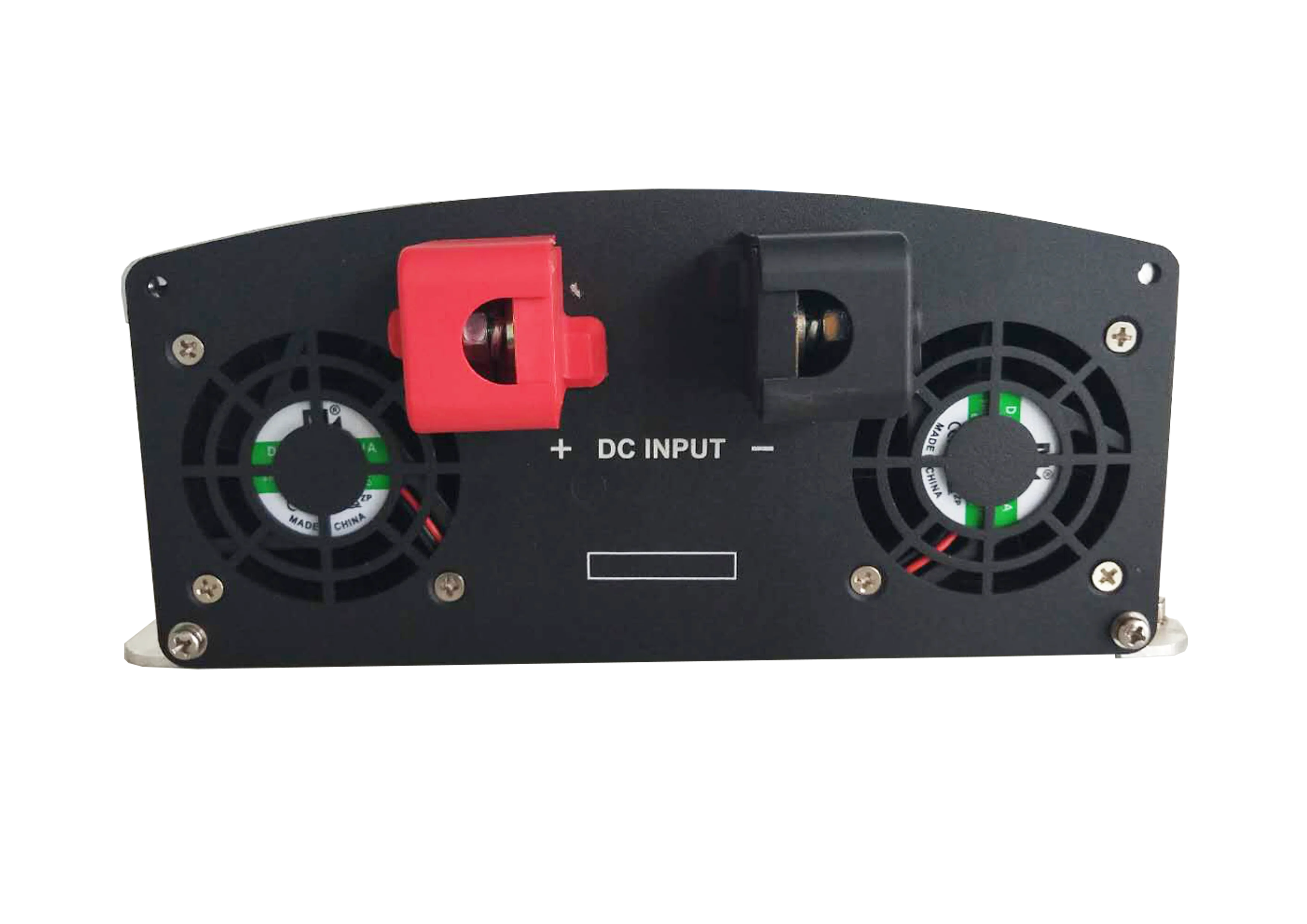

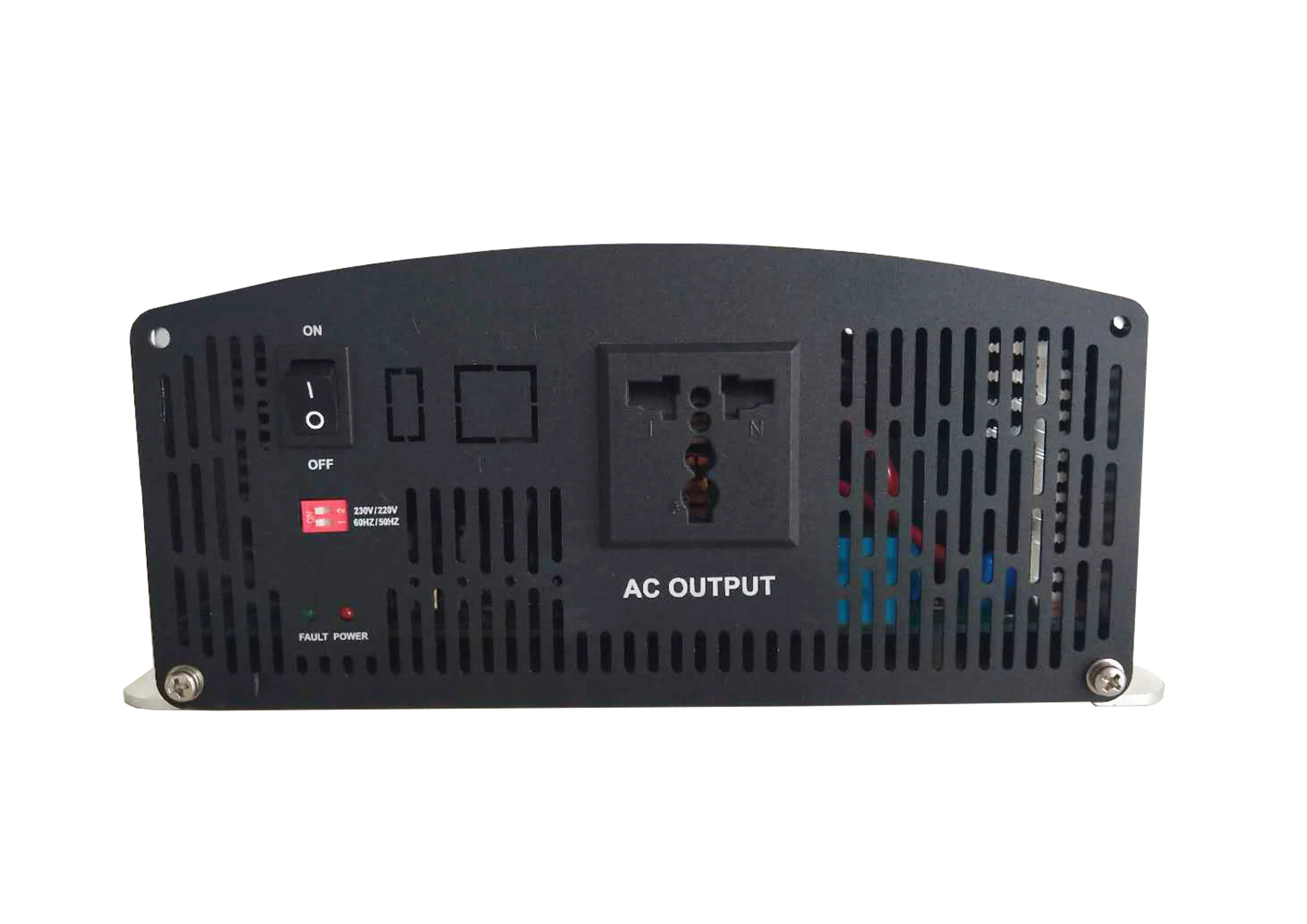

Details Images

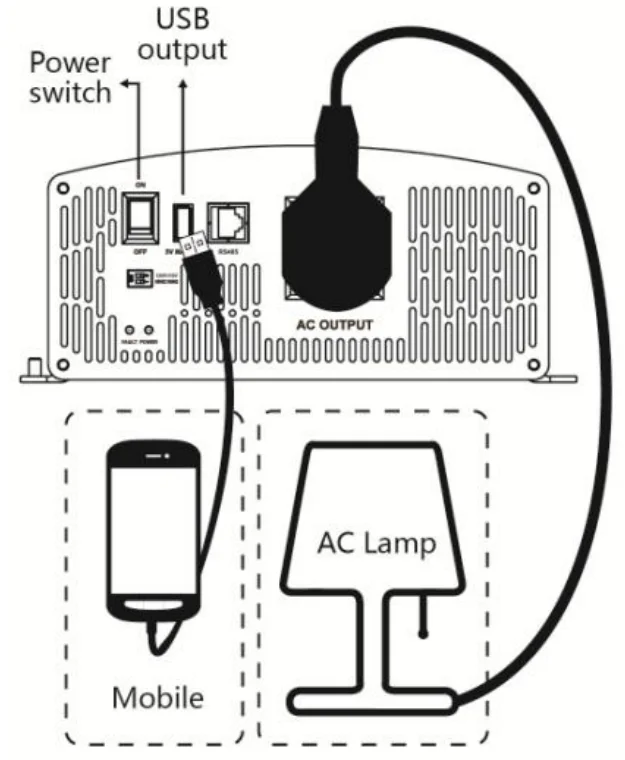

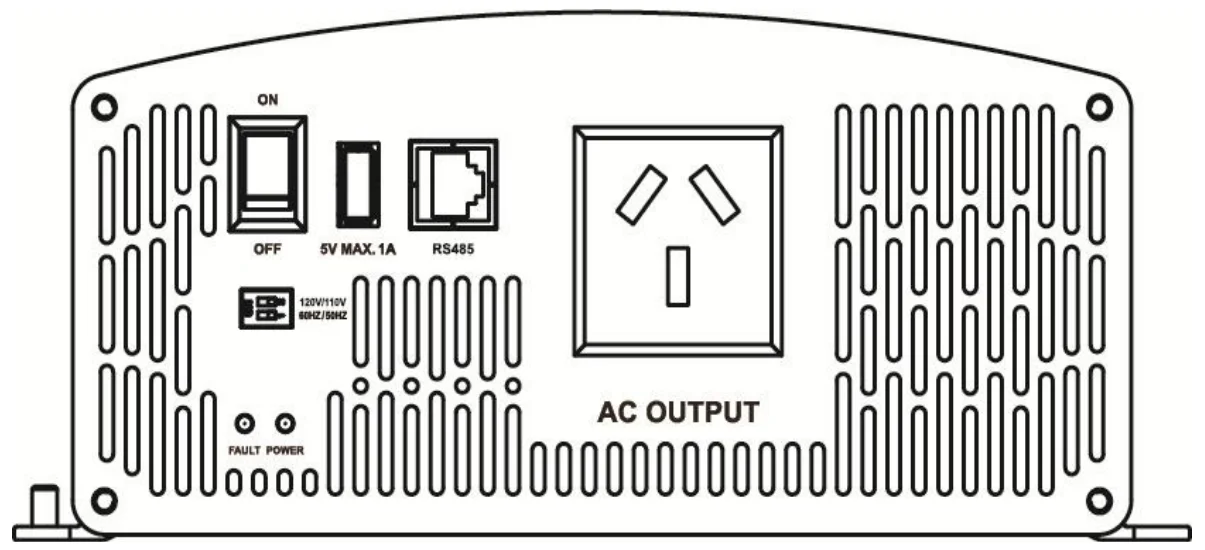

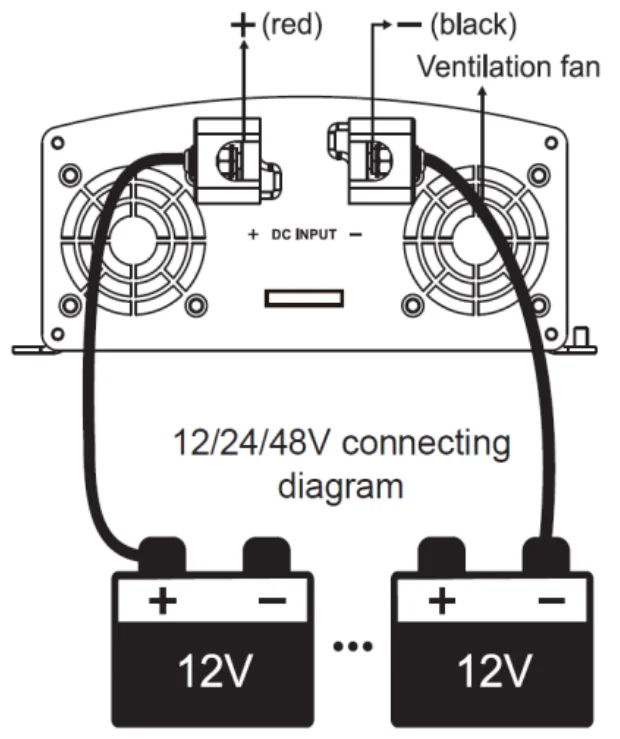

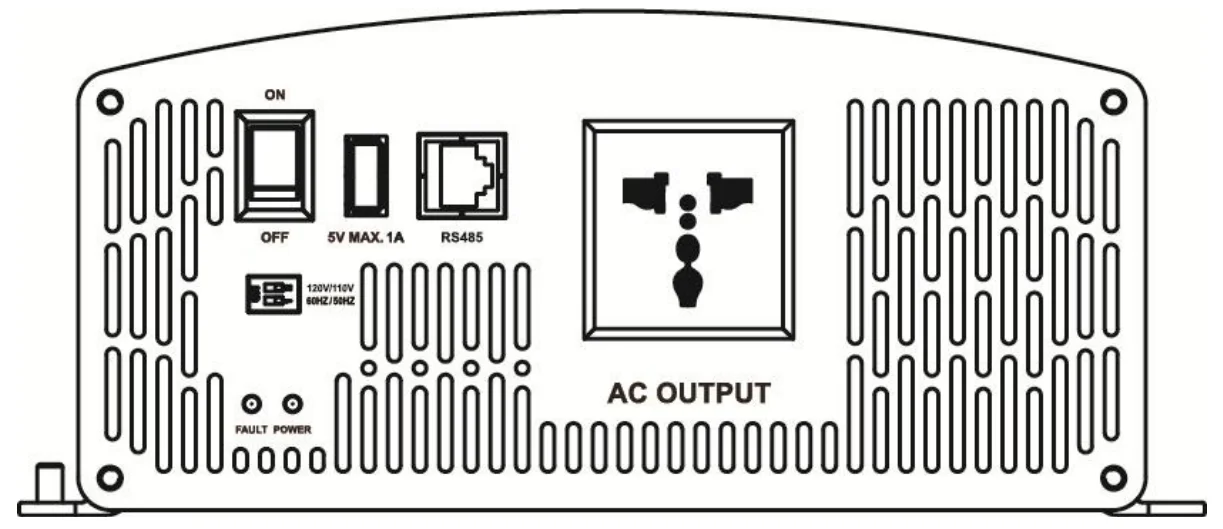

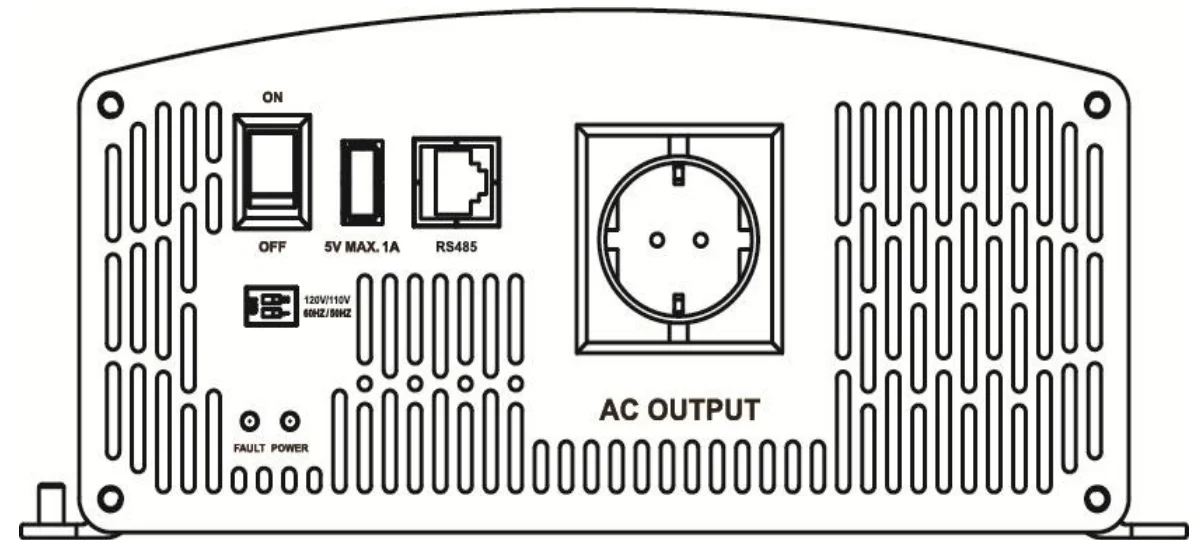

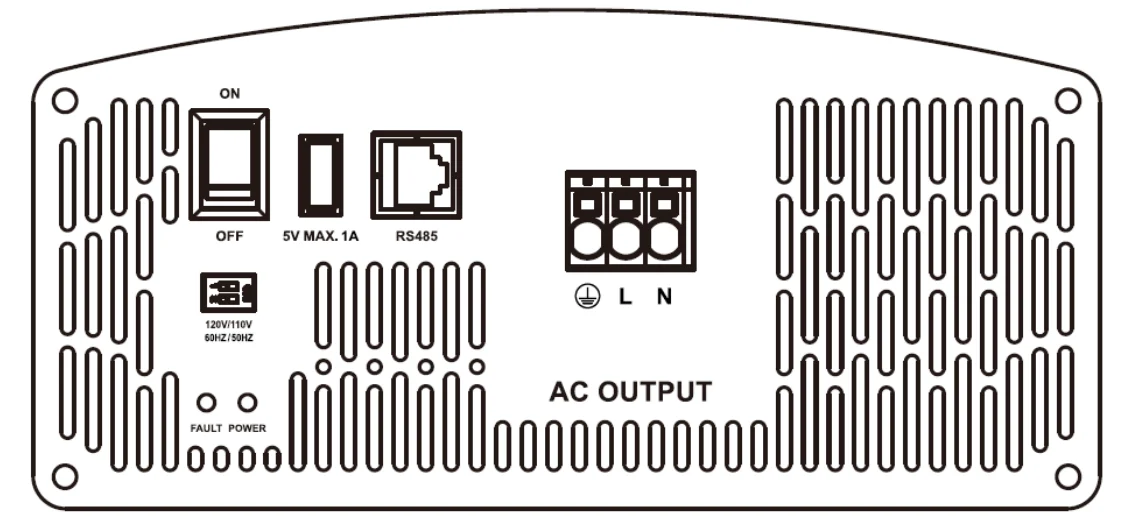

Wiring order & Accessories
Product Paramenters
Item | IP350-12 | IP350-22 | IP350-11 | IP350-21 | ||||
Rated Input Voltage | 12VDC | 24VDC | 12VDC | 24VDC | ||||
Input Voltage Range | 10.8～16VDC | 21.6～32VDC | 10.8～16VDC | 21.6～32VDC | ||||
Input surge voltage | ＜32VDC | ＜44VDC | ＜32VDC | ＜44VDC | ||||
Output Voltage | 220VAC(±5%) 230VAC(-7%～+5%) | 110VAC(±5%) 120VAC(-10%～+5%) | ||||||
Output Frequency | 50/60±0.1Hz | |||||||
Output Continuous Power | 280W | |||||||
Output Power 15 min | 350W | |||||||
Surge power | 750W | |||||||
Power factor | 0.2-1(VA lower than output continuous power) | |||||||
Output Wave | Pure Sine Wave | (Battery Voltage +2V) ～108V② | (Battery Voltage +2V) ～108V② | (Battery Voltage +2V) ～108V② | ||||
Distortion THD | THD≤3% ① | THD≤5%① | ||||||
Max. Efficiency | 91% | 92% | 90% | 91% | ||||
No-load current | ＜0.7A | ＜0.5A | ＜0.7A | ＜0.5A | ||||
USB Output Port② | 5VDC/Max.1A | |||||||
Binding post | Φ6mm | |||||||
Overall dimension(mm) | 214×105.5×57.7 | |||||||
Mounting dimension(mm) | 185.5×76.7 | |||||||
Mounting hole size | Φ4.2mm | |||||||
Net weight | 1.0kg | |||||||
①Test condition: Rated Input Voltage, Output Continuous Power, Resistive load. ②Conventional products don’t have this port; the port is optional. | ||||||||
Item | IP500-12 | IP500-22 | IP500-11 | IP500-21 | ||||
Rated Input Voltage | 12VDC | 24VDC | 12VDC | 24VDC | ||||
Input Voltage Range | 10.8～16VDC | 21.6～32VDC | 10.8～16VDC | 21.6～32VDC | ||||
Input surge voltage | ＜32VDC | ＜44VDC | ＜32VDC | ＜44VDC | ||||
Output Voltage | 220VAC(±5%) 230VAC(-7%～+5%) | 110VAC(±5%) 120VAC(-10%～+5%) | ||||||
Output Frequency | 50/60±0.1Hz | |||||||
Output Continuous Power | 400W | |||||||
Output Power 15 min | 500W | |||||||
Surge power | 1000W | |||||||
Power factor | 0.2-1(VA lower than output continuous power) | |||||||
Output Wave | Pure Sine Wave | (Battery Voltage +2V) ～108V② | (Battery Voltage +2V) ～108V② | (Battery Voltage +2V) ～108V② | ||||
Distortion THD | THD≤3% ① | THD≤5%① | ||||||
Max. Efficiency | 92% | 92% | 91% | 91% | ||||
No-load current | ＜0.7A | ＜0.5A | ＜0.7A | ＜0.5A | ||||
USB Output Port② | 5VDC/Max.1A | |||||||
Binding post | Φ6mm | |||||||
Overall dimension(mm) | 232.2×132×74.5 | |||||||
Mounting dimension(mm) | 185.5×76.7 | |||||||
Mounting hole size | Φ4.2mm | |||||||
Net weight | 1.0kg | |||||||
①Test condition: Rated Input Voltage, Output Continuous Power, Resistive load. ②Conventional products don’t have this port; the port is optional. | ||||||||
Item | IP1000-12 | IP1000-22 | IP1000-11 | IP1000-21 | ||||
Rated Input Voltage | 12VDC | 24VDC | 12VDC | 24VDC | ||||
Input Voltage Range | 10.8～16VDC | 21.6～32VDC | 10.8～16VDC | 21.6～32VDC | ||||
Input surge voltage | ＜20VDC | ＜44VDC | ＜20VDC | ＜44VDC | ||||
Output Voltage | 220VAC(±5%) 230VAC(-7%～+5%) | 110VAC(±5%) 120VAC(-10%～+5%) | ||||||
Output Frequency | 50/60±0.1Hz | |||||||
Output Continuous Power | 800W | |||||||
Output Power 15 min | 1000W | |||||||
Surge power | 1600W | |||||||
Power factor | 0.2-1(VA lower than output continuous power) | |||||||
Output Wave | Pure Sine Wave | (Battery Voltage +2V) ～108V② | (Battery Voltage +2V) ～108V② | (Battery Voltage +2V) ～108V② | ||||
Distortion THD | THD≤3% ① | THD≤5%① | ||||||
Max. Efficiency | 94.5% | 94.5% | 92.5% | 92.5% | ||||
No-load current | ＜0.8A | ＜0.5A | ＜0.8A | ＜0.5A | ||||
USB Output Port② | 5VDC/Max.1A | |||||||
RS485 Com. Port② | 5VDC/200mA | |||||||
Binding post | Φ10mm | |||||||
Overall dimension(mm) | 298.3×231.5×98.5 | 284.7×231.5×98.5 | 298.3×231.5×98.5 | 284.7×231.5×98.5 | ||||
Mounting dimension(mm) | 183×220 | 163×219.5 | 183×220 | 163×219.5 | ||||
Mounting hole size | Φ5.5mm | |||||||
Net weight | 3.9kg | 3.6kg | 3.9kg | 3.6kg | ||||
①Test condition: Rated Input Voltage, Output Continuous Power, Resistive load. ②Conventional products don’t have this port; the port is optional. | ||||||||
Item | IP1500-12 | IP1500-22 | IP1500-11 | IP1500-21 | ||||
Rated Input Voltage | 12VDC | 24VDC | 12VDC | 24VDC | ||||
Input Voltage Range | 10.8～16VDC | 21.6～32VDC | 10.8～16VDC | 21.6～32VDC | ||||
Input surge voltage | ＜20VDC | ＜40VDC | ＜20VDC | ＜40VDC | ||||
Output Voltage | 220VAC(±5%) 230VAC(-7%～+5%) | 110VAC(±5%) 120VAC(-10%～+5%) | ||||||
Output Frequency | 50/60±0.1Hz | |||||||
Output Continuous Power | 1200W | |||||||
Output Power 15 min | 1500W | |||||||
Surge power | 2400W | |||||||
Power factor | 0.2-1(VA lower than output continuous power) | |||||||
Output Wave | Pure Sine Wave | (Battery Voltage +2V) ～108V② | (Battery Voltage +2V) ～108V② | (Battery Voltage +2V) ～108V② | ||||
Distortion THD | THD≤3% ① | THD≤5%① | ||||||
Max. Efficiency | 93% | 94% | 93% | 94% | ||||
No-load current | ＜1.0A | ＜0.6A | ＜1.0A | ＜0.6A | ||||
USB Output Port② | 5VDC/Max.1A | |||||||
RS485 Com. Port② | 5VDC/200mA | |||||||
Binding post | Φ10mm | |||||||
Overall dimension(mm) | 326.12×231.5×98.5 | 284.7×231.5×98.5 | 326.12×231.5×98.5 | 284.7×231.5×98.5 | ||||
Mounting dimension(mm) | 208×220 | 163×219.5 | 208×220 | 163×219.5 | ||||
Mounting hole size | Φ5.5mm | |||||||
Net weight | 4.6kg | 3.9kg | 4.6kg | 3.9kg | ||||
①Test condition: Rated Input Voltage, Output Continuous Power, Resistive load. ②Conventional products don’t have this port; the port is optional. | ||||||||
Item | IP2000-22 | IP2000-42 | IP2000-21 | IP2000-41 | ||||
Rated Input Voltage | 24VDC | 48VDC | 24VDC | 48VDC | ||||
Input Voltage Range | 21.6～32VDC | 43.2～60VDC | 21.6～32VDC | 43.2～60VDC | ||||
Input surge voltage | ＜40VDC | ＜80VDC | ＜40VDC | ＜80VDC | ||||
Output Voltage | 220VAC(±5%) 230VAC(-7%～+5%) | 110VAC(±5%) 120VAC(-10%～+5%) | ||||||
Output Frequency | 50/60±0.1Hz | |||||||
Output Continuous Power | 1600W | |||||||
Output Power 15 min | 2000W | |||||||
Surge power | 3200W | |||||||
Power factor | 0.2-1(VA lower than output continuous power) | |||||||
Output Wave | Pure Sine Wave | (Battery Voltage +2V) ～108V② | (Battery Voltage +2V) ～108V② | (Battery Voltage +2V) ～108V② | ||||
Distortion THD | THD≤3% ① | THD≤5%① | ||||||
Max. Efficiency | 95% | 95% | 94% | 94% | ||||
No-load current | ＜0.6A | ＜0.4A | ＜0.6A | ＜0.4A | ||||
USB Output Port② | 5VDC/Max.1A | |||||||
RS485 Com. Port② | 5VDC/200mA | |||||||
Binding post | Φ10mm | |||||||
Overall dimension(mm) | 326.12×231.5×98.5 | 326.12×231.5×98.5 | 326.12×231.5×98.5 | 326.12×231.5×98.5 | ||||
Mounting dimension(mm) | 208×219.5 | 208×219.5 | 208×219.5 | 208×219.5 | ||||
Mounting hole size | Φ5.5mm | |||||||
Net weight | 4.6kg | 4.6kg | 4.6kg | 4.6kg | ||||
①Test condition: Rated Input Voltage, Output Continuous Power, Resistive load. ②Conventional products don’t have this port; the port is optional. | ||||||||

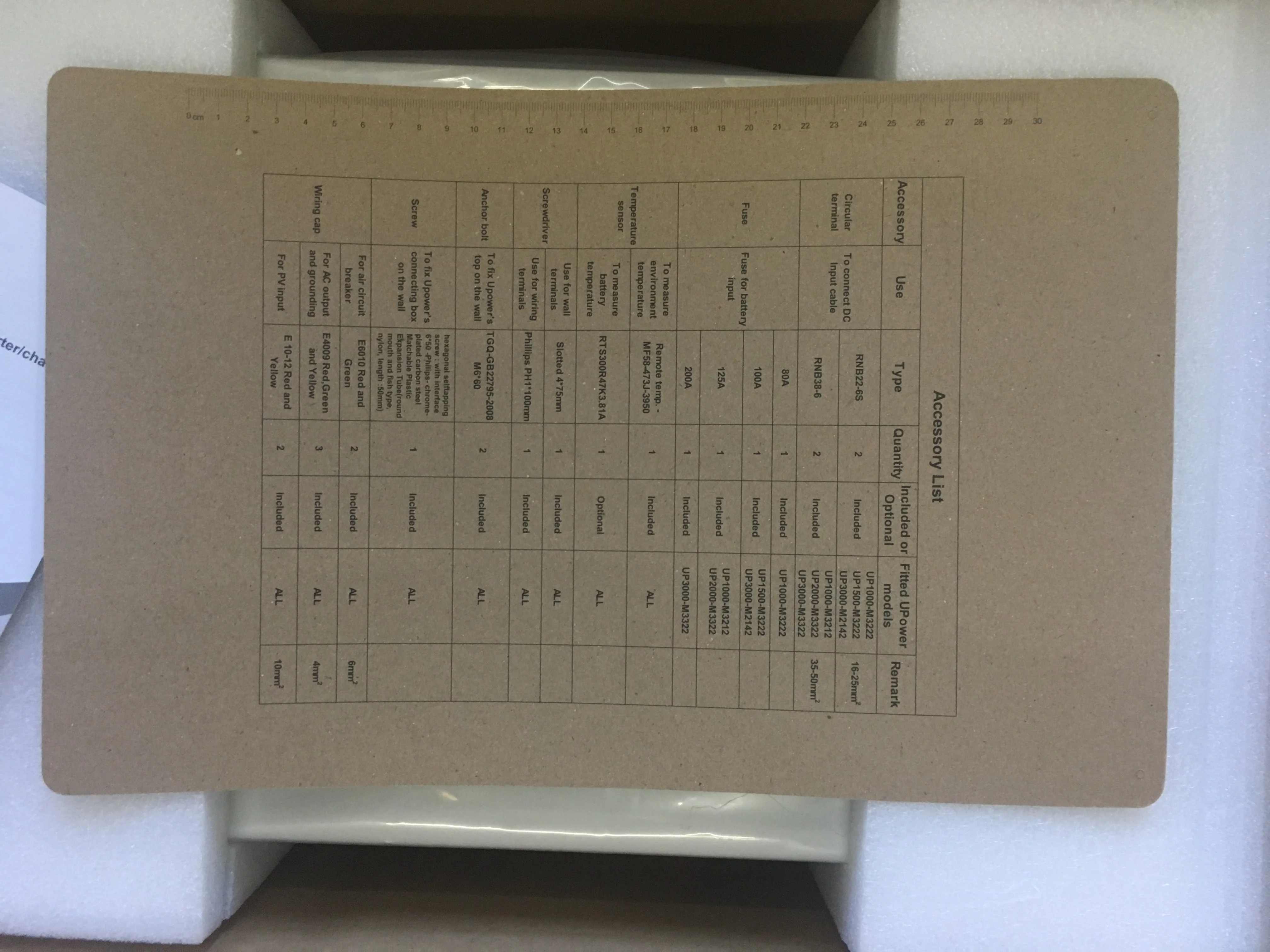

Product packaging
