Hikelok 6000 psig Stainless Steel High Pressure ISO BSPP NPT Thread 1/8 inch 28mm Alloy Needle Valves
Hikelok 6000 psig Stainless Steel High Pressure ISO BSPP NPT Thread 1/8 inch 28mm Alloy Needle Valves
Hikelok 6000 psig Stainless Steel High Pressure ISO BSPP NPT Thread 1/8 inch 28mm Alloy Needle Valves

Hikelok 6000 psig Stainless Steel High Pressure ISO BSPP NPT Thread 1/8 inch 28mm Alloy Needle Valves

Share on (62015107688):


Price:

Quantity:


Product Overview

Description



Product Description




Product Name

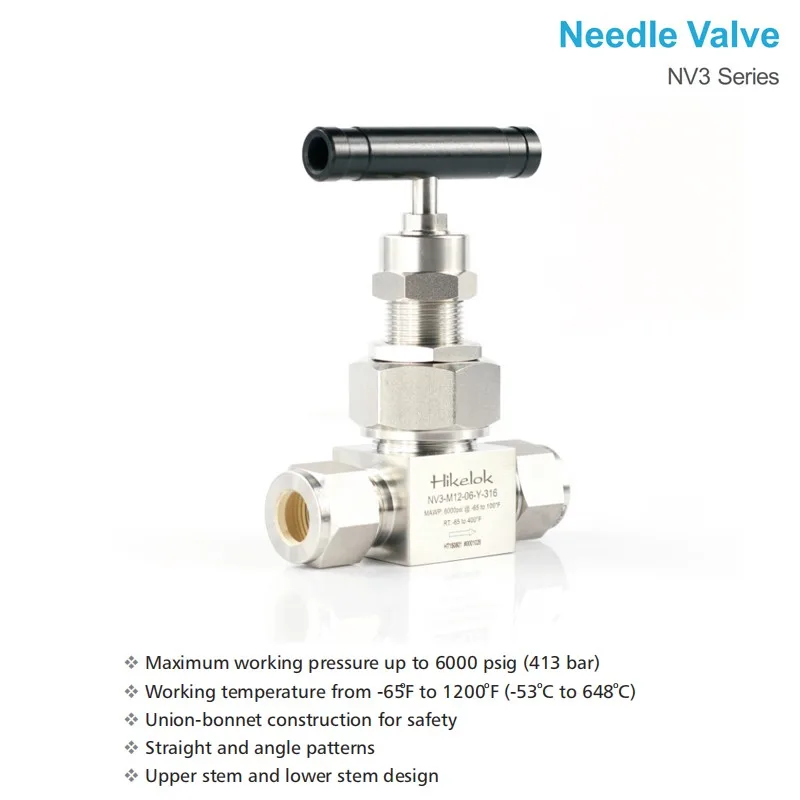

Needle Valve-NV3 Series

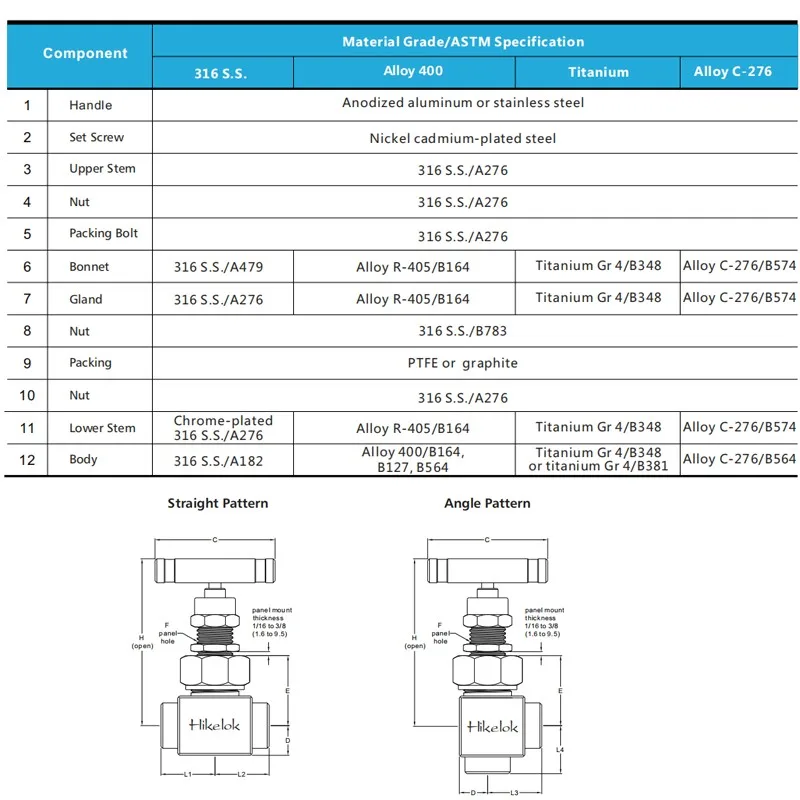

Material
316 S.S,316L S.S,304 S.S.,304L S.S.,321 S S,F91,F92,Brass,Alloy 400/20/600/825/C276,Duplex 2507.
Port Size
from 1/8" to 1 1/4 ",and 6 mm to 28 mm.

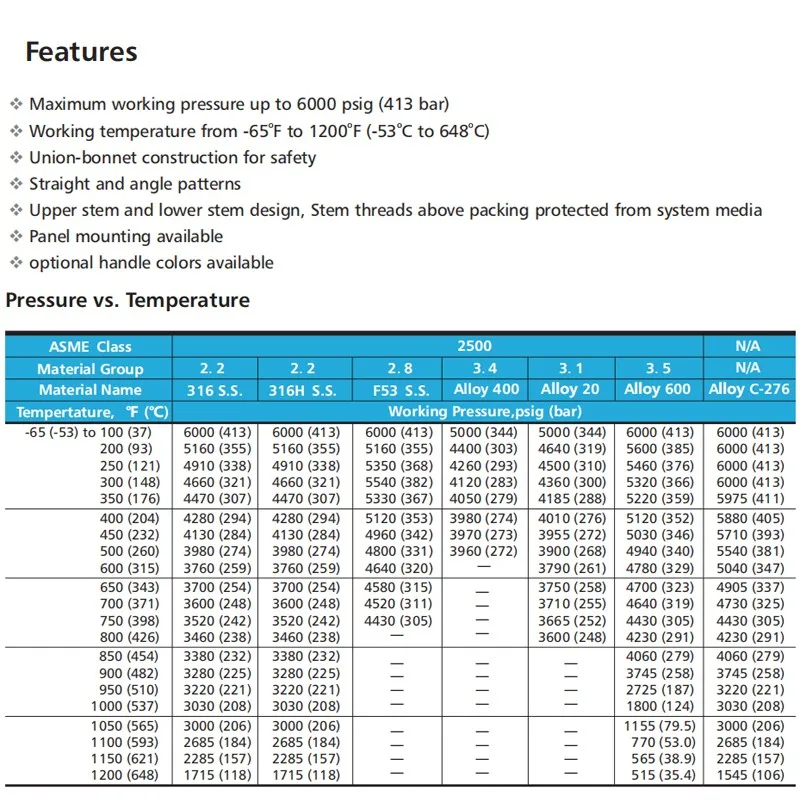

Max working pressure
6000 psig(413 bar).
Working temperature
-65°F to 1200°F(-53°C to 648 °C)
Orifice Size
From 0.157" to 0.787" .or 4 mm to 20 mm .
Flow Pattern
straight,angle.
Remark
One-piece forged body,Union-bonnet construction for safety.
Threads
Hikelok provide NPT, /BSPT/BSPP,SAE,and ISO threads configurations
payment
L/C,D/P,T/T,Western Union,Credit Card
Delivery
2-4 weeks after payment.
Brand Name
Hikelok

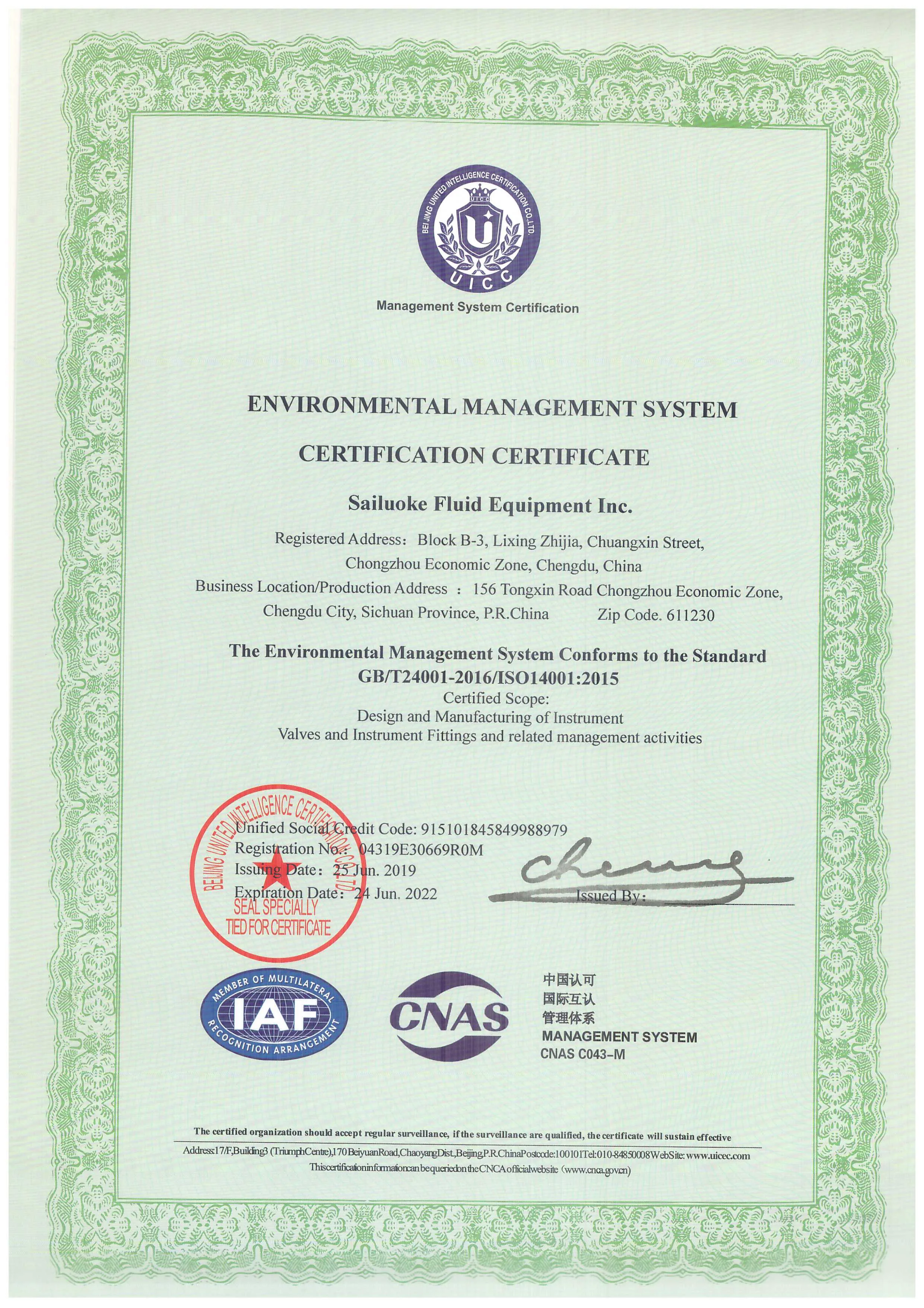

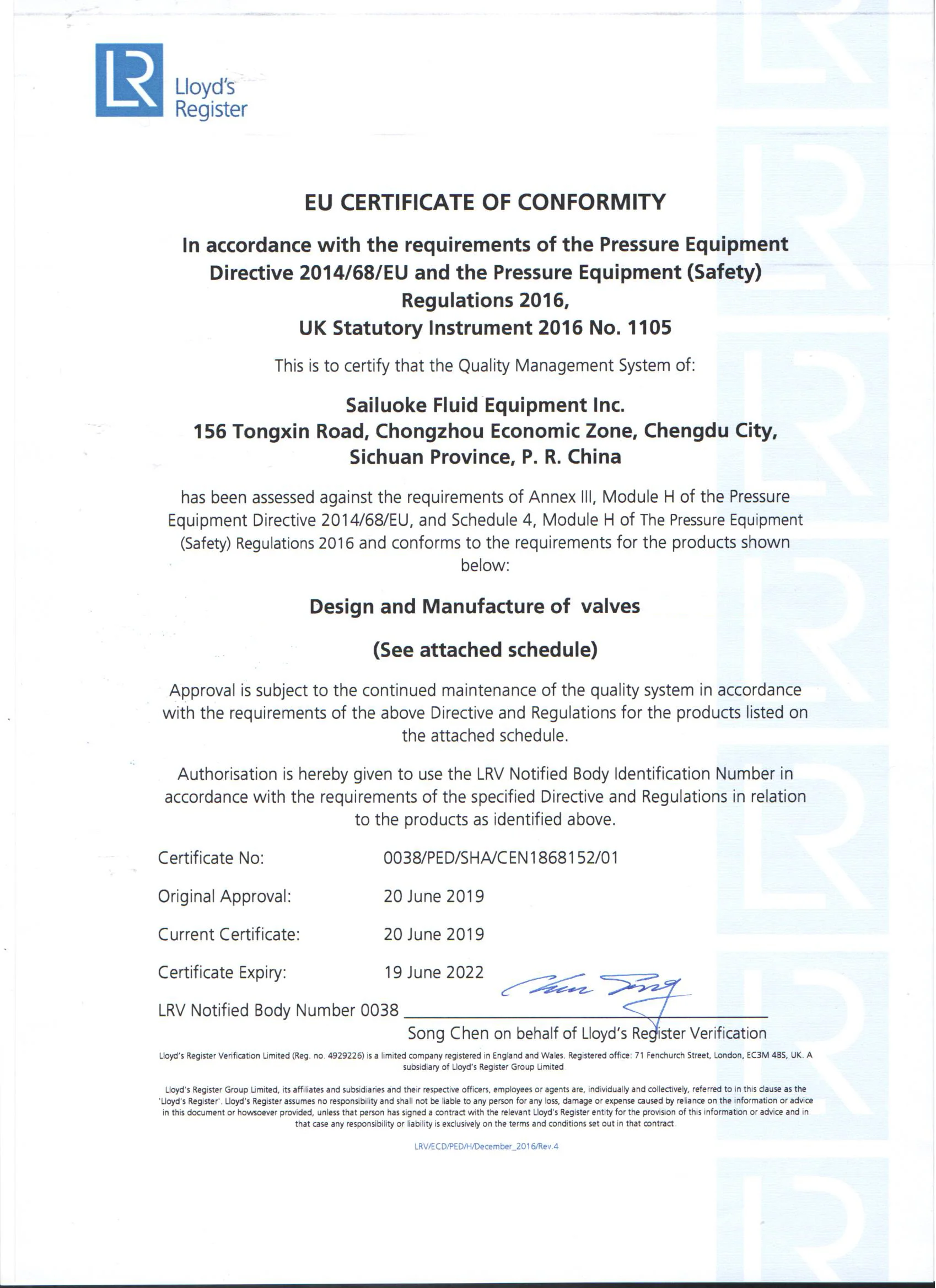

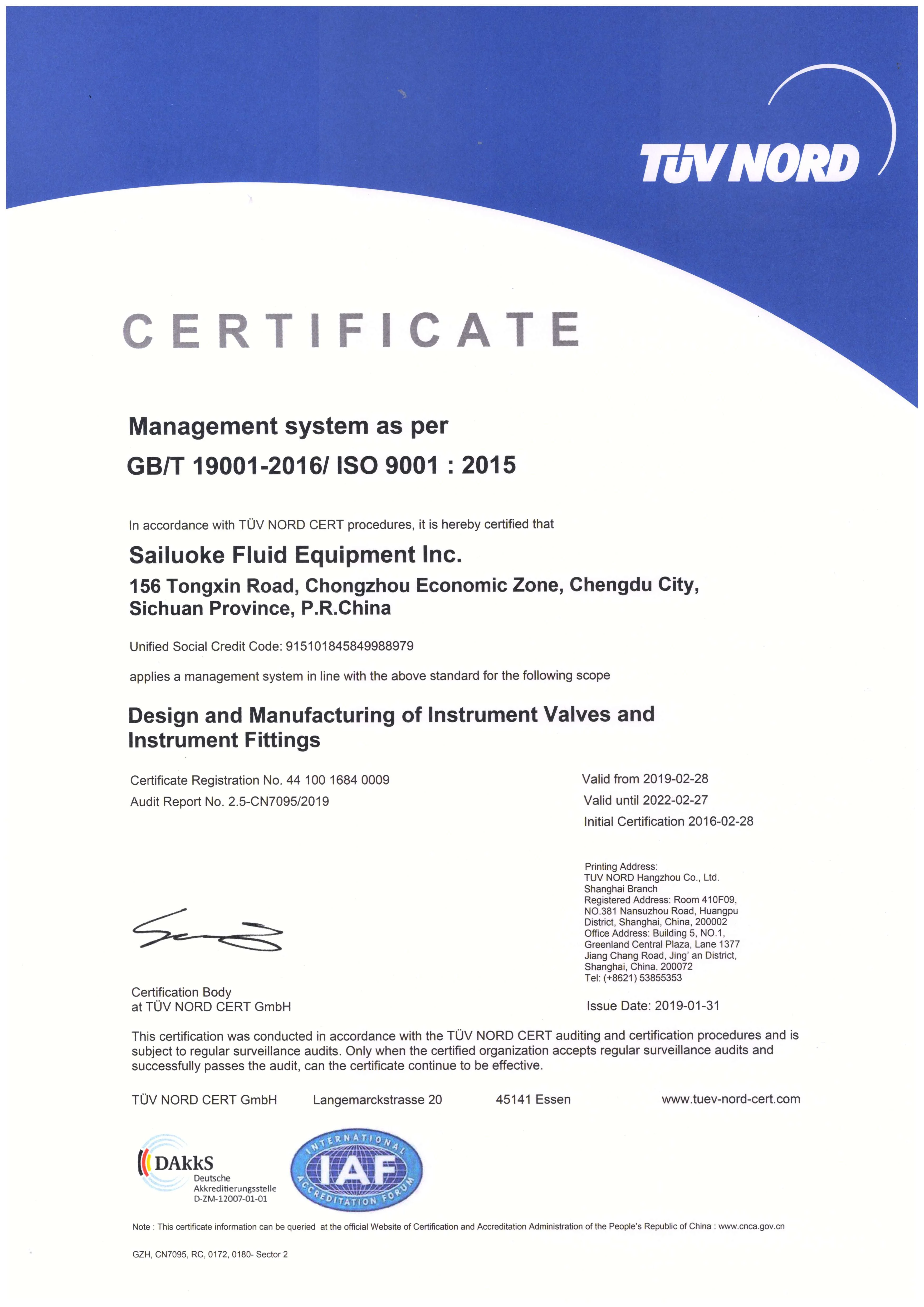

Certificate
ISO9001-2015
Serivce
7*24 Hours


Products Display

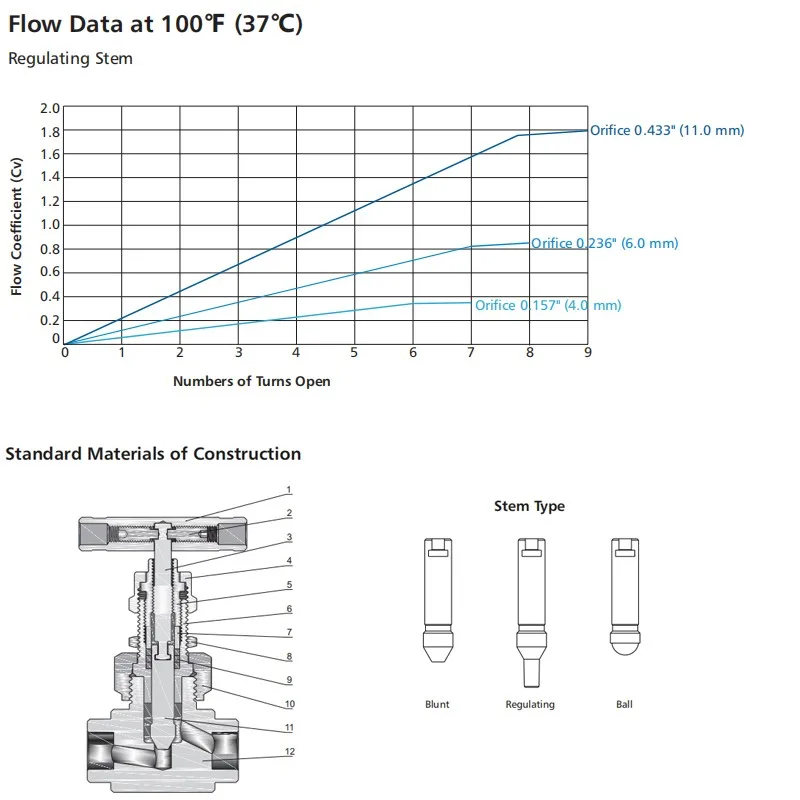

Dimensions












Packing & Delivery



Packing Details : Carton box, wooden case or according to your requirement
Delivery Details : 2 weeks after payment usually.

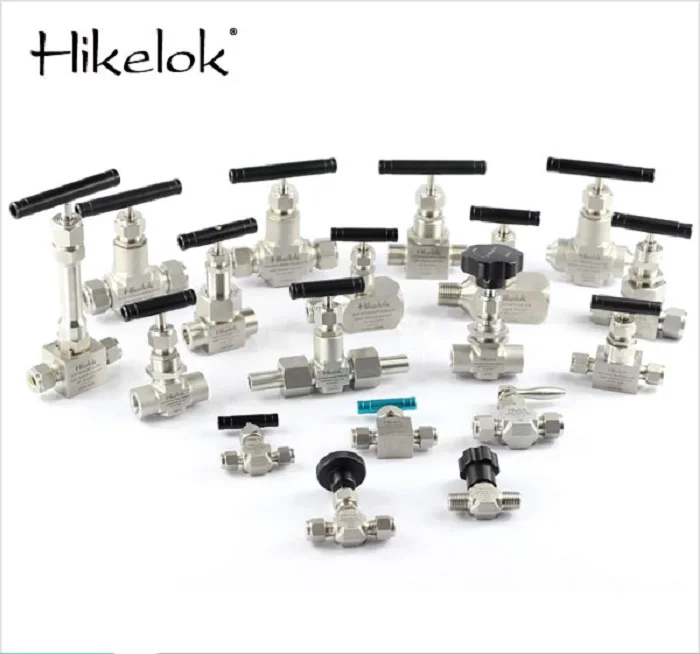

More Products




Our Services


Provided Full Support.

1.CAD drawing


2.P&ID


3.Component selection

4.Bill of material

5.Professional services such as bending and welding

6.Testing to guarantee the system

7.Professional packaging and delivery


You should make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance, function, material compatibility, adequate ratings, proper installation, operation and maintenance are the responsibilities of the system designer and user.



Company Information


Hikelok

*  Established in 2011


*  Passed ISO9001-2000 & 2008


*  Supply OEM/ODM Manufacturing.


*  Designed and manufactured to intermix and interchange    Swagelok ® and major global brands.


*  0.5 Hour's Drive from Chengdu Shuangliu Airport.



FAQ


Q1: Are you trading company or manufacturer ?

A: We are manufacturer, we had been produced valves and fittings  for more than 17 years. So we have advantage in price. We also supply OEM.



Q2: Do you have any MOQ limit for order?

A: Depends on the requirements



Q3:What is the delivery time?

A: Samples send out during 3 days if the products are in stock.

     Normal Order send out during 2 weeks  usually.



Q4:What's the payment?

 T/T,Paypal,Western Union.
