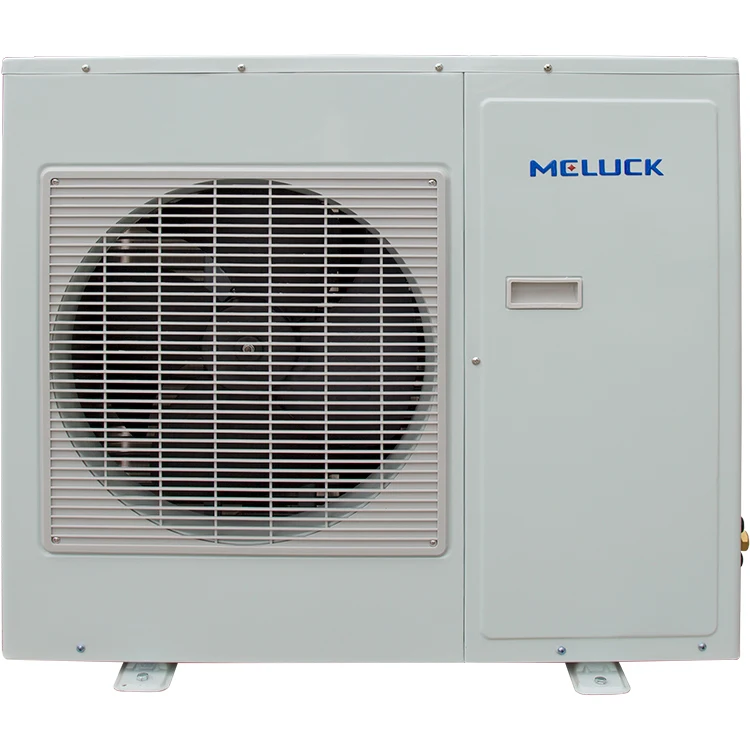

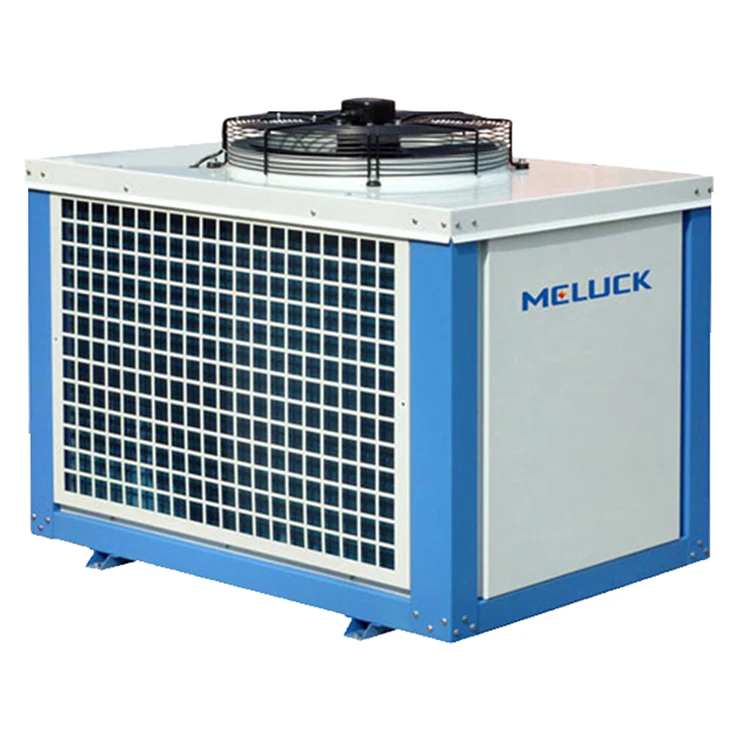

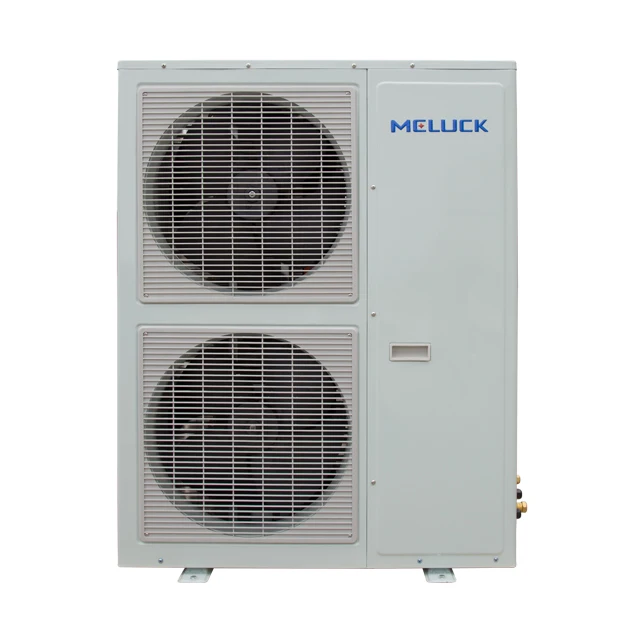

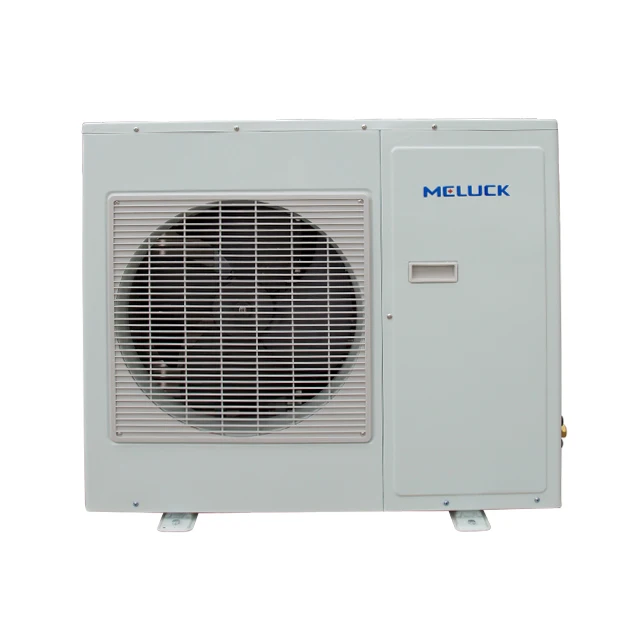

Commercial Low Temperature 380V/3P/50HZ copeland Refrigeration Unit Freezer Condenser

Product Overview

Description





Refrigerant:R407C,R134a		Water in: 12℃  Chilling Water Out:7℃ Voltage:380V/3P/50HZ
Compressor Power		3HP	5HP	8HP	10HP	12HP	15HP	20HP	25HP	30HP	40HP
Cooing Capacity	KW	8.3	13.7	22.1	29.5	34	44.1	59	68	88.2	120
	10m³kcal/hr	7.1	11.8	19	25.4	29.2	37.9	50.7	58.5	75.9	103.2



Refrigerant:R407C,R134a		Water in: 20℃  Chilling Water Out:15℃ Voltage:380V/3P/50HZ
Compressor Power		3HP	5HP	8HP	10HP	12HP	15HP	20HP	25HP	30HP	40HP
Cooing Capacity	KW	11	16.5	28.1	34.8	41.1	51.3	69.6	82.2	102.6	138
	10m³kcal/hr	9.5	14.2	24.2	29.9	35.3	44.1	59.9	70.7	88.2	118.7



Refrigerant:R407C,R134a		Glycol Water in: -1℃  Chilled Glycol Water Out:-5℃ Voltage:380V/3P/50HZ
Compressor Power		3HP	5HP	8HP	10HP	12HP	15HP	20HP	25HP	30HP	40HP
Cooing Capacity	KW	4.7	7.5	13.7	16	18	22.7	32	36	45.4	61.6
	10m³kcal/hr	4.0	6.5	11.8	13.8	15.5	19.5	27.5	31	39	53



Refrigerant:R407C,R134a		Glycol Water in: -11℃ Chilled Glycol Water Out:-15℃ Voltage:380V/3P/50HZ
Compressor Power		3HP	5HP	8HP	10HP	12HP	15HP	20HP	25HP	30HP
Cooing Capacity	KW	3.6	5.2	6.9	11.25	13.2	15.5	22.4	26.4	31
	10m³kcal/hr	4.0	6.5	11.8	13.8	15.5	19.5	27.5	31	39







Q1: Are you a factory or a trading company?

A1: We are one of the largest refrigeration equipment manufacturers in China.



Q2: Where is your factory located?

A2: Our factory was located in Fenggong Rd,North Xuanzhou Economic Development Zone,Xuancheng City,Anhui,China.



Q3: Is Anhui Meluck be the same with Shanghai Meluck?

A3: Yes, Anhui Meluck, Shanghai Meluck and Zhengjiang Bingfeng are belong in Meluck group.



Q4: Can the product be customized according to specifications?

A3: Yes, we are pretty strong on design and manufacturing of tailor made products, the drawings will be sent to our clients for approval before the samples are made.



Q5: What are the payment terms?

A5: We support 30% deposit in advance and the balance 70% T/T will be paid against copy of BL
