Price:$13.50 - $17.52

Quantity:


Product Overview

Description


Product Description
Product Name
TS-9870 Intelligent Temperature Controller
Material
ABS material case
Supply voltage
18-265V AC or DC
12VDC
24VDC
Power consumption
 < 2 Watts.
Sampling speed
 4/sec

  • Product performance description

  • 产品性能介绍说明

Thermocouple: T, R, J, B, S, K, E, Wre3-Wre25.
Thermo Resistor: Pt100, Cu50.
1 Relay output, 1 SSR controlled output.
Time proportional PID controlled output to either Relay or SSR
Three built-in algorithms that fit most control objects and various applications.
Temperature can be set to display in either Fahrenheit or Celsius degrees.
Details Images
Specifications
Supply voltage: 18-265V AC or DC
Power consumption: < 2 Watts.
Sampling speed: 4/sec.
SSR activated voltage: open circuit: 10V; short circuit: 40mA.
Accuracy: 0.2% of full scale.
LED Display: Red, 0.28 inch
Out of range indication: “EEEE”.
Ambient temperature requirements: 0 to 50 C (32 to 122 F)
Humidity requirement: < 85% RH.
Relay Contact: 220VAC, 3A.
Controller dimensions: 48 x 24 x 75 (mm).
Opening for installation: 44 x 20 (mm)

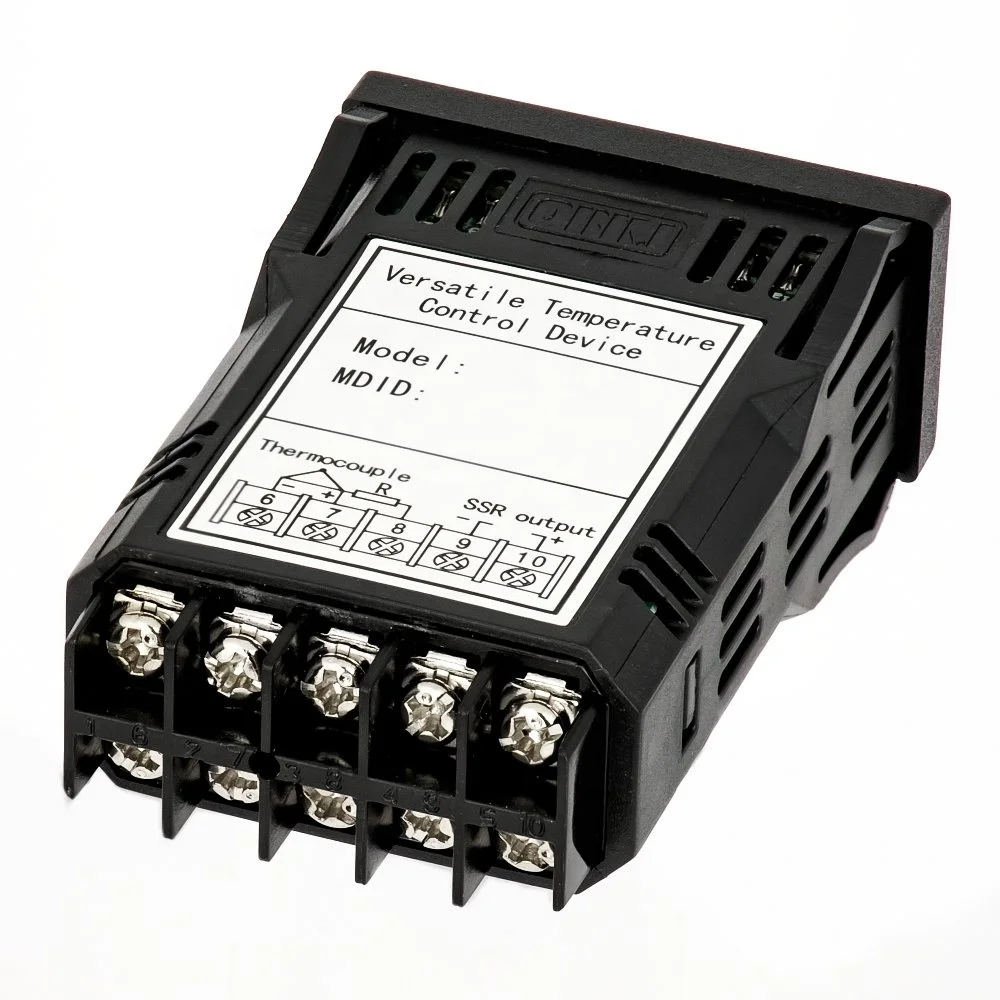

Terminal connection, direct insertion of thermocouple or thermal resistance, the connection is more convenient.
Power supply voltage can be selected: DC12V, DC24V, AC/DC85-260V
The intelligent temperature controller is very small and has no palms. The color display: red, blue, green, orange, you can choose your favorite color.

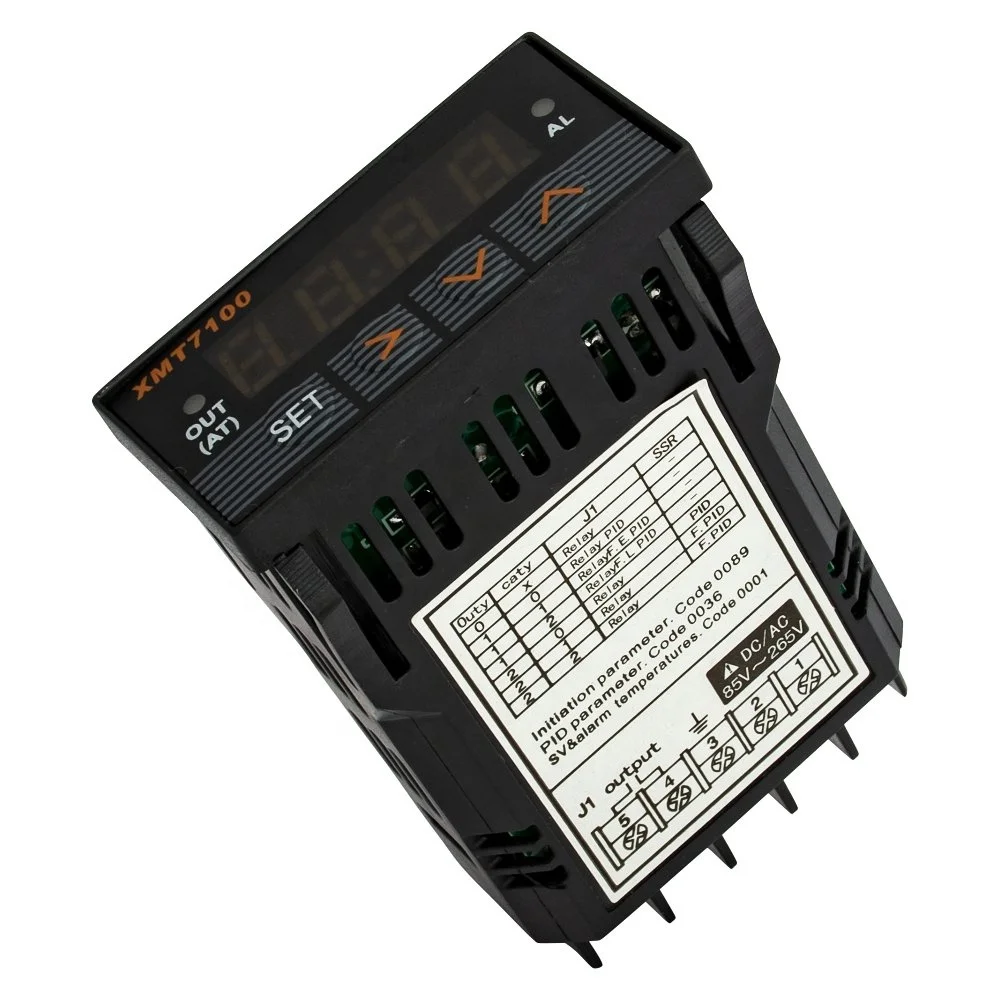

1 -- AL, Relay J1 Indicator.
2 -- Select next parameter / value increment.
3 -- Selection previous parameter / value decrement.
4 -- Digit select / Auto tuning.
5 -- Setting / Confirm.
6 -- Output, controlled output indicator. (AT) Blinking during auto-tuning process.
7 – Temperature reading, degrees F or degrees C (as chosen)
Product Usage

    • Product usage introduction

产品使用方式介绍
The input signals that can be directly matched with thermocouples, RTDs, etc. are: Thermocouple: T, R, J, B, S, K, E, Wre3-Wre25.
Thermo Resistor: Pt100, Cu50.
1 Relay output, 1 SSR controlled output.
Time proportional PID controlled output to either Relay or SSR
Three built-in algorithms that fit most control objects and various applications.
Temperature can be set to display in either Fahrenheit or Celsius degrees.

  • Description of product use effect

产品使用效果说明
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Related Products
Packing&Shipping
Transparent plastic bag packaging, carton packaging, 10 large packages
