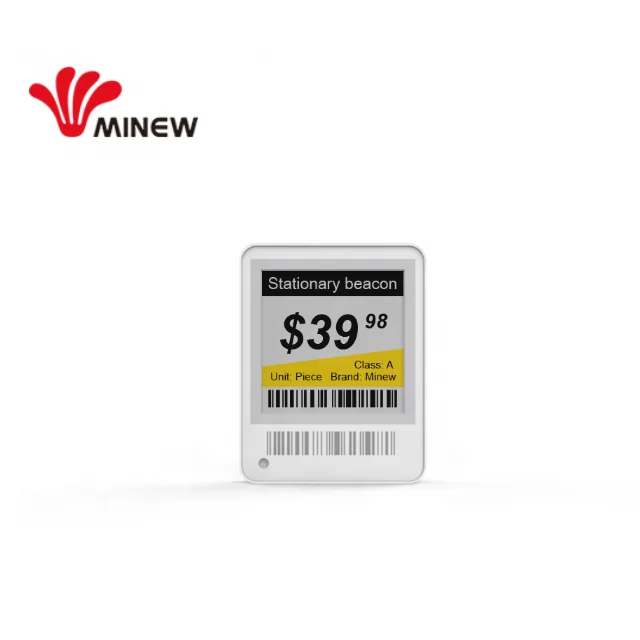

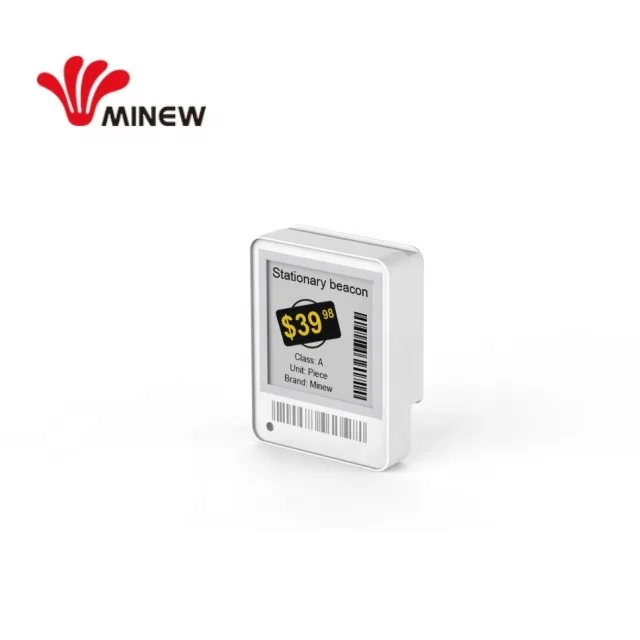

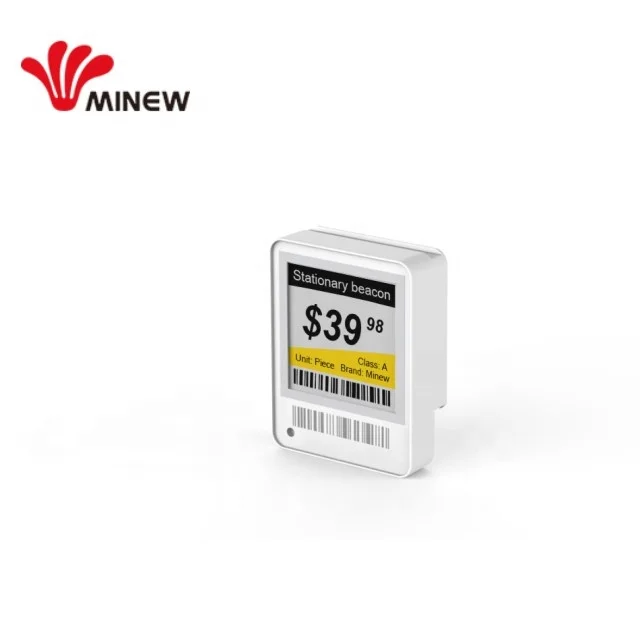

Minew 1.54 inch BLE 5.0 high quality dot matrix e ink display digital price tag

Product Overview

Description

Product Description

Save some work!

Get some rest!

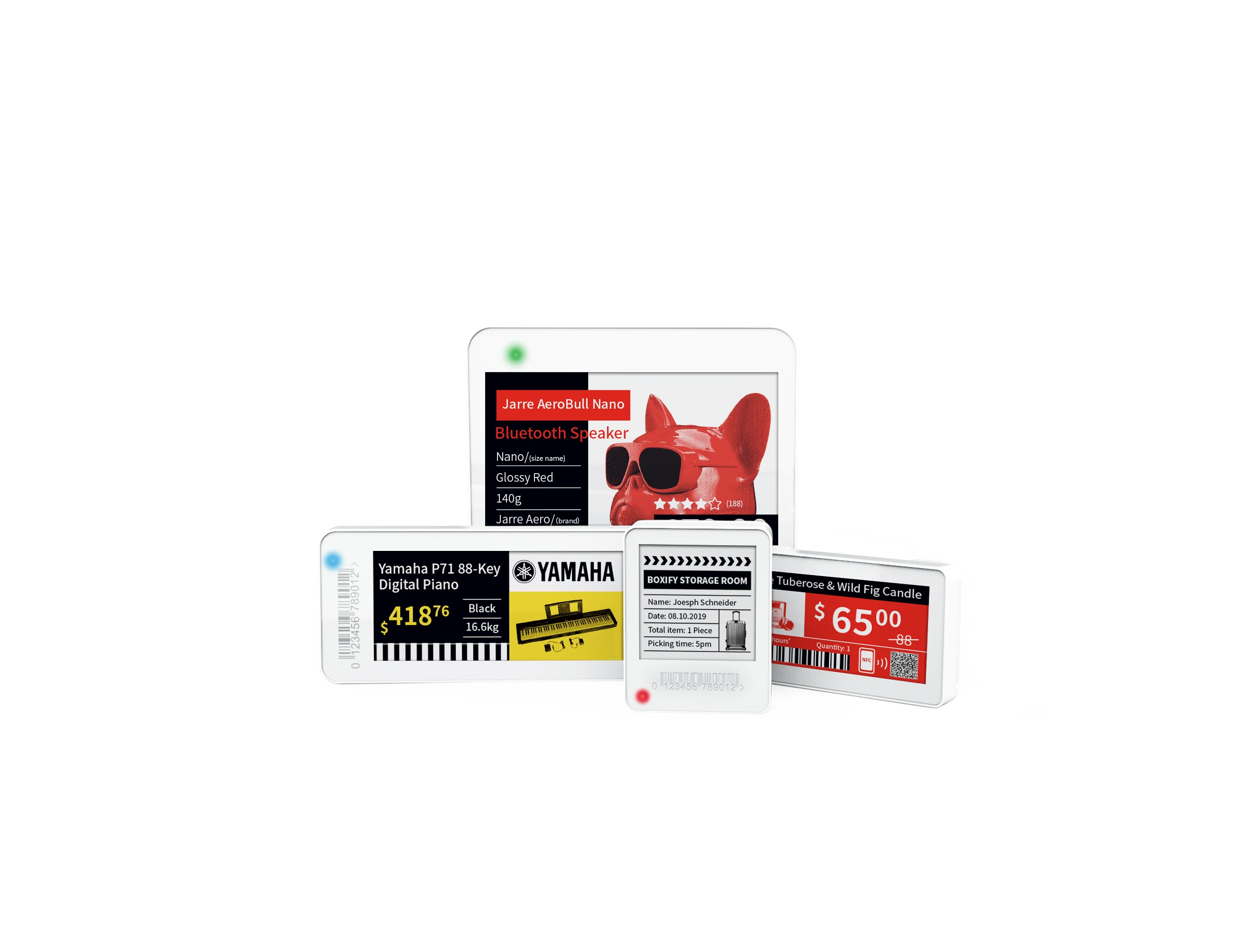

Say goodbye to traditional paper price tags with Minew MTag series!





Minew 1.54 inch Bluetooth 5.0 high-quality dot matrix e-ink display digital price tag applied with the latest Bluetooth 5.0 technology and the high-quality dot matrix E-ink display. They can works from 0 °C to 50 °C, and all have the ultra-low power consumption batteries living up to 5 years. Minew electronic shelf labels are easy to control and manage with the MTag series development kit. It will bring you a brand-new experience for smart retail.



Key Features

•   Bluetooth 5.0 technology


•   Bi-directional wireless communication


•   Nordic nRF-52 series


•   High-quality dot matrix E-ink display


•   Individually designed templates


•   Multi-Language support


•   QR code, Barcode, NFC for online and offline interactions


•   Instant LED flashlight


•   Working environment: 0 - 50℃


•   Ultra-low power consumption, battery life up to 5 years


•   IP 65 standards


•   Faster refresh rate, only 10minutes refresh up to 50,000 pieces



Technical Details



Model Number	MTag1501Y
Size	1.54 inch
Dimensions (mm)	36 x 44 x 14.2
Weight (g)	21
Active display area (mm)	27.00 x 27.00
Resolution (pixels)	152 x 152
Pixel density	142 DPI
Pixel colors	Black/White/Yellow
Viewing angle	180°
Communication method	Bluetooth 5.0
Battery	CR2450 x 1
Battery lifetime	5 years
Operating temperature	0 °C to 50 °C
Storing temperature	- 20 °C to 70 °C
Compliance	CE, FCC, ROHS

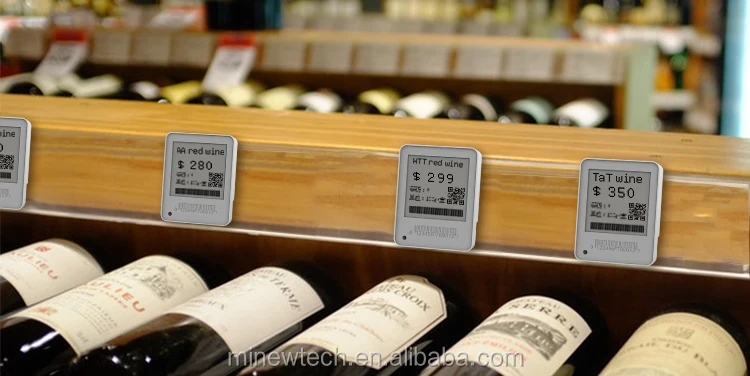

Applications

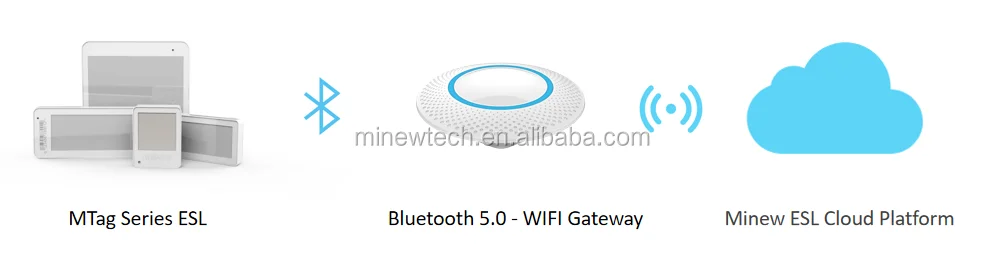

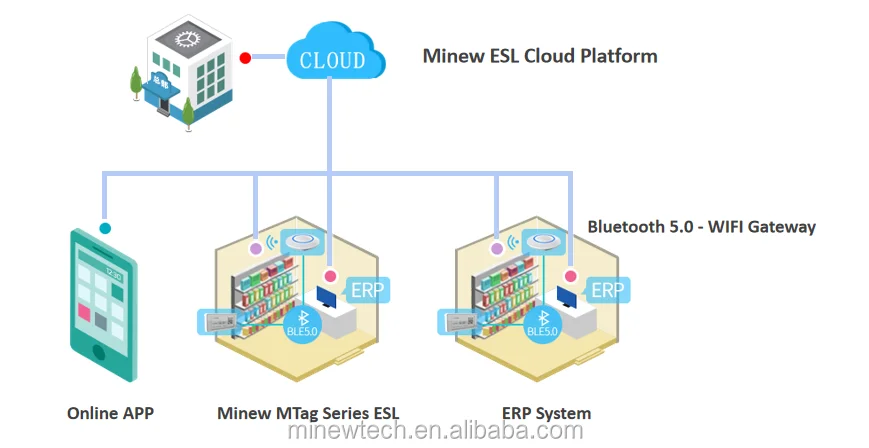

How It Works



Minew has a complete smart retail solution. We provide to our customers with our own developed MTag series development kit. By connecting MTags with Minew Bluetooth 5.0-WIFI Gateway, users can easily control the MTags of each store and receive store data feedback through the Minew ESL cloud platform.









Technical Support



√ SDK will be provided

√ After-sales services

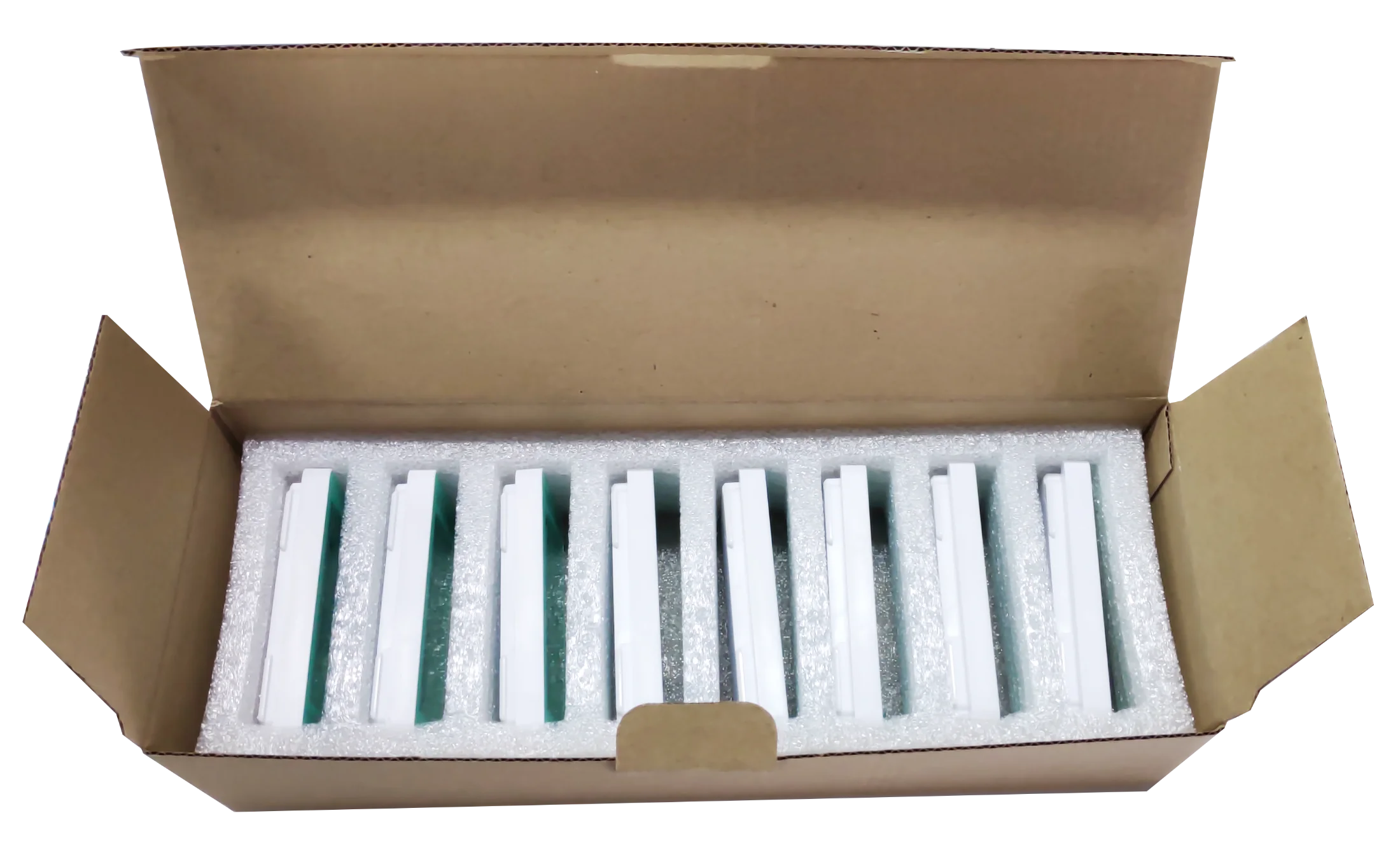

Packaging & Shipping



Quantity	20 pieces	200 pieces
Net Weight	420 g	4.2 Kg
Gross weight	485 g	5.3 kg
Size (cm)	30.5 x 11 x 7.5	32 x 23.5 x 40







We ship worldwide!



Why Choose Us

•   Famous high-tech brand


•   Listed on NEEQ China


•   Collaboration with a lot of Fortune 500 companies


•   Verified by TÜV SÜD


•   Factories certified by ISO 9001, ISO 14001, and OHSAS 18001


•   Experienced R&D team


•   Elevate your brand with reliable partners


•   OEM/ODM service exporter for over 10 years


•   Warranty service included



Company Information



Shenzhen Minew Technologies co., Ltd is a professional turnkey supplier which provide complete customized IoT solutions from concepts and ideas to the physical products. The company founded in 2007 has focused on R&D and innovations in IoT fields for more than 10 years, and always dedicated to providing customers with high standard IoT solutions, products, and services.

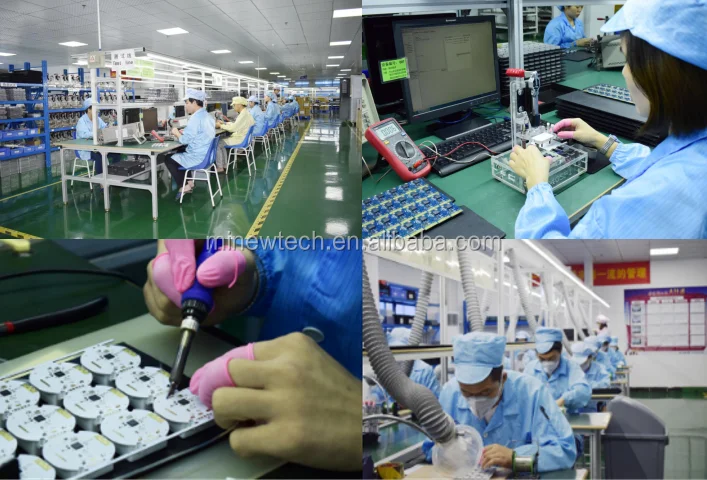

Manufacture

Minew has a quick-response manufacturing factory system to support all demands which has been certified by ISO 9001, ISO 14001, and OHSAS 18001, with daily output of 20,000 volume in producing smart products.
