mini 2 color offset printing machine

Product Overview

Description

Flexo Printing Machine

is suitable for printing packing materials such as polyethylene, polypropylene, glass paper and paper.



Usage

YT-2600 Letterpress Flexo Printing Machine is suitable for printing such packing materials as polyethylene, polypropylene, glass paper and roll paper, etc. And  YT-2600  Letterpress Flexo Printing Machine is a kind of ideal printing equipment for producing plastic packing bag for food, supermarket handbag, vest bag and clothes bag, etc.





Characteristics



1. Take it easy, accurate color, long life
2. The use of motors, variable frequency speed control, saving electricity, running small fluctuations
3. Off printing roll automatic stop the ink-running motor, and up-printing roll automatic start running the ink
4. The use of special diagonal-tooth gear, print size is accurate,
5. There are two sets of heating devices, including central heating and constant temperature control system for packet control
6. Low-roller special steel processing, and special process, and plating thickness of 0.1mm protective layer of hard chromium
7 Alloy roll with hard oxidation, treating by dynamic balance, static balanced
8 With a cold wind bellows, and can effectively prevent produce with ink adhesion after printing
9. The Print produce are clear and good arrangement quality
10. Bearing: NSK, Japan brand, Germany ASNU aluminum alloy roll



Main technical parmeter

Model	YT-2600
printing speed	50m/min
printing color	2color
max. web width	600mm
max. printing width	560mm
max. feeding diameter	450mm
max. rewinder diameter	450mm
registration accuracy	±0.2mm
voltage	380v
dimension	2300×1860×2145mm
weight of machine	1800kg

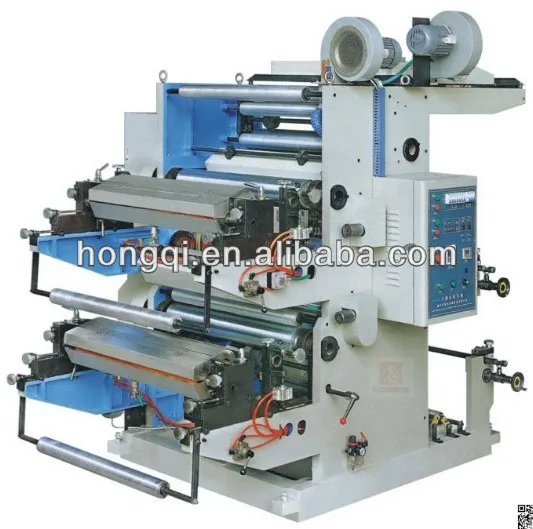

2 colours Flexo Printing Machine









our final printing products









our package and shipping
