four column cutting machine

Product Application
This machine is applicable for full-automatic die-cutting of facial mask. With the CAD full-automatic trepanning and layout system, it can achieve work efficiency of 6 traditional common processing units and save at least 8% raw materials, thus reducing labor cost significantly. Its output in one shift reaches as high as 0.8-1 million pieces, with high rate of finished products. Its technical performance is assessed international advanced level, enabling to replace imported goods.

Specification:
1. Double oil cylinder and precise four-column automatic balancing double-link mechanism to ensure that the depth of each cutting point accuracy ± 0.05mm.
2. cutting head in contact under pressure cutter 10mm automatic retarder before, so when cutting layers of material, the uppermost and lowermost no size error.
3. The balance due to cutting precision, can greatly reduce the loss of the cutter and cutting board cutting edge of better, more can reduce the cutting board consumption.
4. HMI .plc programmable control, servo motor automatic feed mechanism.
5. Servo motor control feeding so that the positioning accuracy ± 0.1mm.
6. The servo motor automatic feeding mechanism, improve work efficiency by 80%.
7. unique setting structure with the cutter and cutting height. Stroke adjustment simple. Accurate.
8. Central automatic lubrication system ensures machine precision and enhance machine durability.
9. Hydraulic system: double cylinders simultaneously, reservoir storage device oil filter device.
10. The delivery portion by Japan's Mitsubishi PLC control, servo motor drive material from the machine side input, after die-cutting, from the other side of the output to ensure accurate feeding, stable operation; and feeding length can be convenient touch screen adjustment, fault display information to facilitate machine maintenance.
11. The servo motor control feeding with cylinder clamping device.
12.CAD automatic typesetting, cutting die according to the specifications and materials, automatic alignment, intelligent, efficient, material saving.

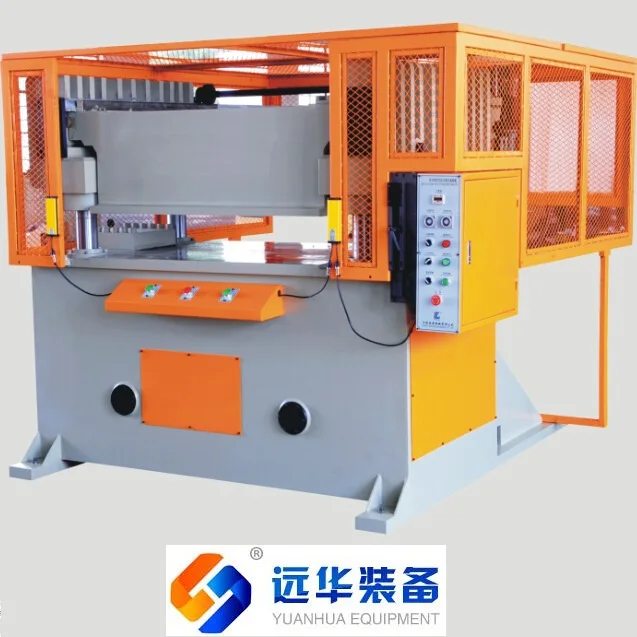

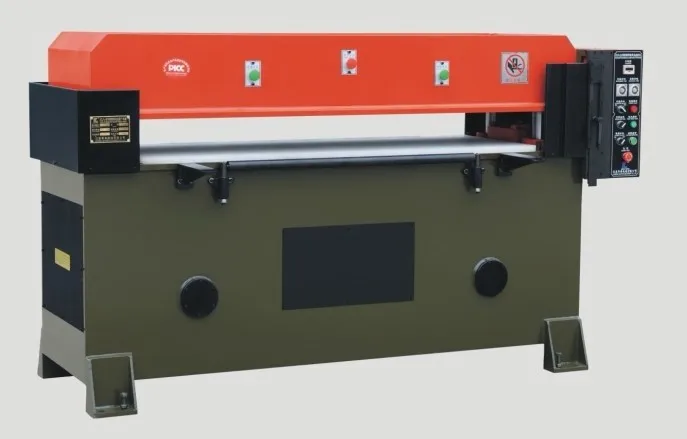

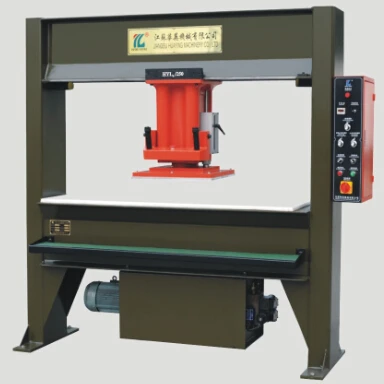

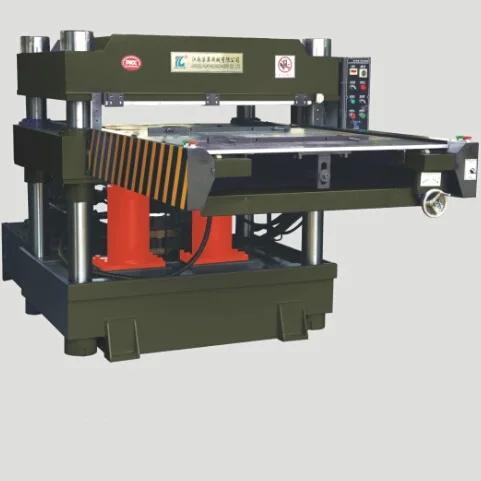

Detailed Images
