Black High Strength Carbon Fiber Rope
- Category: >>>
- Supplier: Hitex Insulation (ningbo) Co. Ltd.
Share on (62015224842):
Product Overview
Description

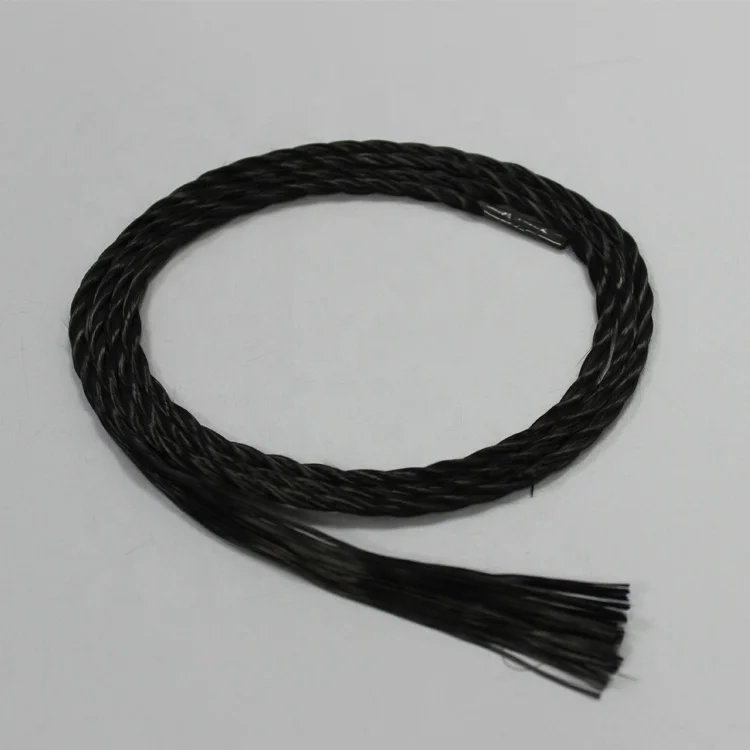

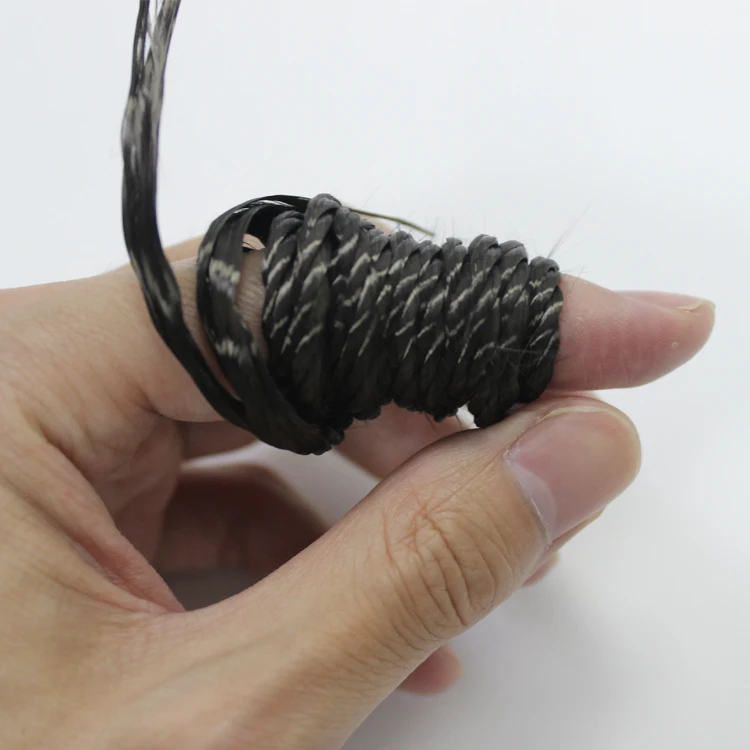

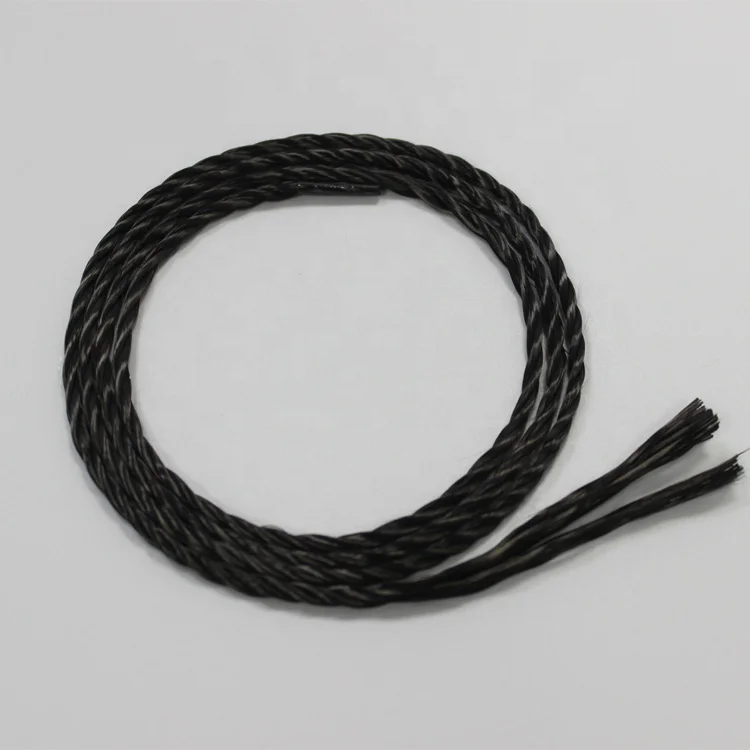

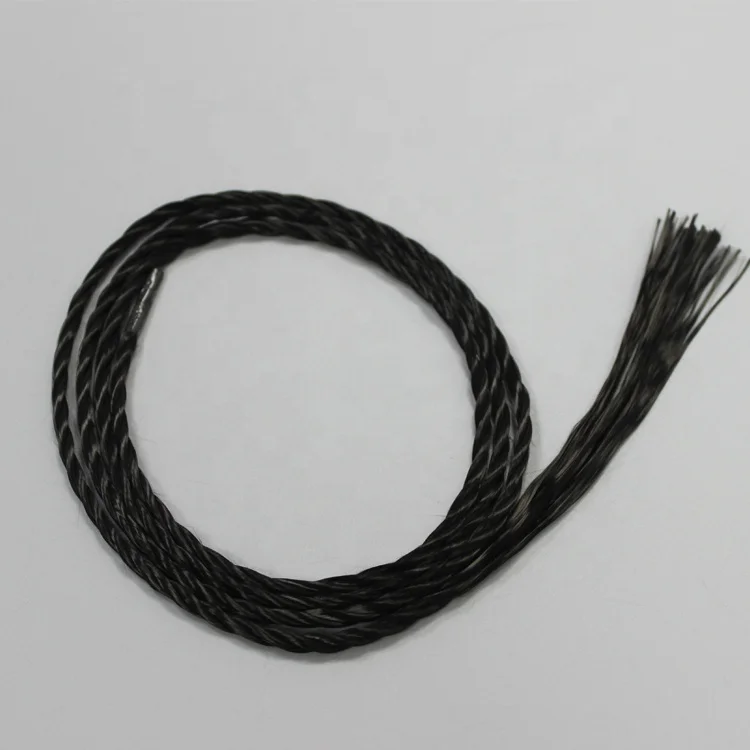

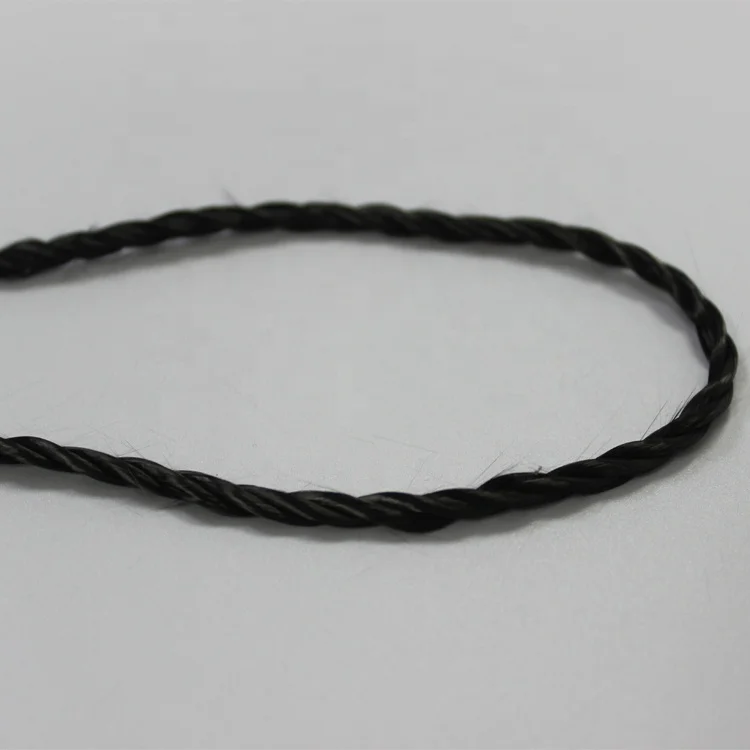

Black High Strength Carbon Fiber Rope
Product Description
The carbon fiber rope is made of the raw material of PAN(Polyacrylonitrile)-based carbon fiber woven by a special technical process. It has characteristics of high strength, non-melting under high temperature, excellent thermal stability, light weight, good corrosion resistance. It's the requisite material for banding and sewing the carbon felt which is used as the vacuum furnace insulation layer. The carbon fiber rope can also be used as the heating cable due to its good electrical conductivity.
Application
l Airspace
l Construction
l Sporting goods
l Mechanical equipment
l Ship building
l Automobile
Specification
Specification | Temperature | ||||
Item | Unit | Value | Process Temperature(ºC) | 1450 | |
Carbon Content | % | ≥98.5 | Operating Temperature | In the air(ºC) | ≤400 |
Bulk Density | g/cm3 | 1.74-1.76 | In the vacuum(ºC) | ≥2200 | |
Linear Density | g/cm2 | Dia1.5mm: 1950±50 Dia2.0mm: 2550±50 Dia3.0mm: 3900±50 | In the inert atmosphere(ºC) | ≥3200 | |
Thermal Conductivity | 1050ºC W/(m.k) | 0.17-0.21 | Dimension | ||
Electric Resistance | Ωmm 2 /m | 20-25 | Diameter | 1.5mm 2mm 3mm According to customer's requirement | |
Tensile Strength | Mpa | ≥450-500 | Length | 30-210m | |
Elongation | % | 1.0 | Package: Carton or wooden case | ||
Ash | % | ≤1.5 | |||
Detailed Images
About US
Hitex is supplying various of high temperature fabrics &textiles for thermal insulation, fire fighting, welding & cutting protecting, sealing & gaskets, refractory and composite industries. The technical fabrics are available with difference coating & treatment to working for extreme temperature and conditions etc.
Contact Us
Packaging & Shipping
FAQ
Q1.You are a trading company or manufacturer?
We are manufacturer with more than 10 years production experience, and we have our own factory in yuyao
.
Q2.Can you send me a sample? Is it free?
Yes, the samples is free, but the courier charge should be on your side
Q3.Mode of transportation?
By sea or by air
Q4.How about the Delivery time?
Usually around 2-3 weeks after order confirmed
Q5.Can you product the customized goods?
Surely, we can be customized according to your demanding.
Q6.Do you have other production?
Certainly, We, Hitex are supplying various of high temperature fabrics &textiles for thermal insulation, fire fighting, welding & cutting protecting, sealing & gaskets, refractory and composite industries. The technical fabrics are available with difference coating & treatment to working for extreme temperature and conditions etc.
Q7.What kinds of payment you accept?
We accept T/T, D/A, L/C,D/P,O/A
