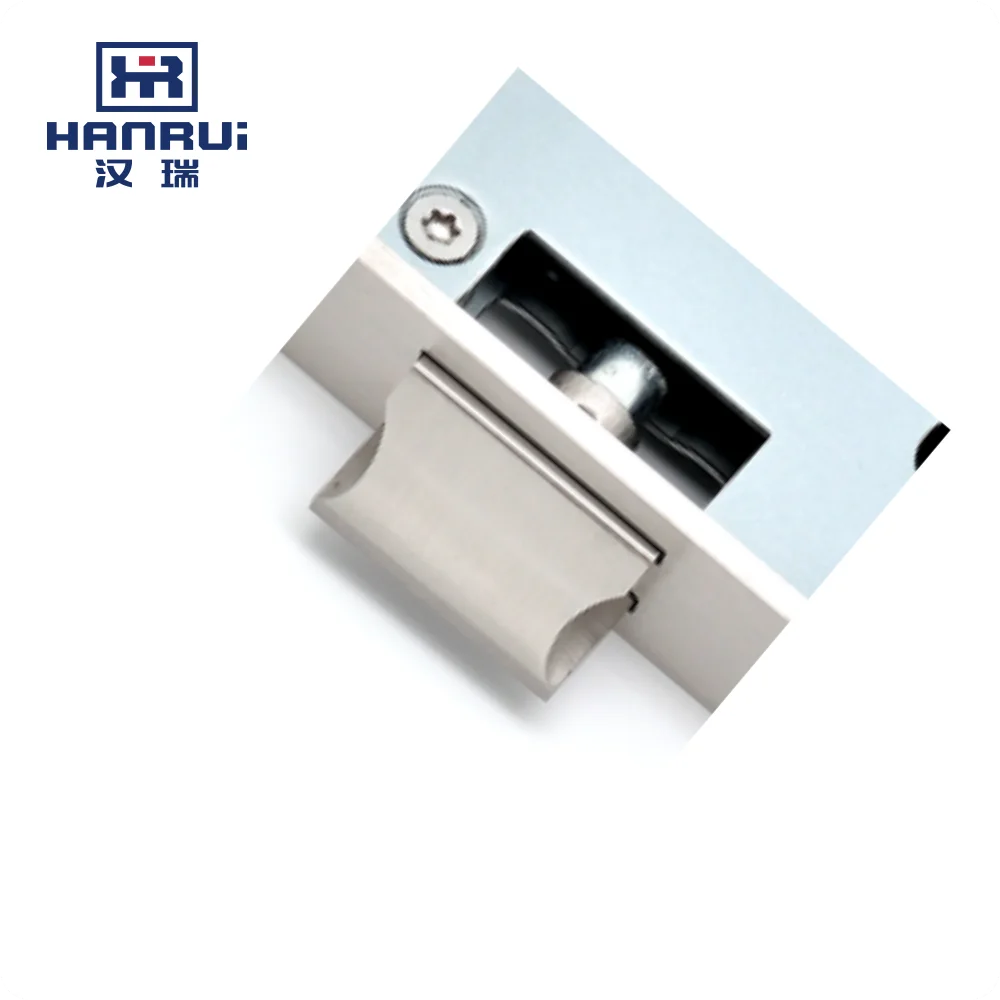

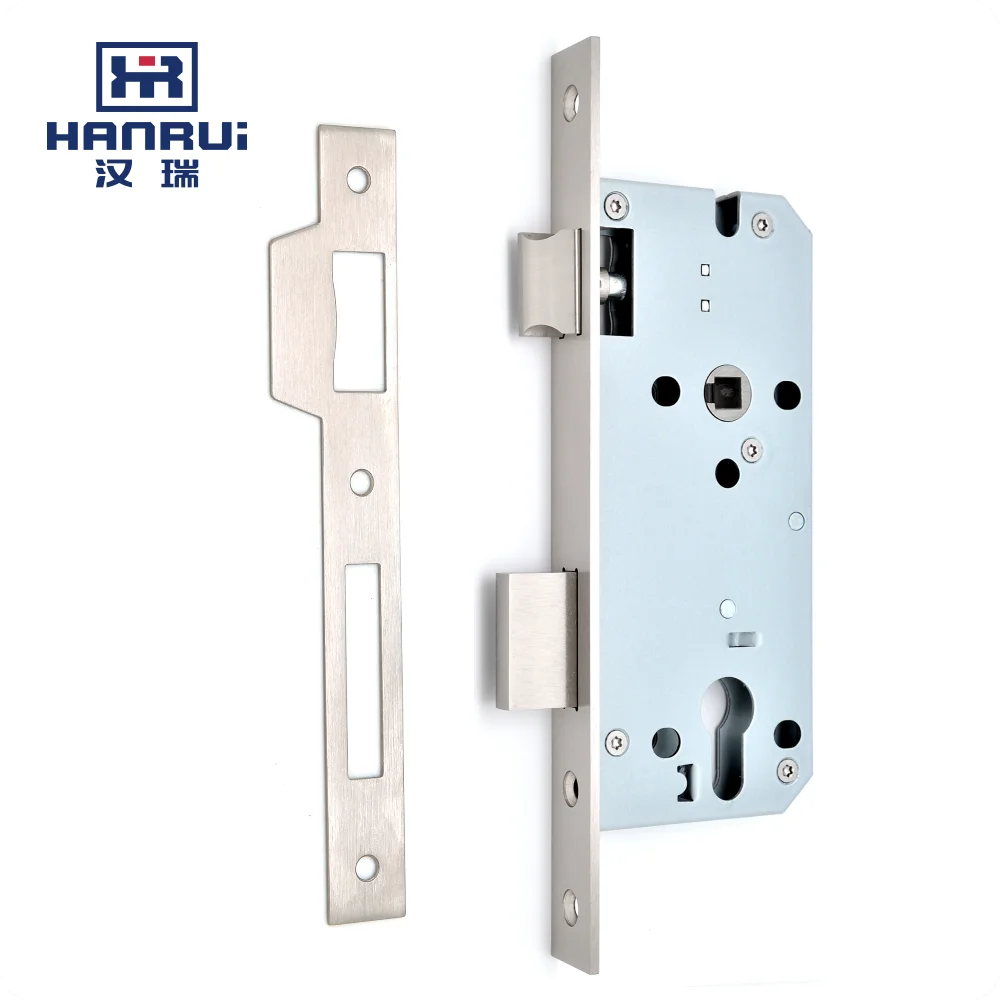

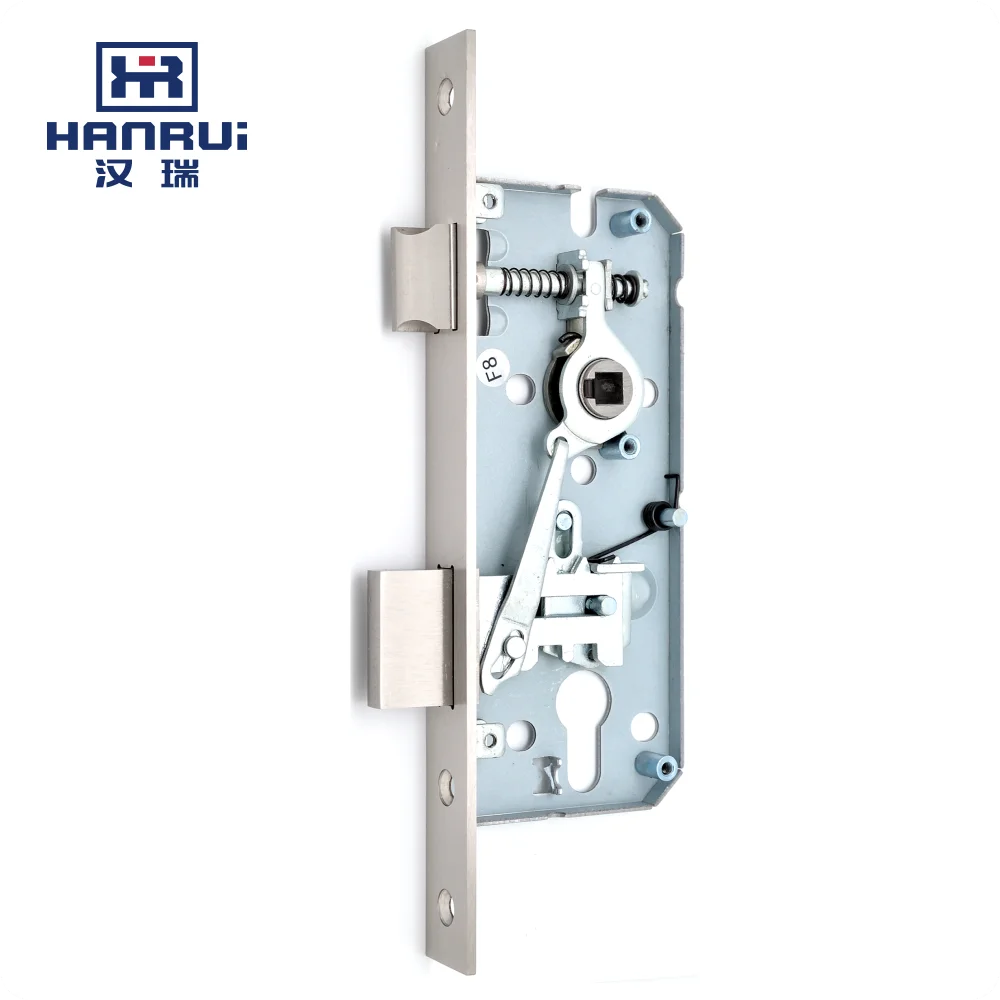

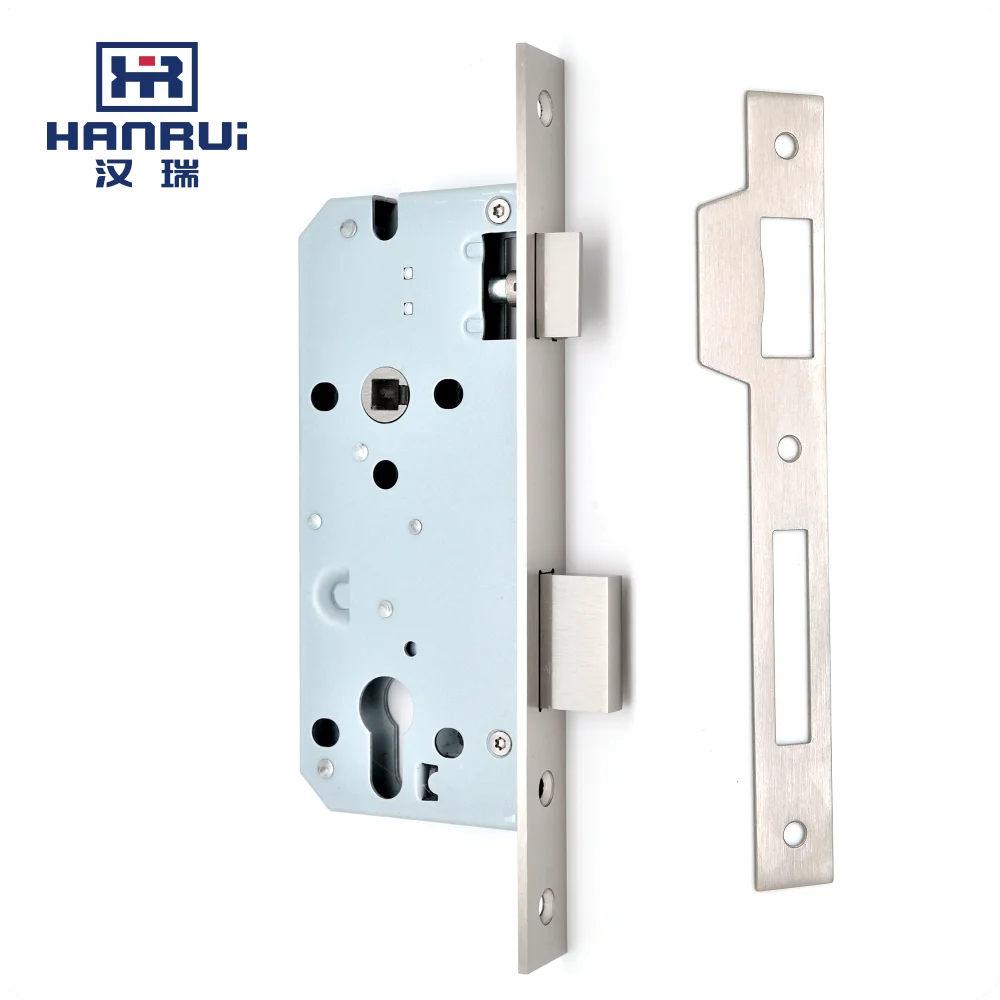

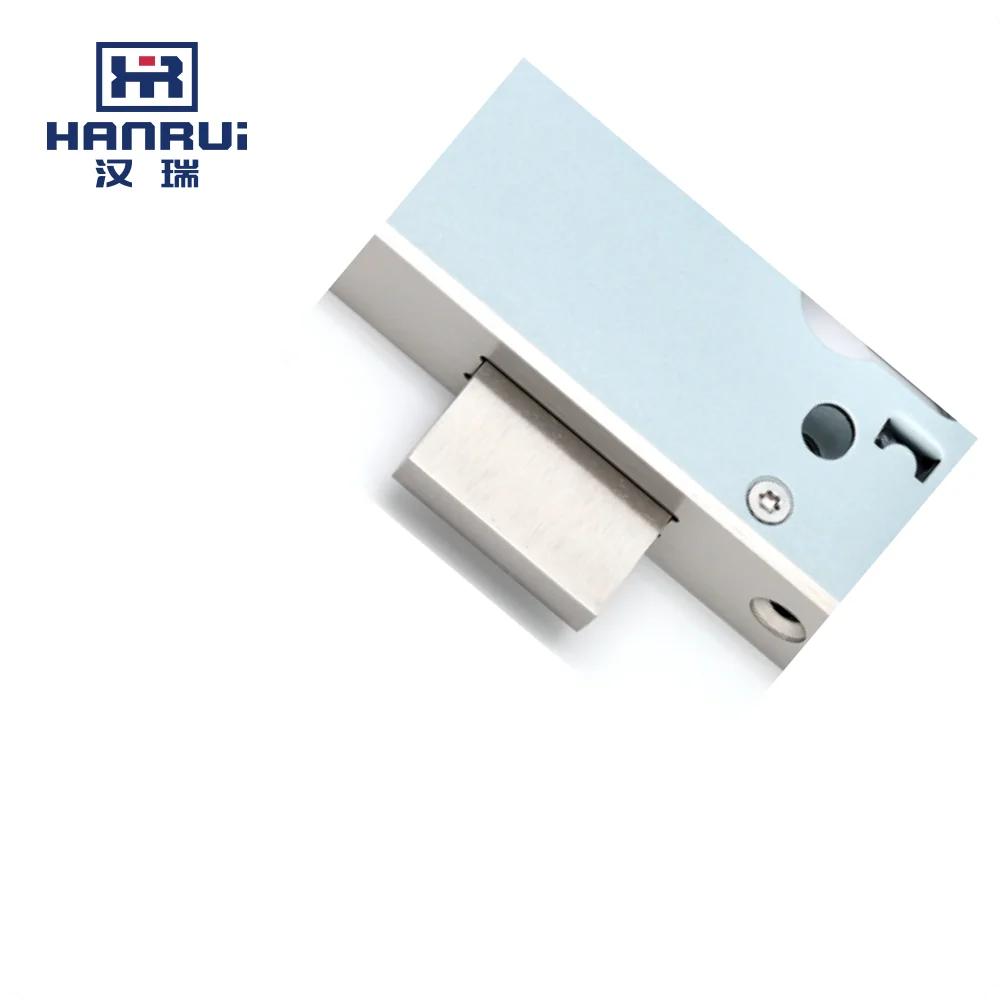

45mm backset narrow mortise lock body with CE fire rated

Technical Specifications:

1. Centre Distance: 85mm, Backset: 45mm

2. Case: Galvanize steel SECC, Thickness: 1.5mm

3. Latch: SS304

4. Deadbolt: SS304, 2 throws

5. Forend: SS304, Size: 240*24mm, Thickness: 3mm

6. Follower: SS304, Size: 8*8mm

7. Compliance with EN12209 / EN1634-1 / DIN 18251

    CE Classification: 3 X 9 1 0 G 3 B C 2 0
