JIS Marine Valve Bronze Globe Valve JIS 5K F7301

Product Overview

Description

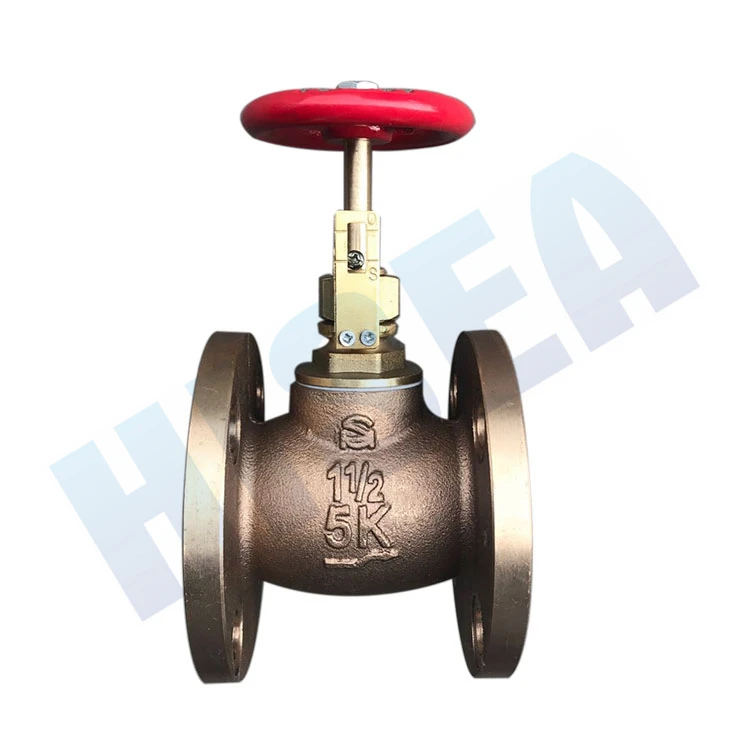

Marine Bronze Globe Valve JIS F7301 5K



We, Qingdao Hisea,mainly supply JIS marine valves, DIN Marine valves and air vent head, butterfly valve, and valves accessories, etc. We produce JIS Marine Bronze Globe Valve JIS F7301 5K DN15-65, with Brass trim . As a marine valve Manufacturer, factory and supplier made in China, we produce marine valves used for shipbuilding and ship repair in high quality and competitive price and one time delivery, with one year warranty. Brass Valve body as option.



Technical Features:

Category: JIS Marine Globe Valve

Material: Bronze

Size: DN15-65

Design Standard: JIS F7301-1996

Flange Standard: JIS B2220 - 5K

Test   Standard: JIS 7400-1996

Application: It is used for fresh water, air, gas, oil and steam of 205℃ or less etc lines in ships.



Material Specifications:

Part Number	Material Code
1- Body	BC6
2- Disc	CAC406
3- Stem	CAC406



Hydraulic Inspection:

Rating	Test Pressure[Mpa]
	BODY	SEAT
5K	1.05	0.77

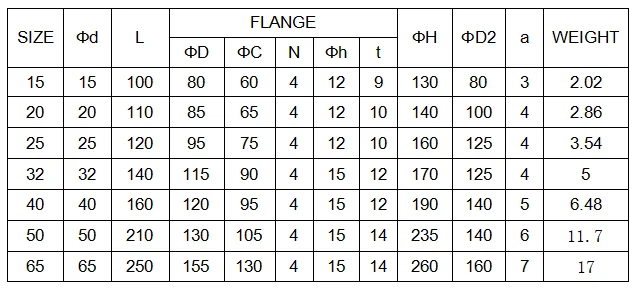

Dimensions table:
