Fanless micro pc x86 mini computer intel celeron 3855U CPU SFP lan ports

   Part No#

Max-TTS

   CPU / GPU

Intel SkyLake/KabyLake U series CPU
(Celeron 3855U/3865U , Core i3 / i5, HD Graphics 510/610)

   Memory

1 x DDR3L SODIMM , Support up to 8GB max

   Storage

1 x Mini-PCIE for Msata SSD

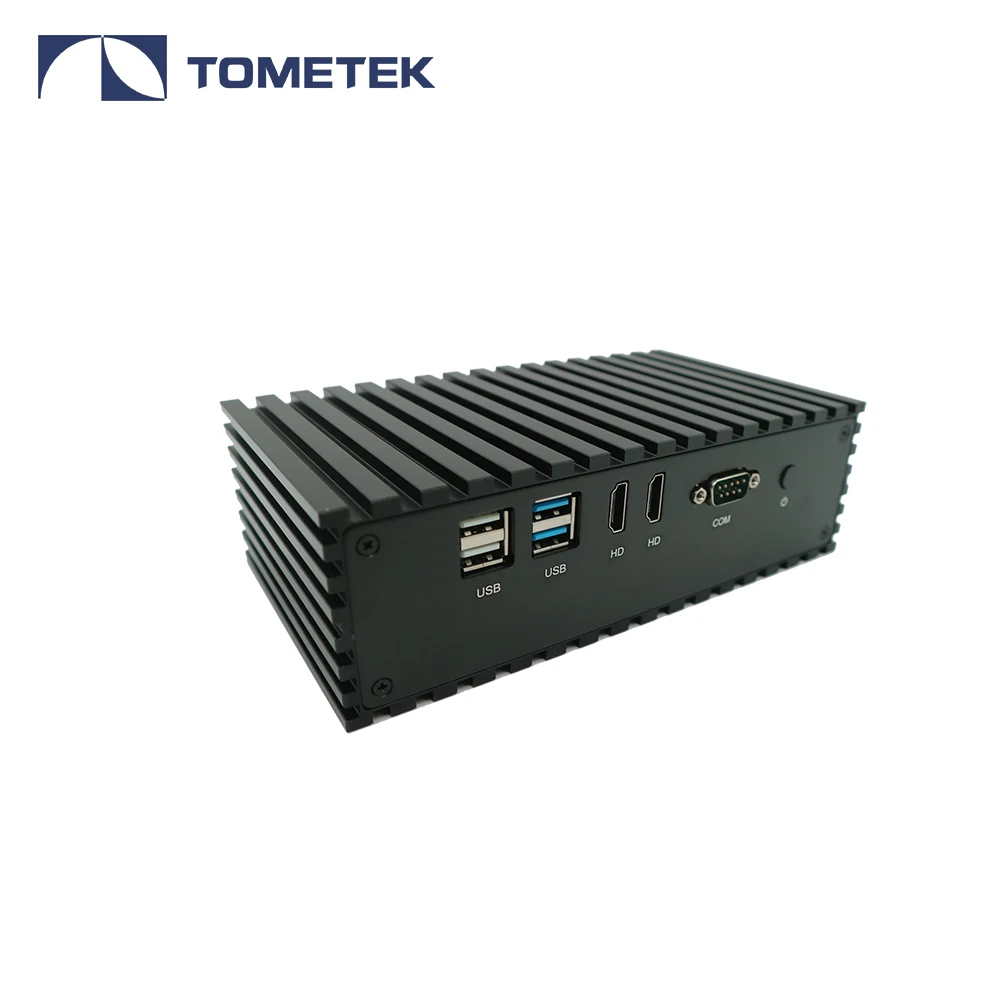

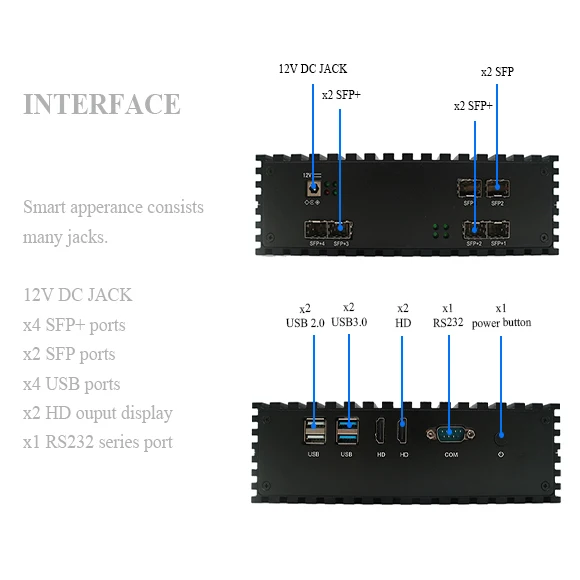

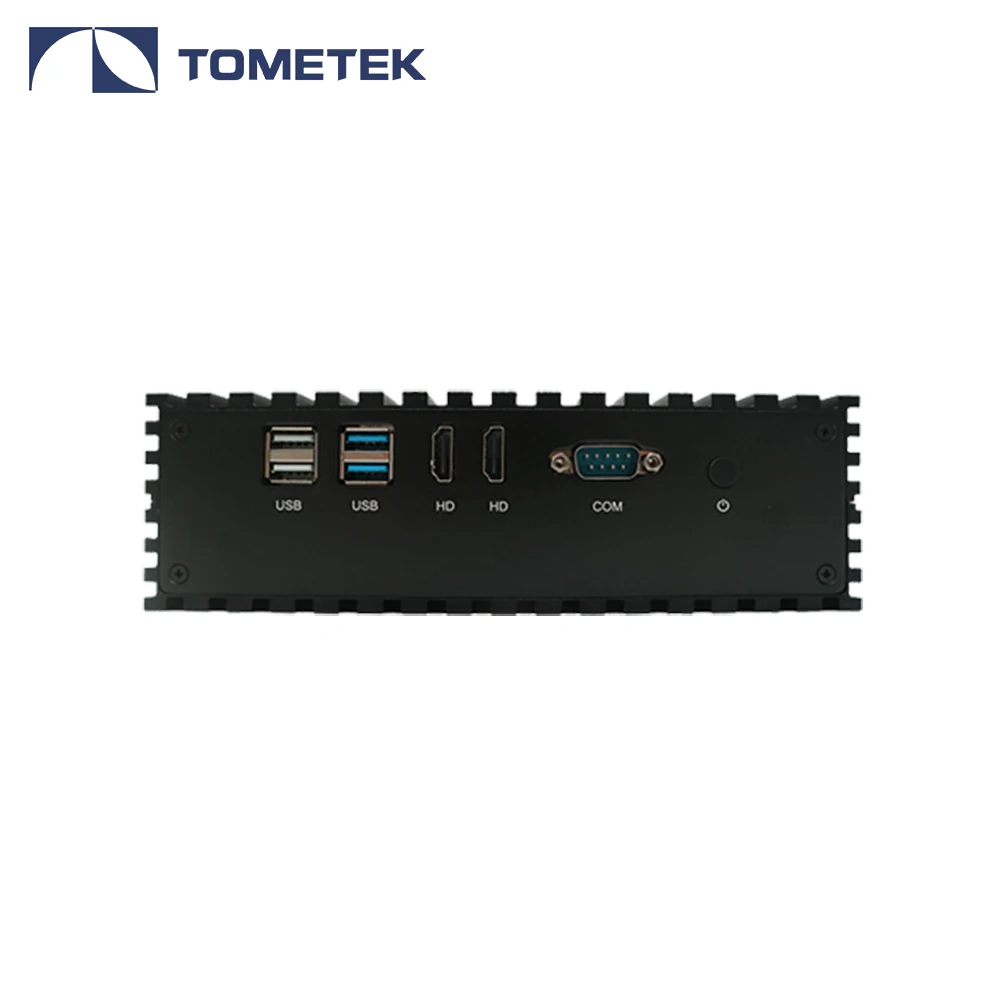

   Front I/O

2 x USB 3.0 port , 2 x 2.0 port

2 x HD port

1 x DB9 COM RS232 port

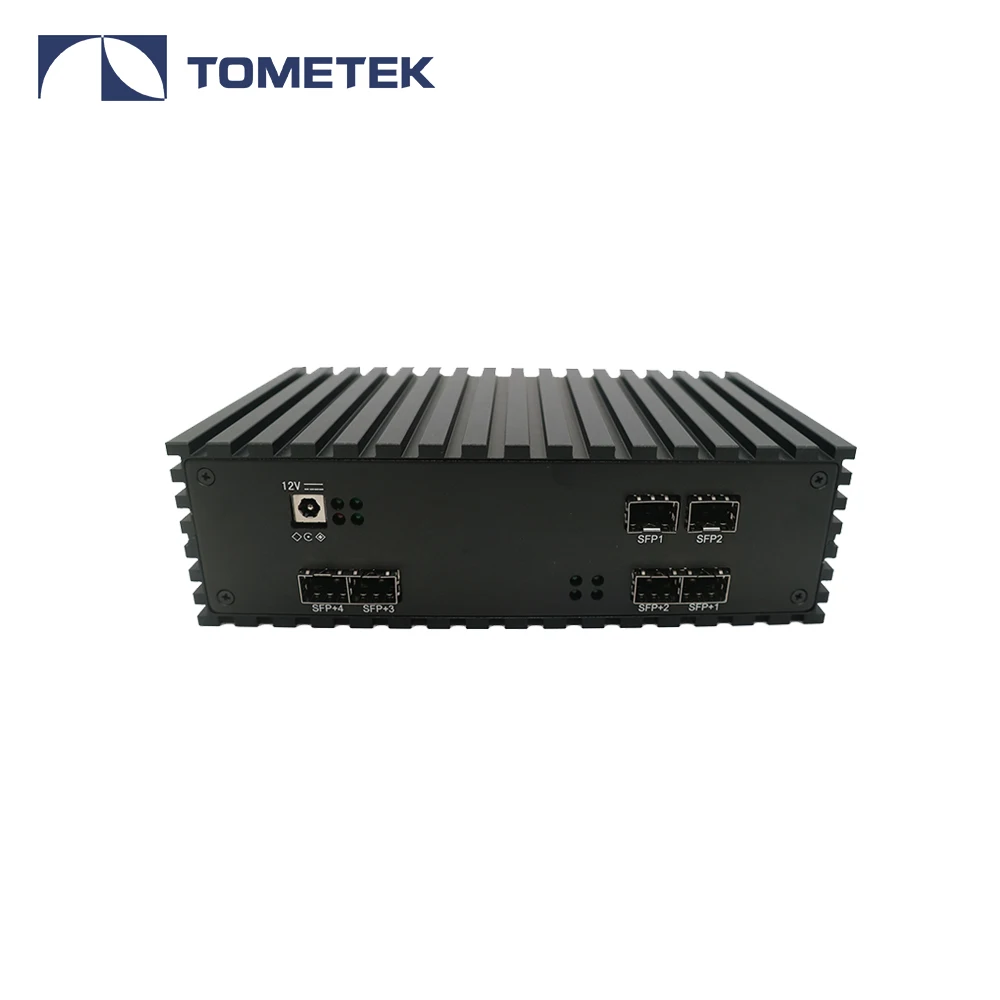

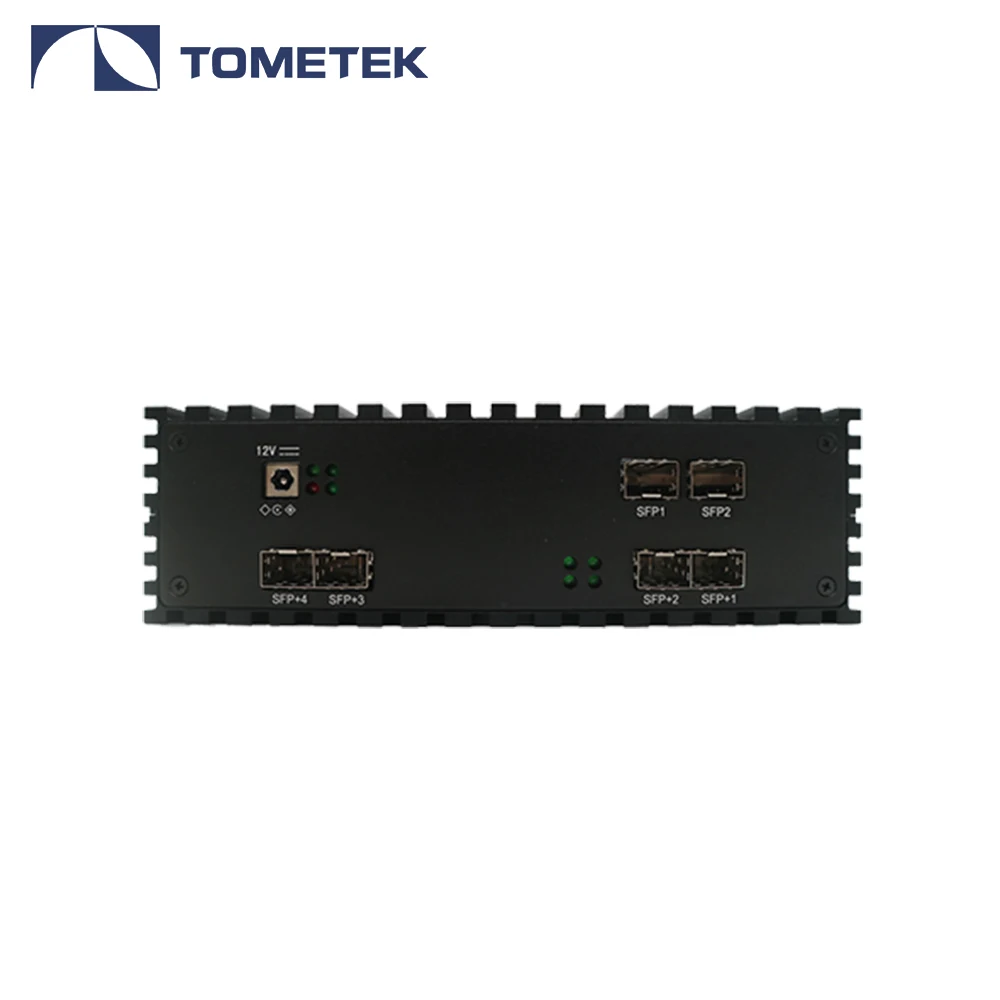

   Rear I/O

1 x 5.5mm x 2.5mm DC JACK

SFP+ x4
SFP x2
Intel® Ethernet Controller I210 Series

   OS

Windows 7, Windows 10, Linux , Ubuntu, pfsense, Vyos,

   Power

DC12V@5A

   Temperature

Work Temp -20~70℃, Storage Temp  -40~85℃
