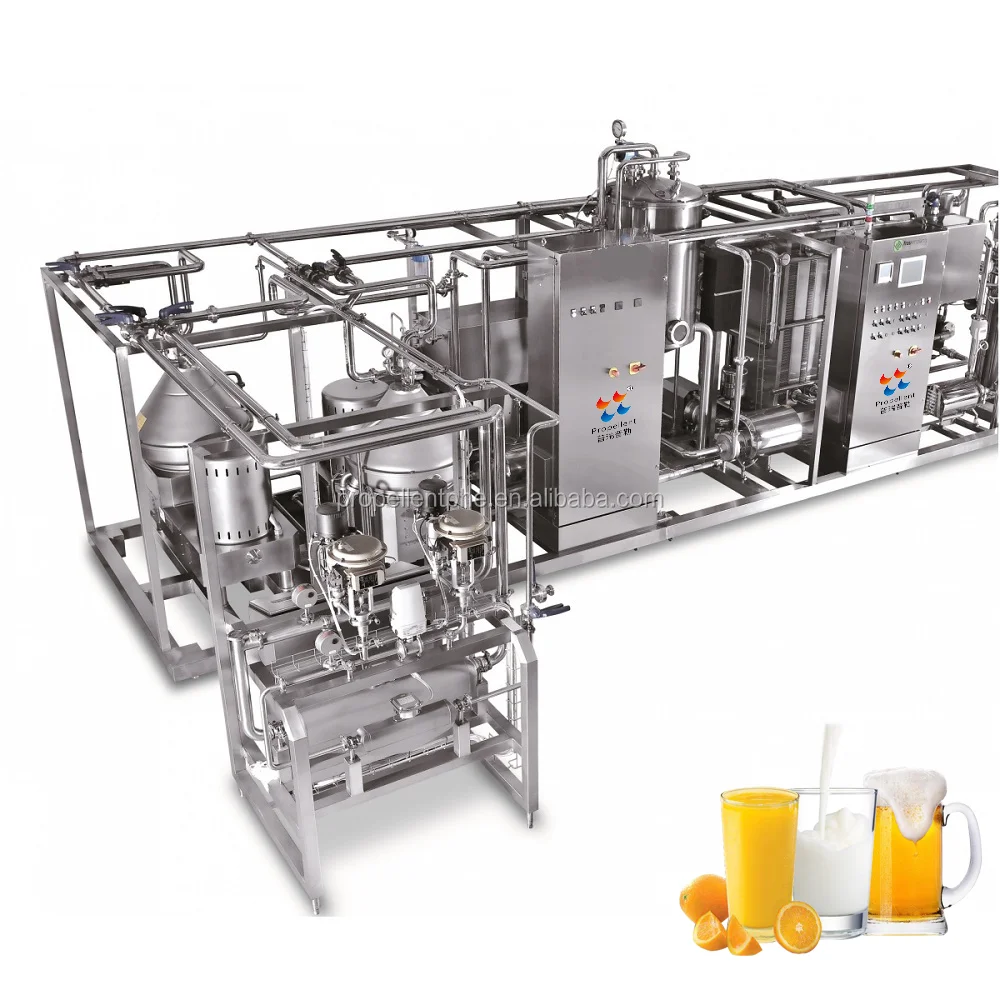

Пищевой арандный молочный промышленный 500 л молоко пиво сок пластина теплообменник кулер миксер пастеризатор цена

Standard design

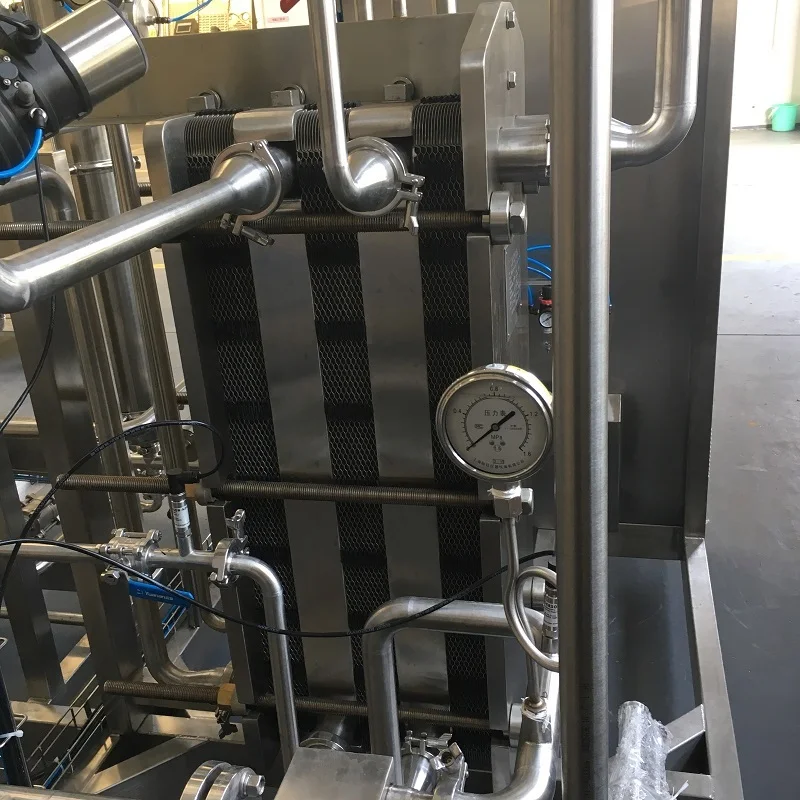

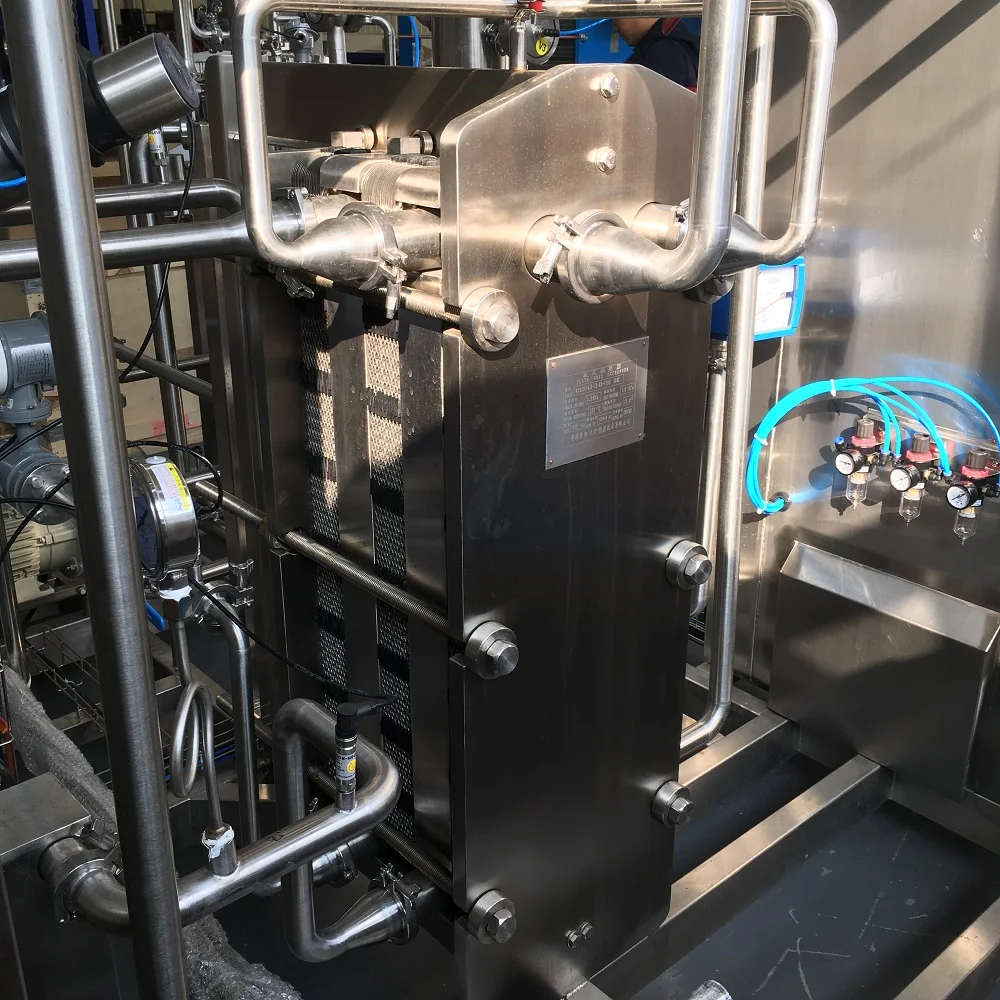

The plate heat exchanger consists of a pack of corrugated metal plates with portholes for the passage of the

two fluids between which heat transfer will take place. The plate pack is assembled between a fix frame plate

and a movable pressure plate and compressed by tightening bolts. The plates are fitted with a gasket which

seals the interpolate channel and directs the fluids into alternate channels. The number of plates is determined

by the flow rate, physical properties of the fluids, pressure drop and temperature program.

The plate corrugations promote fluid turbulence and support the plates against differential pressure. The frame

plate and the pressure plate are suspended from an upper carrying bar and located by a lower guiding bar, both

of which are fixed to a support column.

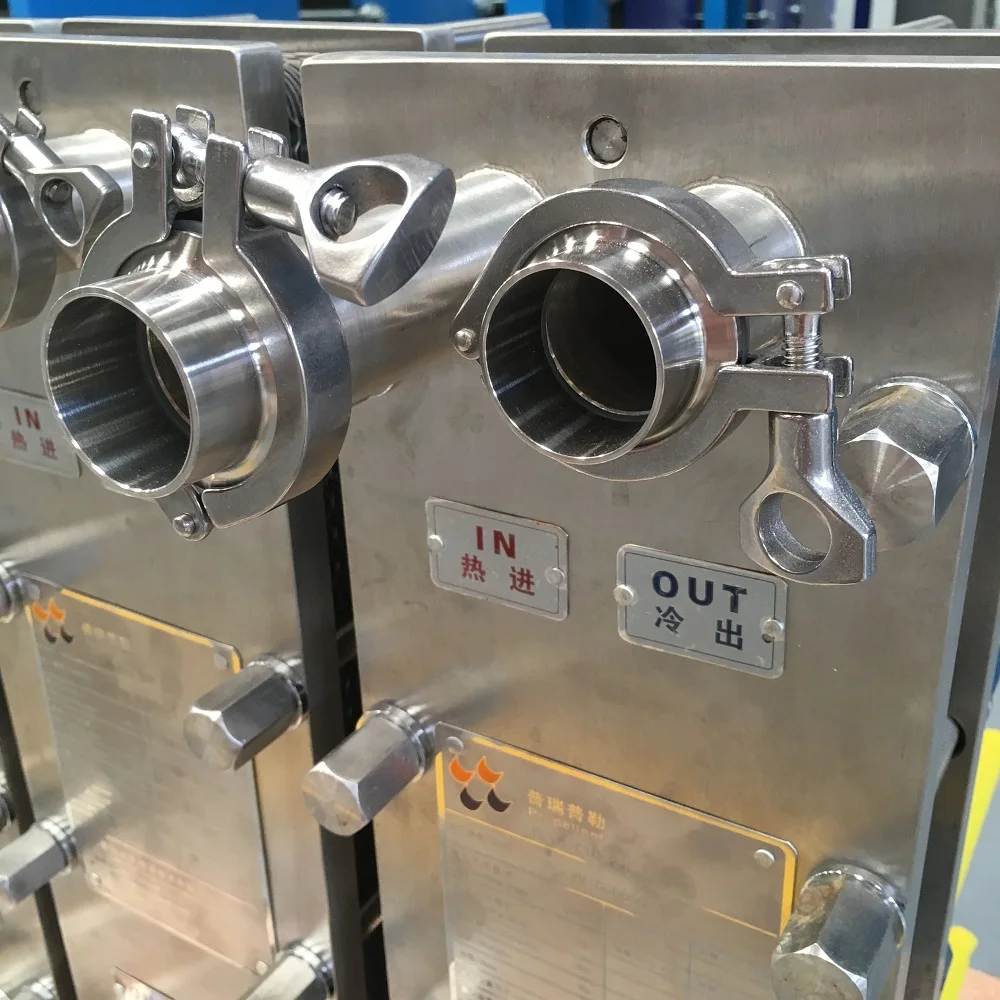

Connections are located in the frame plate or, if either or both fluids make more than a single pass within the unit,

in the frame and pressure plates.

Working principle

Channels are formed between the plates and the corner ports are arranged so that the two media flow through alternate

channels. The heat is transferred through the plate between the channels, and complete counter-current flow is created

for highest possible efficiency. The corrugation of the plates provides the passage between the plates, supports each

plate against the adjacent one and enhances the turbulence, resulting in efficient heat transfer.

Fast delivery time.

High quality

Reasonable price

Customized service

CONTACT US<<<<<<<<<<<<<<<<<<<<<<<<

Support customization,Click on the picture to get other product information!

Propellent, composed of several domestic Propellent enterprises, has always been insisting this business philosophy: opening-up and cooperation, mutual improvement with the cooperative partner and growing together with employees.

“Trust us, we can do more” is our enterprise tenet. We devote to provide a heat transfer solution for civil and industrial users in heating, cooling, waste heat recovery. Products we supplied include plate heat exchangers, plate type condensers, air coolers, wide gap plate heat exchangers, welded plate heat exchangers, heat-exchange units, plate type evaporators, air-handling system, water cooling equipment, waste heat recovery integration device, etc.Our company's main evaporator and various heat exchanger brand spare parts. The application scope covers HVAC, chemical, food and beverage, sugar, metallurgy, power, paper, textiles, shipping, and refrigeration, etc.

The superiority of Propellent’s hot and cold exchanging technology comes from its consist high attention to talent cultivation and product research. Propellent values group building and team building pays attention to product performance & quality.

To find more information, you can find on our website: propellentphe.en.alibaba.com

Corresponding certifications can be provided according to the customer's request.

Q1: Why should I choose Propellent?

  A: Propellent produces pasteurizers and heat exchangers in our own facilities in Hebei and Anhui, which makes us completely control their design, quality, and execution.

Q2: How can I assure the quality of what I want?

  A: We have a strict quality control system. Besides, all of the valves, sensors, pumps, and controller are world famous brands, like Spiraxsaco, GEA, Grundfos, Siemens. Also, related certificates can be provided.

Q3: What is the lead time?

  A: Common types can be delivered within 20~30 days after deposit.

Q4: What after-sales services can you provide?

  A: If there were any problems with our products, our engineers will serve you 24h in many ways, including telephone instruction or video instruction.

Q5: How can I get quotation of what I want?

  A: You can

     - choose one product and leave a message to us.

     - inform us and we can send you a feedback form for to fill in your technical requirements.
