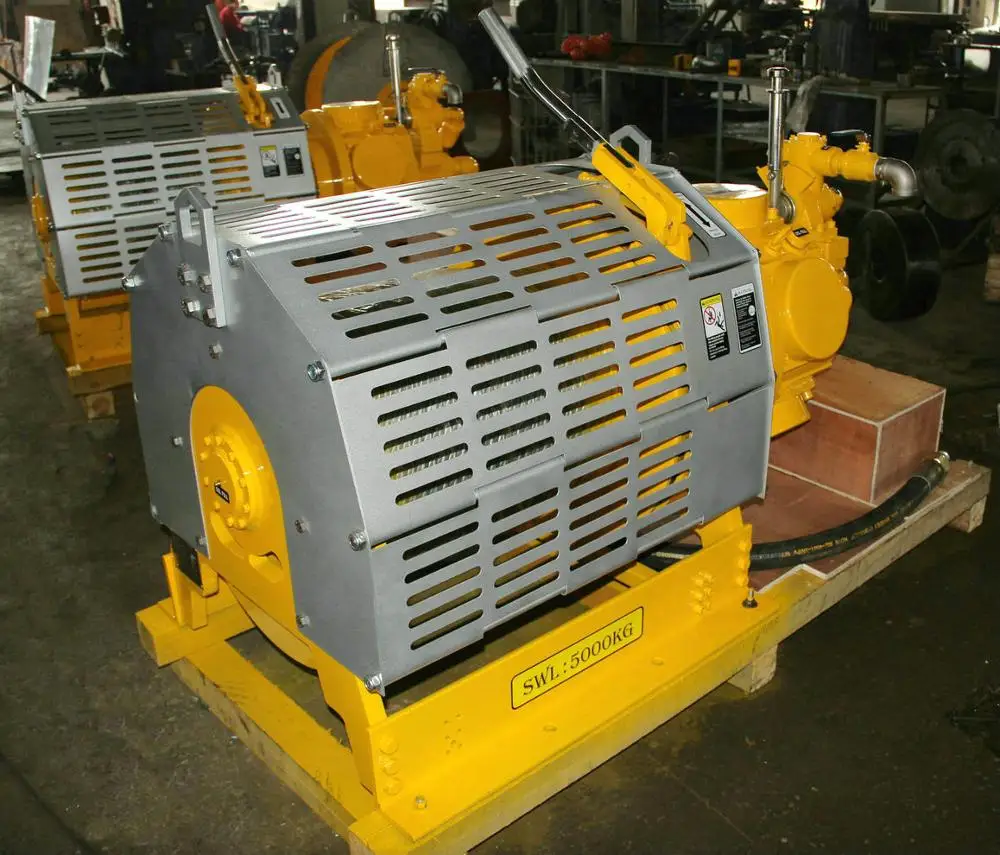

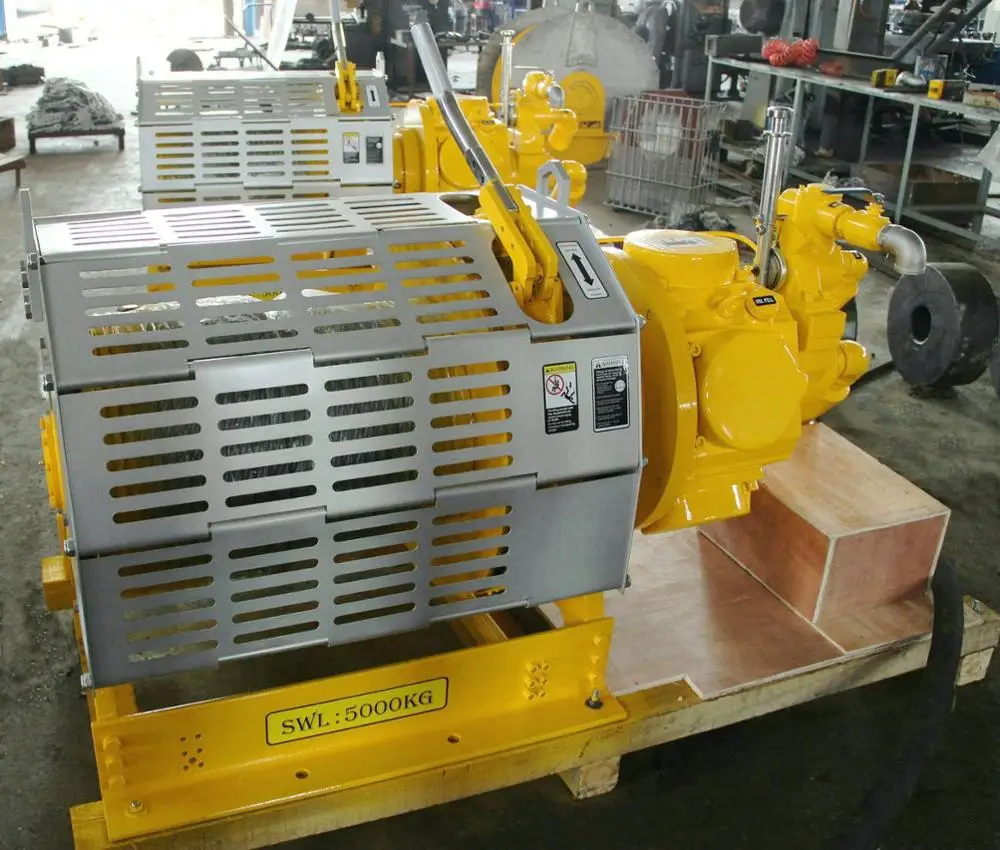

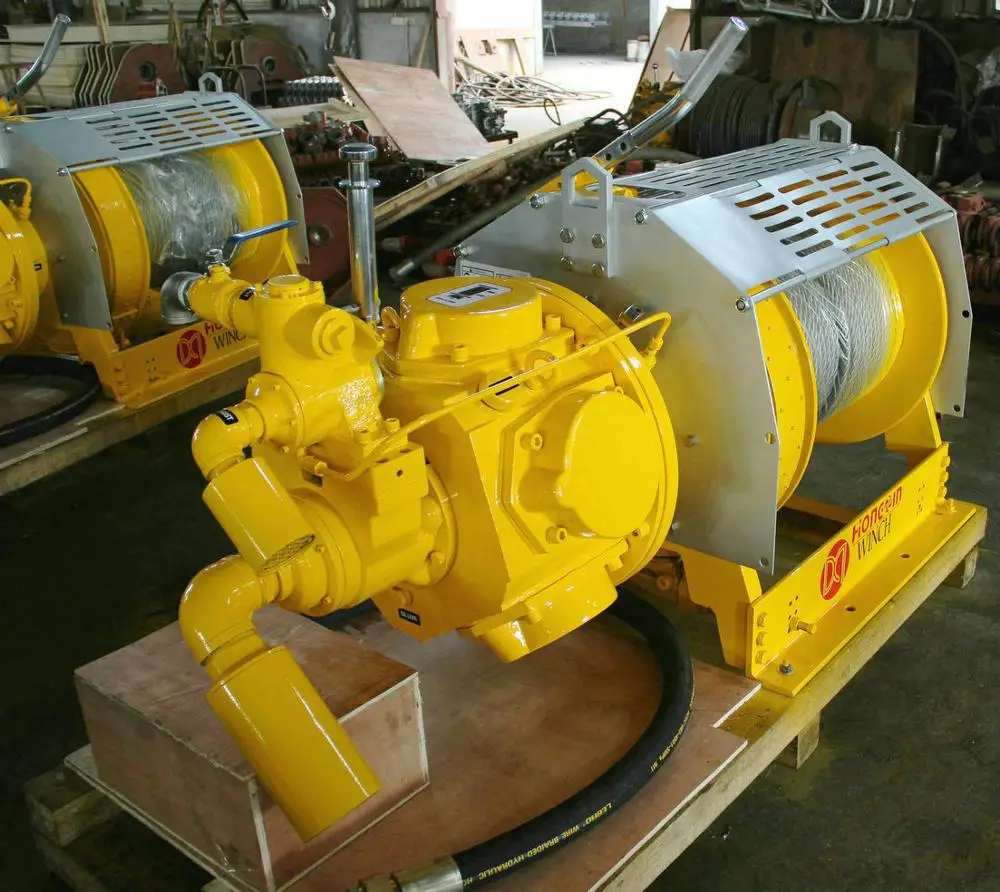

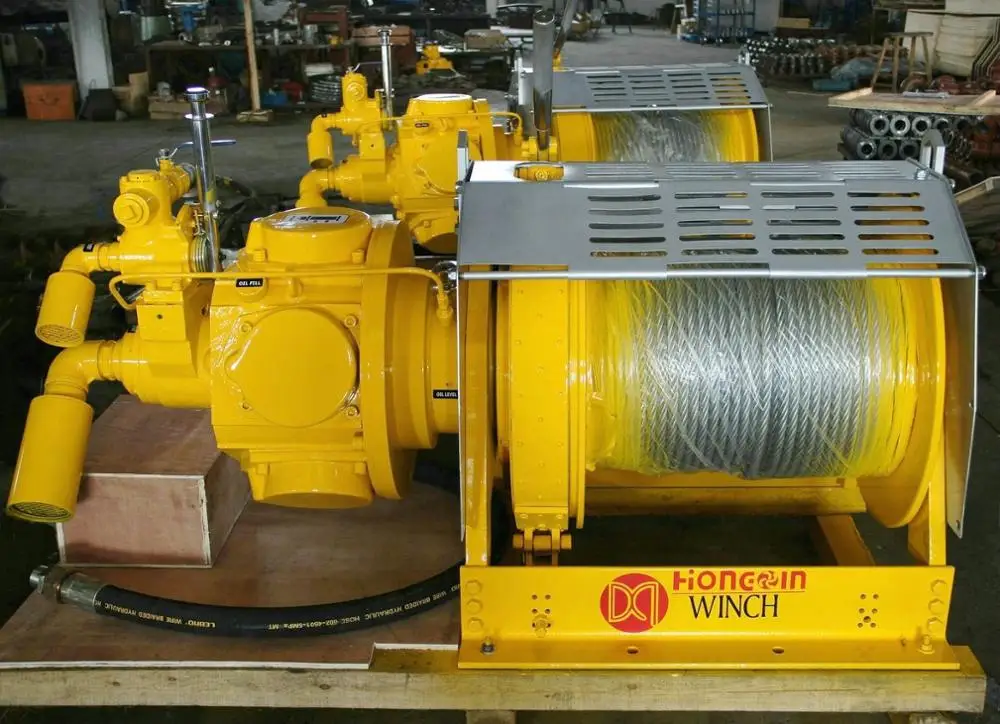

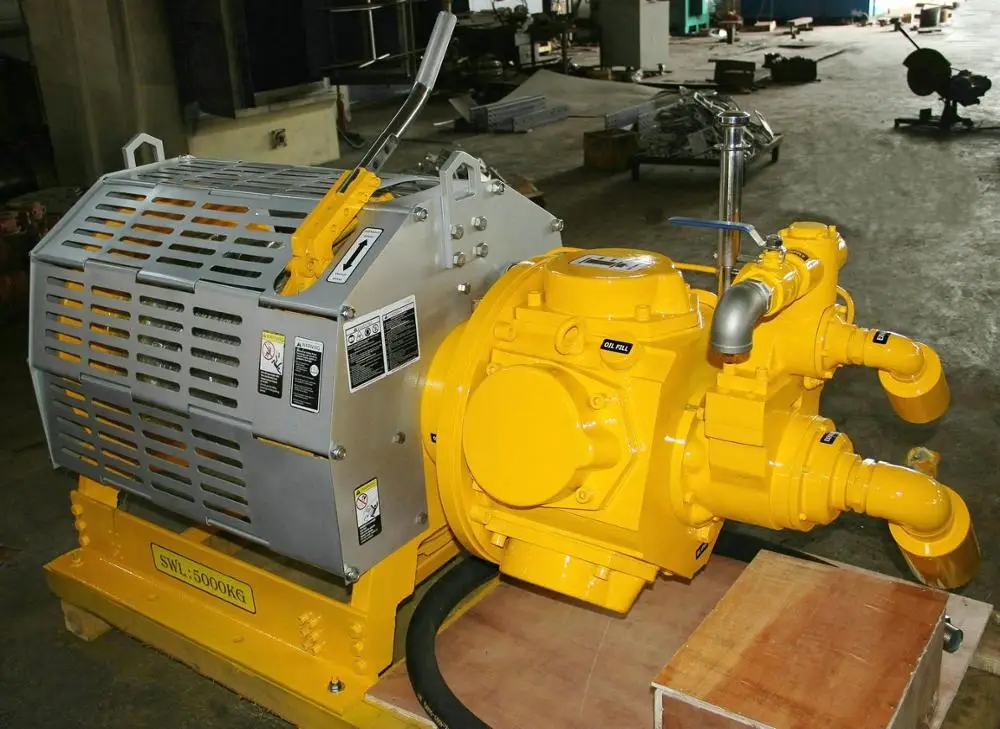

QTH50PKMBG 19 300 boat winch 5 ton pulling winch offshore drilling air winch
- Category: >>>
- Supplier: Rudong Hongxin Machinery Co. Ltd.
Share on (62015508606):
Product Overview
Description
Product Description
Product Application
With aluminum alloy material for shell,AW200 pneumatic winch is powered by compressed air,manual control and driven by blade air motor,gear down and drive drum to rotate.The product is applicable to lift weights in flameproof situation, For example: oil fields, cargo hold, workshop,drilling platform, marines, minings, engineering sites, etc.
QTH50PKMBG-19-300 | ||||||
Operation Data | Rated pull | KN | 50 | |||
Rope speed | m/min | 13 | ||||
Rope diameter | mm | 19 | ||||
Rope capacity | m | 300 | ||||
Air pressure | MPa | 0.62-1.0 | ||||
Outline dimension | mm | 1810*890*910 | ||||
Weight | kg | 1090 | ||||
Main Features
1) Automatically Braking
The brake system of the winch will automatically stop goods when air power is off. avoidance artificial operation error make heavy thing dropped suddenly, bring about the trouble.
2)Easily Operating
The control valve combines with air motor, the winch has only one control handle it controls speed of air motor, direction of rotation and brake air chamber.
3) Weight Light
The main spare parts in that winch is made up aluminum alloy, having the necessary strength and rigid, but its weight lighter.
Certifications
Detailed Images
Control valve
Name: Control valve
Brand:HONGXIN
Original: China
Operate control valve is made of valve case,valve seat ,main valve,valve shaft etc. When the handle in "stop" position, keep compressed air off, Brake spring make spindle to stop. When the handle in "up" or "down" position. Compress air enter air motor, drives the drum. In the same time, compress air enter air chamber, releases the bearing plate .
Piston air motor
Name:Piston air motor
Brand: HONGXIN
Original: China
1, using compressed air as power, safe and explosion-proof, no static electricity, spark.
3, no overload risk, motor load is too large, will not damage the motor itself, the body temperature will not rise.
4, can long time full load continuous work.
5, two-way rotation, can achieve the reverse function
6. Easy operation and simple maintenance
Gear box
Name: Gear box
Brand: HONGXIN
Original: China
Gear box is made up gear case , deceleration gears, gear bracket etc. Through the spindle , output of air motor is delivered to spindle gear, first degree deceleration 22:70, second degree deceleration 26:62, third degree deceleration 16:100, the last internal gear , the internal gear key connect with drum .
Braking system
Name: Braking system
Brand: HONGXIN
Original: China
The braking system is made up bearing plate, brake plate, rubber diaphragm, brake spring etc. When the air pipe in "open", air enter air chamber,push brake flange, compress brake spring , release brake plate, the drum may be rotate .When the air line is "closed" especially accident , brake spring make brake plate back its position, press tightly bearing plate, keep super speed shaft from rotation ,brake the drum.
Our Service
Strong R&D capability
* Since 2002
* Sample testing support.
* professional R&D
Thoughtful after-sales service
* 24 hours online service
* Lifetime quality warranty
* provide installation guide
Packing & Delivery
Packaging | ||
Size | 1812(L) * 892(W) * 912 (D) | |
Weight | 1092kg | |
Packaging Details | 1 plywood case per set. 2 feet of winch were fixed on the bottom of case with 2 bolts. 3 If container is too tigher,we will pack it according to customers special request. | |
Packaging | ||
Size | 1812 (L) * 892(W) * 912 (D) | |
Weight | 1092kg | |
Packaging Details | 1 plywood case per set. 2 feet of winch were fixed on the bottom of case with 2 bolts. 3 If container is too tigher,we will pack it according to customers special request. | |
