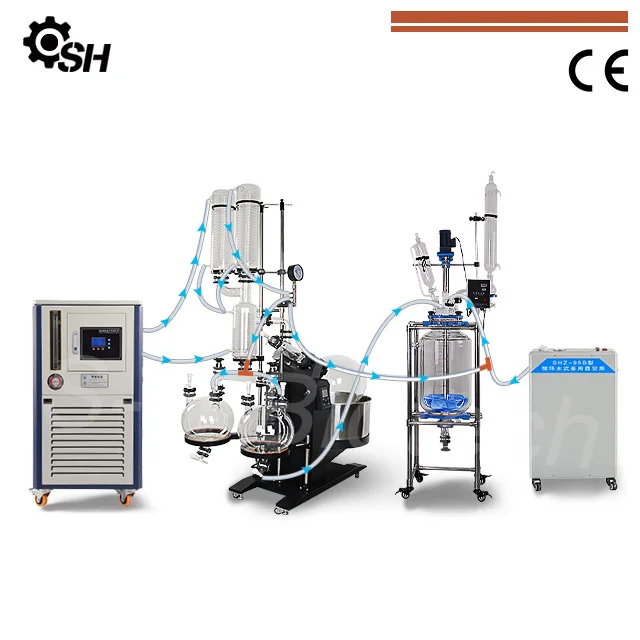

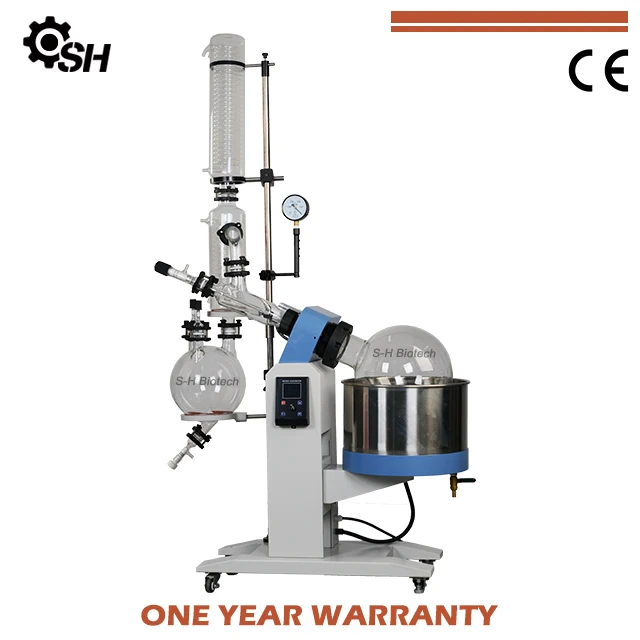

Industrial vacuum crystallizer ethanol 50L rotary evaporator

Product Overview

Description

Basic Parameter	Type	RE-1050
	Glass Material	GG-17
	Support Material	stainless steel
	Shell Material	Antisepsis Plastic Spraying 710*620*700 mm
	Inner Container Material	stainless steel 500*220 mm
	Baseboard Size	804*574 mm
	Volume of Rotary Bottle	50L ¢125 flange aperture
	Volume of Recycling Bottle	20L ¢60 flange aperture
	Vacuum Degree	0.098Mpa
	Rotating Power	180W
	Rotating Speed	0-110rpm
	Heating Power	8KW
	Temperature Control Range of Bath Kettle	400℃
	Temperature Accuracy	±1℃
	Voltage/Frequency (V/Hz)	220V/50Hz
	Up and Down Distance	180mm
	Shape Size(mm*mm*mm)	1520*620*2470 mm
	Package Weight (KG)	170
Function Allocation	Speed Adjustment Mode	Electrodeless Speed Regulation
	Rotating Speed Display Mode	Digital Display
	Temperature Display Mode	Digital Display K Type Sensor
	Temperature Control Mode	Smart Temperature Control
	Sealing Mode	PTFE Sealing

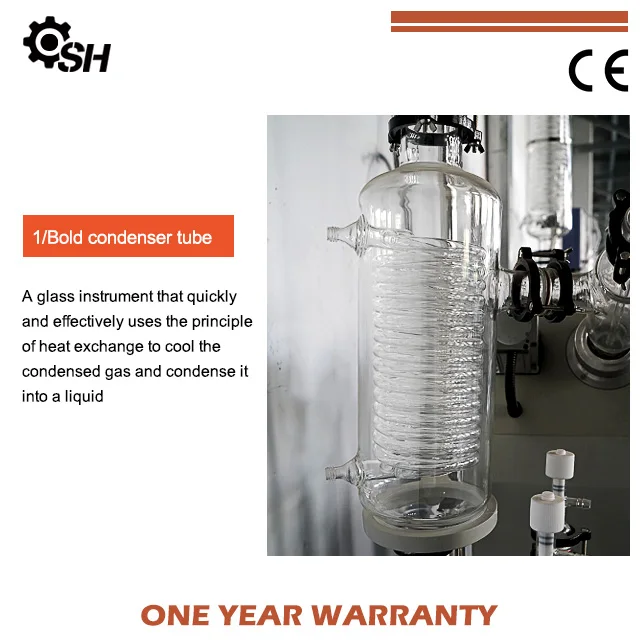

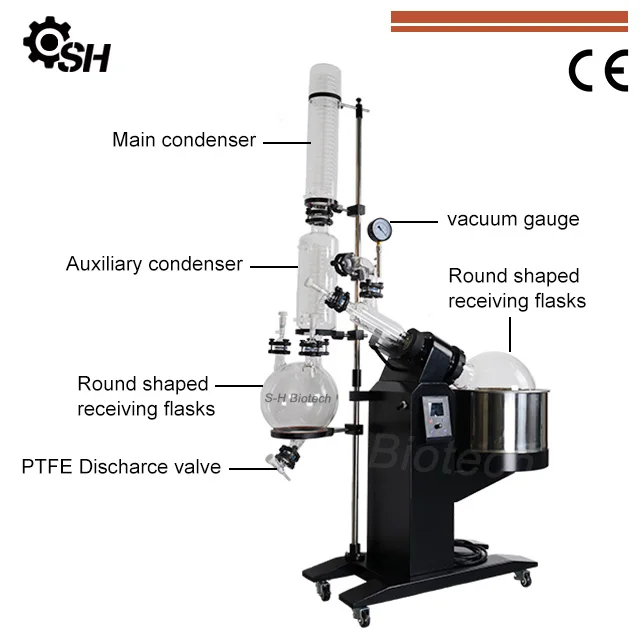

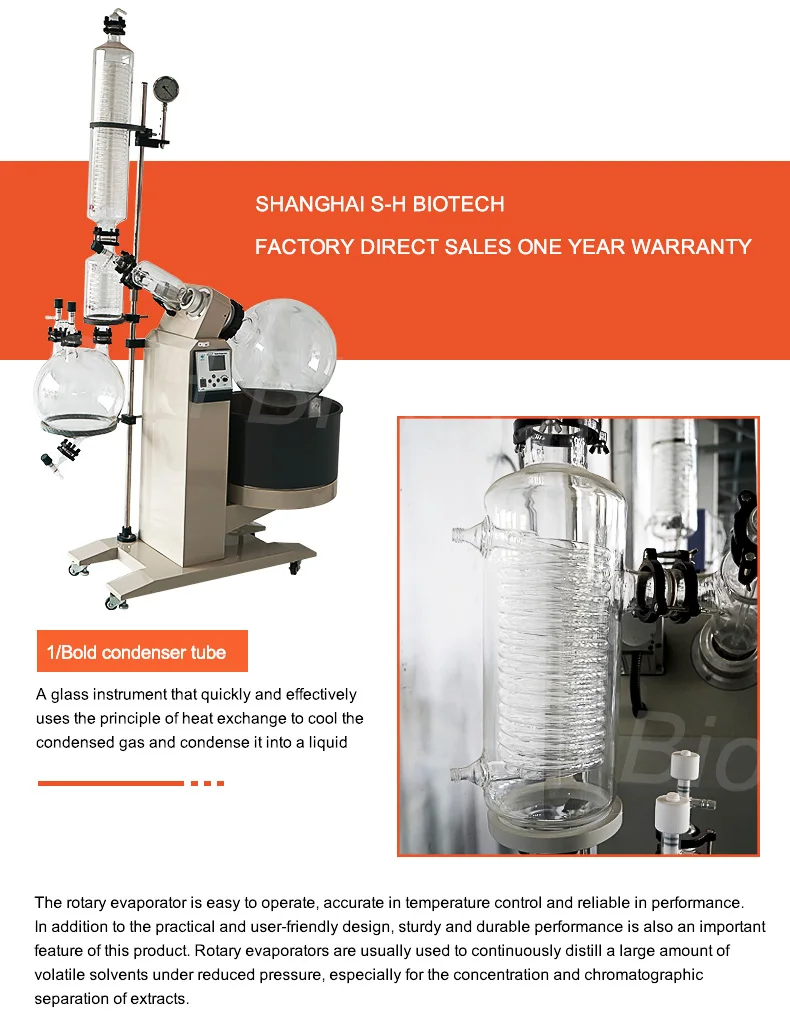

	Condenser	Vertical efficient condenser, main condenser 160*840, assistant condenser 160*530
	Up and Down Mode	Manual Up and Down of Bath Kettle
	Continuous Charging	40# Standard Aperture Feeding Valve
	Vacuum Display Mode	Vacuum Meter
	Continuous Collecting	Check valve control
	Charging Mode	PTFE Charging valve, ¢60 flange aperture
Optional Equipping	Up and Down Mode	Automatic Up and Down
	Collecting Device	Double Recycling bottle
	Anti-explosion	Anti-explosion Frequency Changer, Anti-explosion Dynamo EX120W
	Frame Part	Plastic Spraying or PTFE Spraying
	Bath Kettle Material	whole 304 stainless steel
