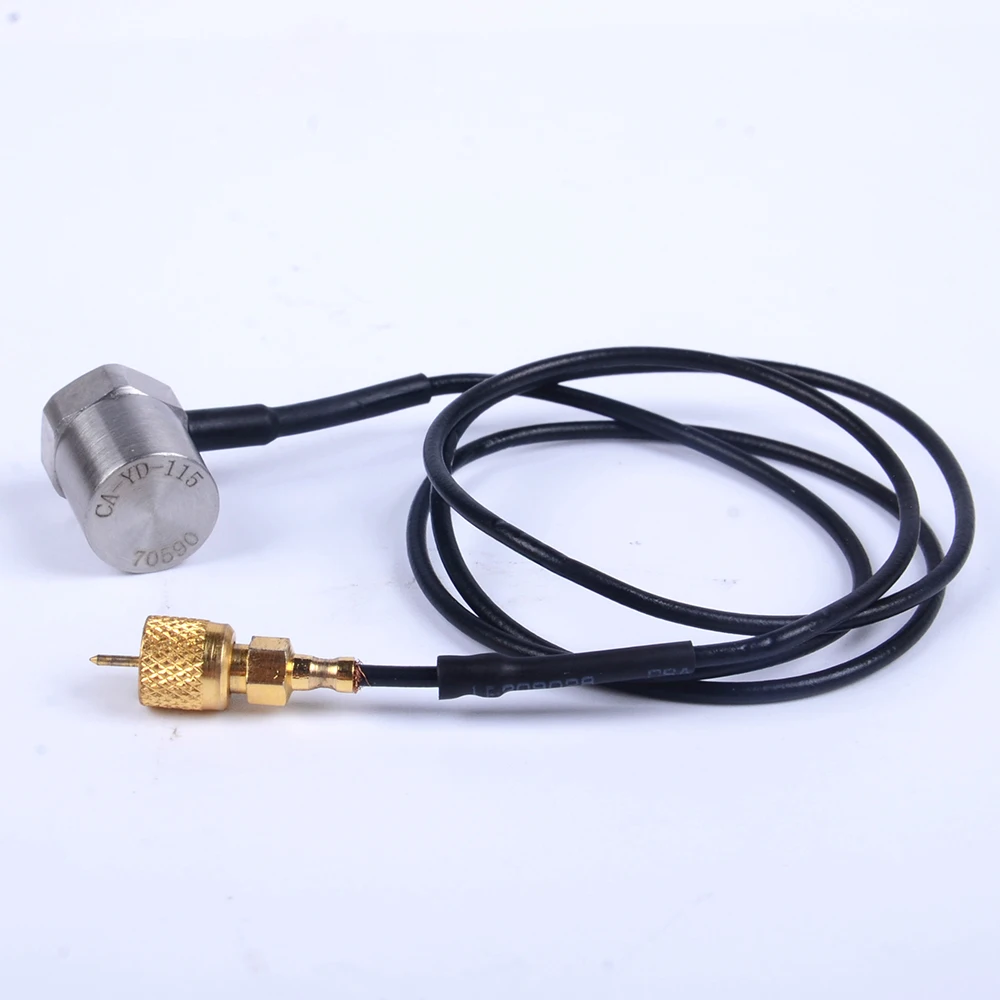

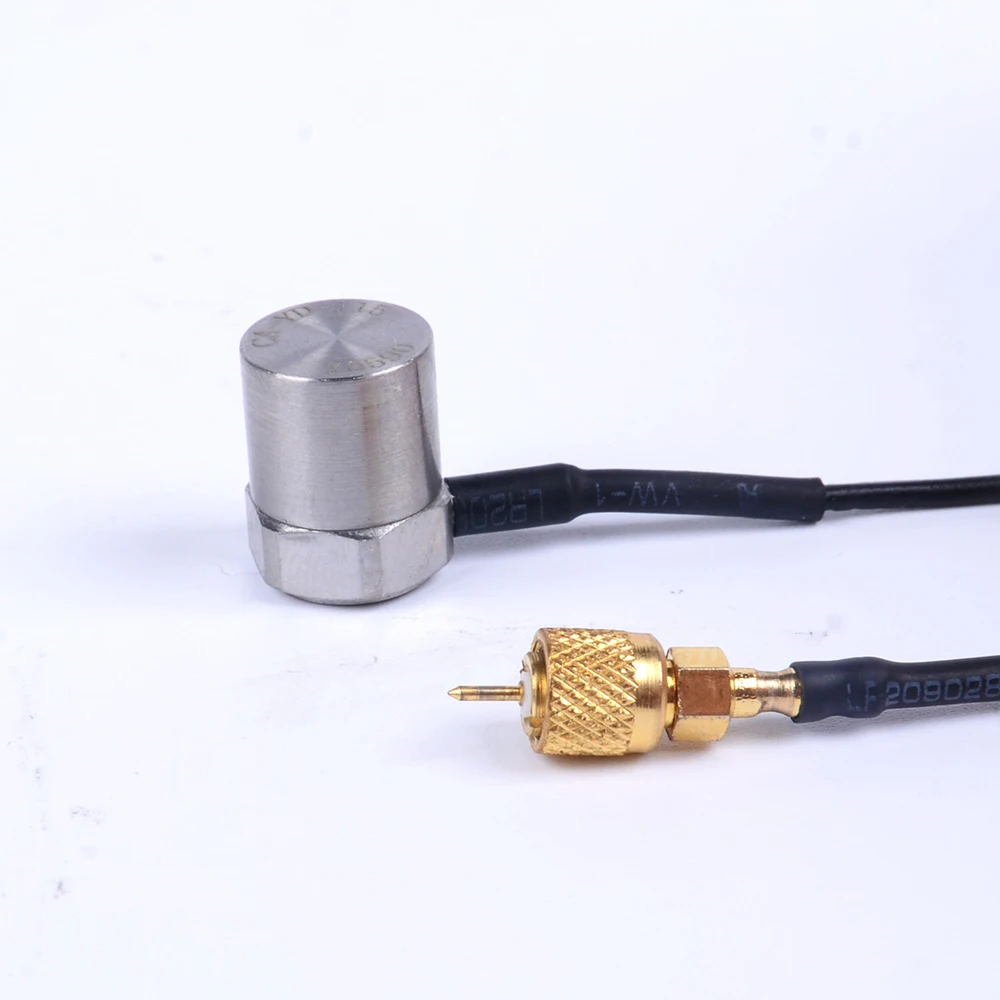

high shock piezoelectric accelerometer Range 7000g Piezoelectric Vibration and Shock Sensor
- Category: >>>
- Supplier: Sinocera Piezotronics Inc.
Share on (62015549079):
Product Overview
Description
Product Description
PE piezoelectric accelerometer sensors
PE piezoelectric accelerometer sensors using the materials have the piezoelectric effect as the sensitive element such as quartz,piezoelectric ceramic.Their features are wide range of frequency response,the high sensitivity,the good dynamic performance,low transverse sensitivity,the strong anti-jamming capability and so on. PE piezoelectric accelerometer sensors are widely used in dynamic testing situations,such as vibration and shock.
Features
- High shock testing
- Small size, wide frequency response
- Overall connection output
Specifications
Sensitivity(20±5℃) | 7 pC/g |
Measurement Range(pk) | 7000 g |
Max Transverse Sensitivity | ≤5 % |
Frequency Response(±5%) | 5 ~15000 Hz |
Mounting Resonant Frequency | 45,000 Hz |
Operating Temp. Range | -20~+80 ℃ |
Temperature Response | See Graph |
Transient Temperature Response | 0.1 g/℃(0.3Hz) |
Magnetic Sensitivity | 3 g/T |
Base Strain Sensitivity | 0.6 g/με |
Case Isolation | >109 Ω |
Capacitance | ~600 pF |
Mounting | M3 |
Sensing Element | Piezoelectric Ceramics |
Sensing Geometry | Central compressed |
Case Material | Stainless steel |
Weight | 9 g( with cable) |
Output | Overall connections, side |
Accessories | |
Certificate | Calibration parameter, Frequency response |
M3 Stud | one |
Overall connections STYV-1-1 | High temperature up to 80℃ |
STFF-0.9(specific) | High temperature up to 150℃ |
Detailed Images
| Dimensions |  |

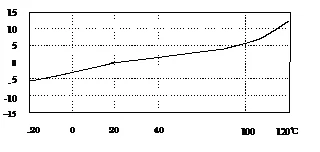

| Temperature Response |  |

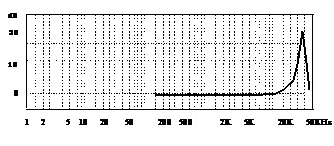

| Frequency Response |  |
