Shuttering Panel High Quality Phenolic Wbp 3 Ply Concrete Formwork Like Dora Formwork Leonking 21mm (3 X 7mm) CN;ANH <14%

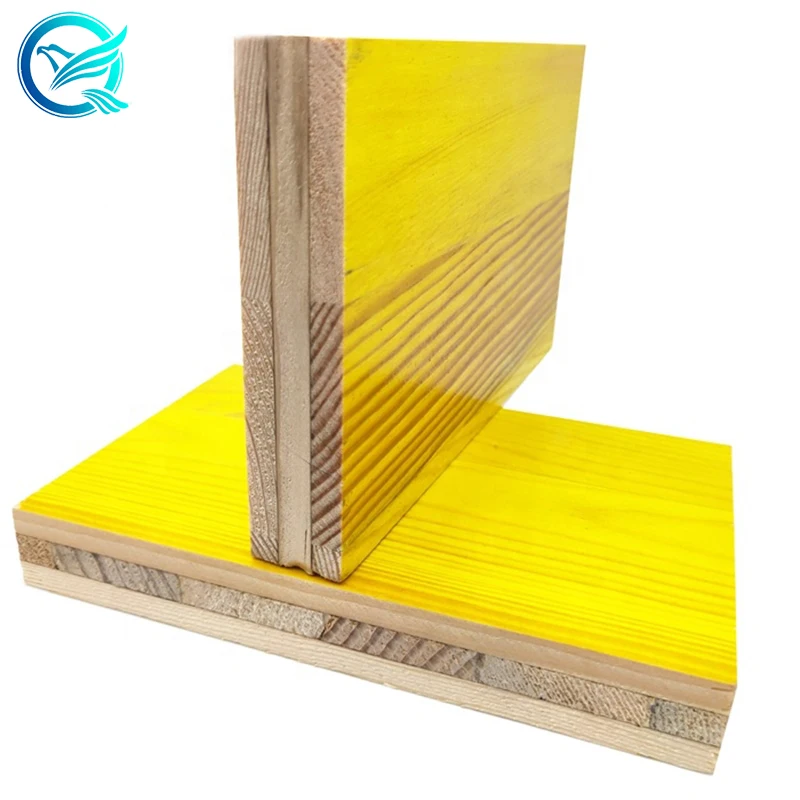

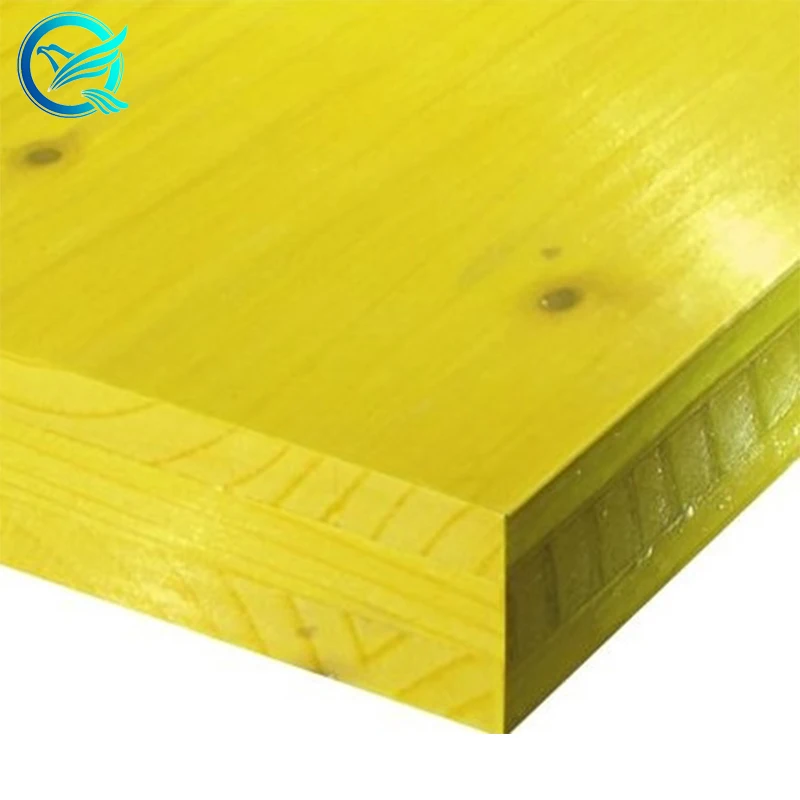

Three layers concrete shuttering panels are high-quality, 3-ply wooden panels, made of spruce or pine wood acquired from sustainable forests. The panels are fully coated with a highly resistant melamine resin, giving them excellent protection. They are mostly used for concrete formwork, but can also be used for other purposes due to their exceptional functionality. They are distinguished for their superior quality, durability and multiple uses. 3 Ply Yellow Melamine panels offer a timber grain transfer onto the concrete soffit and do offer smoother finishes as they are used.

,

·Durable and weather resistant overlay

·Large size with unvisible joints

·Strong and rigid

·Easy to clean and re-use

·Good chemical resistance

·Dimensionally stable

·Easy to machine and fasten using coventional

·Woodworking impacts and other forms of bruising

·Environmentlly friendly

·Weather and boil proof bonding

Product gurantee:

.Dimensionaly stable throgh a techical lay-up

.Almost no crack occurance

.Hign bending strenght and sittness

.sanded surface of perfect results

.A higher muber of houses

.High endurance due to gluing all around

970/1000/1970//2000/2500/3000x500mm also can according to customer request

The first measurement indicates orientation of the surface veneer grain. other size are available on request

FORMWORK PANELS(21)

Thickness: 21mm

Width:   500mm

Lenghts:  970/1,000/1,970/2,000/2,500/3,000mm

FORMWORK PANELS(18)

Thickness: 18mm

Width:   500mm

Lenghts:  970/1,000/1,970/2,000/2,500/3,000mm

FORMWORK PANELS(27)

Thickness: 27mm

Width:   500mm

Lenghts:  970/1,000/1,970/2,000/2,500/3,000mm

SIZE TOLERANCES

Measured in accordance with standard EN 324, the plywood size and squareness tolerances meet EN 315 requirements.

BONDING CLASSES

3-P Panels are boned with a weather and boil-resistant

phenolic formaldehyde adhesive (WBP,BFU,AW ,exterior) .

The gluing meets the requirements of the following international standards:

EN314-2/Class 3(exterior)

DIN 68705-3/BFU 100

BS 6566 Part 8/WBP

PS1-07

G/TBT/N/ISR/569

PACKING

3p panels are packed in moisture resistant plastic wrapping

MOISTURE CONTENT

15%+/-3% at time of delivery

MASS IN KG/m2

18mm thickness:8.3 KG/m2

21mm thickness:9.7KG/m2

27mm thickness:12.5 KG/m2

DENSITY

Approximately 450-465 kg/m3

SURFACE

Quality selection

Standard quality

Surface sanded

Treated with durable melamine resin seatant

DIMENSIONAL TOLERANCES

In accordance to EN 13353

Length,width: limit deviations +/-2mm

Panel thickness: 0.5mm within a panel

limit deviations +/-1 mm

Edge straightness: 1.0mm/m

Perpendicularity:  1.0mm/m

CARB: Certificate No.FWI-120

CARB of the United States authenticated in 2015

We produce according to the strictest QMS

 FSC:Certificate

No. TUVDC-COC-888030/TUVDC-COC-888031

FSC authenticated in May 2014

No randomly, deforestation, we care about natural resources.

 Waterproof:Have a good waterproof performance,Compliance with

 EN314, DIN 68704-3/BFU 100.BS 6566 Part 8 / WBP standard

Unique load capacity:Panel strength properties strong

Exceptional durability : Number of use 20-50 times,

CE:certificate No.1301-CPD-0569

CE certification authenticated in 2011

Our products have passed conformity assessment procedures process.

ISO 14001

Qinge passed ISO14001 Environmental Management system in 2008

Saving natural resources, promoting sustainable development.

ISO9001:Cerificate No.11716Q10374R2S

Qinge passed ISO9001 Environment management system in June 2010.

Perfect Quality assurance system.

Product testing results : certificate No.14-816

Products tested in 2006

Quality Guaranteed.
