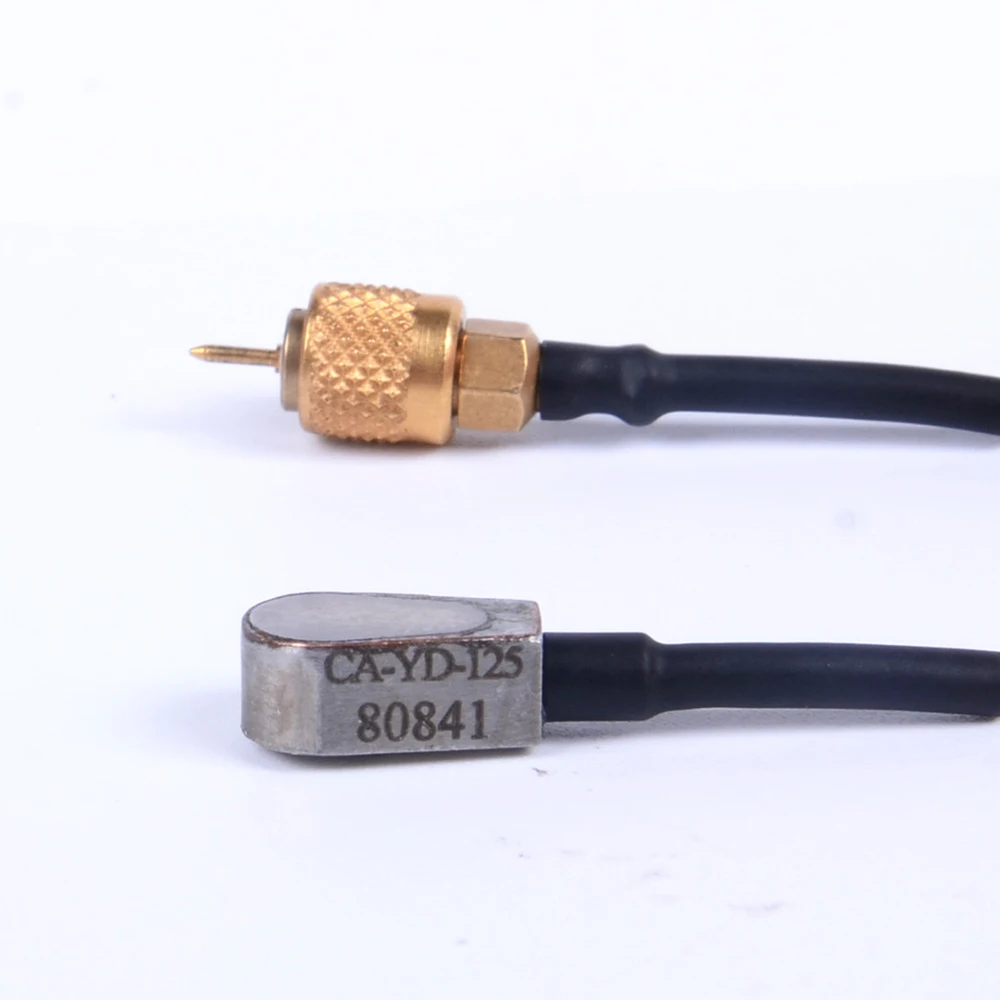

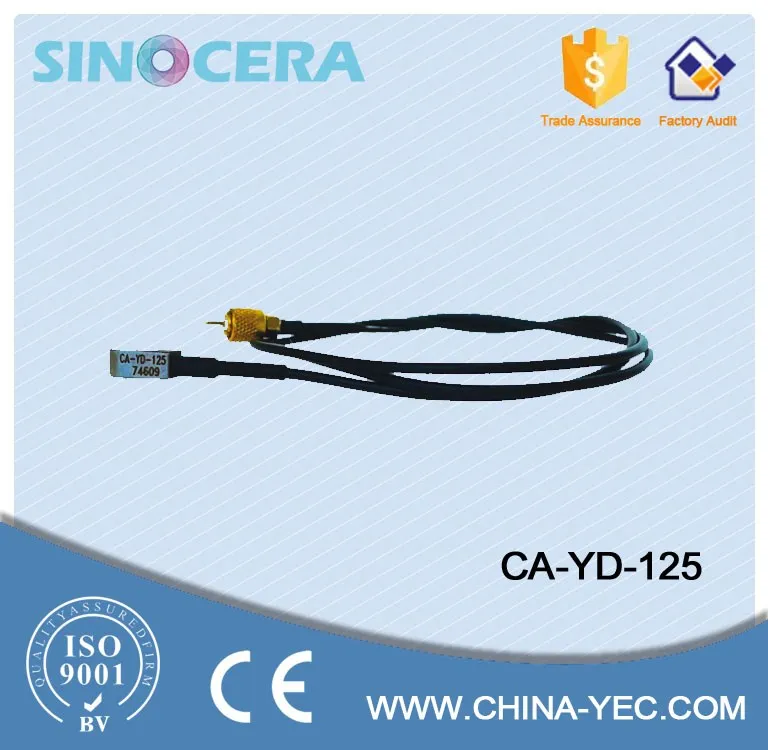

20000g high shock accelerometer vibration sensor
- Category: >>>
- Supplier: Sinocera Piezotronics Inc.
Share on (62015585316):
Product Overview
Description
Product Description
PE piezoelectric accelerometer sensors
PE piezoelectric accelerometer sensors using the materials have the piezoelectric effect as the sensitive element such as quartz,piezoelectric ceramic.Their features are wide range of frequency response,the high sensitivity,the good dynamic performance,low transverse sensitivity,the strong anti-jamming capability and so on. PE piezoelectric accelerometer sensors are widely used in dynamic testing situations,such as vibration and shock.
Features
Small size, light weight
High shock measurement
Overall connections output
Specifications
Sensitivity(20±5℃) | ~1 pC/g |
Measurement Range(pk) | 10000 g |
Max Transverse Sensitivity | ≤5 % |
Frequency Response(±5%) | 2~15,000 Hz |
Mounting Resonant Frequency | 50,000 Hz |
Operating Temp. Range | -40~+80 ℃ |
Temperature Response | See Graph |
Transient Temperature Response | 0.05 g/℃(0.3Hz) |
Magnetic Sensitivity | 0.5 g/T |
Base Strain Sensitivity | 5 mg/με |
Case Isolation | >109 Ω |
Capacitance | ~500 pF |
Mounting | Glue |
Sensing Element | Piezoelectric Ceramics |
Sensing Geometry | Shear |
Case Material | Stainless steel |
Weight | 1.5 g(except cable) |
Output | Overall connection L5 (side) |
Accessories | |

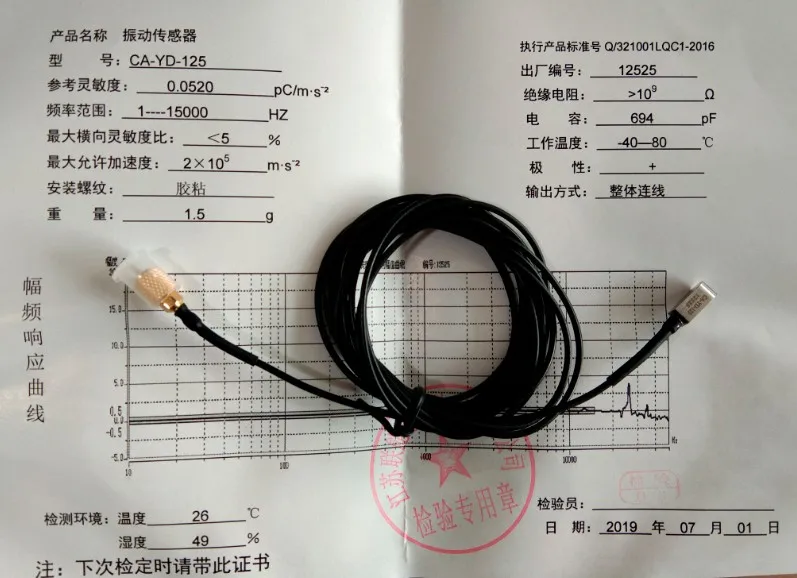

Certificate | Calibration Parameter, frequency response |
Overall connection STYV-1-1 | High temperature up to 80℃(0.5m) |
STFF-0.9 (specific) | High temperature up to150℃(0.5m) |
Detailed Images
| Dimensions |  |

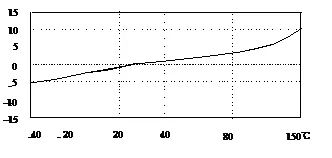

| Temperature Response |  |

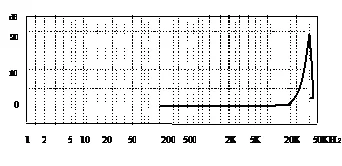

| Frequency Response |  |
Company Information

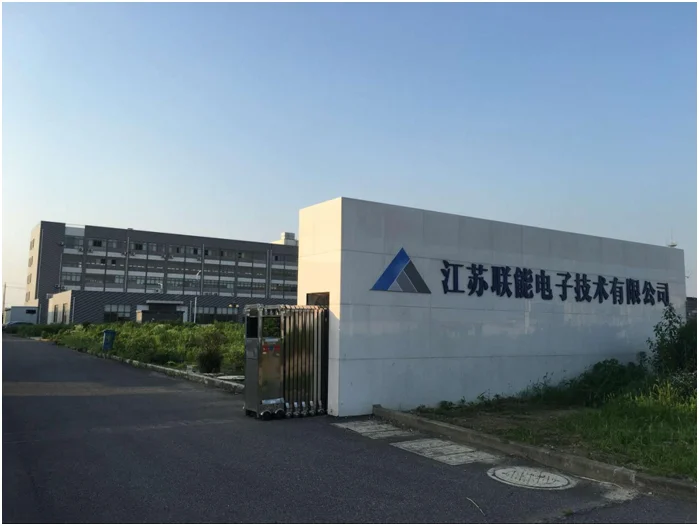

SINOCERA PIEZOTRONICS, INC was established in 2001, with 34.6 million yuan registered capital. We are mainly engaged in R&D, production and sales of high-performance piezoelectric ceramic materials, piezoelectric ceramic components, piezoelectric sensors and dynamic testing instrument.
Our Services
We are the manufacturer. We can offer the OEM service.
