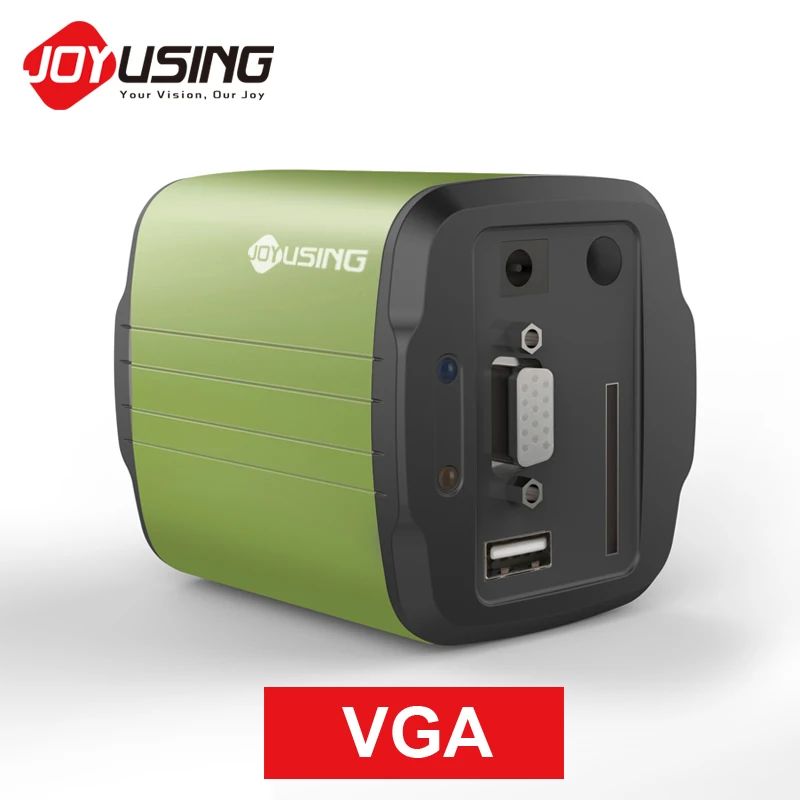

Machine Vision PCB Inspection 2.0MP1080P High Speed Industrial Camera
- Category: >>>
- Supplier: Fujian Linkinvision Technology Co. Ltd.
Share on (62015616285):
Product Overview
Description
Product Description
|
JoyUsing keeps on improving self in the technology, and expecting to bring up more values to customers. Your satisfaction is our Pride.
|
Key Features

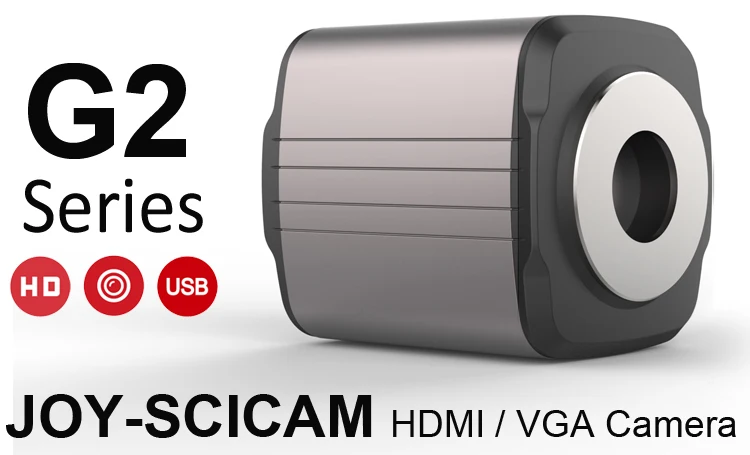

> After years of polishing and precipitation in image process field, G2 Industrial Camera has made a leap of image quality, color reduction and response time. |
| > 1080 resolution matches mainstream HD screen in market. |
> Separate design of VGA/HDMI port brings a highly integrated compact structure and low failure rate. |
| > Connected with PC via USB port or connected with mouse for PC-free operating. |
| > Maximum 8 cross baseline with custom color, line width, movement, position and visibility. |

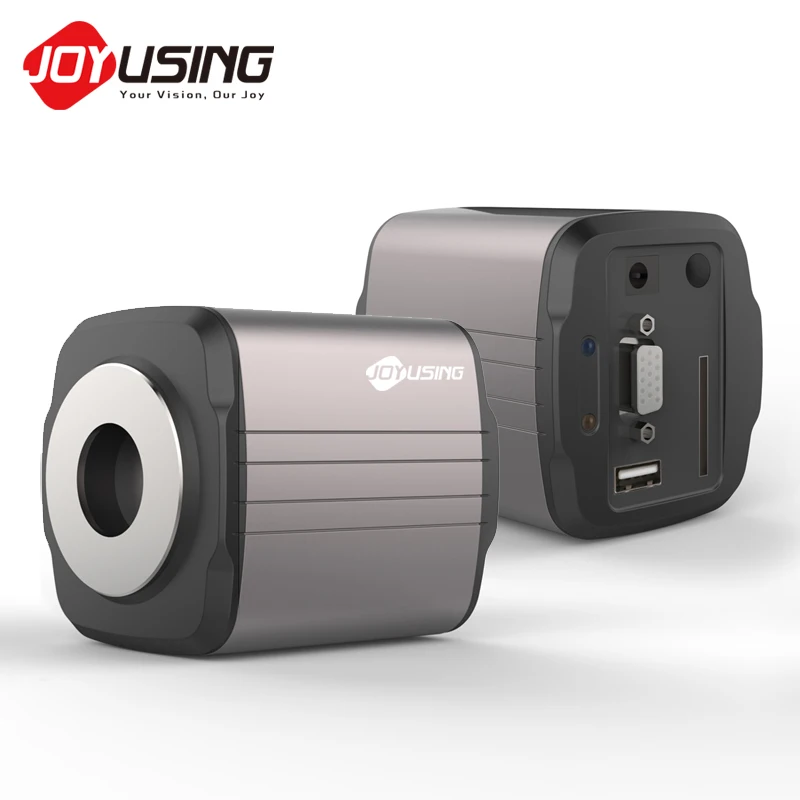

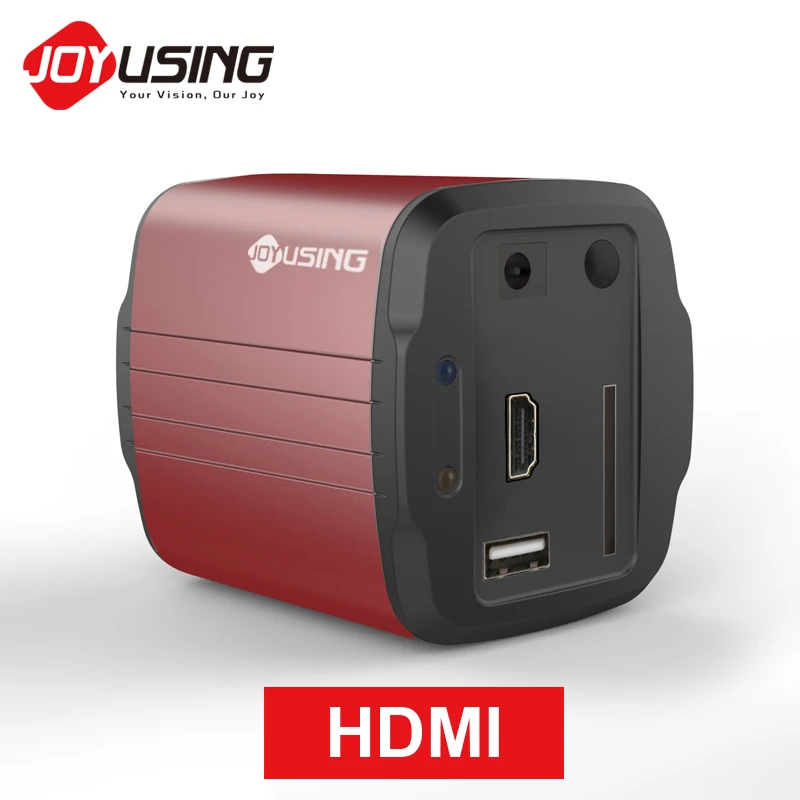

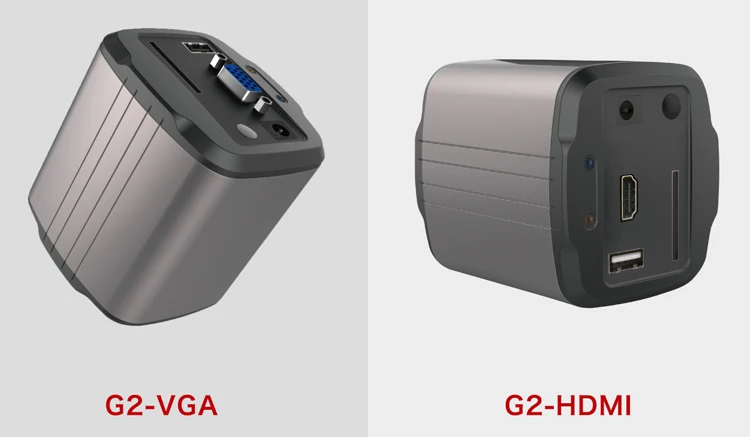

HDMI/VGA Pports Output Separate design of VGA/HDMI port brings a highly integrated compact structure and low failure rate.
|
 |
With Linux Embedded System G2 Industrial Camera has made a leap of image quality, color reduction and response time.1080 resolution matches mainstream HD screen in market.
|
 |

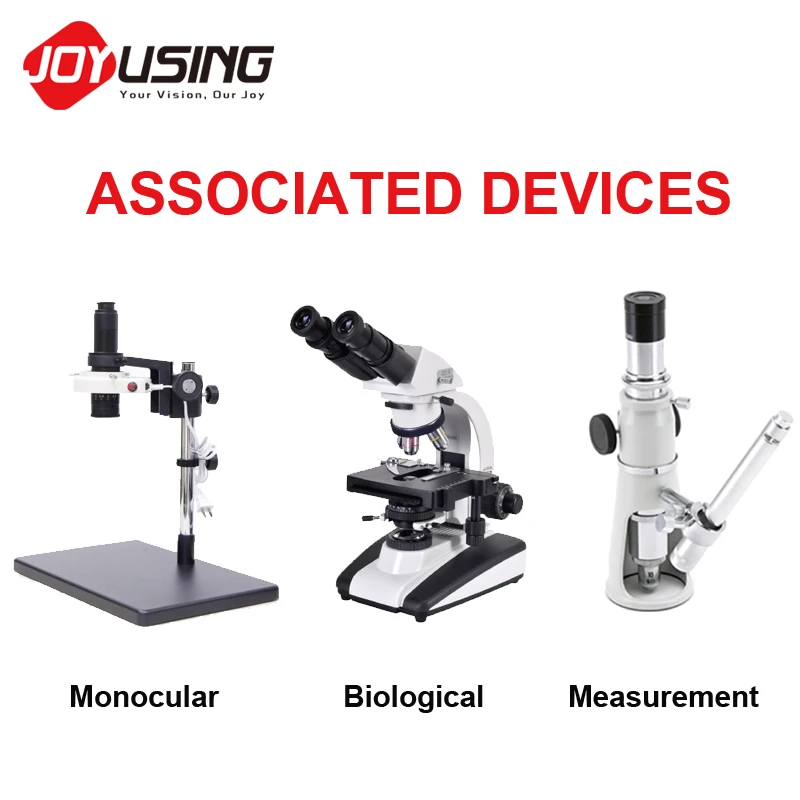

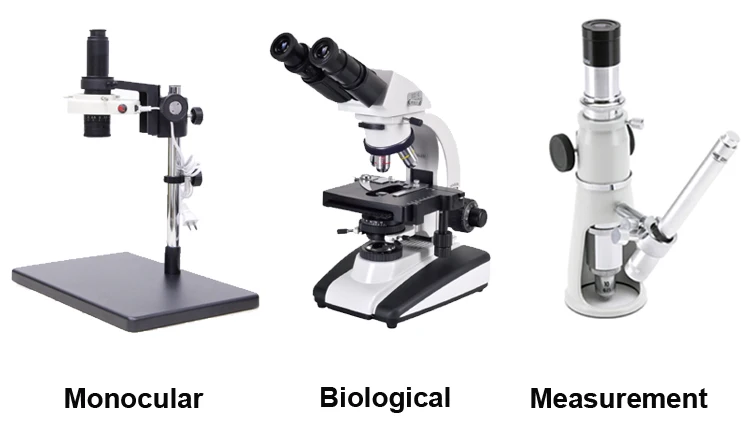

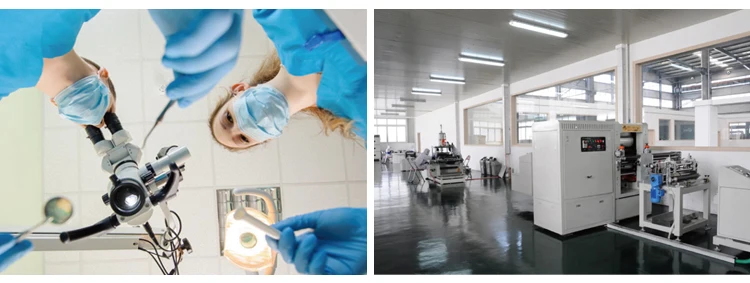

Associated Devices Helps a lot in teaching demonstration, experimental recording and other industrial detection fields SMT PCB detection | Warehouse incoming materials detection Biology experiments demonstration | Medical anatomy presentation
|

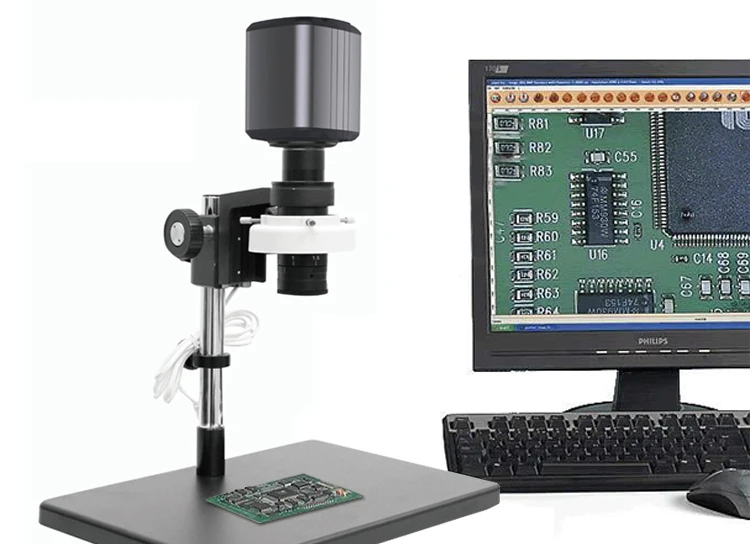

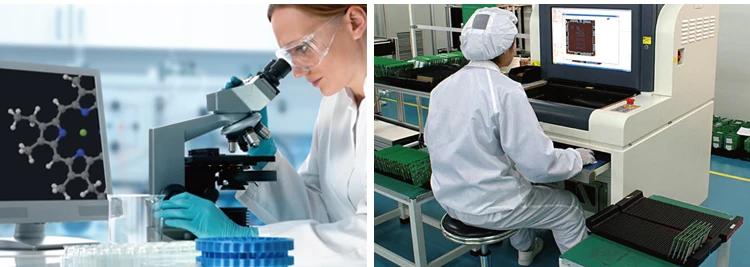

Applications > Biology Experiments Demonstration > SMT PCB Detection
> Medical Anatomy Presentation > Warehouse Incoming Materials Detection
|
You Can Download More Information for JOYUSING Products.
|
| Hardware Specification | ||
| Product Name | VGA Industrial Camera | HDMI Industrial Camera |
| Sensor | 1/2.86" CMOS | |
| Image processor | Built-in image processor | |
| Effective Pixels | 2MP | |
| Resolution | 1920*1080 | |
| Frame Rate | 30fps@1920*1080 | |
| Snap | High Speed SD Card (32G) | |
| Video Record | 30fps @SD Card 30fps @PC | |
| Output | DC-IN,HDMI,USB2.0,SD card | DC-IN,VGA,USB2.0,SD card |
| Menue | Power switch | |
| Indicator light | Power switch indicator (red/blue) Device boot indicator (green) | |
| Power | DC-12V/1A | |
| Optical interface | Standard C port | |
| Software Specification | ||
| Image adjustment | Brightness, contrast, saturation, white balance, black and white switching, HDR wide dynamicsExposure, flicker suppression, sharpness, Gamma, Cb/Cr gain adjustment | |
| UI | Full mouse humanization operation | |
| Storage function | Timely Shooting, Video Recoding, Photo preview,Dynamic Comparison SD Card Formatting | |
| Camera function | Digital Zoom,OSD,Freeze,Horizontal/Vertical Mirroring | |
| Cross cursor | 8 & 9 sets of crosshairs, you can define the color, line thickness, displacement movement and hiding | |
