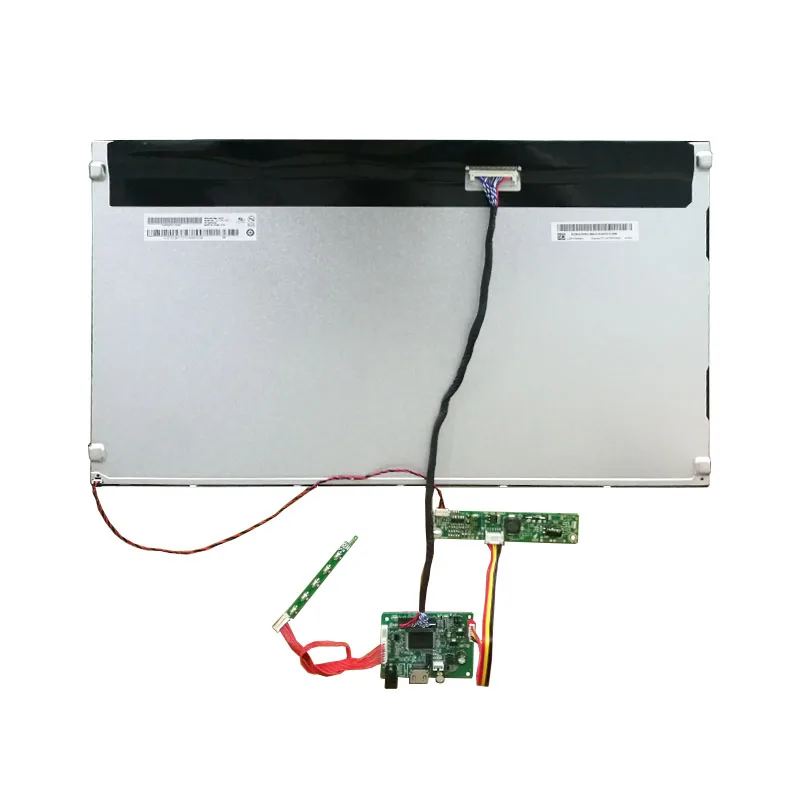

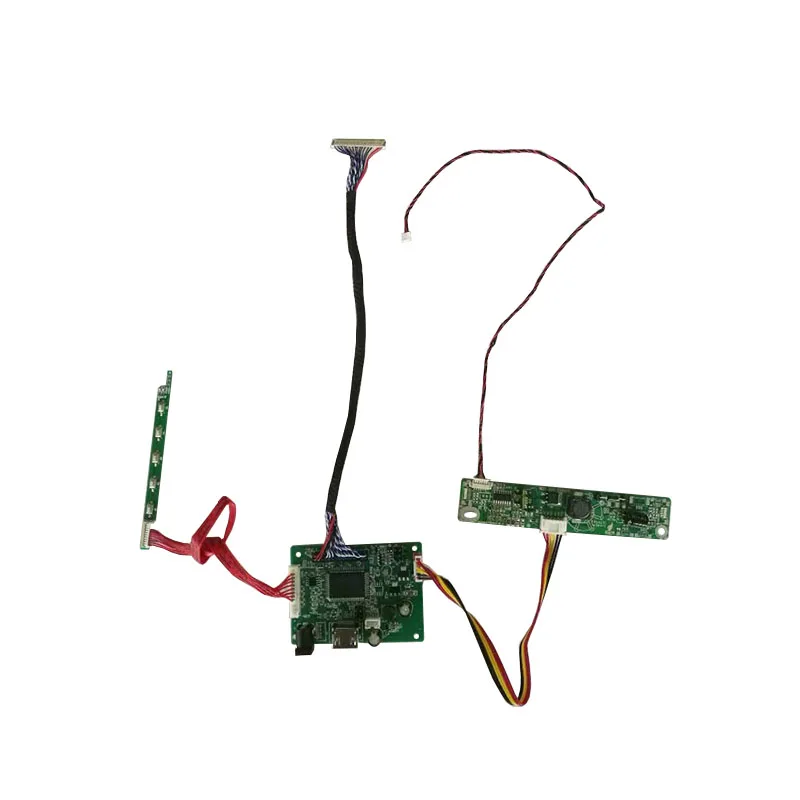

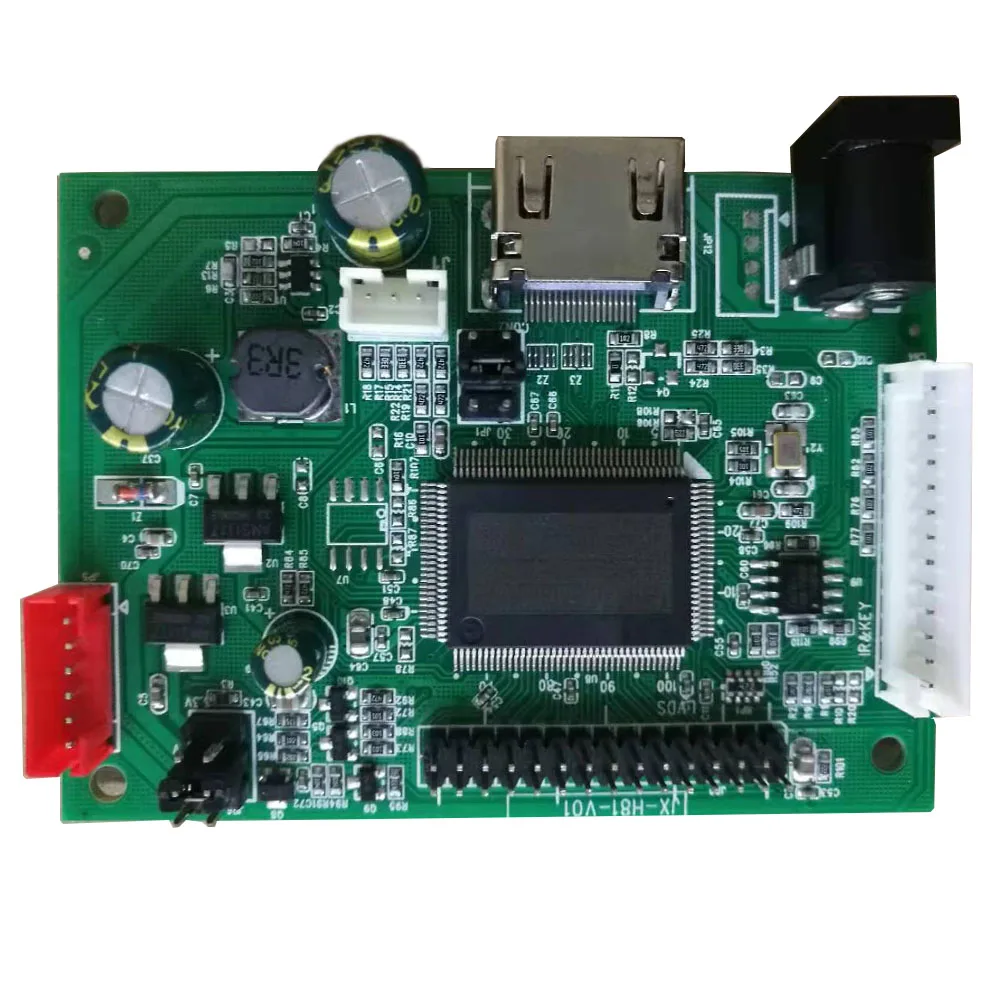

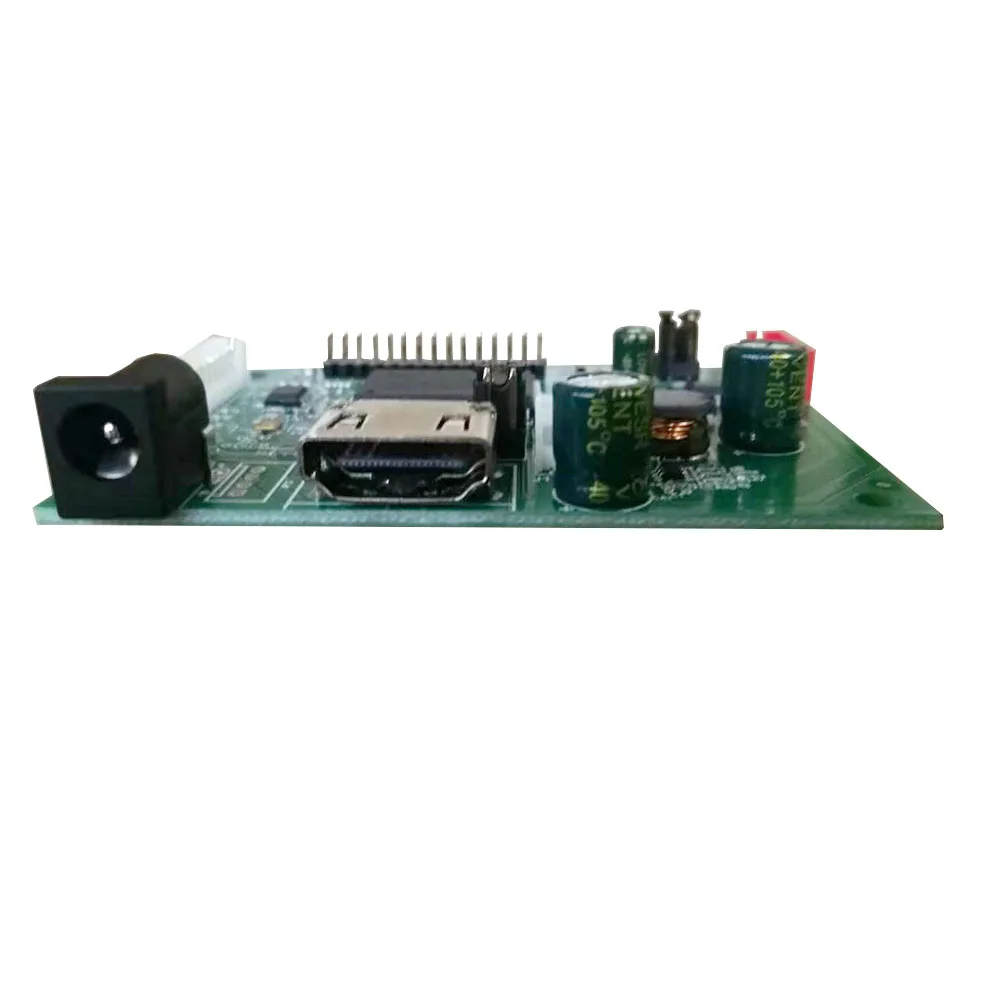

21.5inch T215HVN01.0 monitor driver control board HD MI 1920*1080 industrial screen lcd display
- Category: >>>
- Supplier: Shenzhen Zhixianda Technology Co. Ltd.
Share on (62015629013):
Product Overview
Description

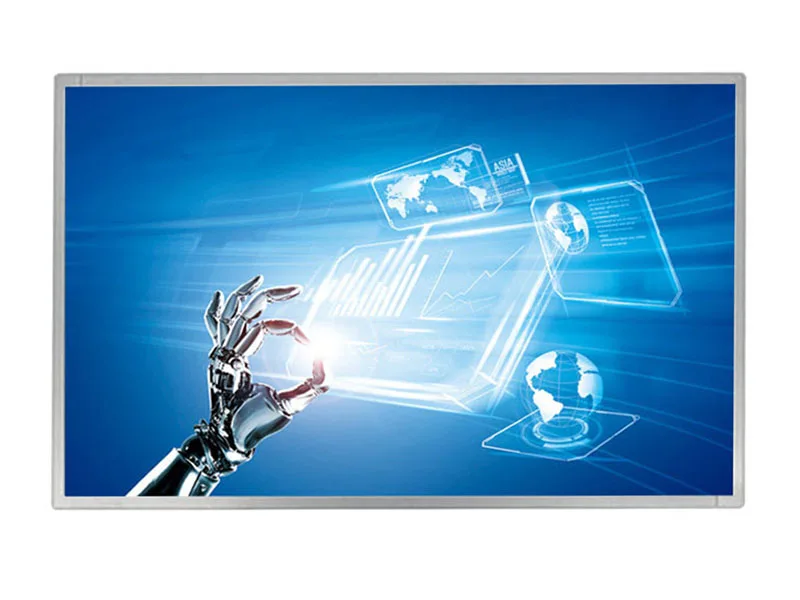

21.5" screen 1920*1080
Button and LCD Signal lines
Driver Control Board HD-MI
21.5inch Panel General Features | ||
brand | AUO | |
Screen Size | 21.5 inch | |
Model Name | T215HVN01.0 | |
Pixel Number | 1920(RGB)*1080[FHD] | |
Luminance | 250(Typ.)(cd/m²) | |
Contrast Ratio | 3000 : 1 (Typ.) (TM) | |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | |
Color Depth | 16.7M 74% NTSC | |
Outline(mm) | 495.6× 292.2×11 (H×V×D) | |
Active Area | 476.64 × 268.11 (H×V)mm | |
Response | 13/5 (Typ.)(Tr+Td) ms | |
Refresh Rate | 60Hz | |
Signal Type | LVDS(2ch,28-bit) , 30 pins | |
Voltage Supply | 3.3V (Typ.) | |
Max. Ratings | Storage Temp.: -20 ~ 80 °C | |
Operating Temp.:-20 ~ 70 °C | ||

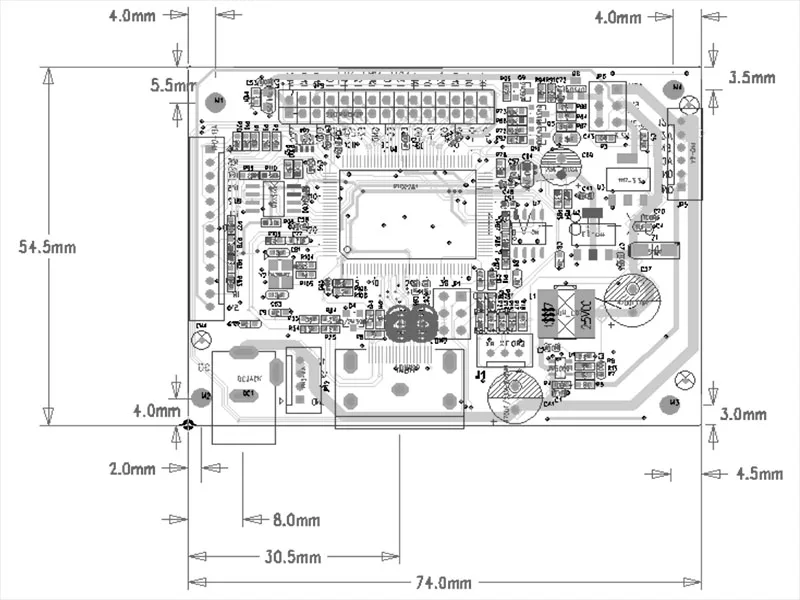

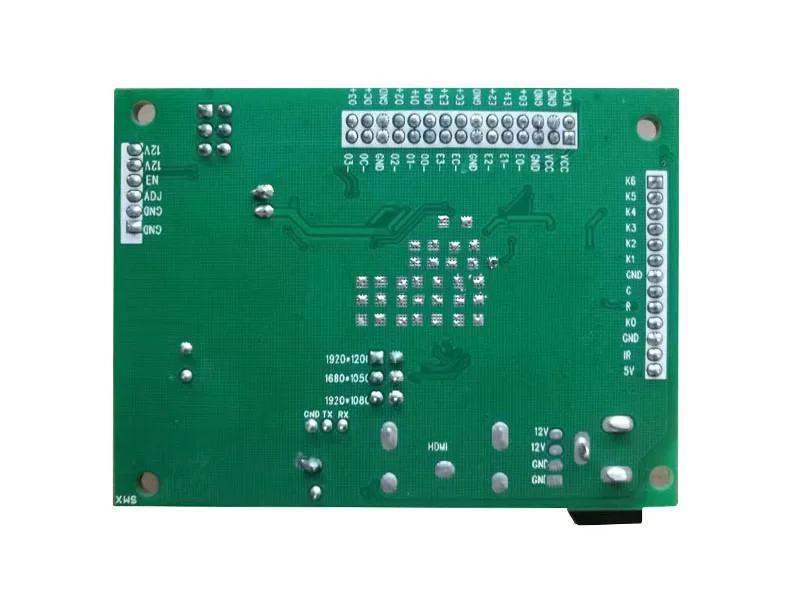

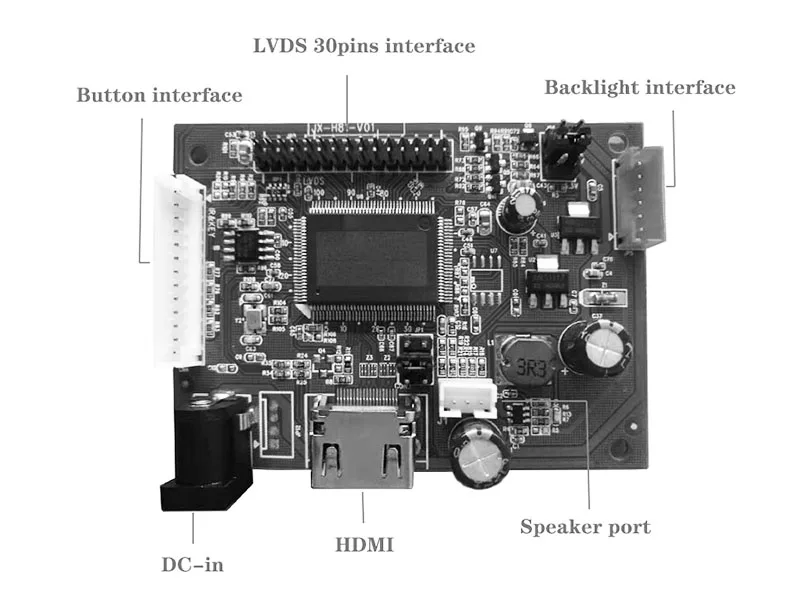

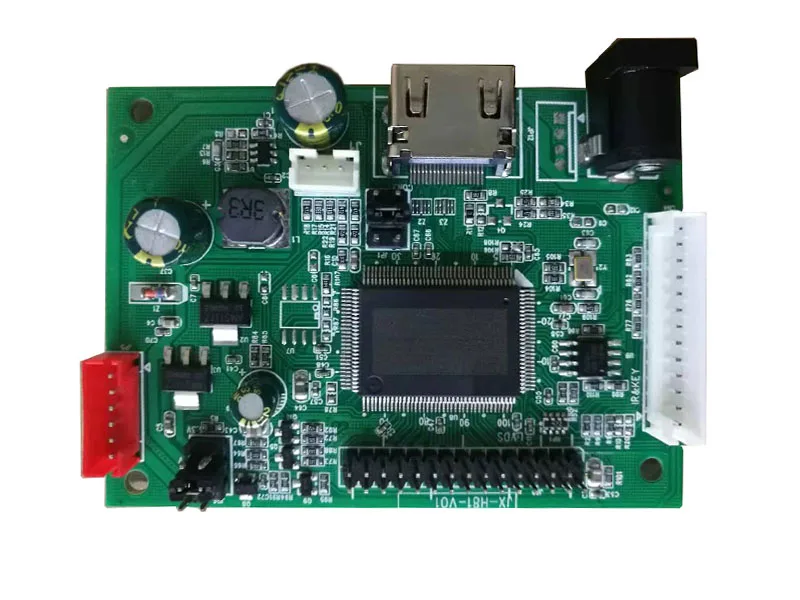

Driver control Board details | Lamp cap | |||
Board type | LCD Monitor Main Board | 230 | ||
Support Panel | LCD TFT , Dual/Single LVDS , Max Resolution up to 1920*1080 | |||
Input | HDMI | |||
OSD Language | Chinese , English , Korean , etc. | |||
Power | DC Input (12v), Panel Voltage (3.3v/5v/12v), Standby Consumption (<0.25w) | |||
KEY Function | POWER/MINES/PLUS/MENU/EXIT/UP(Optional)/DOWN(Optional) | |||

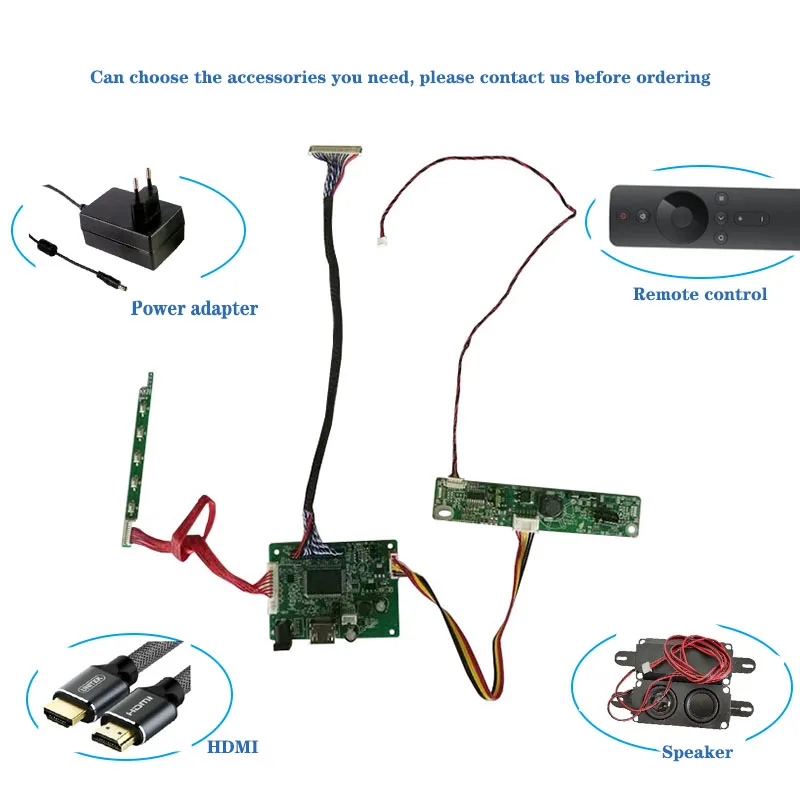

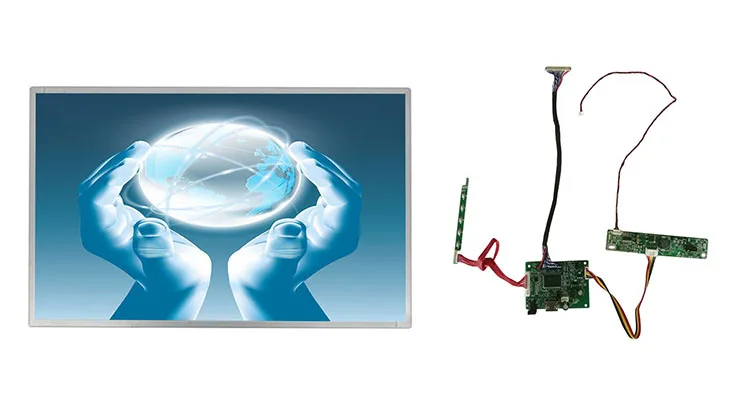

※ we can add touch accessories fou ※ we can change the screen size for you ※
For monitor
For Open-frame monitor
For Portable monitor
Monitor Application
※ PC display
※ The microscope display
※ Store cash register display
※ Car mounted display
※ Business, office, home and so on
※ The Vending display
※ The ATM display
※ The Advertising machine display
※ Industrial, medical, multimedia and other equipment
