Hydraulic Driven Iron Core Stacking And Tilting Transformer Assembly Machine
- Category: >>>
- Supplier: Zhu Tang (Suzhou) Technology Co. Ltd.
Share on (62015647938):
Product Overview
Description
Product Description
Hydraulic Driven Iron Core Stacking And Tilting Transformer Assembly Machine

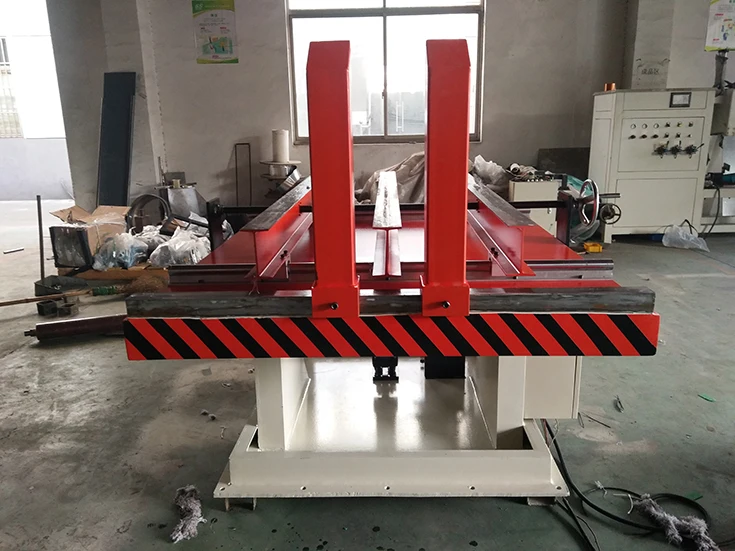

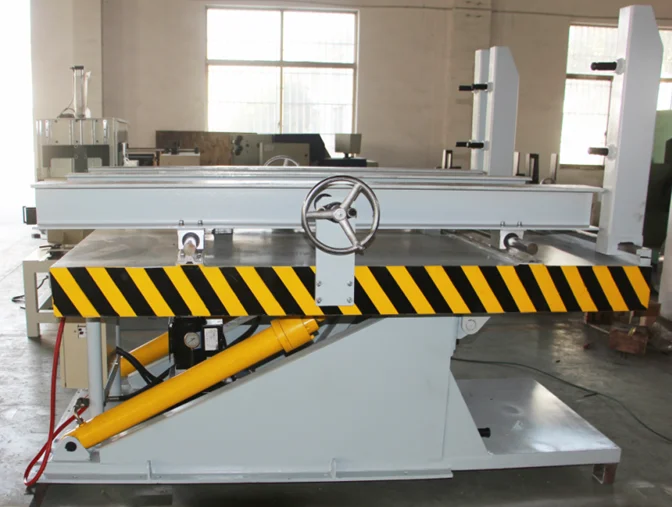

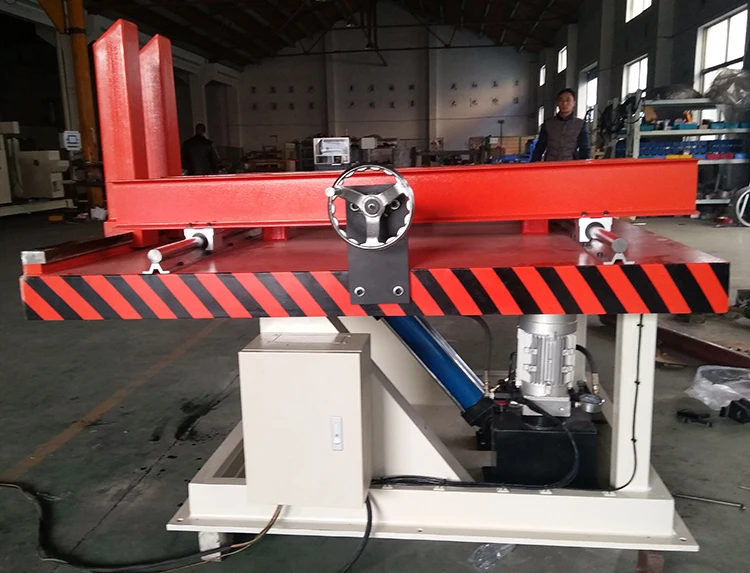

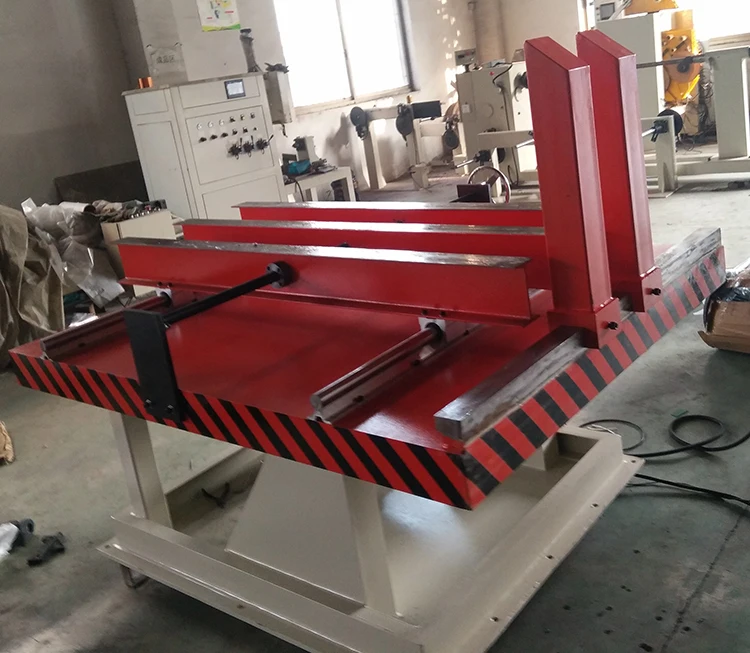

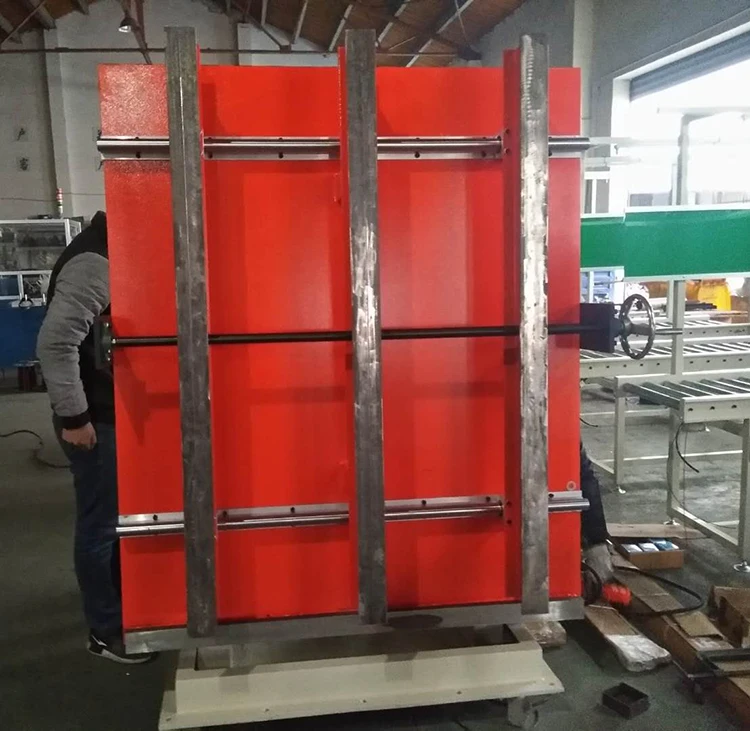

Hydraulic Driven Iron Core Stacking And Tilting Transformer Assembly Machine is a special equipment to assembly large-sized transformer iron cores and can tilt the laminated iron cores up to 90°. This machine adopts an adjustable mode to improve tilting accuracy and speed regulation accuracy. Furthermore, this machine is provided with a linear guide and a hydraulic system for tilting. It features smooth tilting and easy to operate, which assures the quality of laminating iron cores and improves the production efficiency.
Main Technical Parameters:
Typical standard specifications of FZT series are shown below, however these can be easily modified according to your requirement.
| No. | Item | FZT-1T | FZT-3T | FZT-5T |
| 1 | Platform Size: | 1300×1000mm | 1500×1200mm | 2000×1600mm |
| 2 | Max Load Capacity: | 1000Kg | 3000Kg | 5000Kg |
| 3 | Stacked Accuracy: | 0.1-0.2mm | 0.1-0.2mm | 0.1-0.2mm |
| 4 | Working Height: | 1000mm | 1000mm | 1000mm |
| 5 | Driven Mode: | Hydraulic Pressure | Hydraulic Pressure | Hydraulic Pressure |
| 6 | Main Power: | 1.5KW | 2.2KW | 3KW |
| 7 | Max. Iron Core Thickness: | 400mm | 500mm | 600mm |
| 8 | Tilting Speed: | 90°/Min(Stepless speed regulating) | 90°/Min(Stepless speed regulating) | 90°/Min(Stepless speed regulating) |
| 9 | Distance Between Columns: | Adjustable | Adjustable | Adjustable |
Send Inquiry
Company Information
ABOUT US
Zhu Tang (Suzhou) Technology Co., Ltd., formerly known as Zhu Tang (Shanghai) Technology Co., Ltd., is specializing in developing, designing, manufacturing and selling transformer and reactor manufacturing machines, such as foil winding machines, coil winding machines, iron core stacking & tilting platform, etc. Our custormers are from all over the world, including Russia, Germany, Canada, South Korea, Vietnam, and India etc. The company was established in 2009 and is located in Taicang City, Suzhou City, Jiangsu Province, China.
Main Products
|  |  |
 |  |  |
Packaging & Shipping
FAQ
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Are you responsible for installing and training operators overseas?
A: We will do it if you need.
3) Q: How do you provide after sales service?
A: We provide technical support online as well as overseas services provided by our skilled technicians.
A: We provide technical support online as well as overseas services provided by our skilled technicians.
4) Q: How does your factory control product quality?
A: Every machine has to be tested before loading.
5) Q:How can I trust you that machines pasted testing before shipping?
A: 1) We can record the testing video for your reference if you need, or;
2) You can come to our factory for acceptance.
6) Q: Do you sell only standard machines?
A: Besides standard machines, we can also manufacture these machines as requested.
