General

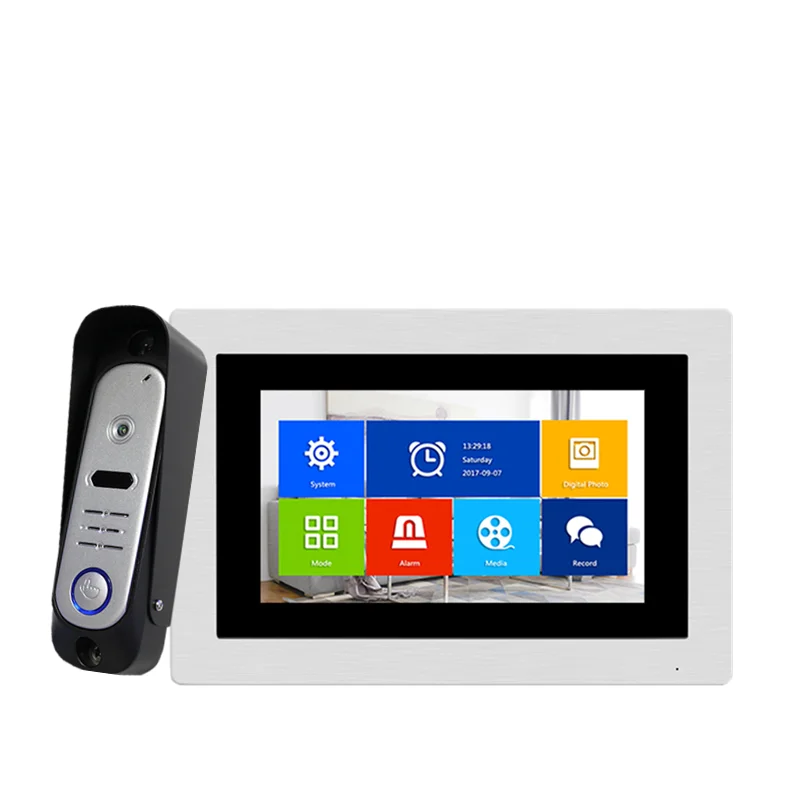

Model:84206+84709TM/AHD
Type: AHD 720P/960P/CVBS Video Input
| Indoor Monitor | Function: | Intercom Calling, Transfer Calling, Monitoring, Unlocking, Recording |
| Power Consumption: | 500mA max. | |
| Power Supply: | DC 12V / Built-in Power AC 100-240V | |
| Screen Size | 7 inch color TFT-LCD | |
| Resolution | 1024x600 | |
| Standard | PAL/NTSC | |
| Material | Plastic Case | |
| Memery Capacity | Max. 1*32GB Class 10 TF Card, 1*USB Port for 2 TB Portable Hard Disk | |
| Input Video Signal | CVBS/AHD 2.0 | |
| Motion Detection | Yes | |
| Advantage | With Photo Frame/MP3 & MP4 Player/Clock & Voice Message/Backgroud Music | |

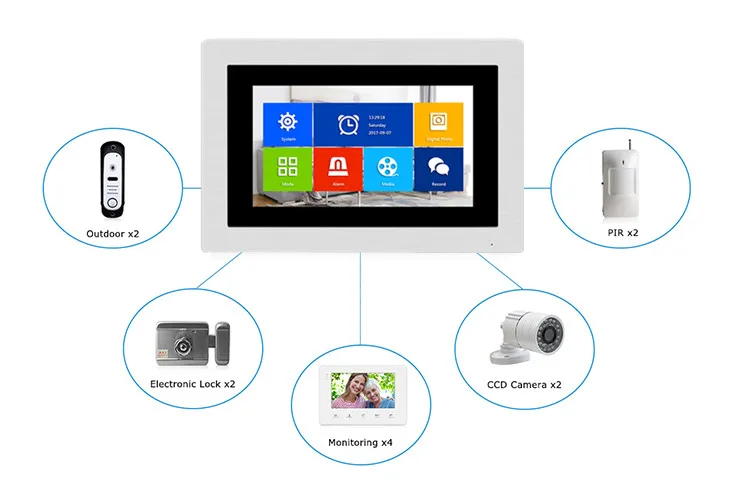

| System | Support 6 Indoor Monitor + 2 Call Panel + 2 Camera | |
| Conversation Duration | 120s | |
| Operating Temp | -10℃~+60℃ | |
| Size | 237.9*144.1*19.15mm | |
| Installation: | Surface Mounting | |
| Weight | 0.7kg |

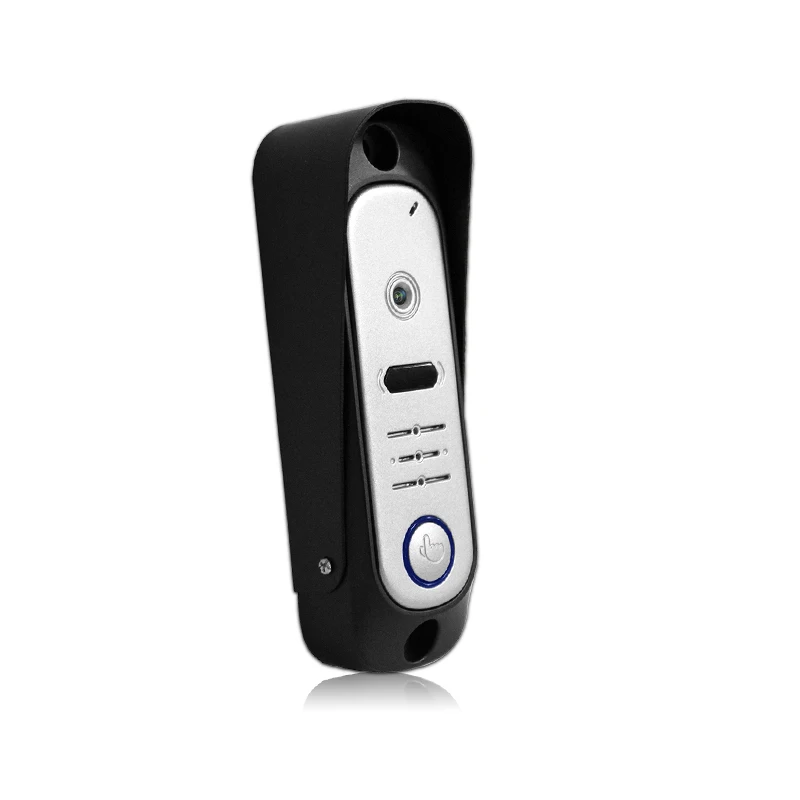

| Outdoor Camera | Camera Sensor: | 720P/960P |
| Lens | 3.7mm/2.8mm | |
| LEDs For Night Vision | IR LEDs(120o) | |
| Viewing Angle | 68o /120o | |
| Power Consumption | 200mA | |
| Operating Temp | -40℃~+50℃ | |
| Material | Aluminium Alloy | |
| Waterproof | IP65 | |
| Size | 133*48mm | |
| Installation | Surface Mounting | |
| Weight | 0.36kg |

Amazing MP3/MP4/Movie Player
This AHD Video Intercom System Can Listen to The Music or Watch Movies
Inside The SD Card or USB Storage Device. Nowadays Video Door Phone is
Not Limited to Unlock The Door, Clients Can Also Use It to Listen to Music
or Watch Movies The Machine Free.

Built-in Motion Detection
Get a Picture or a Short Video When Someone Passes By Your House, For Better Protection.

Point to Point Call Transfer
When Room 1 Answer, Transfer The Call to Room 2 or Room 3.
It Is More Convenient For The Visitor or Courier to Talk The Right Person.

Leave a Message, Never Miss a Visitor
Can Set Message Mode When You Are Outside, So When Visitor Come By,
The Call Panel Can Automatic Speaks"Please Leave a Message", After 30-120s Ringing,
Then The Master Can Find The Record In The File.

*Any inquiry would be replied within 24 hours
*Sample order supported
*Provide 12 months warranty & technical support.
*OEM service offer as below:
1) Silk print LOGO on the product
2) LOGO shows on the start screen
3) Product housing, color box, user manual and multi-language on menu customization
*Production time: 15 working days after samples confirmation
*All the products would be strictly tested before shipment
*Strong R&D, production and QC team to ensure your orders delivery in time
*Good after-sales service: Repair manual as well as technical support offered to repair your product during operation problem occurred.
Q: How long is the warranty period?
A: 18 months .
Q: What's the MOQ?
A: 50 pcs , sample order is acceptable.
Q: What's the lead time?
A: Usually sample order in 1-3 working days, bulk order in 10-20 working days after the receipt of payment.
Q: What's the payment terms?
A: Priority T/T , credit card and Western Union, Paypal and L/C are also acceptable.
Q: Are OEM / ODM and LOGO printing acceptable ?
A: Yes, we have done many big cases for the customers.
Q: Why are you choosing us?
A: More than 10 years professional experience , Very competitive prices , Supported by Engineers Expert in Different Fields and so on
