The trailer-dumper SAV is developed for especially heavy operating conditions and solves the problem of transporting a large volume of cargo. The trailer is equipped with a reinforced chassis. The body structure is designed to prevent freezing of cargo. Hydraulic equipment is reinforced and allows operation of dump trucks at low temperature (up to-55C). This model is made with a lateral unloading system.
Trailer equipment:

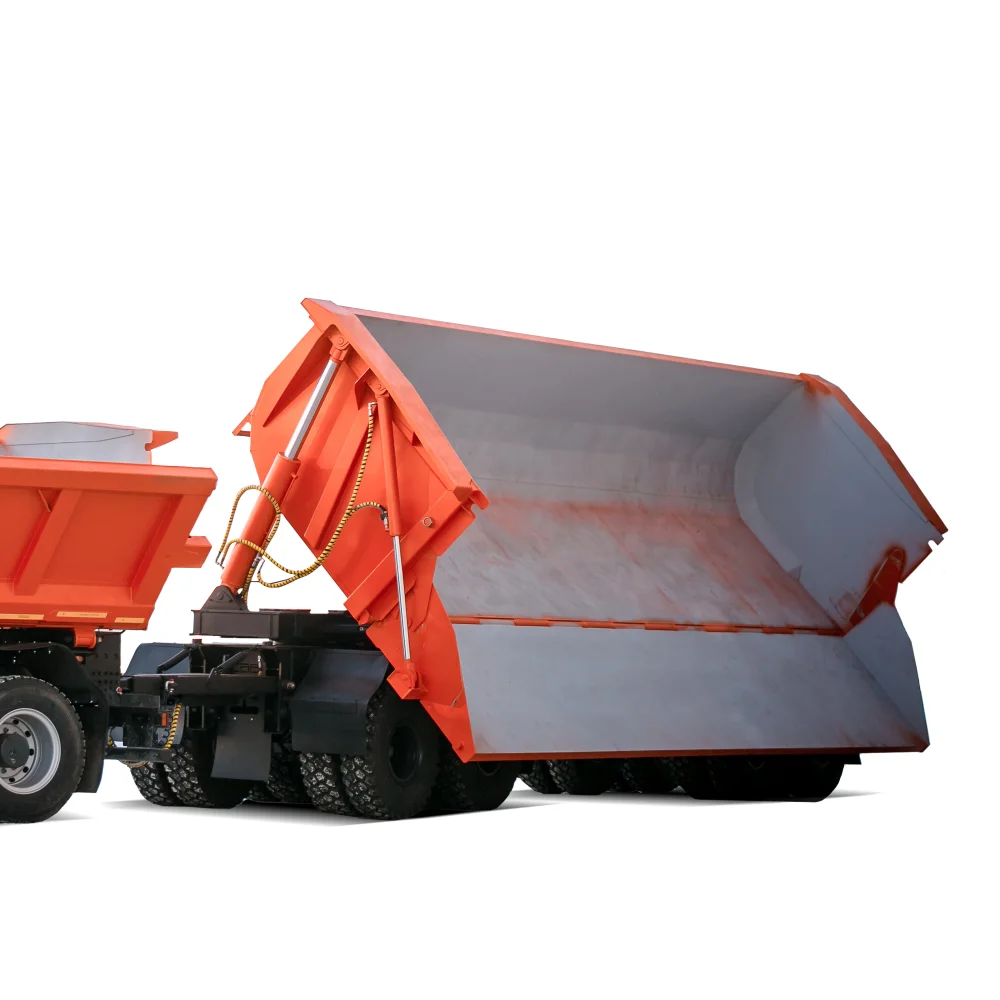

• dump truck body with unloading on the left side;
• wall material-Magstrong 400 steel, thickness 8 mm;
• the left side folds down, with the bottom location of the hinges;
• opening / closing of the sides hydraulic when lifting / lowering the body;
• rear, front and right side wall are solid;
• rear, front and right side wall are solid;
• ladder for lifting into the body on the front or rear wall;
• protective visor front and rear boards;
• without a roof, without a tent;
• double-circuit hydraulic system;
• two hydraulic cylinders for lifting / lowering the body;
• two hydraulic cylinder for lifting/lowering the side of the left side;
• the hydraulic operation from the cab of the tractor;
• protective visor front and rear boards;
• without a roof, without a tent;
• double-circuit hydraulic system;
• two hydraulic cylinders for lifting / lowering the body;
• two hydraulic cylinder for lifting/lowering the side of the left side;
• the hydraulic operation from the cab of the tractor;
• electrical equipment 24V;
• rear five-chamber led lights;
• led front, side, contour and license plate lights;
• one 15-pin electrical connector to connect to the tractor;
• two-wire service brake system with pneumatic drive;
• without ABS brakes;
• Parking brake system with energy accumulators;
• quick-release brake connectors for connection to the tractor;
• spring-balanced suspension without jet rods;
• the winged wheel from the conveyor belt;
• rear buffer and side protection;
• reinforced turntable;
• drawbar with welded loop 70 mm, with safety chains;
• electric vibrators (2 PCs.).
Dump trucks produced under the brand SAV, differ in the original reinforced construction. They are adapted to the most difficult conditions and are able to carry a variety of bulk cargo, from light sunflower husks to heavy and large rocks. Dump truck unloading system can be in several versions:
- horizontal-system " front movable Board»;
- Bback-classic;
-side– on the left or on the right side;
- three-way – on the left and right side, back.
Related Products
Our Company
«SpecAuto-Vostok» specializes on trailers technique of different use design and manufacturing, that is familiar to foresters, oil industry workers, gas industry workers and builders. The Trade mark SAV has been working successfully since 2001. High qualified and experienced executive, engineering and technical staff and presence of modern equipment with a flexible production cycle permit to quickly react on all customers and partners inquiries and to manufacture the production in short terms.
There are following main types of SAV technique:
• Forest technique
• Pipe carrier technique
• Dump-body track technique
• Тrawls with a different capacity
• Chassis for vessels installation and equipment
• Special technique
• Cisterns
• Agricultural technique
And also "SpecAuto-Vostok" designs technique for different use according to individual technical requirements.
Nowadays automobile, tractor and trailer technique is modern, well-known and essential because of successful using in many regions of country.
