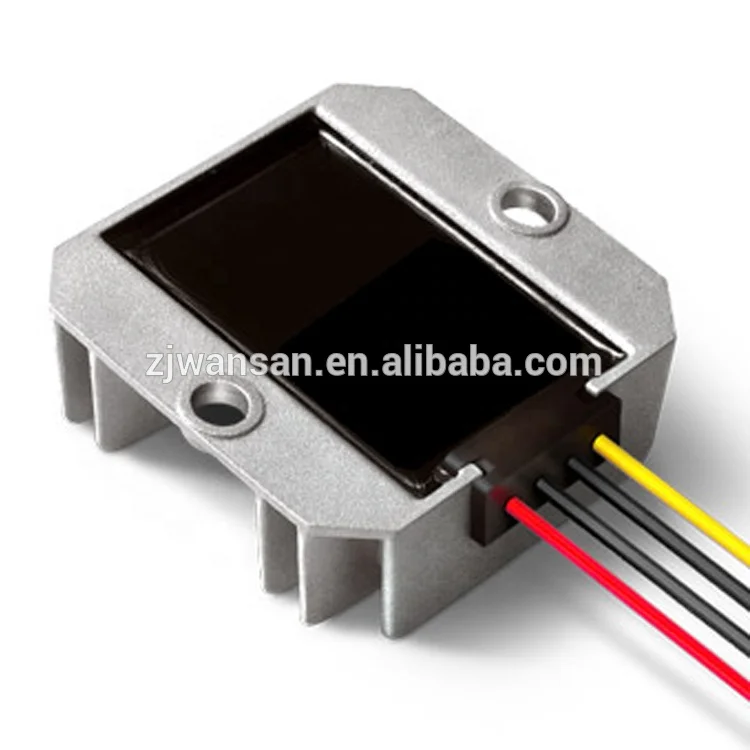

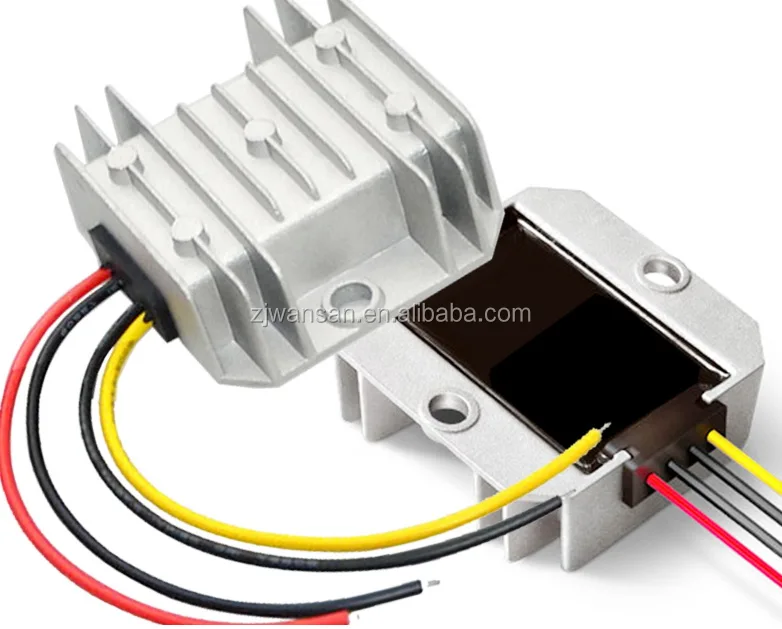

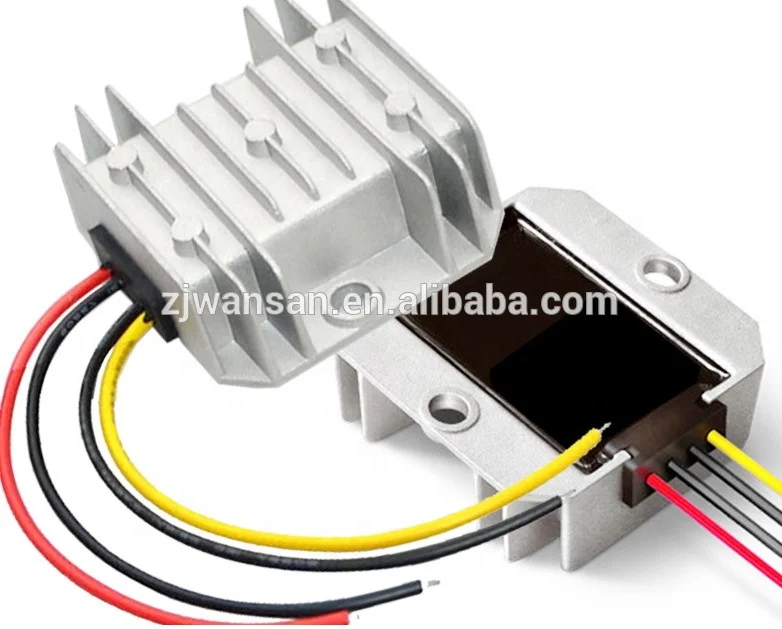

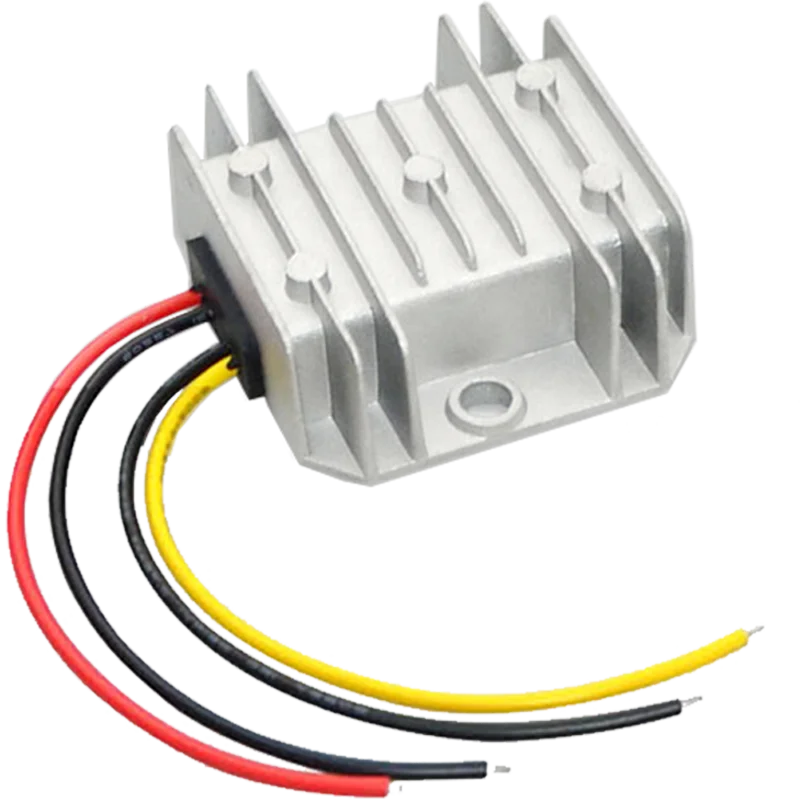

FACTORY PRICE IP 67 DC 12V to DC 24V 1A Power Converters 24W WS 12T2401

Product Overview

Description



DC 12V to DC 24V 1A Power Converters 24W



Features



1. 100% full power & stable current output



2. 100% Imported components



3. Wide input voltage from 9-16Vdc



4. 100% waterproof & anti-shock protection, Ultra compact size, light weight



5. Industry grade DC12V to DC24V step-up converter, efficiency up to 93%



6. Waterproof level: IP68

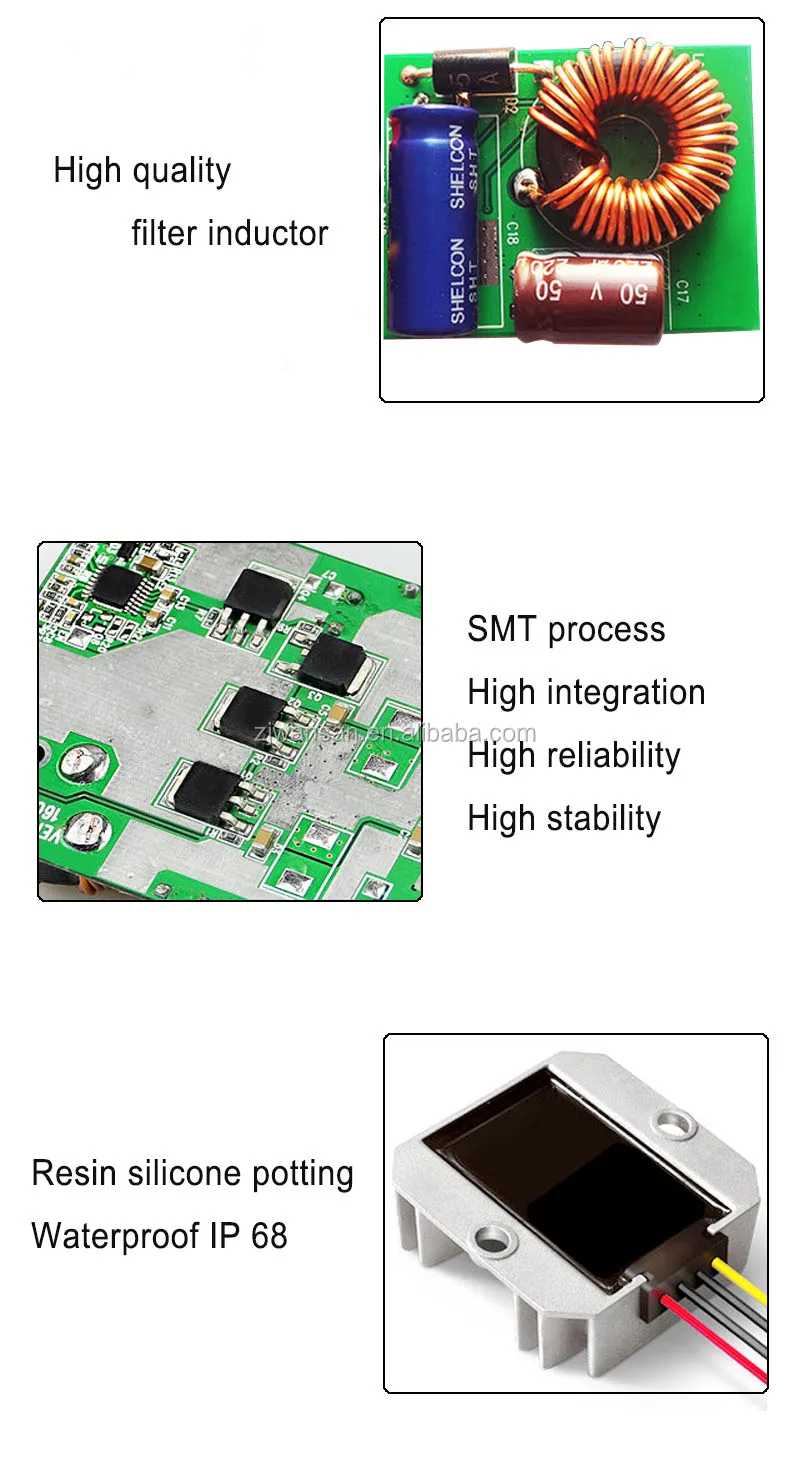

7. Die-cast aluminum shell, epoxy potting, Cooling by free air convection



8. Protections: Over-current, Over-voltage, Over-temperature and Over-load, Auto-recovery when device is back to normal operating.



9.   Non-Isolated Module



      10. 1-year warranty, lifetime up to 100,000 hours

Specifications:

Model	WS-12T2401
Input rated voltage	12V DC
Input voltage range	9-16V DC
Efficiency	95% (half load) ; 93% (full load)
Output voltage	24V DC
Output current	1 Amps
Output rated power	24 Watts
Output peak power	125%
Voltage regulation	< 1%
Load regulation	< 2%
Ripple (full load test)	< 150mV
No-load current	< 20mA
Working Temperature	-40°c ~ +80°c
Waterproof rating	IP 68
Protections	Over-load, Over-current, Over-temperature, Over-voltage
Machine size	57*64*22mm
Package size	89*72*30mm
N. Weight	125g
W. Weight	135g
Cooling way	Free air convection
Other	White box packing

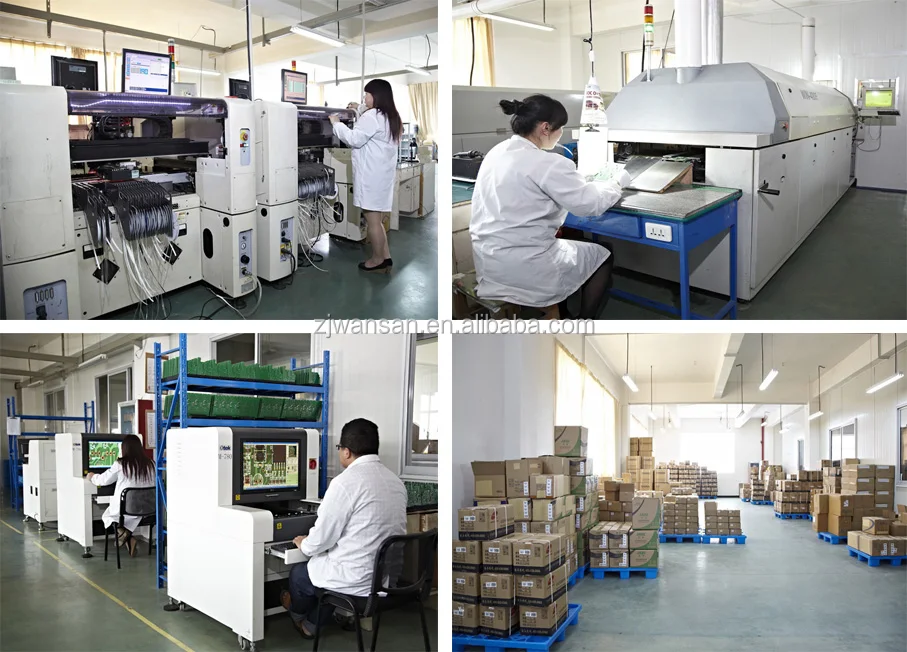

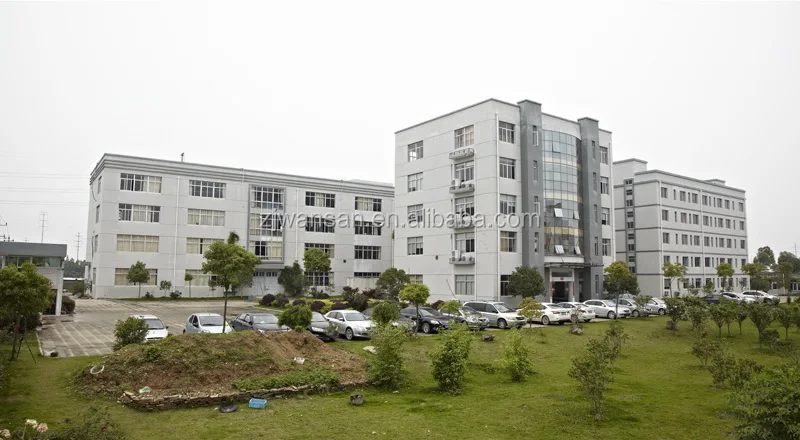

COMPANY INFORMATION





FAQ:

1. Are you a manufacturer?

100% yes, if you have a chance, you can visit our factory anytime.

2. Do you have any MOQ limit?

One piece is possible, you can buy one sample for testing first.

3. What about the lead-time?

Normally 1-2 working days after receive the payment.

4. How to pay for the sample fee?

Please send the payment to our PayPal account or the western union.

5. How do you ship the goods?

We often ship by DHL, UPS, FedEx or TNT, it usually takes 3-5 days to arrive.

6. Do you offer guarantee for the products?

Yes, we offer 1-year warranty for all DC DC converter.

7. I cannot find the suitable model, can I ask for a special model I need?

Sure. We are professional DC DC converter designer and manufacturer in China, please advising the detail specification you need, we will make it according to your request.
