Full Automatic Plastic Cup Thermoforming machine For Big Cup BC 660

Product Overview

Description

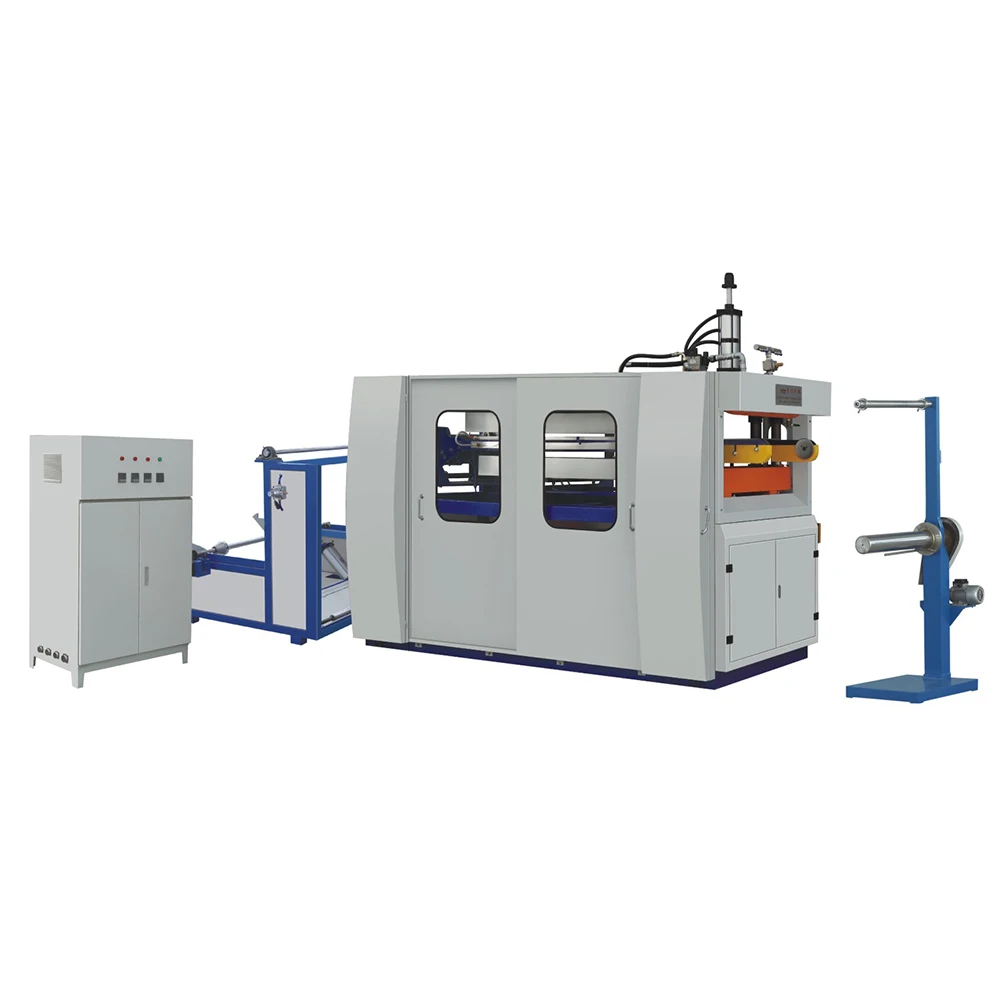

                      Special Automatic Plastic Cup Thermoforming machine For Big Cup BC-660



APPLICATION:

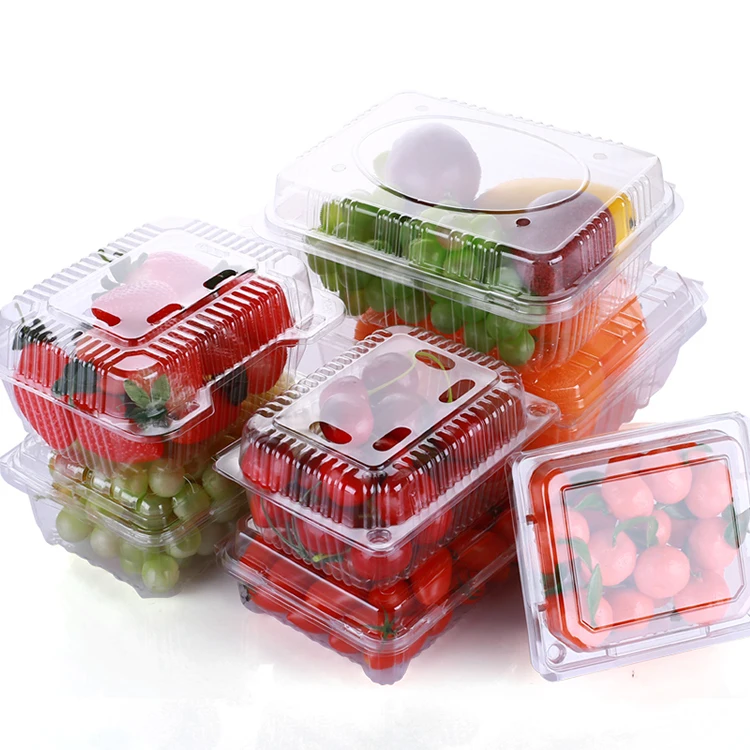

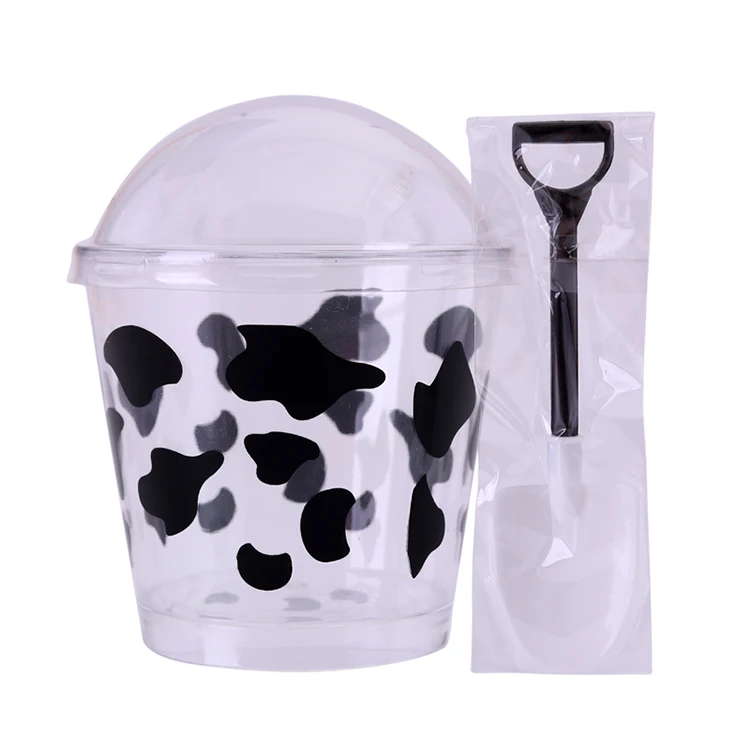

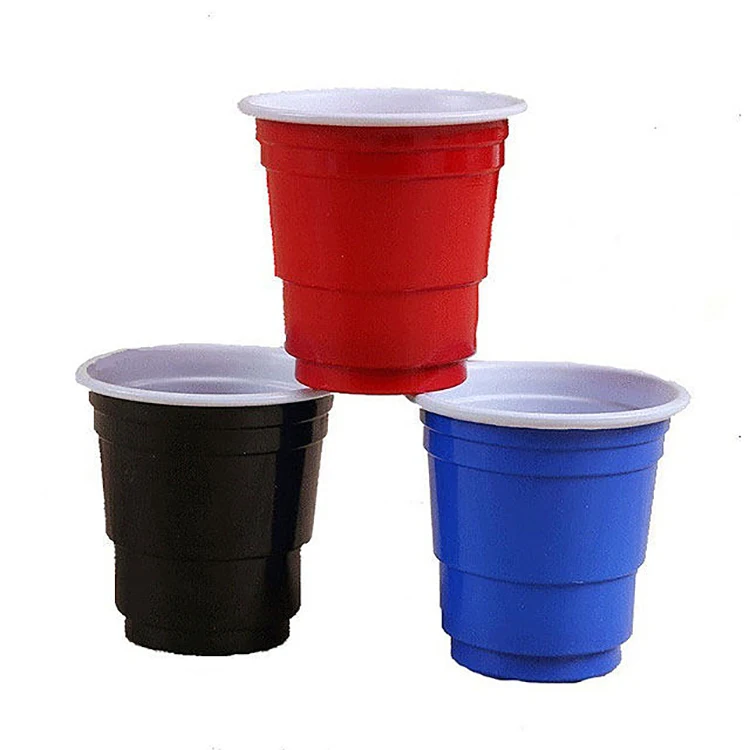

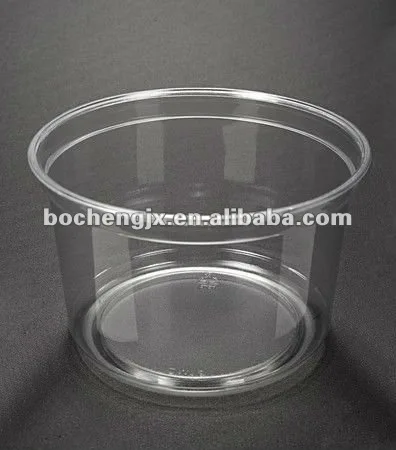

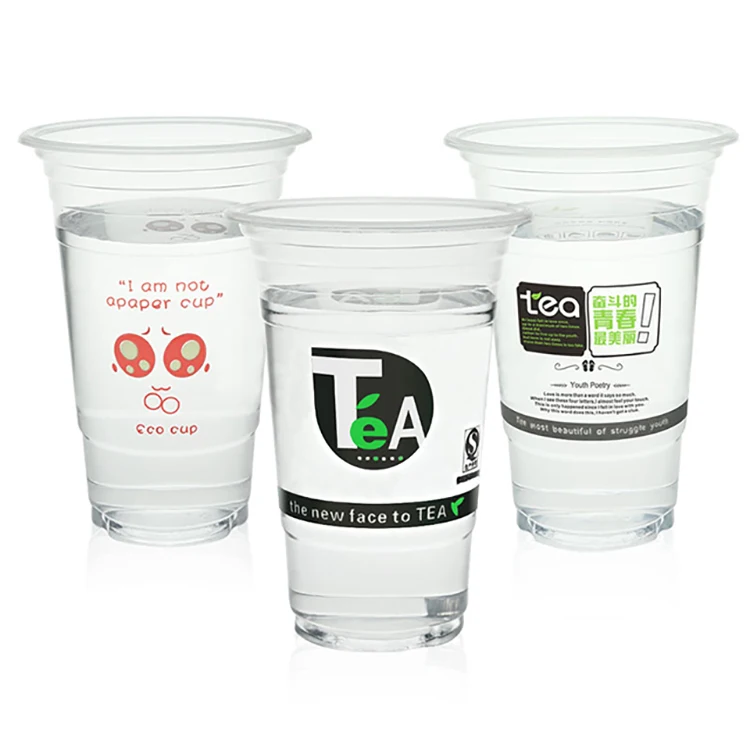

The thermoforming Machine adopt Servo motor feeding and PLC control system.Can produce various kind of disposable plastic cup, plastic containers of coo ling drinks, sour milk, ice-cream, fast food, or instant noodle, as well as different kinds of merchandise packages of medicine, toy, journal. textile and light industry, etc.



SPECIFICATIONS:

Sheet Materials	PP.PS.PET.PE.ABS
Sheet Width	500-650mm
Sheet Thickness	0.25-2.5mm
Max. Forming Area	620x270mm
Max. Forming depth	140mm (Can be adjust to220mm with request)
Forming Pressure	0.5-0.8Mpa
Productivity	10-35 mould/min
Rated Heading Power	67Kw
Starting Power	70K w
Total Weight	4.5ton
Water Temperature	>30°C
Overall Dimensions	3300x1500x 2200 mm
