LC fiber optic cable connector 90 degree
- Category: >>>
- Supplier: Shenzhen Foclink Communication Tech. Co. Ltd.
Share on (62015883108):
Product Overview
Description

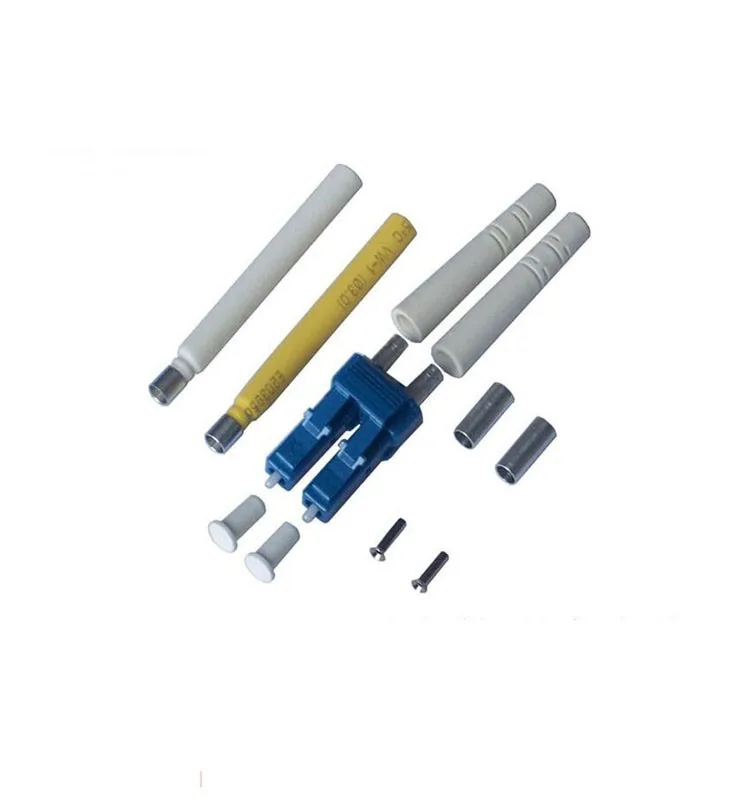

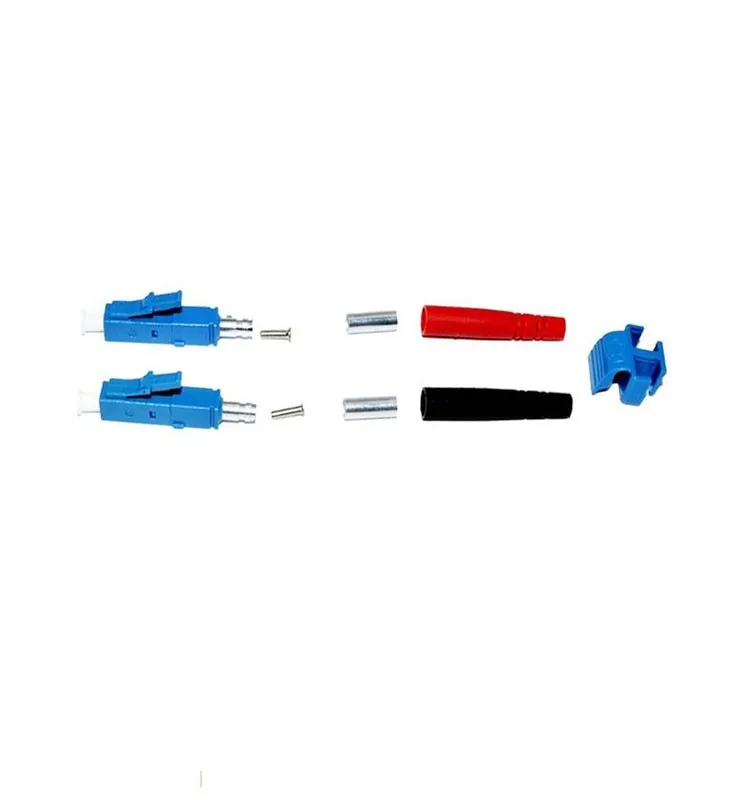

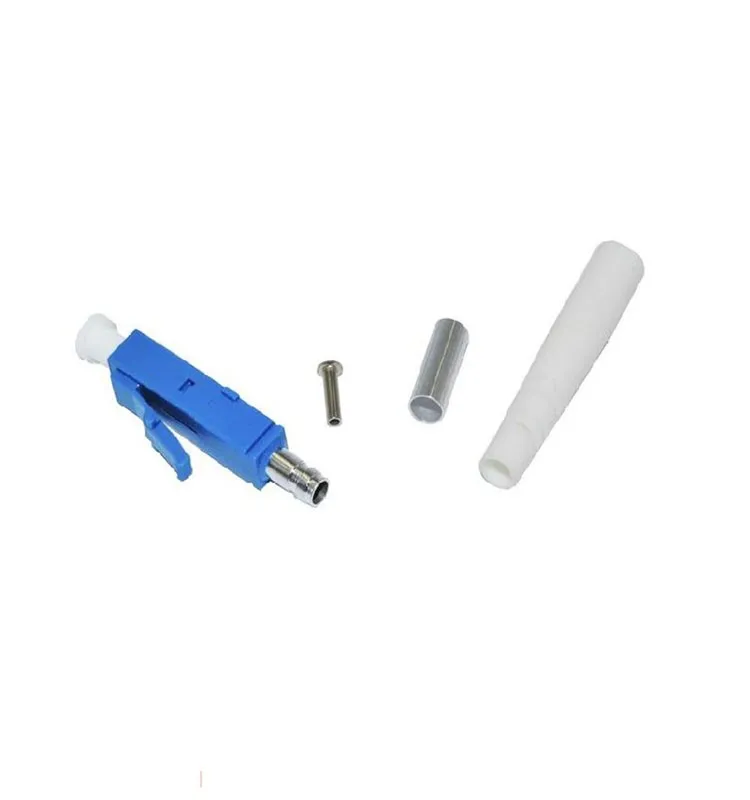

LC fiber optic cable connector 90 degree
Product Description
Applications
- CATV
- Optical fiber communication systems
- Optical fiber data transmission
- Building network access
- Cabling system, ODF
- FTTX applications
Features
- Low insertion loss and back reflection loss
- Good echangeabilityGood Durability
- High temperature stability
- ISO9001:2008,ROHS
Specifications
Mode | SM | MM | |
Polish | UPC | APC | PC |
Insertion Loss | Typical ≤0.2dB Maximum ≤0.3dB | ≤0.25dB | |
Return Loss | ≥50dB | ≥65dB | ≥35dB |
Interchangeability | ≤0.2dB | ||
Repeatability | ≤0.1dB | ||
Durability | ≤0.2dB (1000 times mating) | ||
Tensile Strengh | > 10kg | ||
Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||
Ordering options

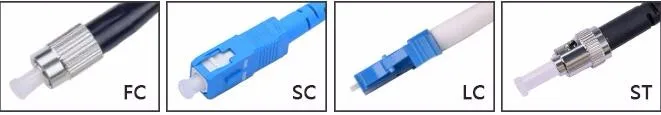

1) Connector type: FC, SC, LC, ST

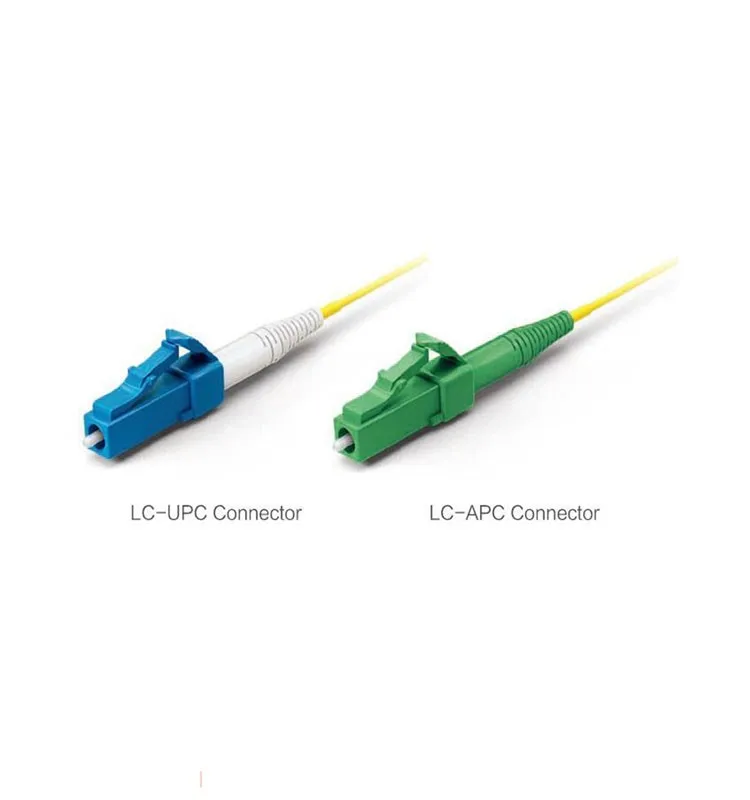

2) Ferrule End-face: PC, UPC, APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex

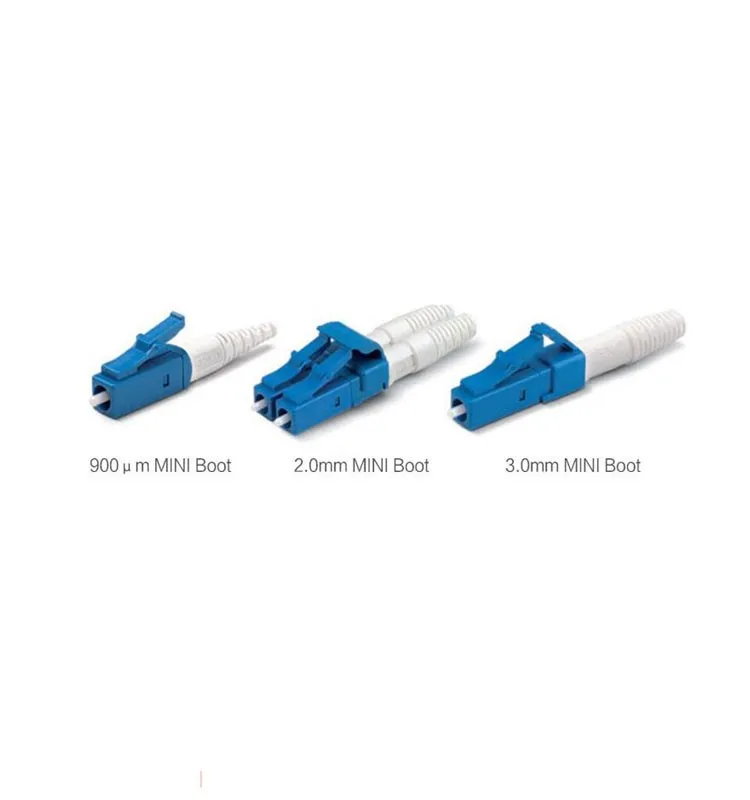

5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH

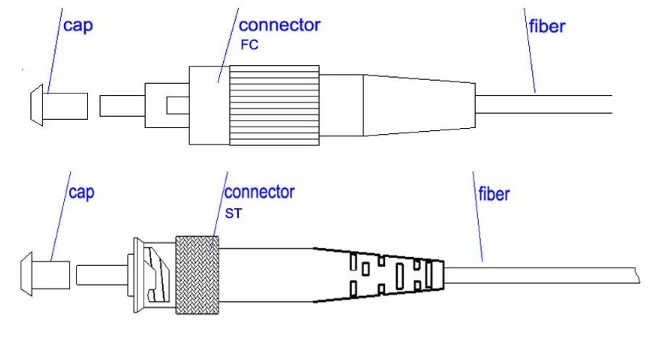

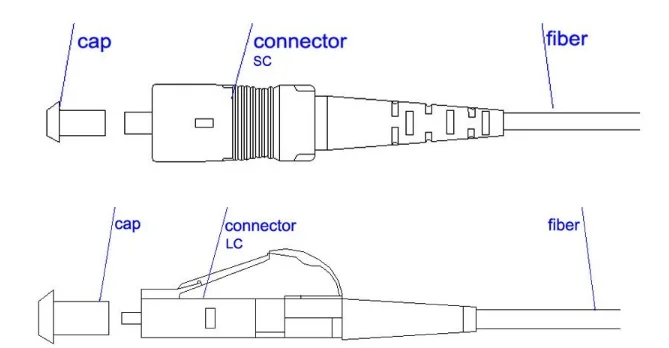

Product Drawing
Rlative products
Company Information
Why choose Foclink
1.Fiberoptic adapter ,connector ,patch cord ,plc splitter manufacturer, supply OEM, ODM
2.Quality certification : ISO9001:2008,ROHS
3. high technology, professional and excellent sales team, efficient and sound management
4.Foclink known as the fiber optic adapter manufacturer for the excellent products quality, competitive prices
