Product Overview

Description

pvc pe vinyl covered steel wire coated iron wire wholesale

Product describe

Hard Drawn Low Carbon Wire has been cold drawn to the required diameter and not subjected to any subsequent treatment process. Often used for plating and coating, it is important that the surface finish of the wire is clean and smooth. It will take moderate bending or flattening, machineability is fair and the wire can be roll threaded. OneSteel Wire have developed a range of products for high speed 2D and 3D bending machines including Truform and Hiform.



OneSteel Galvanised Wire metallic zinc coatings applied by the galvanising process are an effective way of combating corrosion in steel. Galvanised wire for general manufacturing purposes is available in a standard galvanised coating or a heavy galvanised coating. Intermediate Galvanised and Heavy Galvanised coatings are also available on request.

Standard galvanised coatings are smoother, however less corrosion resistant than heavy galvanised coatings









SPECIFICATION









Wire dia: 0.25mm-8mm



Material: carbon steel wire







Zinc coat: 10-60G/M2

Tensile Strength:30kgs-70kgs/mm2
Elongation Rate:10%-25%
Weight:1kgs-600kgs/coil

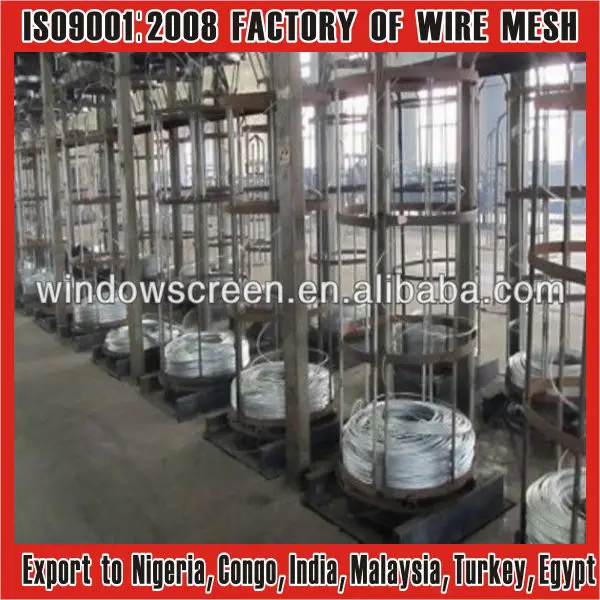

Product flow chart

Polishing wires  Drawing wires  Galvanizing wires



Galvanized Wire
Wire Gauge	SWG(mm)	BWG(mm)	Metric(mm)
8	4.05	4.19	4.00
9	3.66	3.76	4.00
10	3.25	3.40	3.50
11	2.95	3.05	3.00
12	2.64	2.77	2.80
13	2.34	2.41	2.50
14	2.03	2.11	2.50
15	1.83	1.83	1.80
16	1.63	1.65	1.65
17	1.42	1.47	1.40
18	1.22	1.25	1.20
19	1.02	1.07	1.00
20	0.91	0.84	0.90
21	0.81	0.81	0.80
22	0.71	0.71	0.70

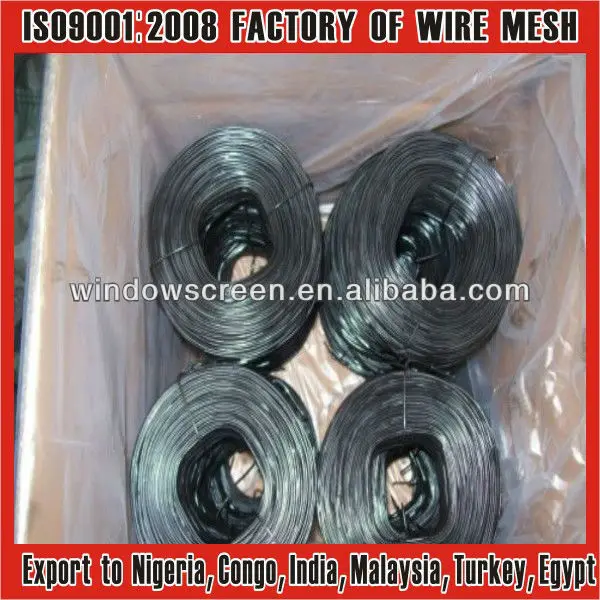

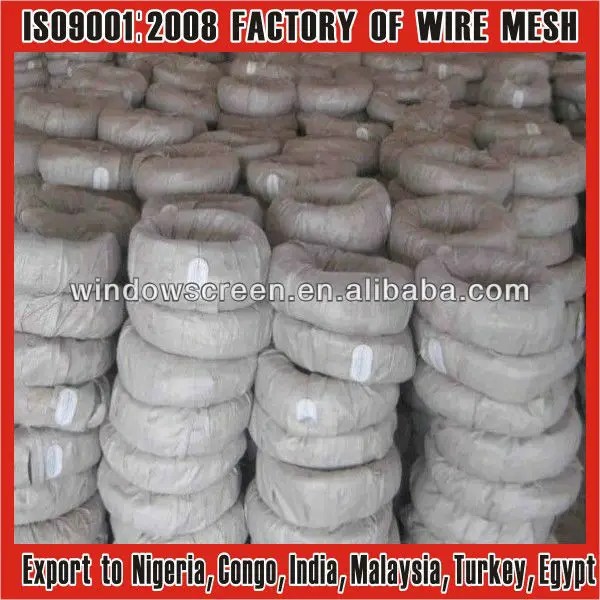

Product packing

10kg-1000kg/coil plastic inside and hessian outside /weave outside.



product using

Plications of galvanized wire: Communication devices, medical treatment equipment, weaving of wire mesh, making of brushes, steel rope, filter wire mesh, high pressure pipes, construction, arts and crafts, etc.
