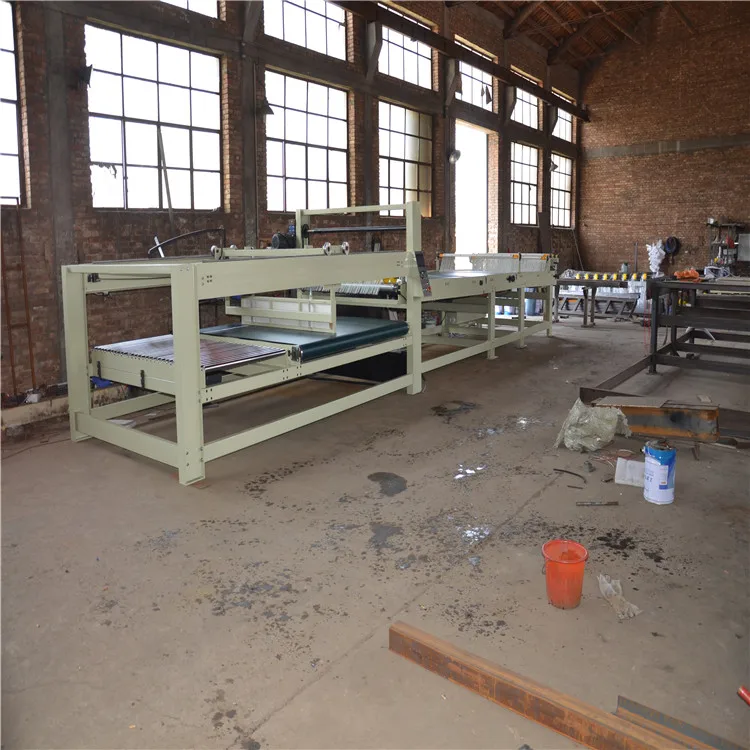

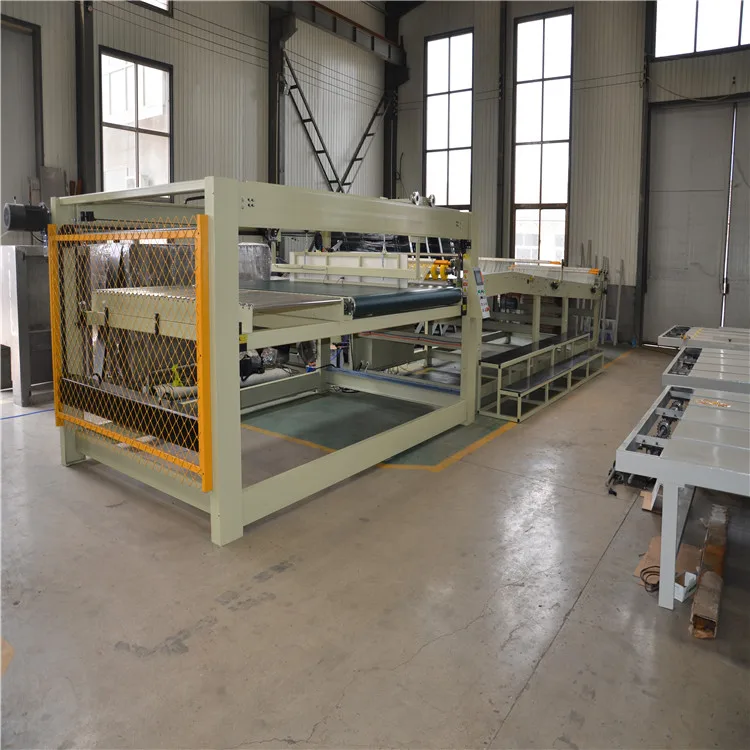

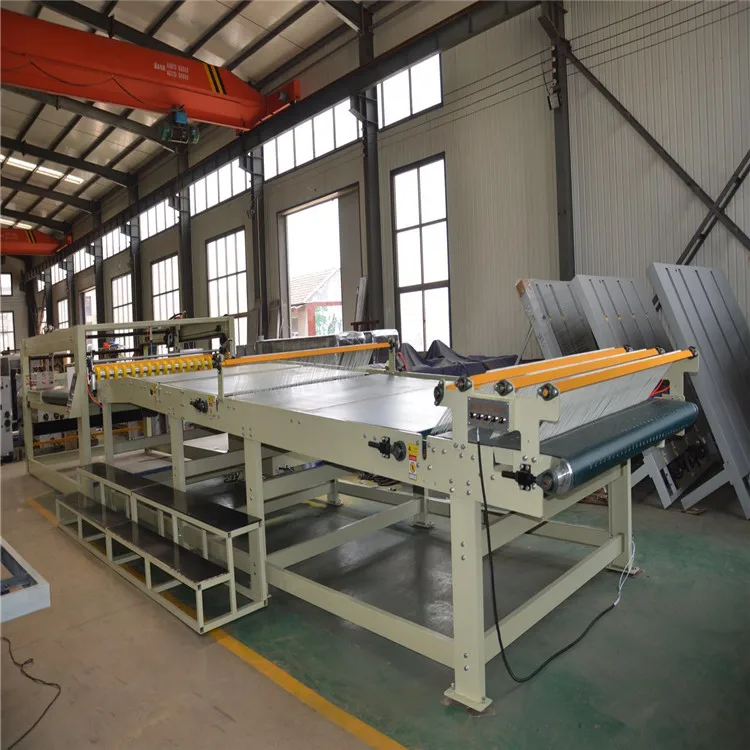

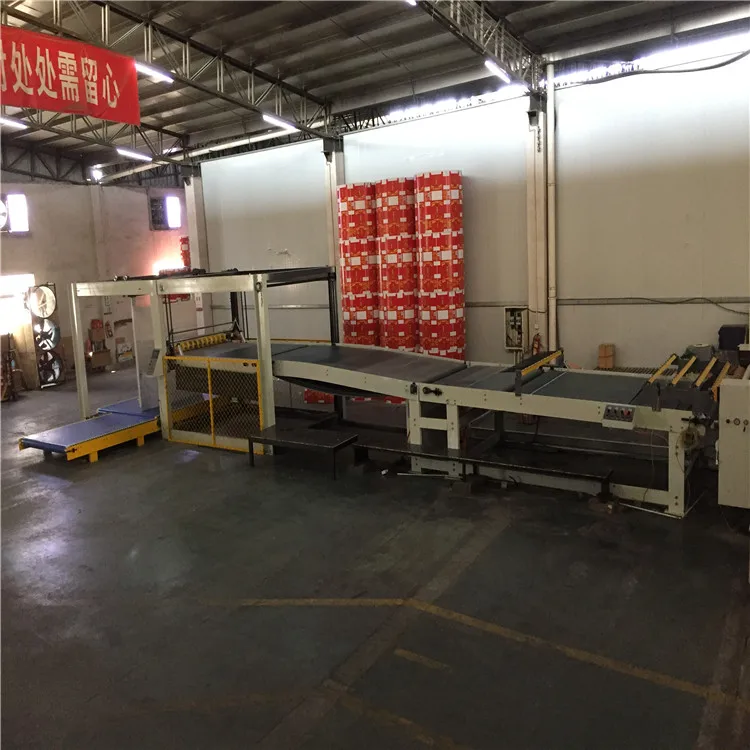

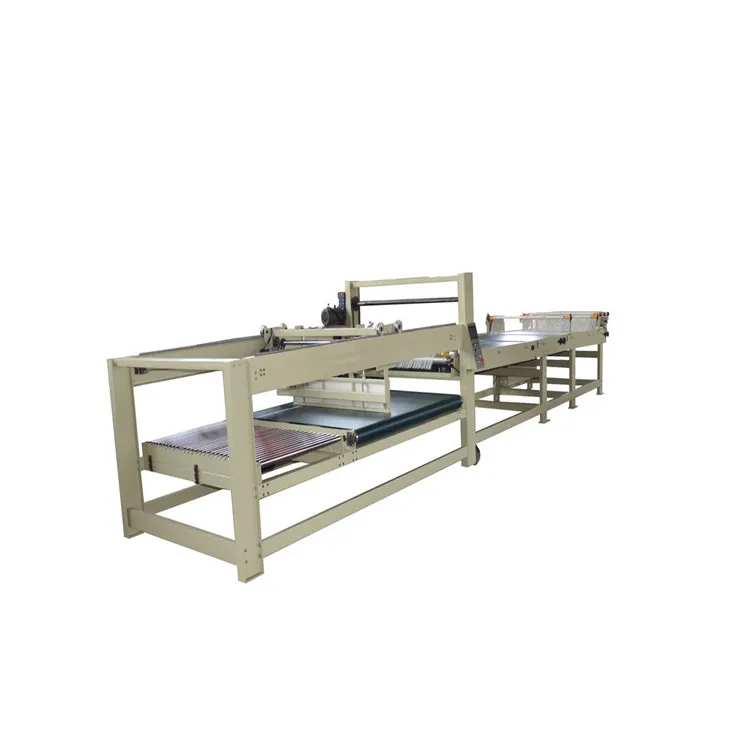

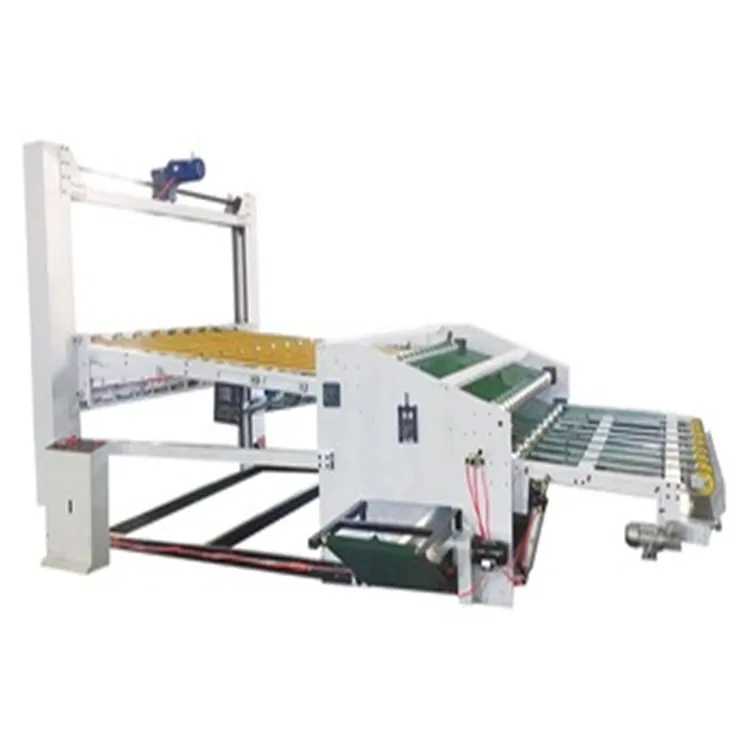

Automatic auto cardboard box making paper sheet paperboard stacking machine gantry stacker for

 Product Descripiton:

Function:

1.Gantry stacking,accurate counting ,automatic stacking changing orders,neat stacking.

 2.Variable frequency motor,freqnency converter control board stack conveyor,conveying speed and paperboard speed synchronization.

3.Automatic counting ,automatically replacing  the stack,changjing the stack,changjing the order accurately,not to hurt the cardboard.

4.Flat board type fixed stacking plateform,acfrequency conversion control gantly plateform lifting,stacking of the number of the set number of frequency conversion control automatically smooth out of paper.

5.The vear baffle AC servo control poistioning ,automatic , fast and accurate adjust when changing the orders.

6.Two rows of stainless steel rollers are arranged on the side of the paper,and the paper is not damaged,so it can be easily rolled,packed and stowed.

7.Stanged industrial air conditioning,electrical equipment in clean,constant temperature and humidity environment.

8.Standard 8″ colour touch screen to facilitate on--site operation and monitoring.

9The stadard communication interface can be connected with the central monitoring and mangement system to realize automatic exchange and order managment.

10.Fully automatic operation control,improve effciency ,save manpower, reduce operator labor inten sity.

11.According to the CE stanged design,the equipment is safe and reliable through SGS ce,certification.

Specifications:

Stacking length:3500mm

Stacking heigh:  1700mm

Stacking speed :200m/min

Effective width:1800,2200,2500mm

Product Standard:

1. Mechanical main beam,upright column adopt high quality heavy steel,channelsteel,square pipe,suface stand blasting,baking paint.

2. The conveyor roller adopts high quality seamless steel tube,precision machining,dynamic balance correction,surface plating hard choromium.

3. The press roller adopts the American PV press roller.

4.Operation monitoring:Taiwan wienview color touch screen.

5. Detection control: Taiwan FATK,PLC,Germany SICK proximity switch,phototlectric Switch,encoder:Low voltage electrical:French Schneider A C Contactor,Circuit breaker,relay,switch button ,etc.

 Q: How does your factory  do regarding uality controlling?

1) All raw material we used are are environmental--friendly.

2) Skillful workes care every details in handing the producing and packing process.

3) Quality control department  are specially responsible for quality in each process.

We prouced high quality products by introducing advanced technologies for over 20 years,and proucts are also widely exported to many different countries including Russia,The middle East,Africa,Southrast Aisa,EV,etc.Earned a high reputation among the customers.

Q;Can I customized the machine form your company?

A:Of course you can ,we can manufacture the machine based on your customsized requirement.
