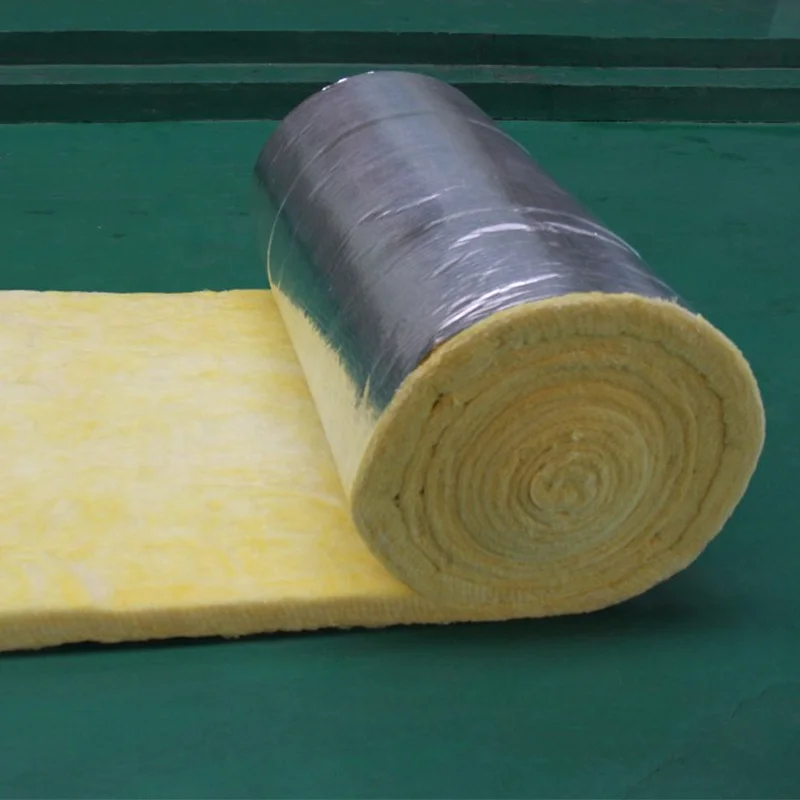

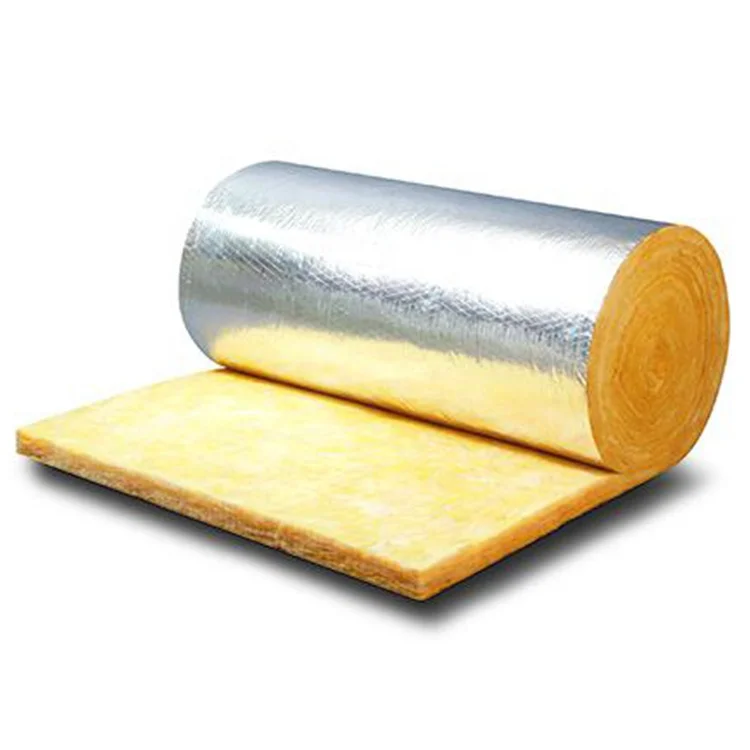

United Insulation metal building wall Insulation glass wool blanket is consisted of long, resilient fibers bonded together with a thermosetting resin to form a lightweight, flexible glass wool blanket. The blankets can be supplied with a factory applied foil vapor barrier (FSK, Vinyl, Foil, WMP, and Kraft Facing) accordingly to project designs or customer's requirement.
AVAILABLE FORMS
Flexible Blanket and Roll
AVAILABLE SIZE
Product Code
Density (kg/m³)
Thickness (mm)
Width (mm)
Conductivty (W/m·K)
R-Value (m²·K/W)
Packing (pcs/PKG)
PKG/40'HQ (No#)
UET MBI 1250
12
50
1200
0.039
1.20
1
Loading Qty, Please consult
UET MBI 1275
12
75
1200
0.039
1.90
1
UET MBI 12100
12
100
1200
0.039
2.50
1
UET MBI 12150
12
150
1200
0.039
3.80
1
UET MBI 12200
12
200
1200
0.039
5.00
1
UET MBI 1650
16
50
1200
0.038
1.30
1
UET MBI 1675
16
75
1200
0.038
1.90
1
UET MBI 16100
16
100
1200
0.038
2.60
1
UET MBI 2450
24
50
1200
0.035
1.40
1
UET MBI 2475
24
75
1200
0.035
2.10
1
UET MBI 24100
24
100
1200
0.035
2.80
1
Conductivity Value tested under temperature in 23°C Consult your local sales representative for other available sizes and specification.
PHYSICAL PROPERTIES OF UET MBI 1650
Tested Content
Tested Method
Tested Value
Density
ASTM C612
16kgs/m³
Thickness
GB/T 17795-2008
50mm
Average diameter of fibers
GB/T 17795-2008
6.8μm
Coefficient of Heat Conductivity
EN12667
0.038W/m·K
Thermal Resistance
ASTM C653
1.30m²·K/W
Average NRC
EN ISO 354
1.00
Maximum Service Temperature
ASTM C411
170°C
Corrosion Resistance
ASTM C665
NO Chemical Reaction
Mold Resistance
ASTM C665
Mildew proof
Moisture Absorption
ASTM C1104
Less 3% by weight
Humidity veneration Rate
ASTM E96
Max 0.013g/24Hours·m²
Non-Combustibility
ASTM E84
Flame Propagation: 25; Flame Diffustivity: 50
AVAILABLE FACINGS
FSK, Vinyl, Foil, WMP, and Kraft Facing is available accordingly to project design.
PACKAGING
Glass wool roll is packed by vaccumed packing. Inner packing is PVC bag, Outside packing is woven fabric bag. It will save transportation cost and save storage space.
STORAGE AND TRANSPORT
Store insulation indoors. Store product under cover and in dry conditions. Handle with care, Products will be damaged if subject to sharp or heavy impact.
QUALITY MANAGEMENT AND SPECIFICATION COMPLIANCE
ISO 9001: 2008, ISO 14001:2004 GB/T17795-2008, EN ISO 354, EN12667, ASTM C653, ASTM C665 With CE Certificate according to standard EN 13162:2008
FIRE PERFORMANCE
Classified as Euroclass A1 to STN EN 13501-1: 2007, and GB/T5464-2010, GB/T14402-2007
FEATURES AND BENEFITS
• Improve the energy efficiency of the building • Reduce transmission of exterior sound to the interior of the building • Absorb reverberating sounds within the building • Provide thermal efficiency • Keep the building warmer in winter and cooler in summer
Keep Cool
Keep Warm
Fire Proof
Moisture Proof
Noise Control
Sustainbility
Save Cost
Health Safe
APPLICATIONS

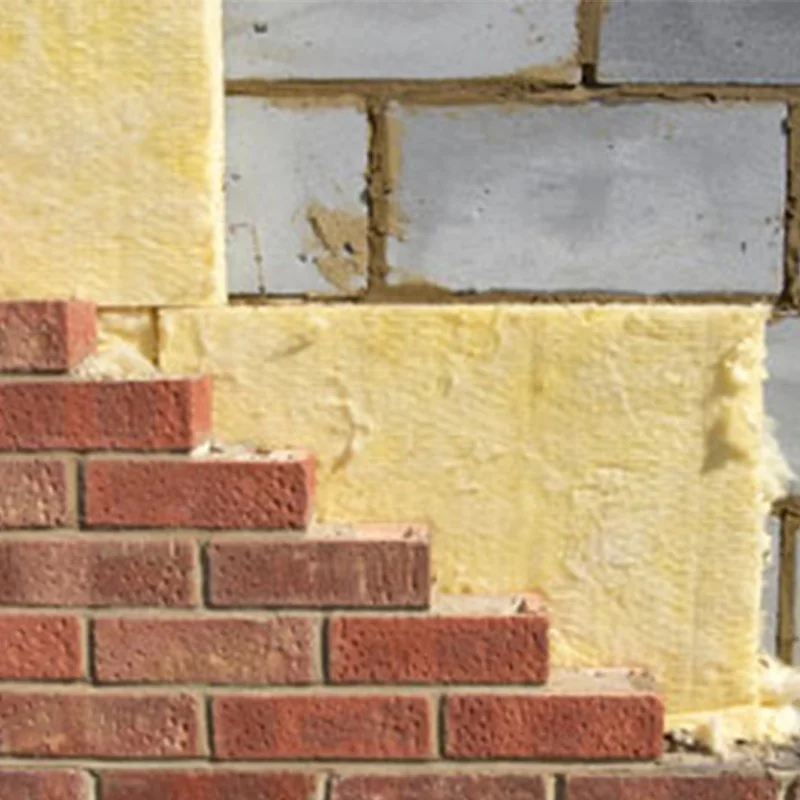

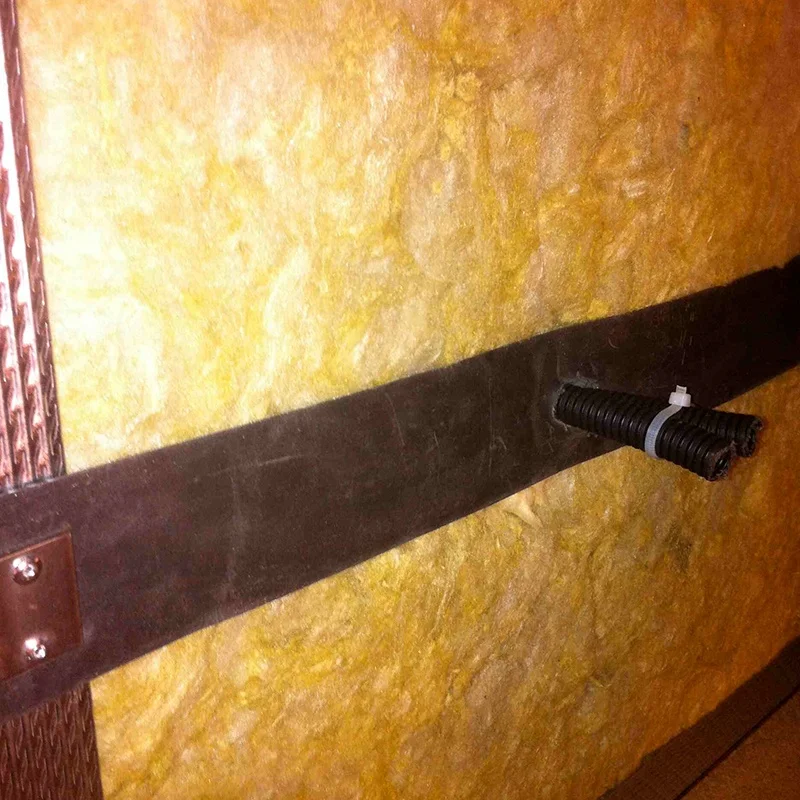

Metal Building Insulation glass wool blanket is designed for use under any roof system supported on purlins with either metal or fibrous claddings, to provide thermal control within the building. The blanket also be used as additional insulation to fill voids in walls and roofs of metal buildings.
NOTICE
Safety first. Follow good safety/industrial hygiene practices during insulation. Wear appropriate personal protective equipment. Read SDS and literature before specification and insulation.
